China Tencan 8L Nano scale powder milling laboratory ball mill manufacturers

Product Overview

Description

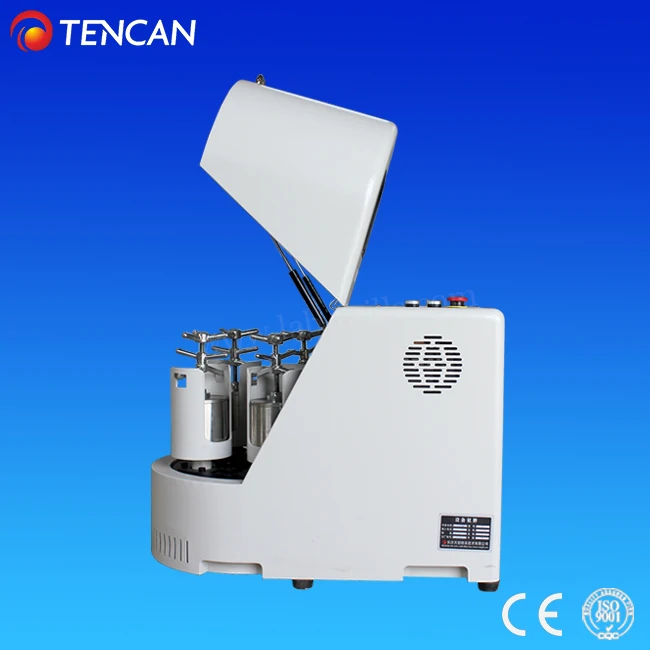

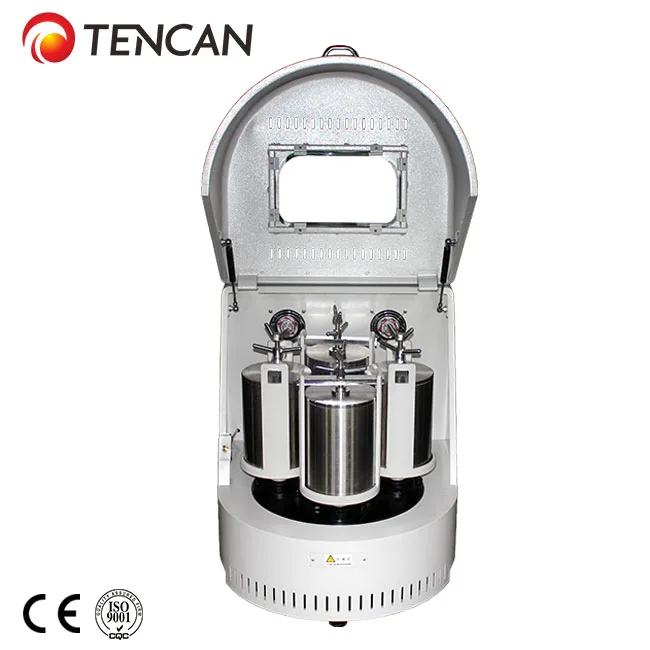

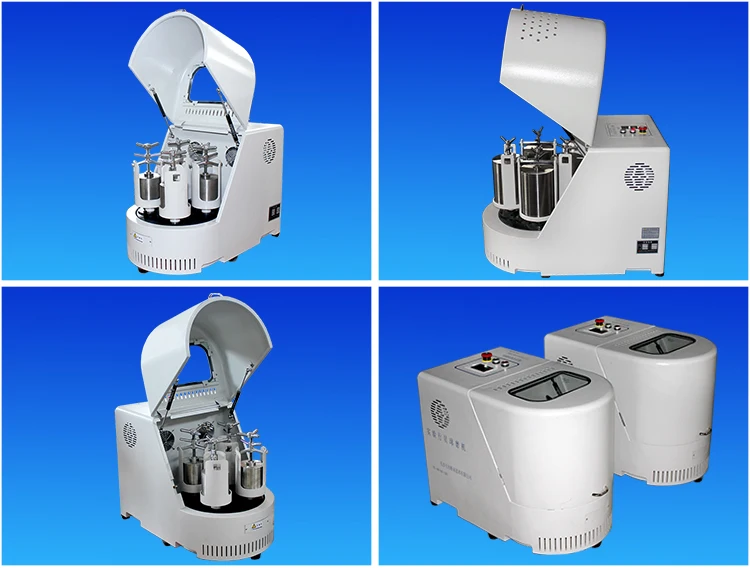

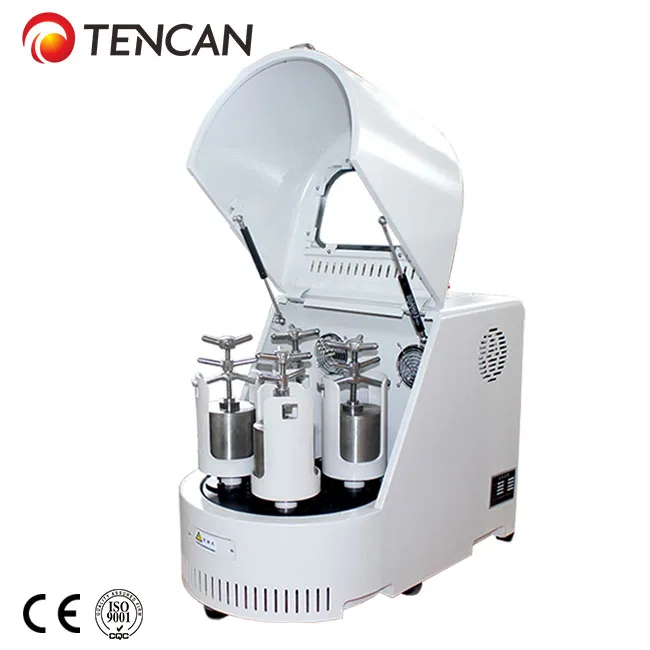

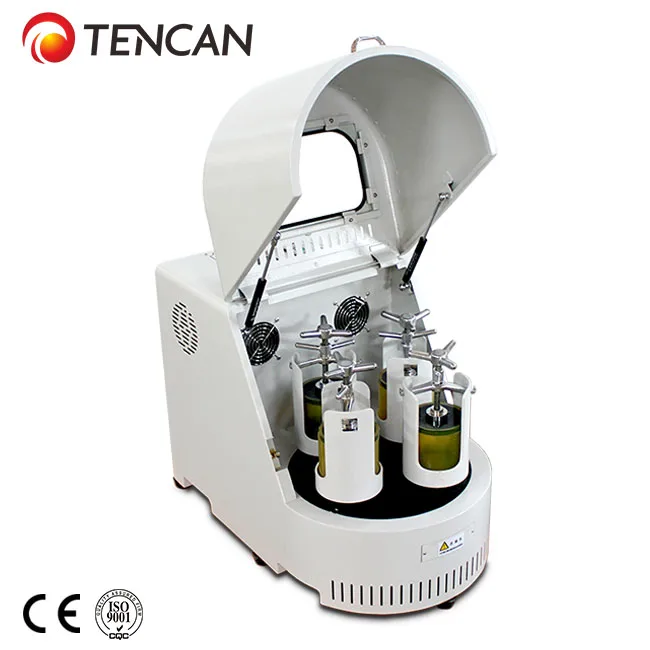

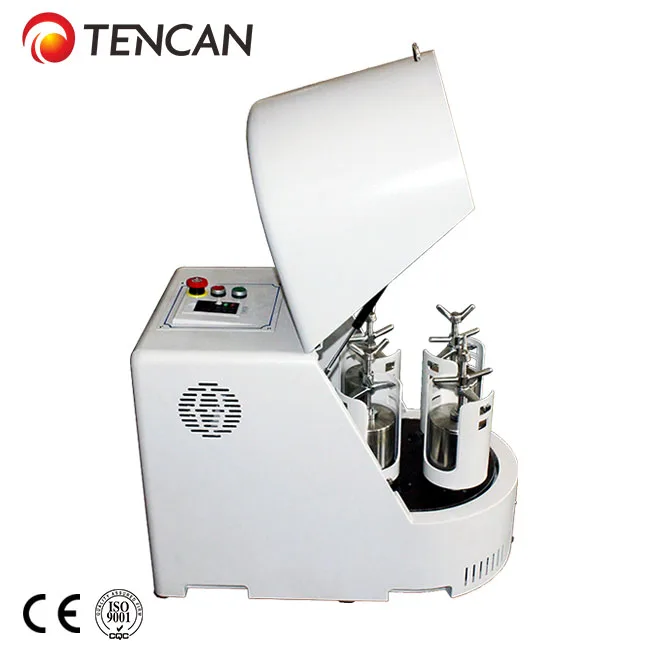

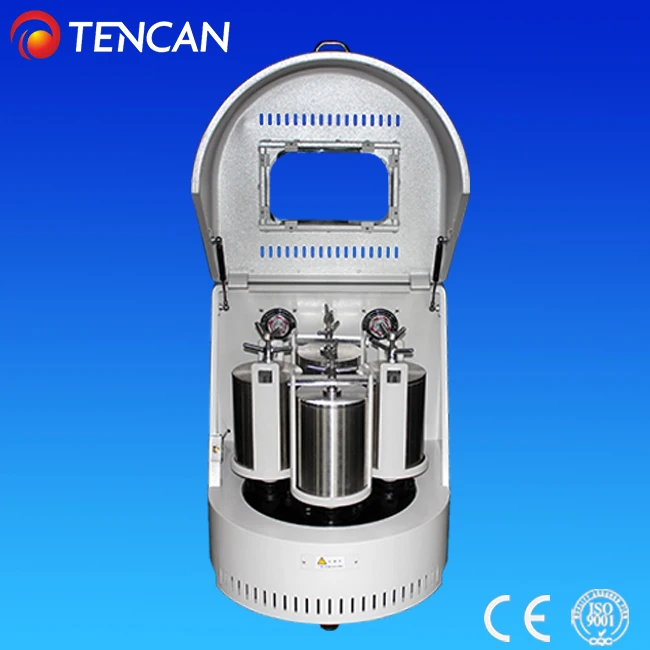

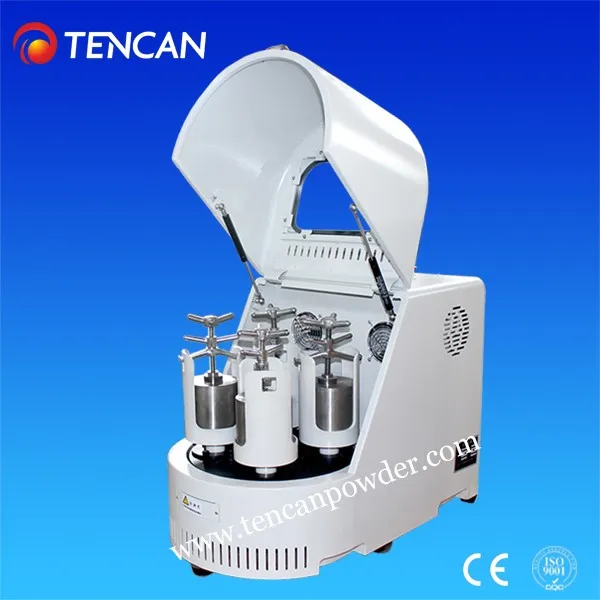

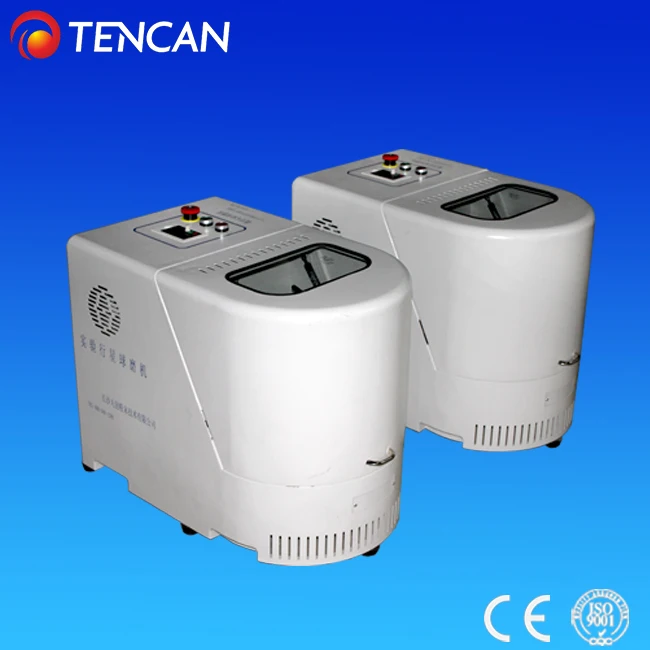

China Tencan XQM-8A Nano scale powder milling laboratory ball mill manufacturers

Overview

Semi-circle Round Laboratory Ball Mill is a necessary machine used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.

Working Principle

Semi-circle Round Laboratory Ball Mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.

Applications

Semi-circle Planetary Ball Mill  is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

Features

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Technical Features

Technical Parameters

Accessories of Mill Jars & Balls

Available Mill Jars:

304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.





Typical Clients



As one of the most professional powder equipment manufacturers in China, TENCAN have won a

high reputation and good recognition both in domestic  and abroad. The following are our cooperate

clients.

After Sales Service for planetary ball mill/ ball milling machine
1)One year guarantee for whole machine except of ball mill jars and

balls.Some accessories we have 18-36 months warranty.
2) We shall make prompt response to any problem about the machine within 24 hours if you have.
3) We shall provide 6-day 8-hour services for all our clients and subscribers, and shall provide

    trouble-shooting solutions until the fault is completely eliminated.
4) If the machine is found any fault or problem, please do not hesitate to notify us the details about

    faults, caused reasons and status. We shall do our great efforts to solve according to following

    terms:

a. Common faults:

Common faults refer to failure of non critical parts or improper configuration that effects partial

operation or leads to Inconvenience of machine operation. We shall solve such problems by email

or posting parts by courier.



b. Serious faults:

Serious faults refer to failure of key parts or improper configuration that influence running or

operating of machine widely. We shall firstly diagnose reasons of faults by email or phone, then,

shall send replacement of parts by courier, until solve the problems. Courier freight shall be for

our account within quality warranty period.











•

  What’s your warranty?


  One-year warranty period is provided. If any problem while you are using the machine, you may contact Service Hotline: 0086 13357214760  for after-sale service.




•

  Does your ball mill get to nano scale powder?


  It depends on property of material and grinding process you set. Generally, most of materials can be ground into nano scale powder. Meanwhile, we provide sample grinding experiment free of charge if you send us sample of your material.




•

  What’s the delivery time?


  We have lots of regular Models in stock. Packing can be done within 3 working days after your full payment is confirmed. Delivery time is about 5 days by courier. Therefore, you are expected to get the equipment in about 10 days after your payment confirmed.




•

  Can you provide testing service of grinding powder experiment before we place order?


  Yes. Sample powder testing is available for any customer who sends material to us, and powder testing is also free of charge.




•

  Are you trade company or factory?


  We are one of the largest manufacturers of powder mills and laboratory equipment in China.




•

  I need a mill machine for lab use, what’s your minimum type?


  The minimum type is 0.4L planetary ball mill, ModelXQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 1L to 100L for your options.




•

  Do you have mills for black carbon grinding?


  We have customers who bought our planetary ball mills for black carbon grinding, as the black carbon is easy to sink and get together in the bottom of the mill jar, we recommend the full- directional planetary ball mill for black carbon grinding. According to the feedbacks from our customers, the model of full-directional planetary ball mill solved the above mentioned problems successfully.
