19 x 2 BE BD Rule Die Steel for Turkey market

Product Overview

Description



19 x 2 BE BD Rule Die Steel for Turkey market







♦ Specification

AE	AD	BE	BD	TE	TES
19×2.0	19×2.0	19×2.0	19×2.0	-----	-----
19×2.5	-----	19×2.5	19×2.5	-----	-----
32×2.0	-----	32×2.0	32×2.0	32×2.0	-----
-----	-----	-----	-----	-----	32×2.2
32×2.5	-----	32×2.5	-----	32×2.5	-----
-----	-----	32×3.0	-----	32×3.0	-----
-----	-----	50×2.5	-----	50×2.5	-----

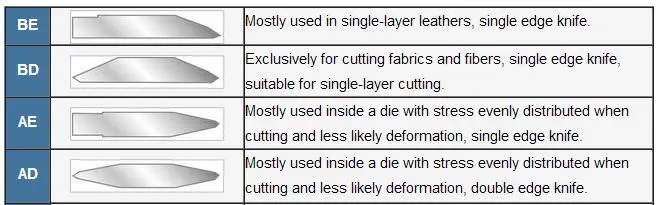

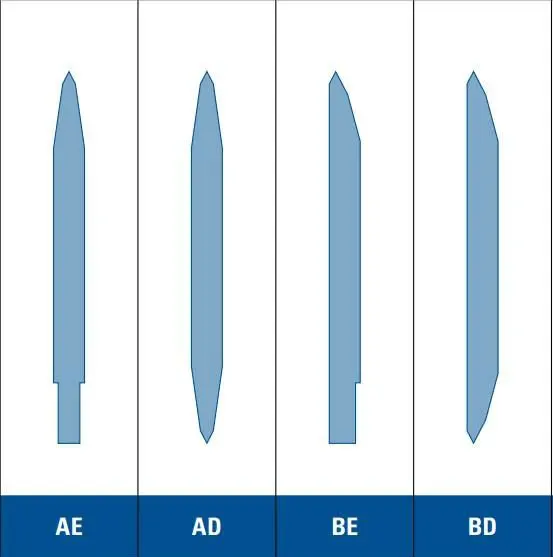

♦ Cutting Profile





BE is the basic type profile for cutting single-layer leather or the similair materials.



BD (double edge profile) for lether cutting



AE is the symmetric profile for single-layer cutting



AD is double edge symmetric profile for leather cutting





♦ Hardness

Thickness	Body Hardness	Edge Hardness
2.0mm	HRC 36-38	HRC 52-53
2.2mm	HRC 36-38	HRC 52-53
2.5mm	HRC 36-38	HRC 52-53
3.0mm	HRC 36-38	HRC 52-53













♦ Bending angle

Thickness	2.0mm	2.2mm	2.5mm	3.0mm
Bending angle	120o	100o	100o	100o











♦ Packing

Thickness	2.0mm	2.2mm	2.5mm	3.0mm
Packing	80m/coils	80m/coils	80m/coils	60m/coils









♦ Application

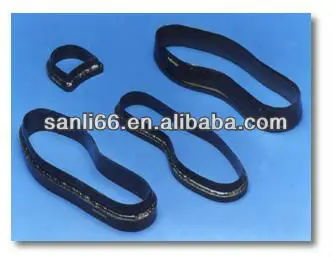

Usually used in shoes making, leather, artificial leather, textiles, rubber, plastics, fabrics and ect.





♦ Technical Spec

SANLI Steel Rule combines Excellent Bendability and Ideal Hardness. The HF-treated cutting edge guarantees long cutting life. The edge is sharpened by a grinding process which provides a sharp and clean finish.
