G NiceRF SV6202 3km Uart RS485 Si4432 long range 433 radio modem 2w long range rf module
- Category: >>>
- Supplier: NiceRF Wireless Technology Co. Limited
Share on (60102855820):
Product Overview
Description

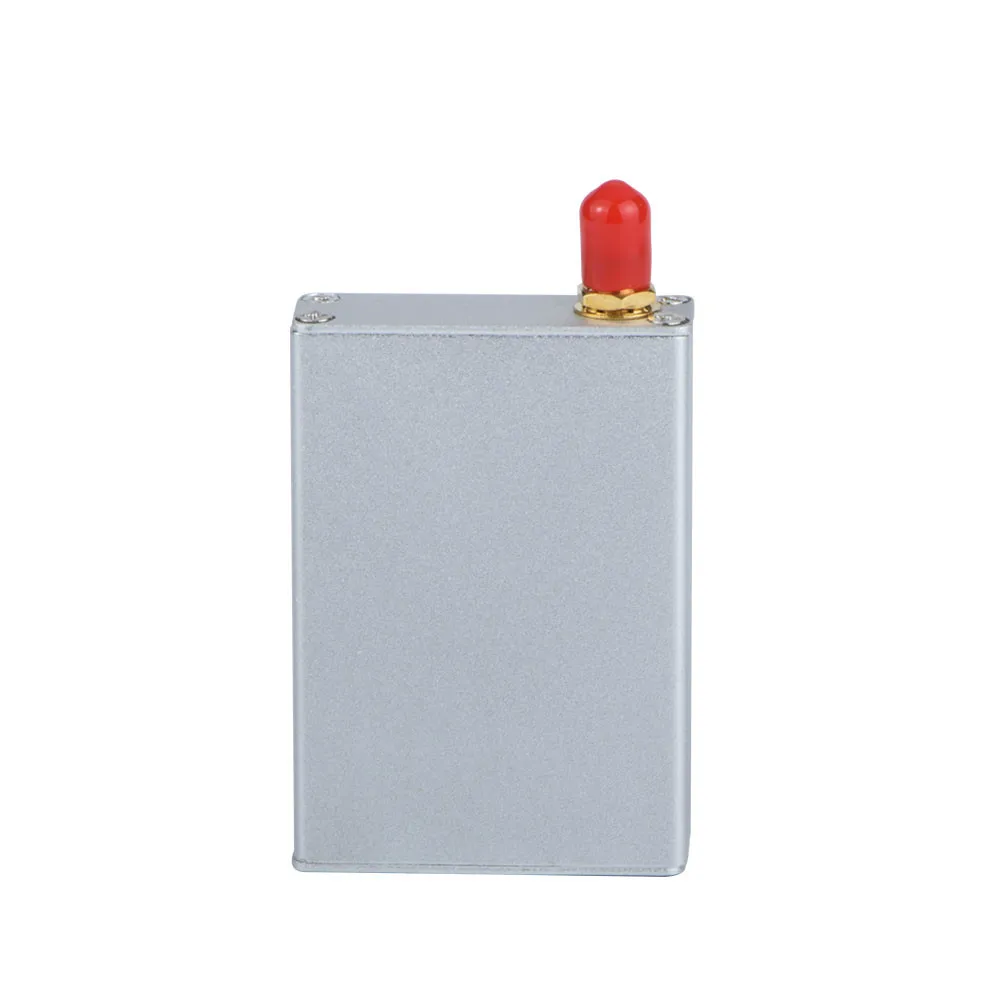

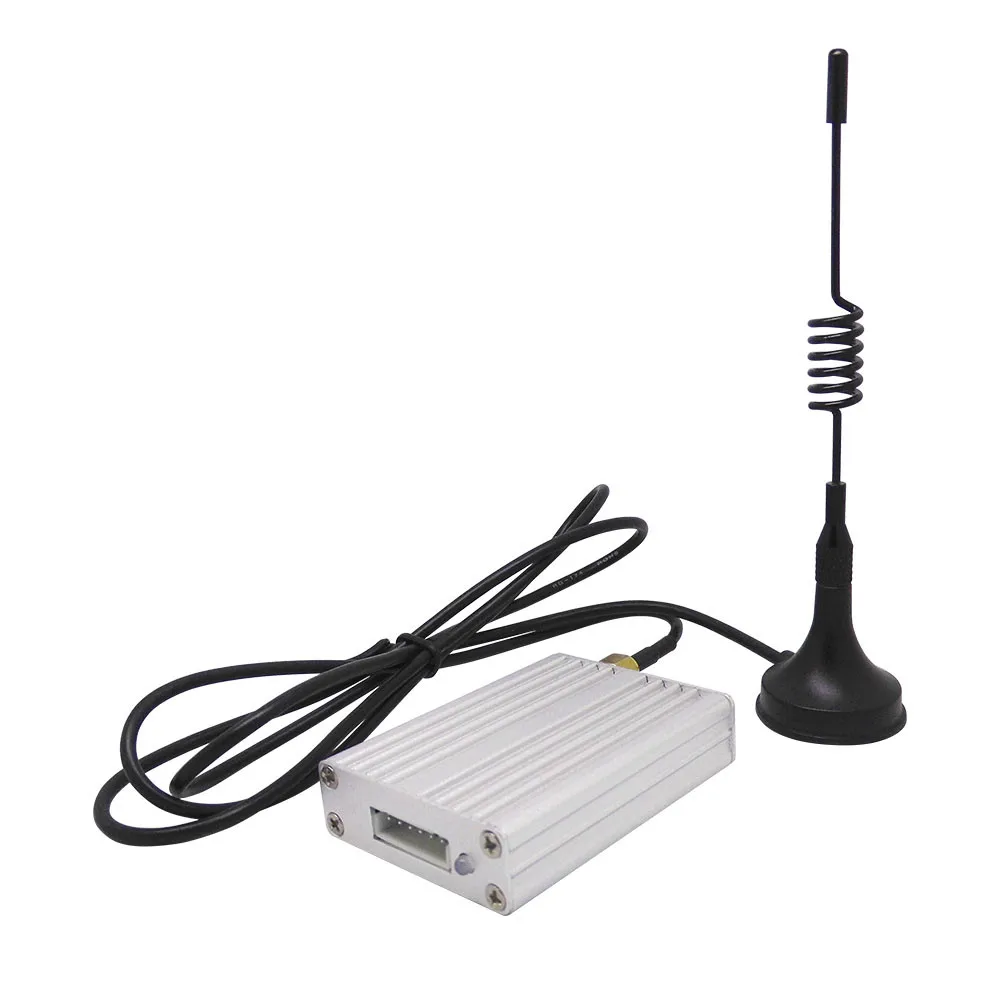

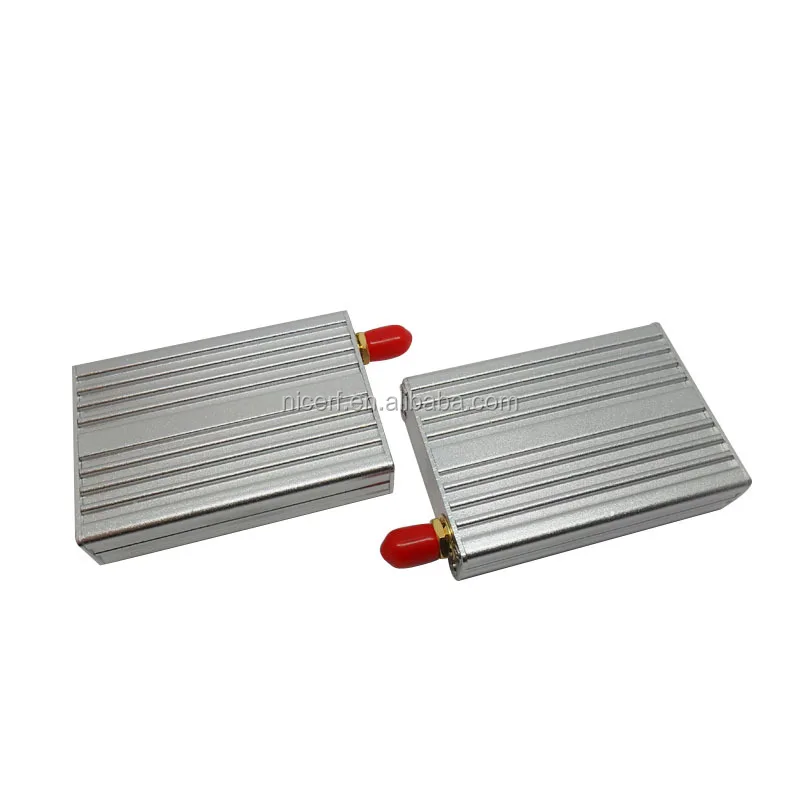

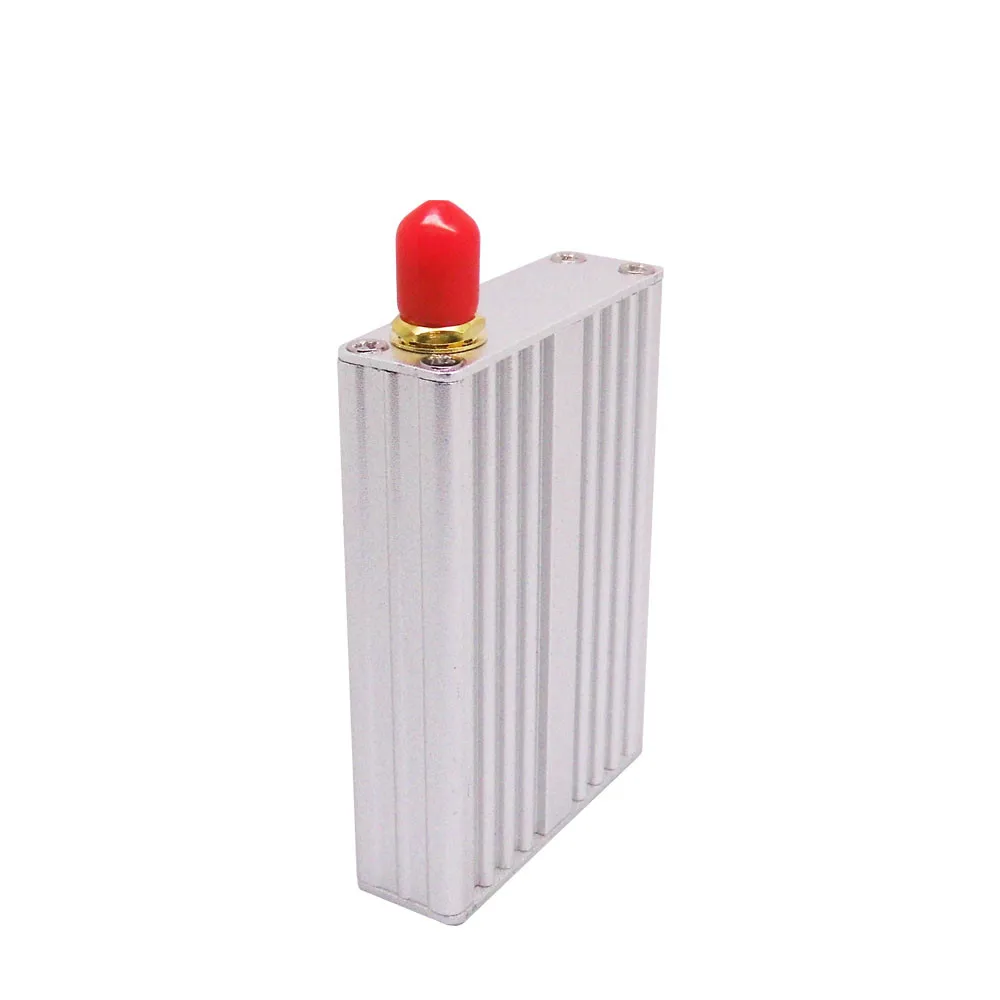

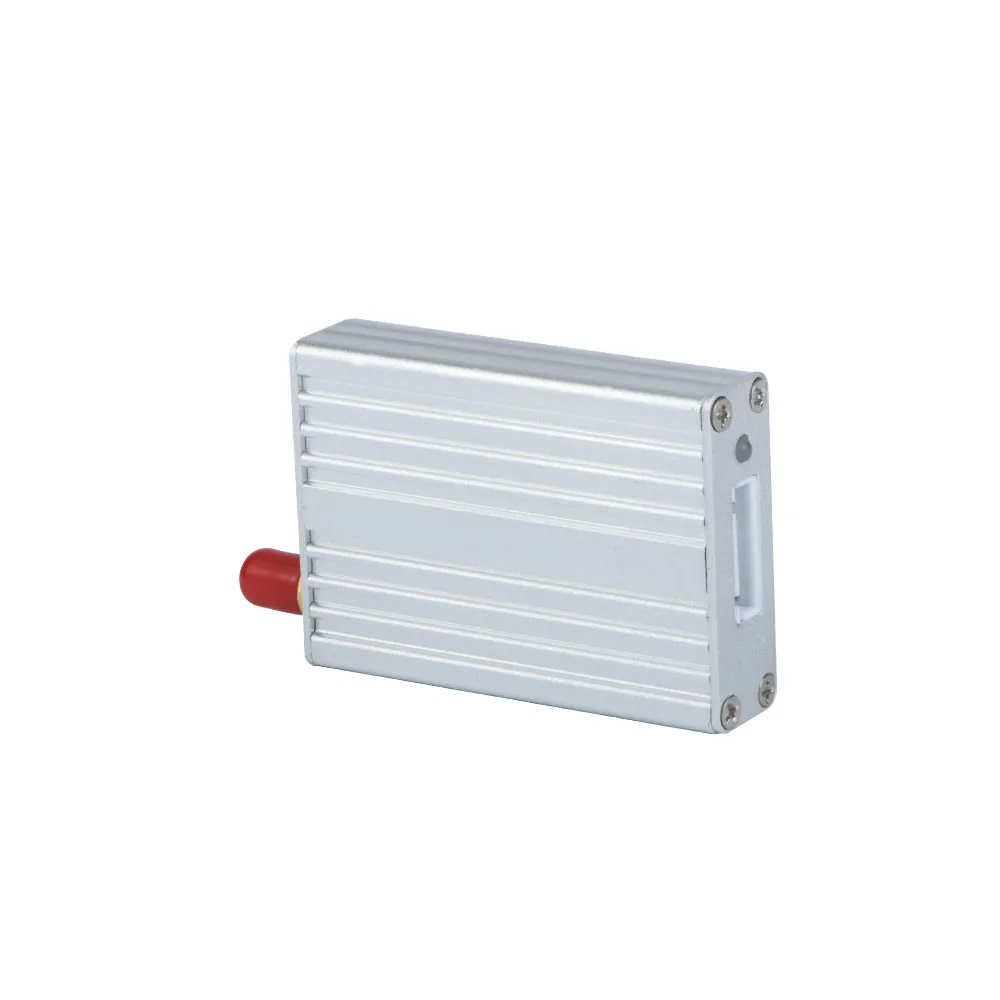

G-NiceRF SV6202 - 3km Uart RS485 Si4432 long range 433 radio modem 2w long range rf module
Product Description

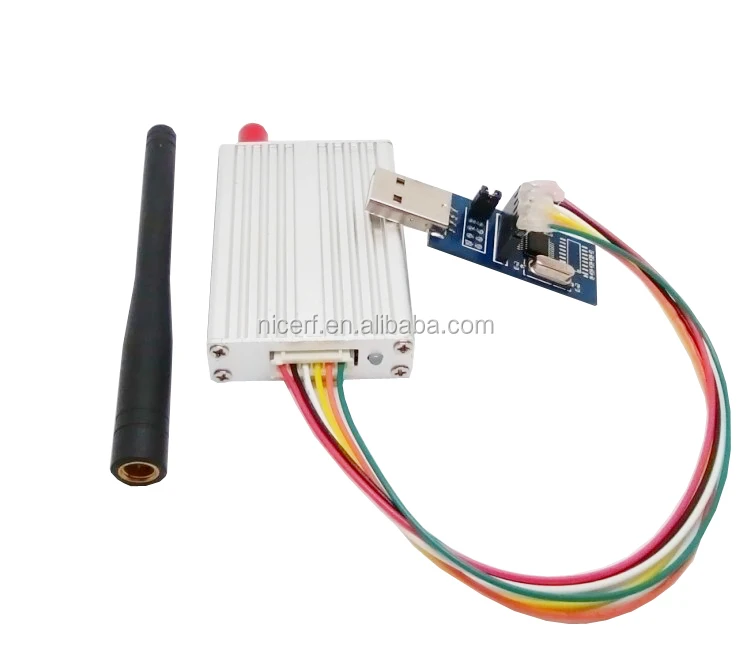

SV6202 is highly-integrated RF module, which adopts high performance Si4432 from Silicon Labs. It has 3 optional Interface (TTL, 232, 485). SV6202 has high sensitivity and 2W output power to achieve long RF range and reliable RF communication. SV6202 comes with many parameters which are configurable, such as: frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer’s own device. The features of long distance,wide working voltage and simple parameters configuration make SV6202 wildly used in many fields.
Specifications:
Parameter | Min. | Typ. | Max. | Unit | Conditions |
Operation conditions | |||||
Supply Voltage | 4.5 | 5.0 | 6.5 | V | TTL |
4.5 | 5.0 | 5.5 | 232/485 | ||
Operating Temperature | -40 | 25 | +85 | ℃ | |
Current consumption | |||||
RX Current | 25 | mA | TTL | ||
34 | mA | 485 | |||
32.7 | mA | 232 | |||
TX current | 900 | mA | @27dBm | ||
Sleep Current | ≤5 | uA | |||
RF parameter | |||||
Frequency | 414.92 | 433.92 | 453.92 | MHZ | @433MHZ |
470.92 | 470.92 | 509.92 | MHZ | @470MHZ | |
849.92 | 868.92 | 888.92 | MHZ | @868MHZ | |
895.92 | 914.92 | 934.92 | MHZ | @915MHZ | |
Air data rate | 1.2 | 9.6 | 115.2 | Kbps | GFSK |
Output power | 13 | / | +33 | dBm | |
Sensitivity | -121 | dBm | @1.2kbps | ||
Feature:
* 433/470/868/915 MHz (Customizable 240-930 MHZ)
* Interface: TTL/RS232/RS485 ( Optional )
* 40 channels
* 4 bytes net ID
* 2 bytes node ID
* Multiple air data rate
* GFSK modulation
* Bi-Direction communication
* Parameters configurable
* Parameters saved even powered off
* Sensitivity: -121 dBm
* Max output power:500mW
* Voltage:2.8 ~ 6.0 V / TTL
* Voltage:4.5 ~5.5 V / 232,485
* Temperature:-40 ~ +85 °C
Company Profile
NiceRF is a technical company which engaged in researching, developing, producing and selling IOT(internet of things) products.We devoted ourselves on providing good RF modules, walkie talkie modules and integrated digital sensor modules. Meanwhile, ODM and OEM projects are welcomed.With more than 10 years experience of product design in RF and sensors, we have earned a good reputation among our customers.
Our Advantage
Packaging & Shipping
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with our own R&D team, and all of our products are developed in-house.
Q: Do you offer technology support?
A: Yes, we provide technology support and ODM & OEM services.
Q: Do you provide samples?
A: Yes, we offer paid samples and can send out the package promptly.
Please leave positive feedback and a 5-star rating if you are happy with our products and services.
If you encounter any issues, please reach out to us before leaving negative feedback.
We will strive to resolve any problems and provide excellent customer service.
If you need further assistance, feel free to contact us.
