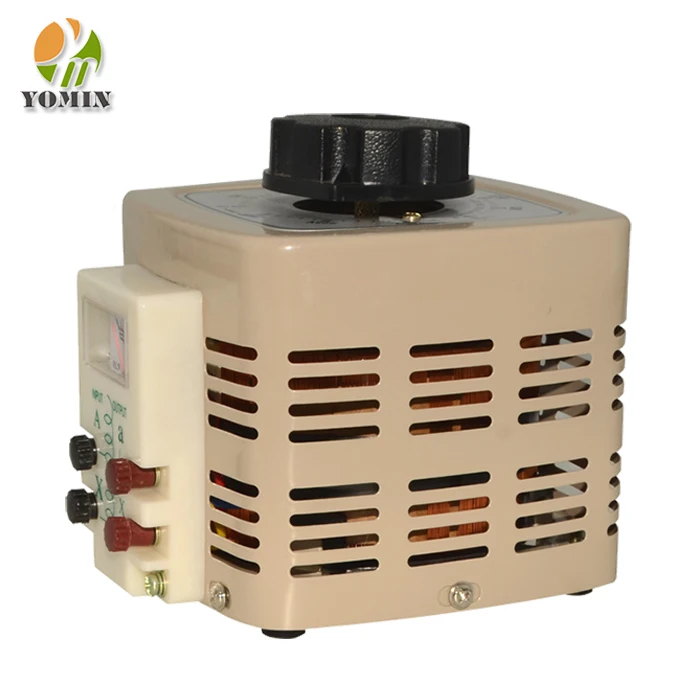

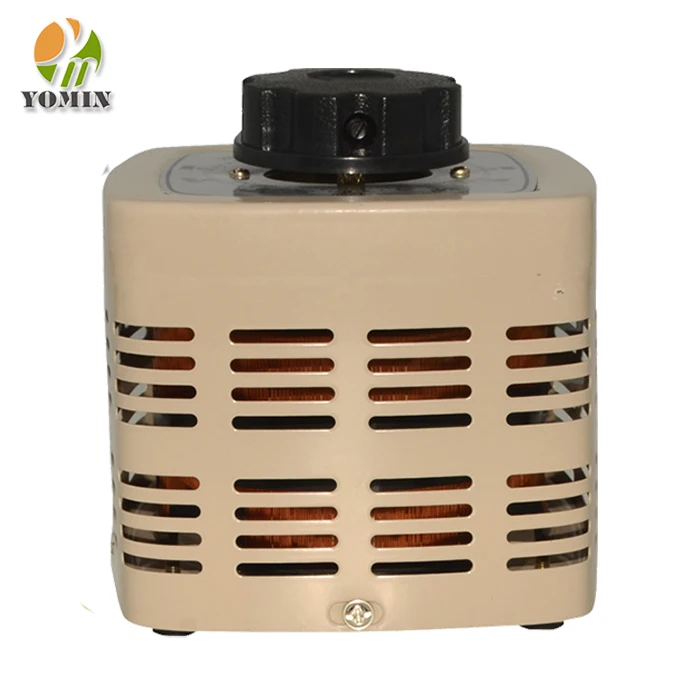

Manufacturer 0 250V Output 20A Regulator , Single Phase Variac 5000VA High Quality Voltage Regulator
- Category: >>>
- Supplier: Yueqing Yomin Electric Co. Ltd.
Share on (60103063792):
Product Overview
Description
0-250V Out 20A Single Phase Variac Voltage Regulator
Model: TDGC2-5
Product Description
Variac are used to adjust the voltage from 0 volts up to the maximum voltage for which they have been designed and among the most usuall applications. No additional wave from distortion. The main applications are:
- Laboratory control equipment.
- Lighting equipment.
- Temperature controls.
- Motor speed control.
- Controlling of other transformers.
- Etc.

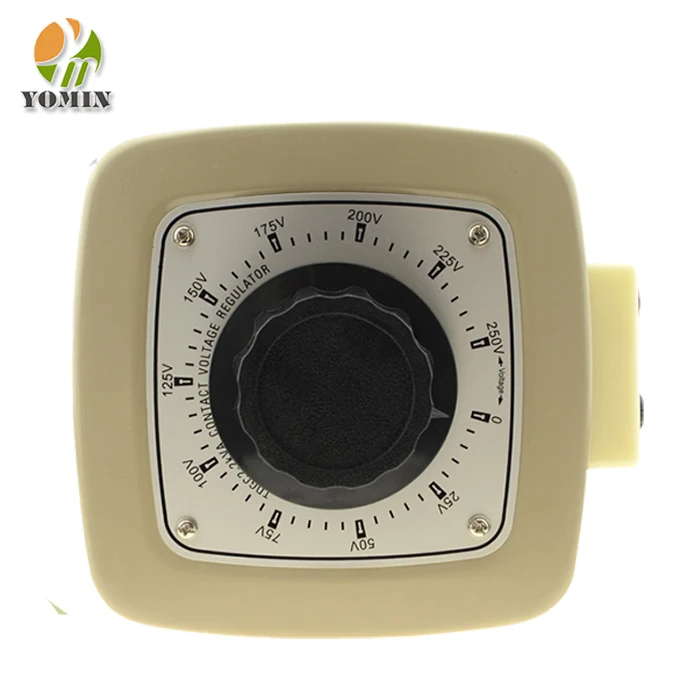

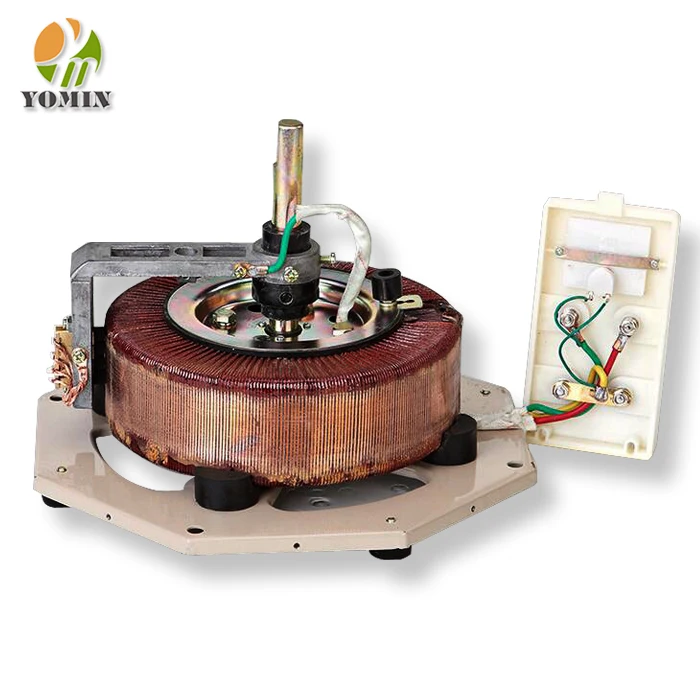

Manually Operated Rotary Knob to control output voltage, by means of a control button on the shaft of the Variac which allows to act on the brush and achieve the desired voltage. The voltage can be smoothly varied between turns as the brush has a relatively high resistance (compared with a metal contact) and the actual output voltage is a function of the relative area of brush in contact with adjacent windings.
Specifications
- Capacity.............................................................5000VA
- Output Current..................................................20A
- Output................................................................0~250V AC
- Frequency..........................................................50/60Hz
- Input.....................................................................220V AC
- Insulation Resistance......................................>5MΩ
- No. of Phase......................................................Single-Phase
- Winding Material...............................................100% Copper
- Max.Temperature..............................................60℃
- Insulation Class................................................Class B (130 ℃)
- IP/NEMA Rating.................................................IP20
- Variable Operation............................................Manually Operated Rotary Knob
- Portable Carrying Grip.....................................Provided
- Pollution Rating................................................Class III

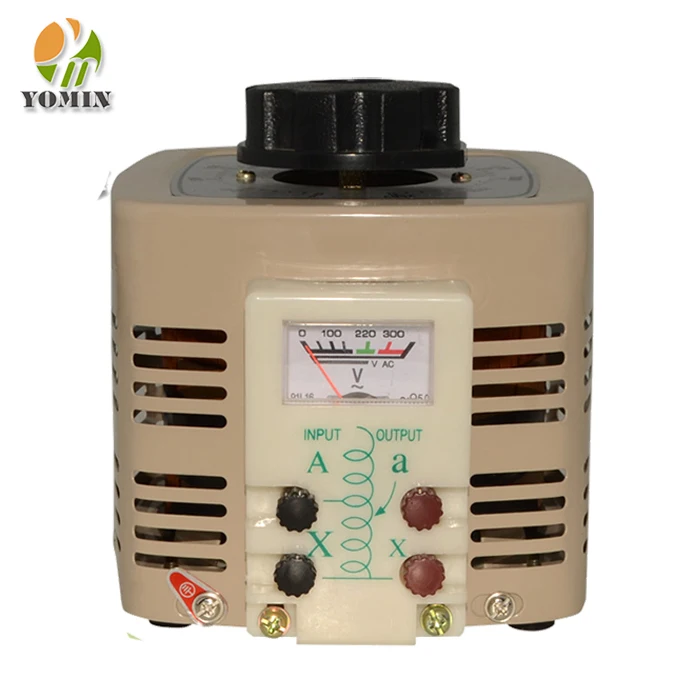

- Analog Voltmeter Display...............................Provided
- Housing Material...............................................Shock-Proof Metal
- Voltage Setting..................................................Manual Control
- Standards............................................VDE0550, IEC204-1, IEC61588, EC439
- Sample Service.................................................Pay to Provide
- Quality Assurance............................................18Months
- Item Condition...................................................Brand-New
Selection Form
| Item | Capacity | Input Voltage | Output Voltage | Output Current | Case Qty. |
| Model | (kVA) | (V) | (V) | (A) | (Pcs.) |
| TDGC2-0.2 | 0.2 | 220 | 0~250 | 0.8 | 12 |
| TDGC2-0.5 | 0.5 | 220 | 0~250 | 2 | 6 |
| TDGC2-1 | 1 | 220 | 0~250 | 4 | 4 |
| TDGC2-2 | 2 | 220 | 0~250 | 8 | 4 |
| TDGC2-3 | 3 | 220 | 0~250 | 12 | 2 |
| TDGC2-5 | 5 | 220 | 0~250 | 20 | 1 |
| TDGC2-7.5 | 7.5 | 220 | 0~250 | 30 | 1 |
| TDGC2-10 | 10 | 220 | 0~250 | 40 | 1 |
| TDGC2-15 | 15 | 220 | 0~250 | 60 | 1 |
Packaging & Shipping
Packaging variac always be very important to our customers, especially when we tranport these expensives devices from our location to customer's locations, We make each variac packaged by tailor-made foam which have enough support to our variac.
All means of shipping are supported, by Air, by Sea, by courrier.
