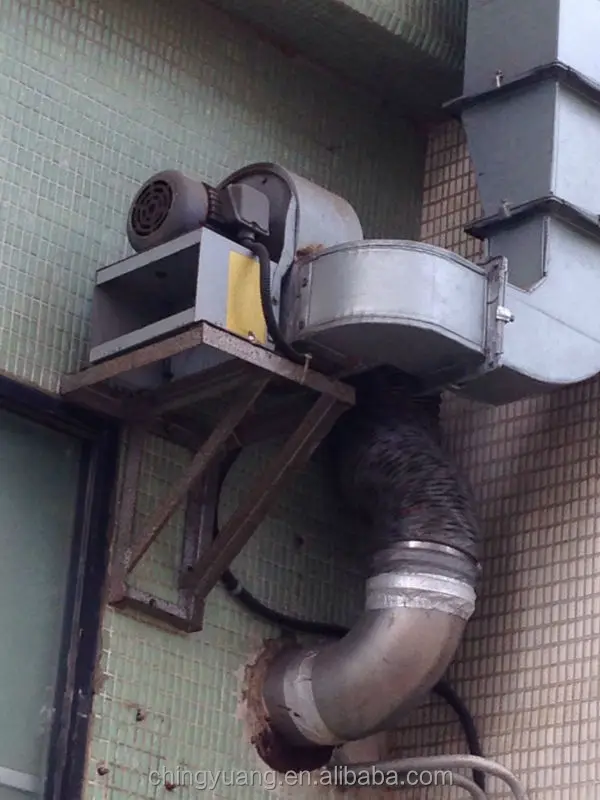

Taiwan Manufacturer JOUNING UF 312B UFO series small centrifugal exhaust fan blower standing ventilator 2 inline fan blower
- Category: >>>
- Supplier: CHING YUANG ENTERPRISE CO. LTD.
Share on (60103480427):
Product Overview
Description

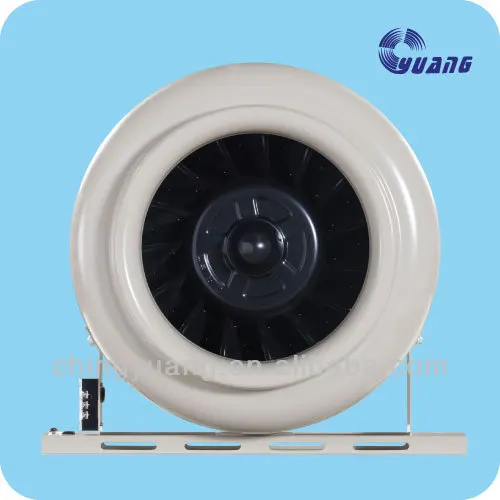

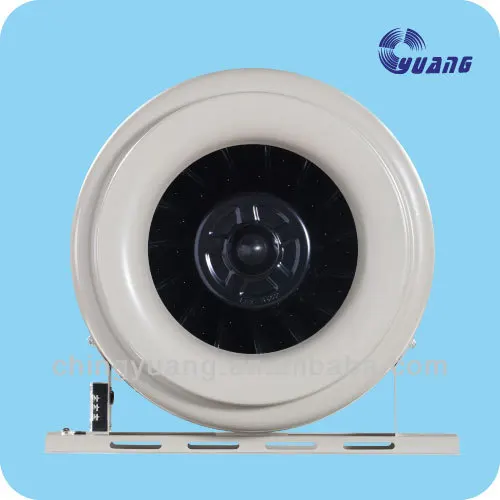

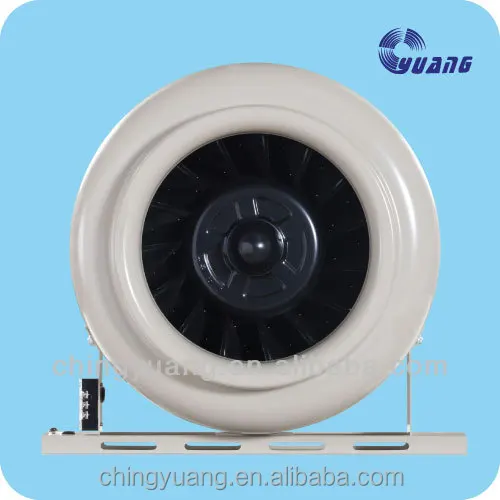

Taiwan Manufacturer JOUNING UF-312B UFO series small centrifugal exhaust fan blower standing ventilator 2 inline fan blower.
Features
- 2 inline fan blower
- Small centrifugal exhaust fan blower
- Mounted vertically or horizontally
- Both equip in front duct or in end of duct, or arrange in the duct of compress wind.
The new thinking has harnessed the quiet control power of the directly driven centrifugal fan.
Simply designed outer housing to produce straight "UFO: air flow.
Smalls .compacts and sturdiness fans which incorporates a down-stream guide vane.
Permitting on excellent pressure performance.
Specification
| Model | Voltage | Frequency | Phase | Poles | Speed | Current | Input | Static Pressure | Air Flow | Blade. dia | |
| V | Hz | ψ | P | RPM | A | W | mm/Aq | m³/min | m/m | Kg | |
| UF-240 | 115/230V | 50/60 | 1 | 2 | 2760/3100 | 0.75/2.0 | 145/195 | 38/56 | 5.3/6.1 | 270 | 3.3 |
| UF-250 | 115/230V | 50/60 | 1 | 2 | 2560/2680 | 145/195 | 145/195 | 35/48 | 7.0/7.6 | 270 | 3.3 |
| UF-260 | 115/230V | 50/60 | 1 | 2 | 1400/1630 | 0.5/0.9 | 75/80 | 20/14 | 5.7/6.7 | 305 | 3.8 |
| UF-280 | 115/230V | 50/60 | 1 | 2 | 1370/1580 | 1.0/1.8 | 155/170 | 17.5/25.5 | 11.5/13.5 | 350 | 4.3 |
| UF-306A | 115V | 50/60 | 1 | 2 | 2850/3300 | 1.2/1.56 | 170 | 29/41 | 8.0/9.2 | 232 | 3.6 |
| UF-306B | 230V | 50/60 | 1 | 2 | 2850/3300 | 0.58/0.76 | 125/170 | 29/41 | 8.0/9.2 | 232 | 3.6 |
| UF-310A | 115V | 5 50/60 0 | 1 | 4 | 1400/1630 | 1.52/1.66 | 170 | 18/25 | 15.5/18.3 | 354 | 8.4 |
| UF-310B | 230V | 50/60 | 1 | 4 | 1400/1630 | 0.61/0.71 | 125/165 | 18/25 | 15.5/18.3 | 354 | 8.4 |
| UF-310H | 115/230V | 50/60 | 1 | 2 | 2050/2060 | 2.0/2.6 | 385/470 | 62/80 | 25/25.3 | 354 | 12.8 |
Product Uses
- Ventilation for room, basement and warehouse.
- Small enclosed office.
- Bathroom or laundry rooms etc.
- Breakthrough in development of in-line, Tube or pipe fans.
- Installed anywhere inside cupboards, false ceilings, conservatories, insolated room.
- Mounted at the in-take or extract of the system.
Company Introduction
ABOUT US
CHING YUANG was founded in 2002 and is specialized in manufacturing some industrial products,
such as high watt LED lighting.
All of our products are made in Taiwan.
Our excellent products have already sold to several countries: Japan, Southeast Asia, Middle East
and some European countries.
And we get high reputation for our quality and after-sales service from there.
ABOUT US

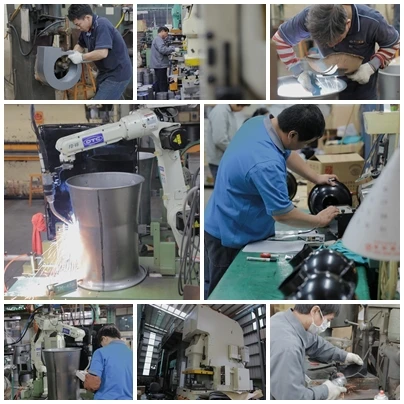

Jouning Blower Co., Ltd. was established in 1968.We have produced various blowers, specialized
in blades, fan wheels & industrial fans.
Our excellent products have been sold to the domestic market in Taiwan and all over the world such
as Japan, Southeastern Asia, Middle East, Australia,America & European countries.
Now we will keep unceasingly developing new turbo fan, jet flow air mover, with our outstanding
technology & cooperative attitude, we offer best design & excellent service for our clients.

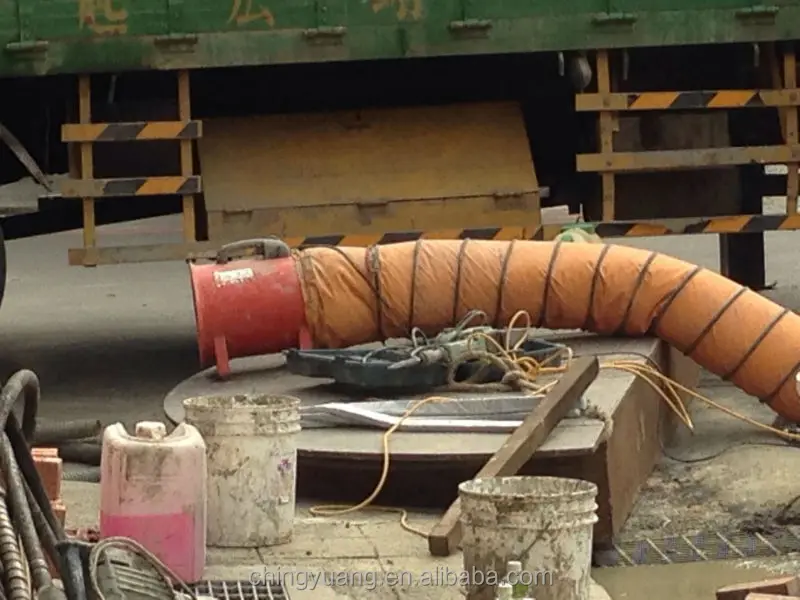

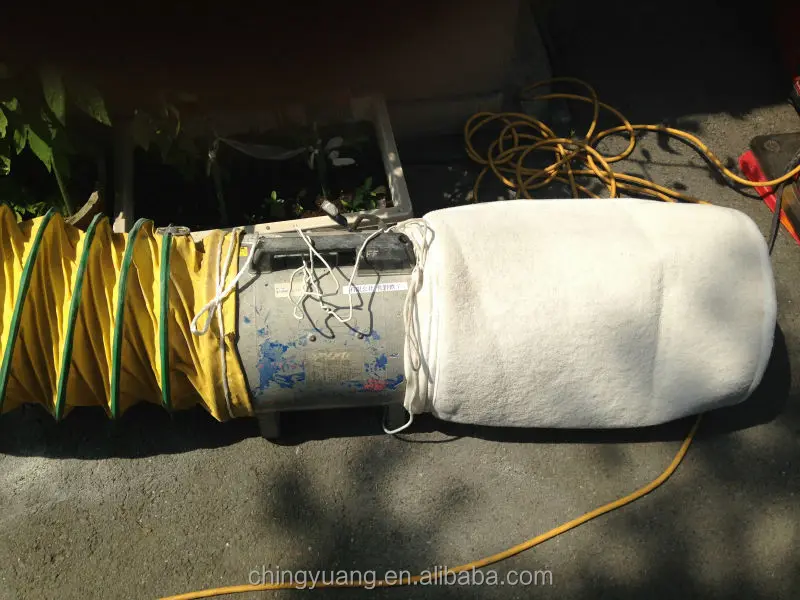

Application
Road construction
Disaster response
Police
Military
Sport area
Parking lot
Factory
Constrict site...etc
Blower for divider
Basement
Ventilation for mine
Underground
Wokshop
Gas exhaust
Hotel kitchens
Warehouse
Marines...etc

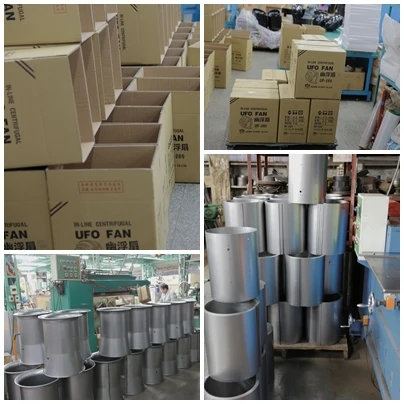

Packaging & Shipping
