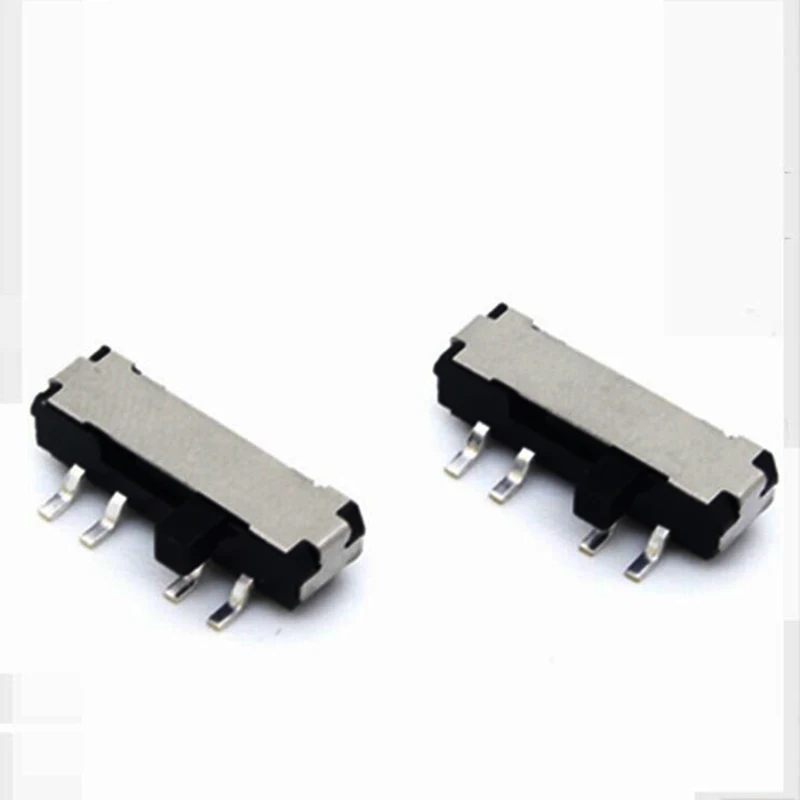

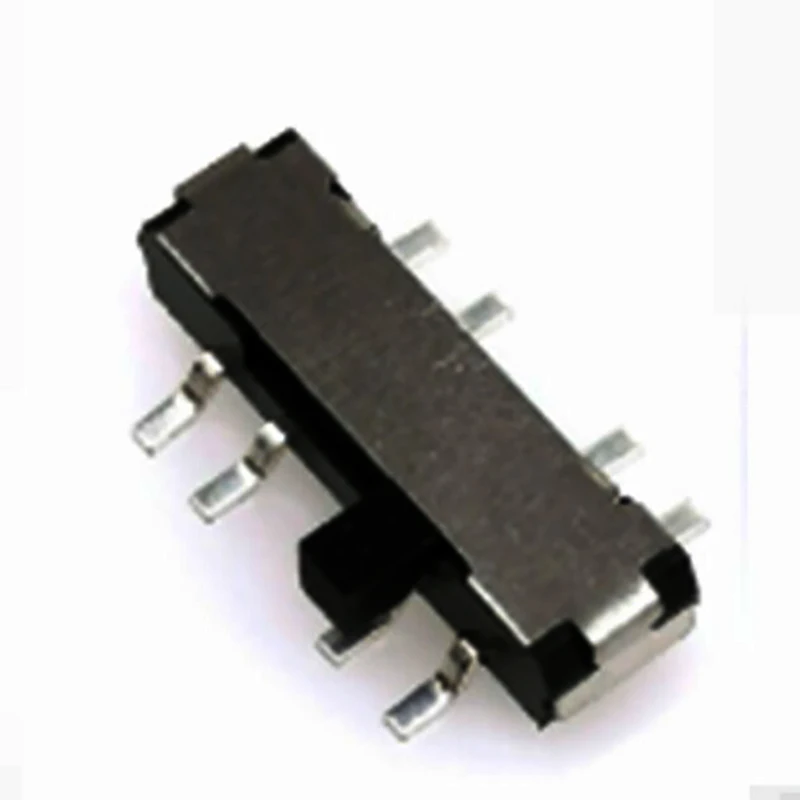

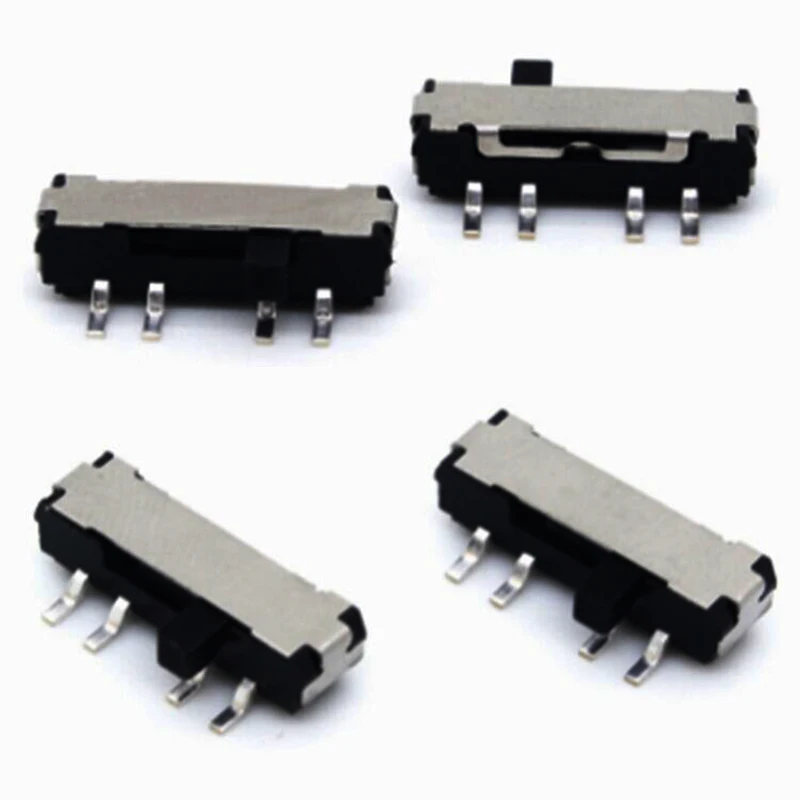

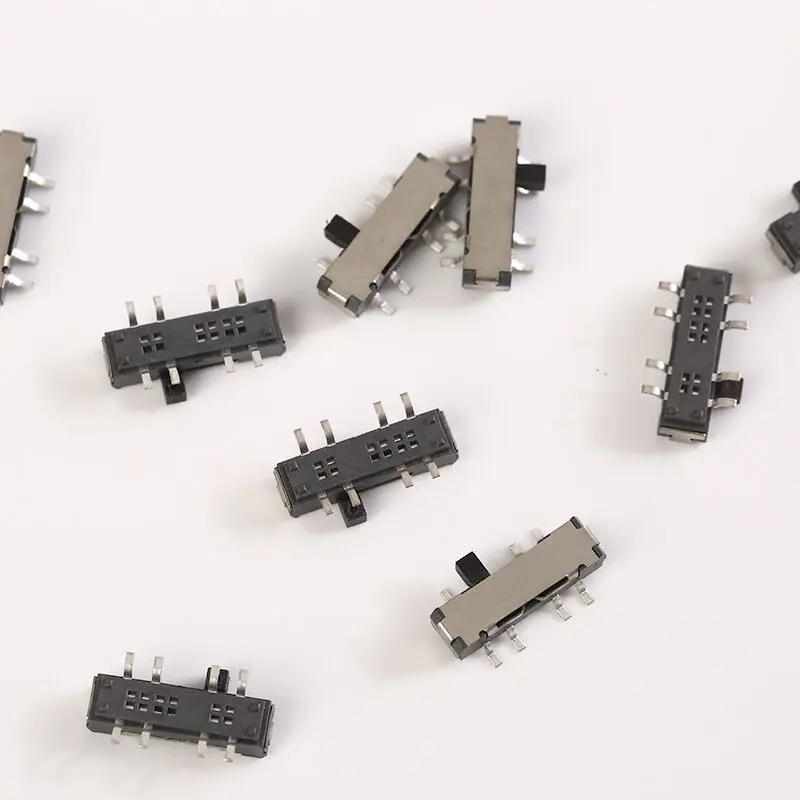

SMD side push mini slide switch 8 pin

Slide Switch

Specification

Rating

0.3A 6V DC

Contact resistance

100mΩ max

Insulation resistance

10MΩ min at 250V DC

Dielectric strength

AC 500V for 1 min

Lifespan

10,000 Cycles

Practical temperature range

-25 to 70 degrees Celsius

RoHS

Yes

[Warm Tips]All informations above are for reference only; Particulars of all items are base on individual specification.
