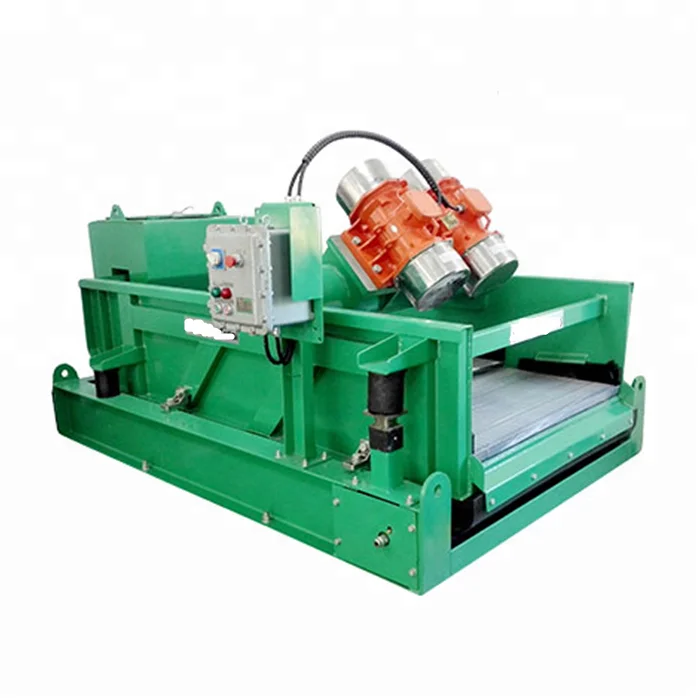

Drilling Fluid ZS832 Linear Type Shale Shakers
Drilling Fluid ZS832 Linear Type Shale Shakers
Drilling Fluid ZS832 Linear Type Shale Shakers

Drilling Fluid ZS832 Linear Type Shale Shakers

Share on (60103917265):


Price:$1,500.00

Quantity:


Product Overview

Description




Product Description

This drilling fluid shale shaker has high vibration intensity, large vibration screening area, adjustable screen box Angle,  compact structure, excellent performance and  high cost performance, etc

Features:

A. small volume, light weight, easy installation, easy maintenance, use ANSNY finite element analysis,       optimization of structure design.
B. low noise, less energy consumption, high efficiency, SS304 or Q345 material, imported vibration         motor.
C.  high precision screening , no dust pollution
D. a variety of vibrating sieve avalible, sieve box machine, heat treatment on the surface of heavy-           duty coatings, long service life.

Model

 ZS833

ZS633

 ZS703

  ZS852

 ZS832

Vibration tracks

Linear type

Linear type

Linear type

Linear type

Linear type

 Motor Power

 2×1.8/1.72KW

 2×1.5KW

 2×1.72KW

 2×1.5KW

 2×1.3KW

 Vibration Intensity

 ≤7.0G

 ≤7.0G

 ≤7.6G

 ≤7.6G

 ≤6.5G

Two amplitudes

 5.5~6.0mm

 5.5~6.0mm

 6.0~7.2mm

 6.0~7.2mm

  5.5~6.0mm

 Single Screen throughput

 140m3/h615GPM

 120m3/h528GPM

 120m3/h528GPM

 90m3/h396GPM

 80m3/h352GPM

 Screen box angle adjustment

  -1°~5°

  -1°~5°

  -1°~5°

  -1°~5°

  0°~3°

 Motor frequency and voltage

 380V/50HZ,460V/60HZ

 Screen area

 2.7 m2

 2.4  m2

 2.6  m2

 2.1  m2

 1.8 m2

 Screen

specification



 830×1080mm×3

(40~250mesh)

 630×1250mm×3

(40~250mesh)

 700×1050mm×3

(40~250mesh)

 850×1080mm×2

(40~250mesh)

  830×1080mm×2

(40~250mesh)

 Mesh number

 3

 3

 3

 2

 2

 Cofferdam height

 746mm

 Vibration Noise

 <85db

 Start container

Magnetic start container

 weight

 1880kg

 1680kg

 1680kg

 1480kg

 1300kg

 Note

The single screen throughput is tested under mud  S.G. 1.2g/cm3,viscosity is 45s ,40mesh screen.
