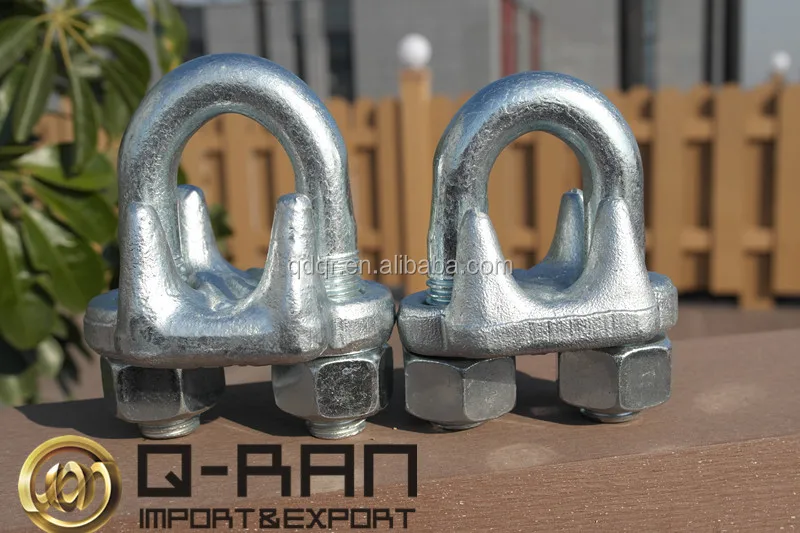

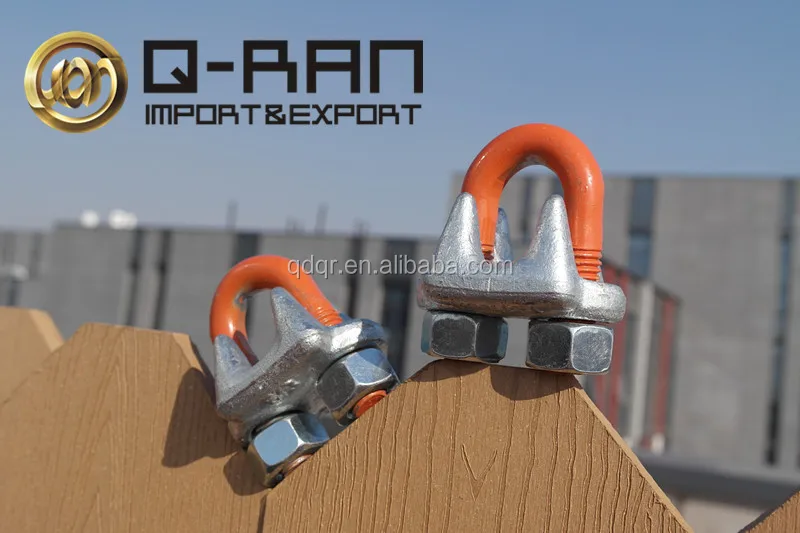

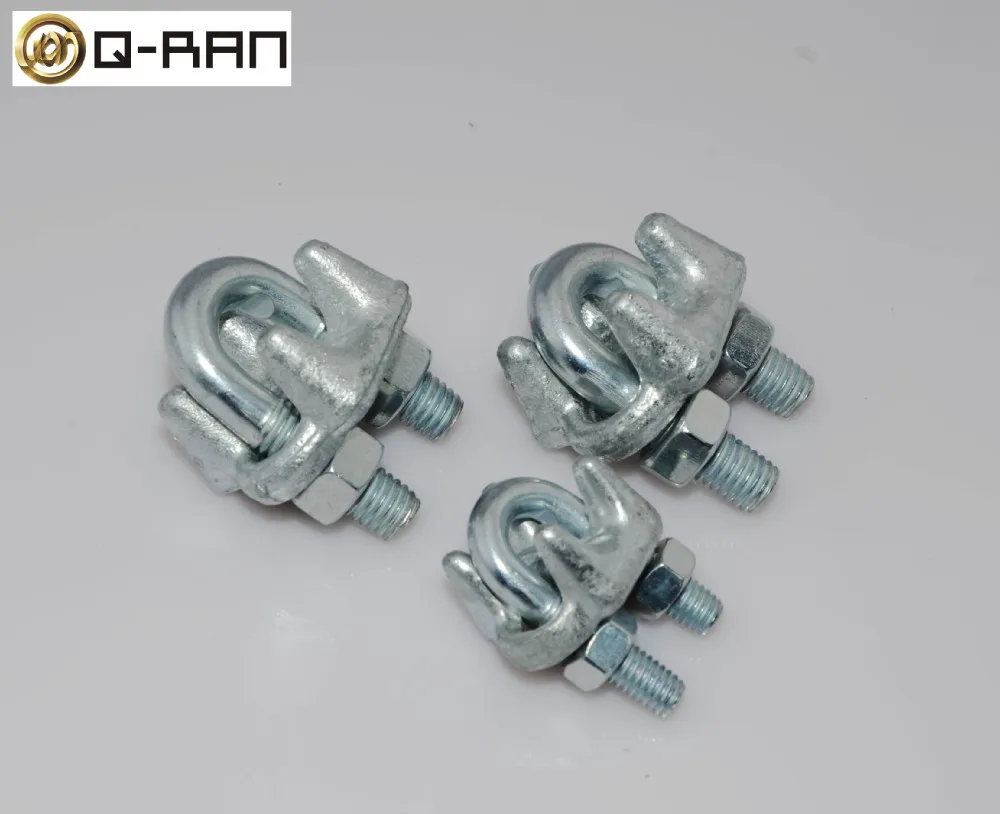

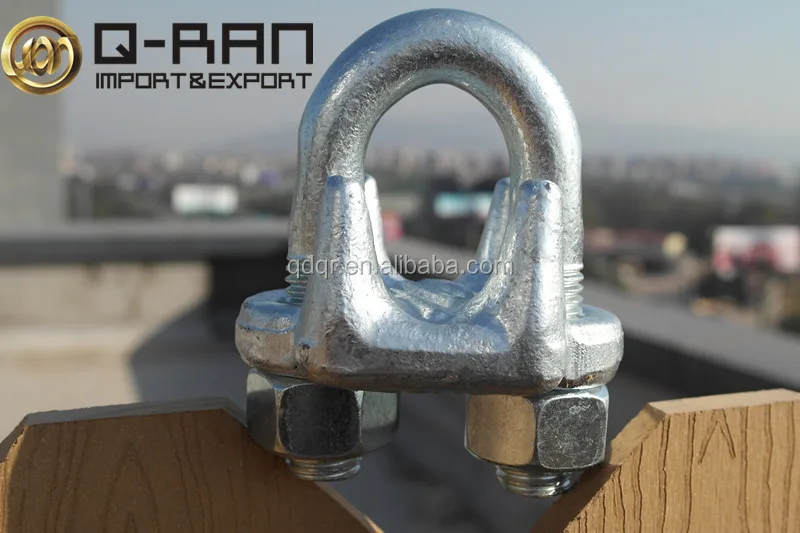

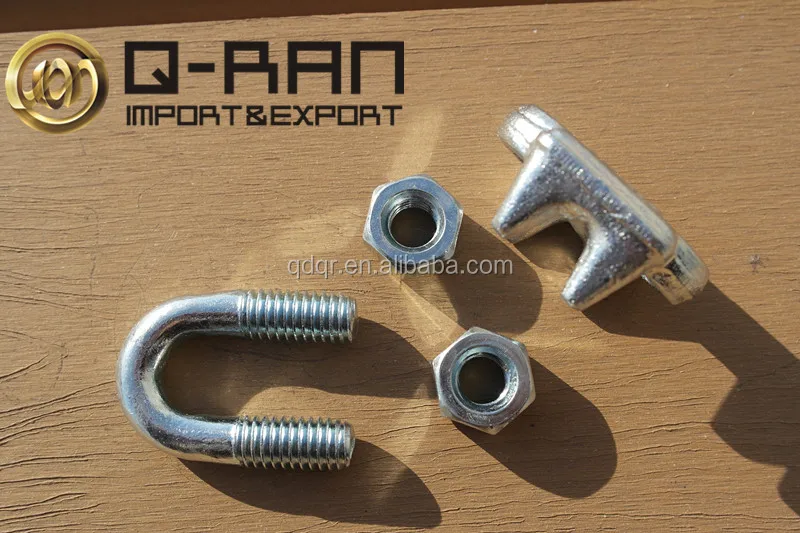

Drop Forged U.S Type Standard Fasteners G450 Wire Rope Clip
| Product Name | U.S. Type Drop Forged Wire Rope Clips |
| Place of Origin | Shandong,China |
| Brand Name | Q-RAN |
| Model Number | U.S.Type |
| Technology | Drop Forged |
| Material | Crbon Steel |
| Surface | Galvanized |
| Size | 1/8 to 3-1/2(in) |
| Delivery | Within 30 Days |
| Payment Term | L/C,T/T |
| Using for | Lifting |


| SIZE(IN) | DIMENSIONS(IN) | WEIGHT PER 100(LBS) | ||||||
| A | B | C | D | E | G | H | ||
| *1/8 | 0.22 | 0.72 | 0.44 | 0.47 | 0.37 | 0.81 | 0.99 | 6 |
| *3/16 | 0.25 | 0.97 | 0.56 | 0.56 | 0.50 | 0.94 | 1.18 | 10 |
| 1/4 | 0.31 | 1.03 | 0.50 | 0.75 | 0.66 | 1.19 | 1.43 | 19 |
| 5/16 | 0.38 | 1.38 | 0.75 | 0.88 | 0.73 | 1.31 | 1.66 | 28 |
| 3/8 | 0.44 | 1.50 | 0.75 | 1.00 | 0.91 | 1.63 | 1.94 | 48 |
| 7/16 | 0.50 | 1.88 | 1.00 | 1.19 | 1.13 | 1.91 | 2.28 | 78 |
| 1/2 | 0.50 | 1.88 | 1.00 | 1.19 | 1.13 | 1.91 | 2.28 | 80 |
| 9/16 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 2.06 | 2.50 | 109 |
| 5/8 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 2.06 | 2.50 | 110 |
| 3/4 | 0.62 | 2.75 | 1.44 | 1.50 | 1.39 | 2.25 | 2.84 | 142 |
| 7/8 | 0.75 | 3.12 | 1.62 | 1.75 | 1.58 | 2.44 | 3.16 | 212 |
| 1 | 0.75 | 3.50 | 1.81 | 1.88 | 1.77 | 2.63 | 3.47 | 252 |
| 1-1/8 | 0.75 | 3.88 | 2.00 | 2.00 | 1.91 | 2.81 | 3.59 | 283 |
| 1-1/4 | 0.88 | 4.44 | 2.22 | 2.31 | 2.17 | 3.13 | 4.13 | 438 |
| 1-3/8 | 0.88 | 4.44 | 2.22 | 2.38 | 2.31 | 3.13 | 4.19 | 442 |
| 1-1/2 | 0.88 | 4.94 | 2.38 | 2.59 | 2.44 | 3.41 | 4.44 | 544 |
| 1-5/8 | 1.00 | 5.31 | 2.62 | 2.75 | 2.66 | 3.63 | 4.75 | 704 |
| 1-3/4 | 1.13 | 5.75 | 2.75 | 3.06 | 2.92 | 3.81 | 5.24 | 934 |
| 2 | 1.25 | 6.44 | 3.00 | 3.38 | 3.28 | 4.44 | 5.88 | 1300 |
| 2-1/4 | 1.25 | 7.13 | 3.19 | 3.38 | 3.19 | 4.56 | 6.38 | 1600 |
| 2-1/2 | 1.25 | 7.69 | 3.44 | 4.13 | 3.69 | 4.05 | 6.63 | 1900 |
| **2-3/4 | 1.25 | 8.31 | 3.56 | 4.38 | 4.88 | 5.00 | 6.88 | 2300 |
| 3 | 1.50 | 9.19 | 3.88 | 4.75 | 4.44 | 5.31 | 7.61 | 3100 |
| **3-1/2 | 1.50 | 10.75 | 4.50 | 5.50 | 6.00 | 6.19 | 8.38 | 4000 |


Our other similar products as photos:
Processing:

Applications:


Drop Forged Wire Rope Clips
| Product name | Drop Forged Wire Rope Clips |
| Packing details | Gunny bags and steel pallet |
| Port | Qingdao,Shanghai,Tianjin |
| Delivery | Within 30 Days |



High quality products |
Raw materials |
Professional staffs |
| Skillful workers |
Powerful teams |
We follow up from material preparation to delivery,profession in shipping,fast delivery,packed well in container.Specifications and marks can be produced according to the customers's requirements.SO,click the mouse to make an order to us.

Our company has advanced production equipment and technical force, the main production of forging, card head, American malleable steel clamping head, 741 galvanized malleable clip, A type galvanized malleable clip, ring screw, nut, DIN582 DIN580, rings and other precision forging. Products are exported to Southeast Asia, Europe, American, Japan, South Korea, Hongkong, Taiwan and other twenty countries and regions. Since the product into the market, by the vast numbers of users and trust.
