tungsten carbide tube punching die/tc rod dies/mould and mandril

Product Overview

Description

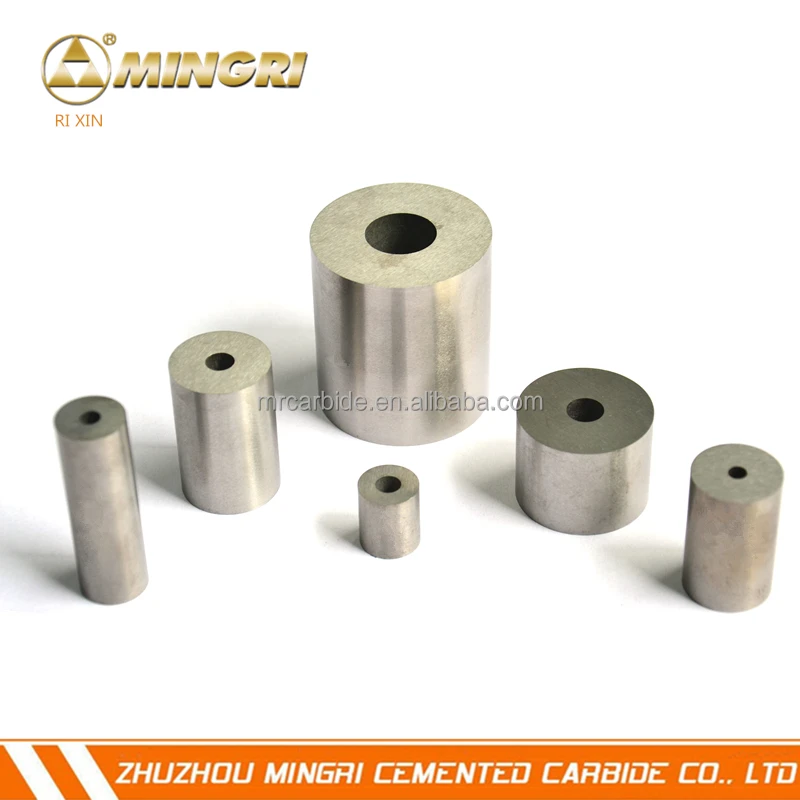

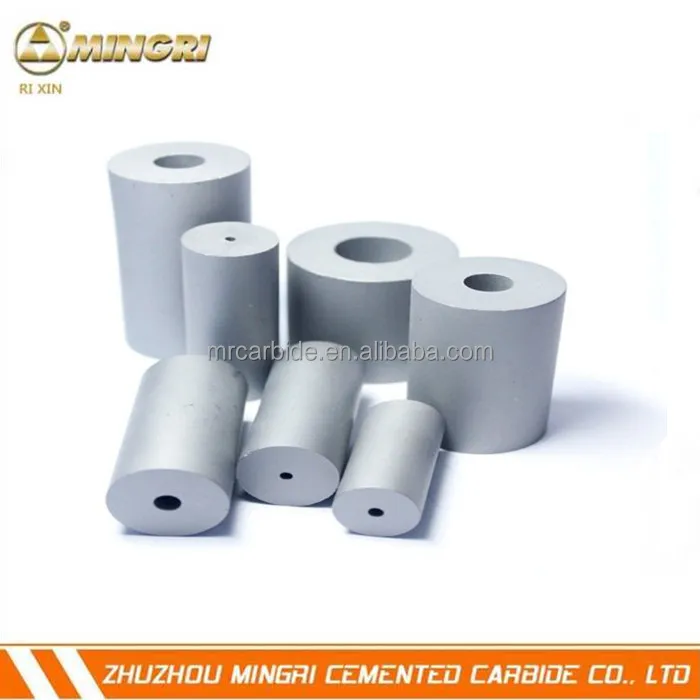

tungsten carbide tube punching die/tc rod dies/mould and mandril





1.Description

The tungsten carbide heading die are used for cold punching and heading of srew and nuts, it is wear resistance and high toughness.Also, it is the ideal in making non-ferrous metal, ferrous metal and other alloy.

2.Grade and application



Grade	Density g/cm3	T.R.S MPα	Hardness HRA	Properties & Applications	Approx Grades in China
A	13.5	3000	83.5	Good wear resistance and  bending strength. It is often preferrd by  nut forming dies and high impact-resistant dies.	—
YM11	14.4	2420	88.5	Forming or stamping dies for metal powders and nonmetal powders.	YG11
YM15	14.0	2500	87.5	It is suitable for drawing steel tubes and rods under high compression ratio, manufactuing upsetting, punching and forging tools under large stress.	YG15
YM20	13.5	2800	85.5	It is suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc.	YG20
ML32	13.9	2750	85.5	It is suitable for impact-resistant forging dies.	YG16C
ML36	13.7	2800	84.5	It is suitable for impact-resistant forging dies, hot-forging dies and finishing rollers.	YG18C
ML40	13.5	2850	83.5	It is suitable for wear resistant or impact resistant dies.	YG20C ZL40.2
ML50	13.3	2900	83.0	It is suitable for nut forming dies and high impact-resistant dies.	YG22C ZL40.5
ML60	13.1	2950	82.5	It is suitable for stainless screw dies and semifinishing rollers.	YG25C ZL40B
ML90	13.3	3200	82.0	It is suitable for screw cap forming dies with high strength ( highest impact-resistant forging dies).	_
Other grades of cemented carbide blanks for cold-forging dies may be offered by customers' requirements

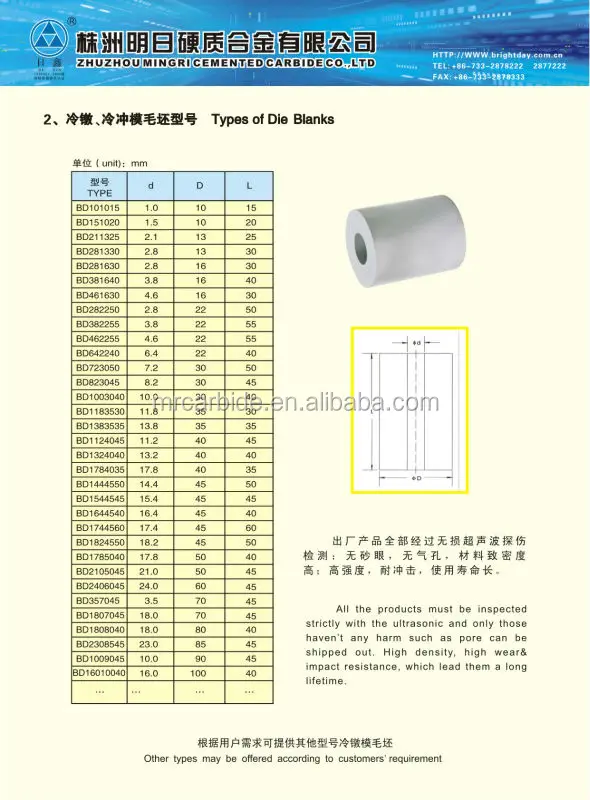

3. Size and Drawing

 (other size can be offered by customer's requirements)

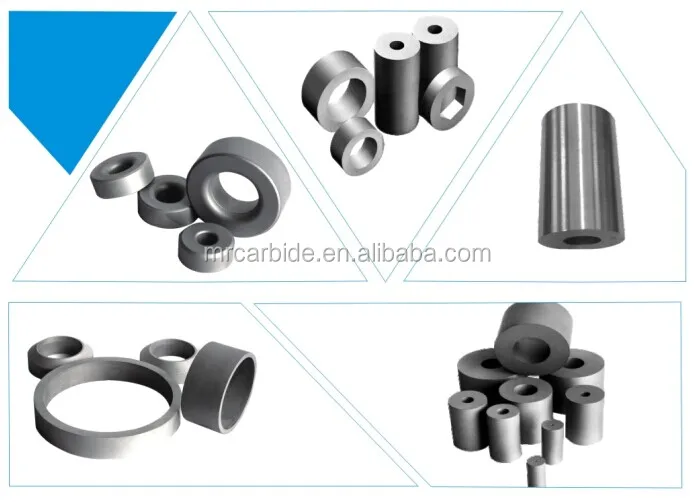

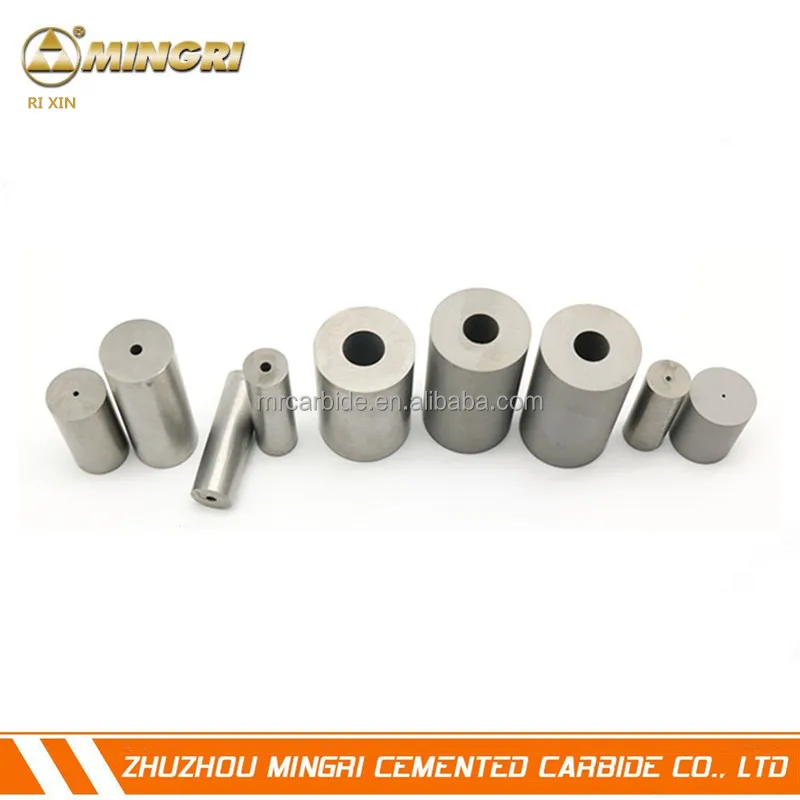

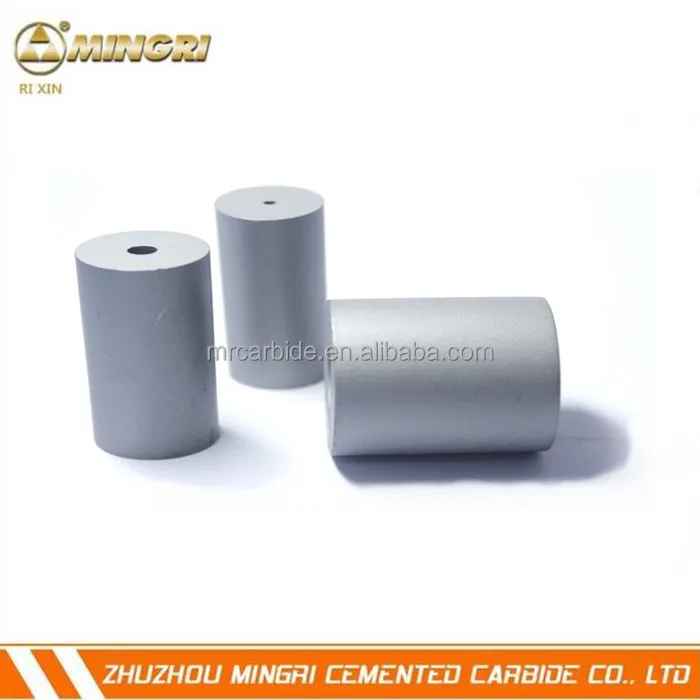

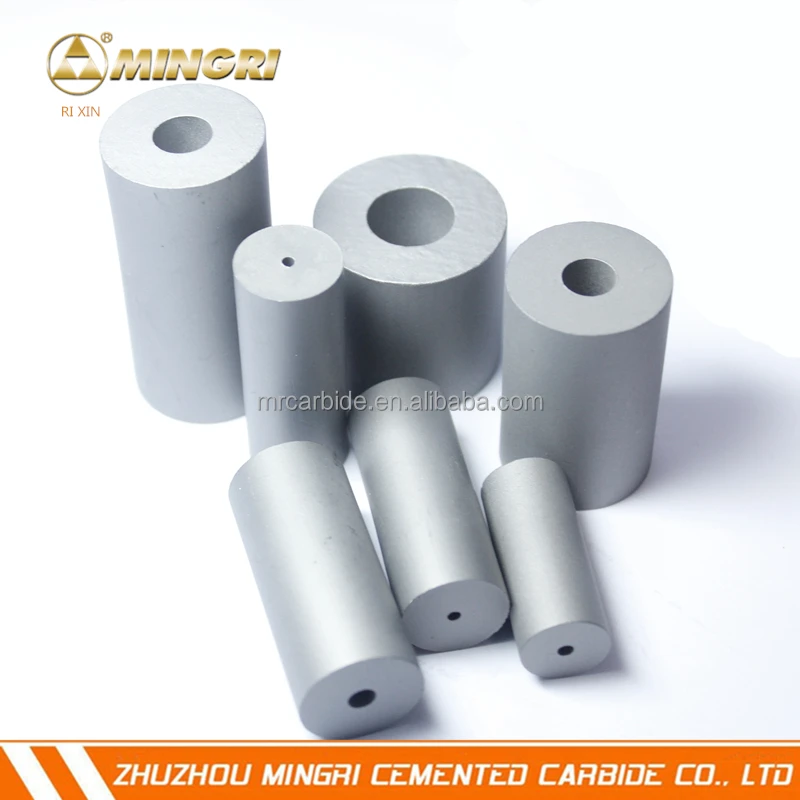

4. Product Display









Exported wooden cases or paper cartons or as per your requiements.





1. Company Introduction



Located in Liyu Industrisl Area, Zhuzhou City, Tianyuan District, Hunan Province, Zhuzhou Mingri Cemented Carbide Co., Ltd was established in May of 2001 with the investment of RMB 40 million. We own up-to-date production line, advanced equipment, lots of technicians. We have passed ISO 9001:2000 in the year of 2003. And we have been always trying our best to provide our customers with high quality, best price and satisfactory services.



We specialize in series of tungsten carbide products, such as cold heading dies, brazed tips, disc cutters, plates and plates, saw tips, round rods, rock drilling bits and buttons, milling tools, geological exploration drill tools and so on. Our products are exported to UK, European, Japan, Taiwan and South-east Asia etc.



We are manufacturer, not just trade!



You’re welcome to contact and have a visit to our factory!



2.  Main Products

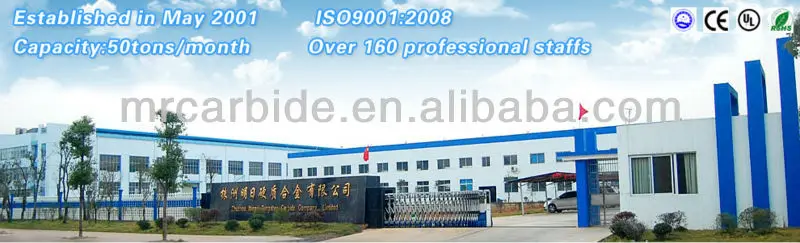

3.  The panorama of the factory

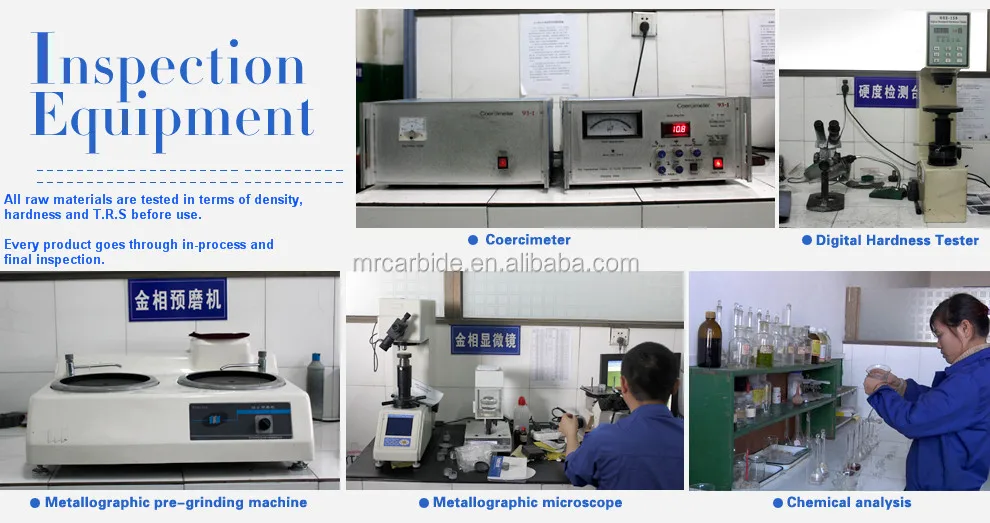

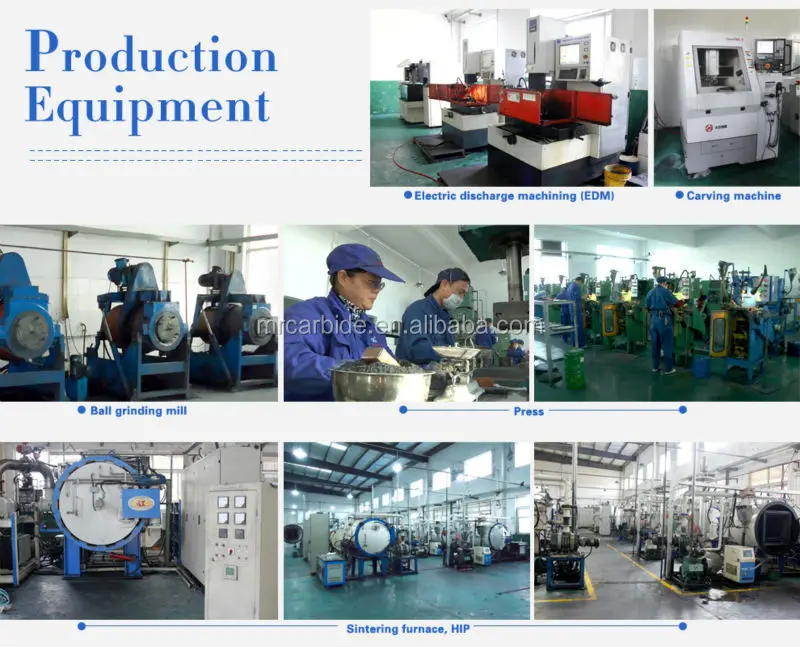

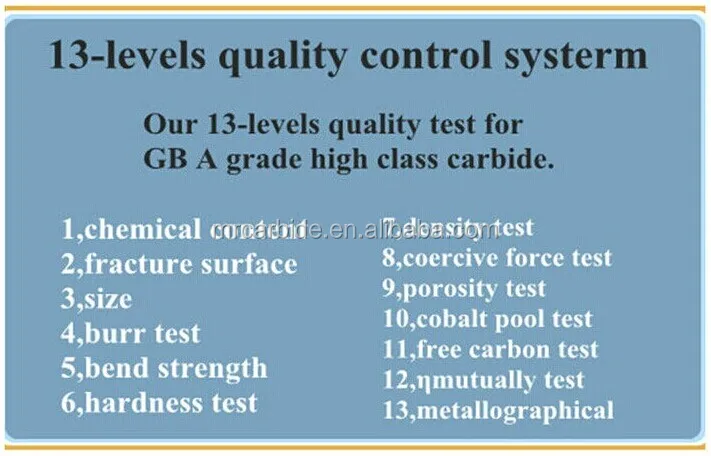

4.  Production and Inspection





5.  Certification
