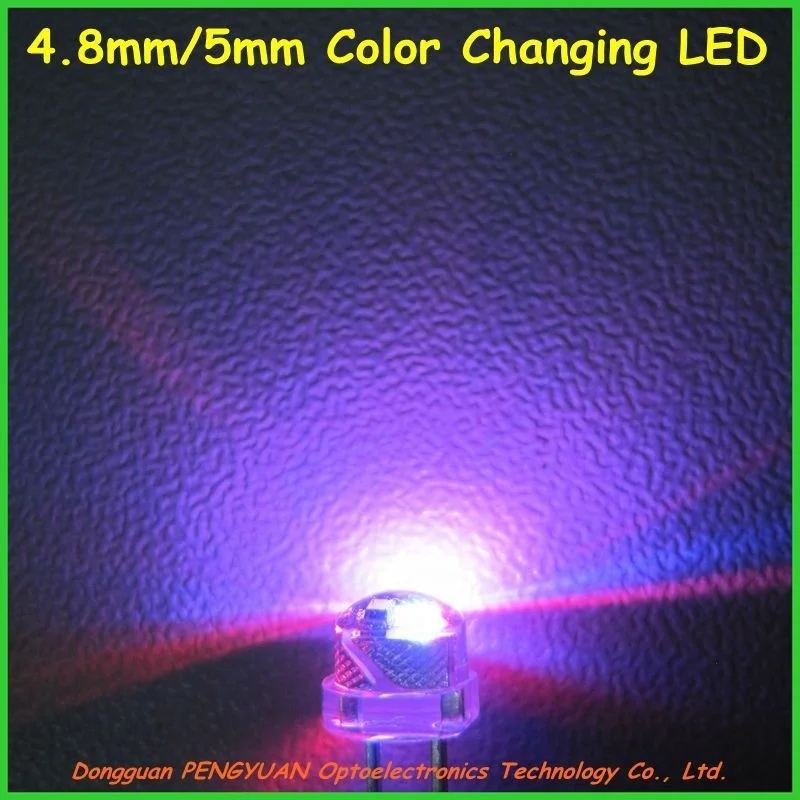

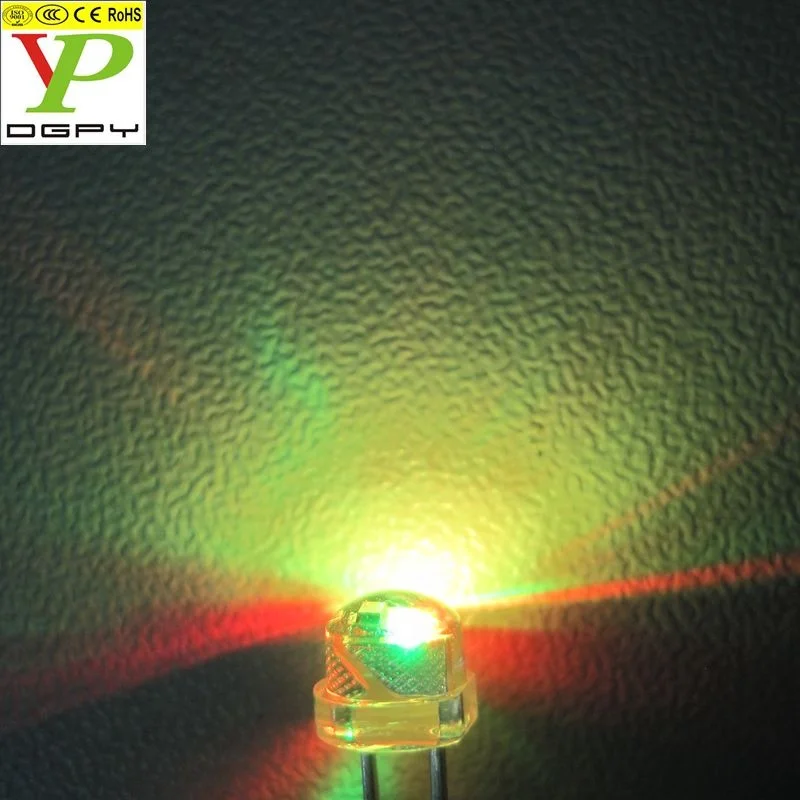

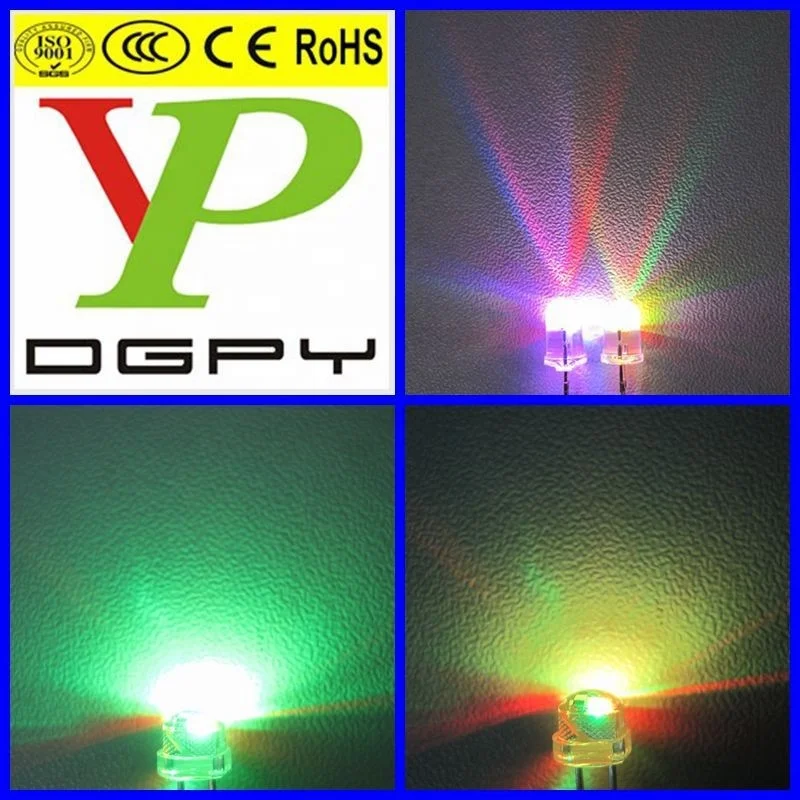

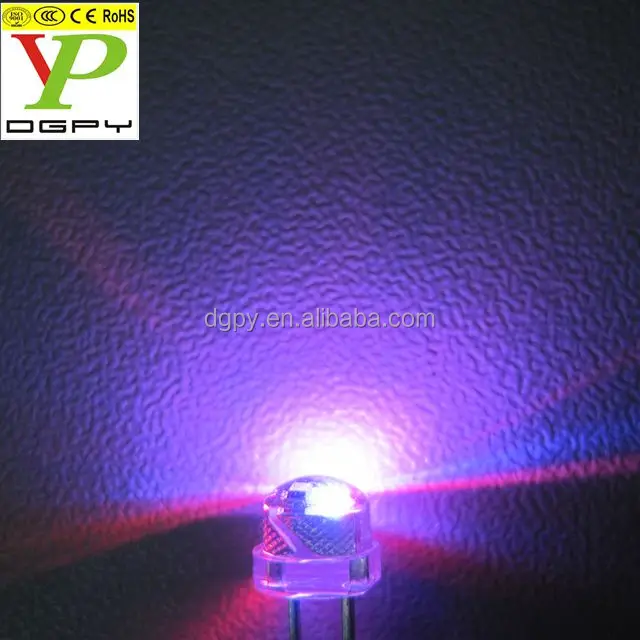

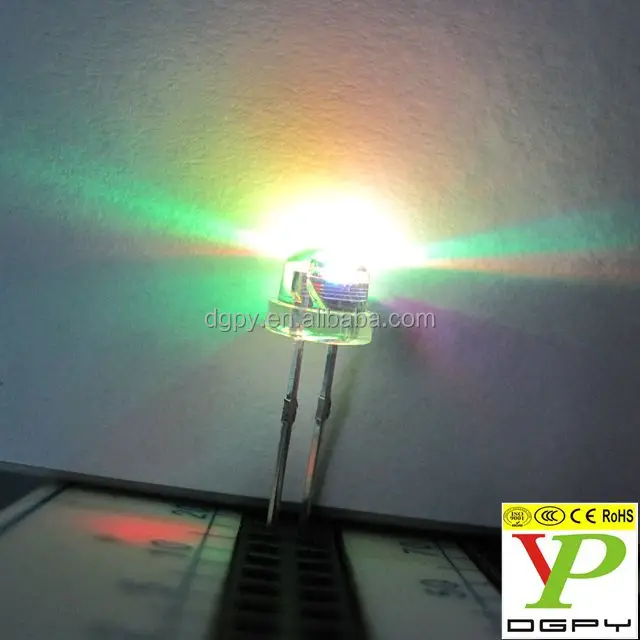

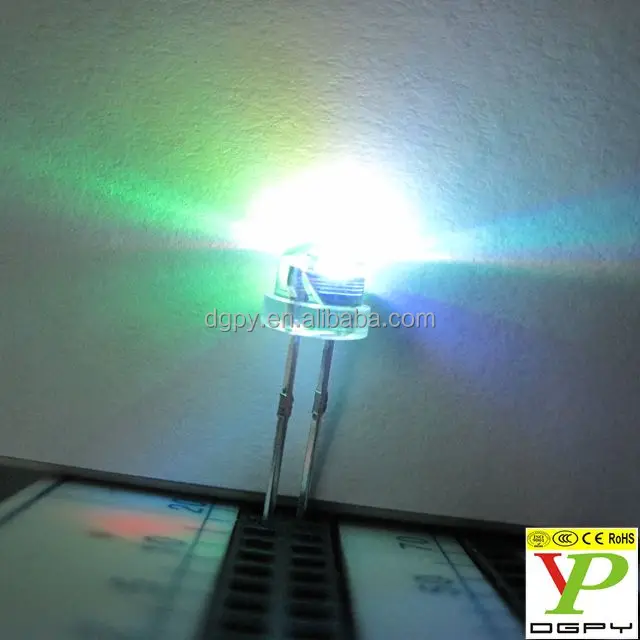

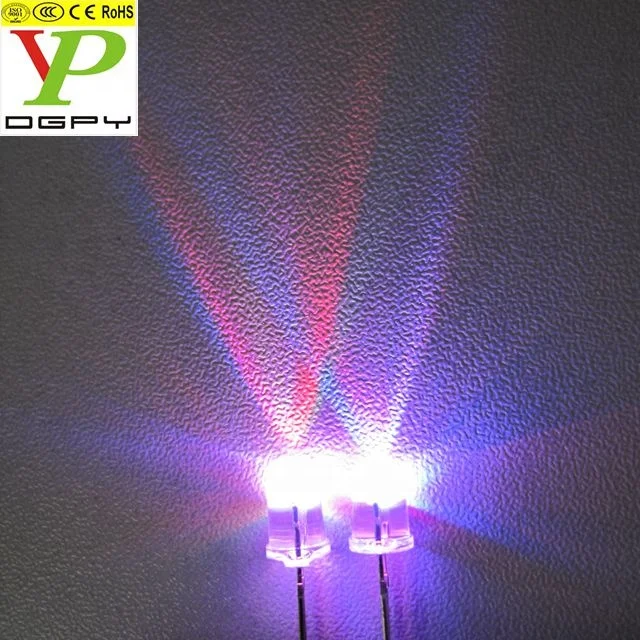

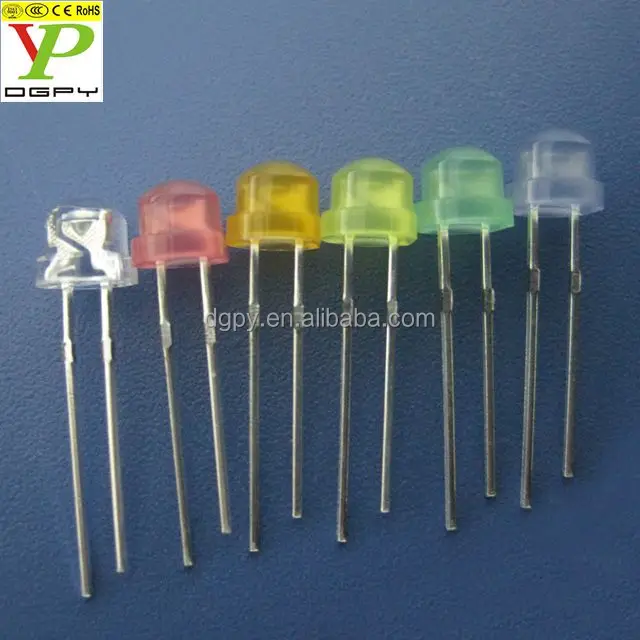

3.0 3.5V 4.8mm Straw Hat 5mm Round Shape RGB 7 Color Flashing Blinking LED Diodes ( CE & RoHS Compliant )

3.0-3.5V 4.8mm Straw Hat 5mm Round Shape RGB 7-Color Flashing Blinking LED Diodes ( CE & RoHS Compliant ):

Specifications

1. 1.8mm Butterfly, 3mm, 4.8mm, 5mm, 8mm, 10mm, etc. LEDs;

2. Long lifespan, energy saving;
3. Fastest Delivery;
4. Large Quantity Long-term Supply;
5. Factory Competitive price;

6. Free Samples...

Detailed Description of LED Diodes

Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Red	200-3000mcd	Straw hat	120°C	615-630nm	1.7-2.1V	15-20mA
	30-18000mcd	Round	25°C
	1000-16000mcd		45°C
	1000-16000mcd		60°C
	100-14000mcd	oval	80°C
	100-14000mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Yellow	200-3000mcd	Straw hat	120°C	568-575nm	2.0-2.5V	15-20mA
	30-18000mcd	Round	25°C
	1000-16000mcd		45°C
	1000-16000mcd		60°C
	100-14000mcd	oval	80°C
	100-14000mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Amber (Orange)	200-3000mcd	Straw hat	120°C	600-610nm	2.0-2.5V	15-20mA
	30-18000mcd	Round	25°C
	1000-16000mcd		45°C
	1000-16000mcd		60°C
	100-14000mcd	oval	80°C
	100-14000mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Blue	600-4000mcd	Straw hat	120°C	460-475m	3.0-3.4V	15-20mA
	2000-16000mcd	Round	25°C
	2000-16000mcd		45°C
	2000-16000mcd		60°C
	800-14000mcd	oval	80°C
	800-14000mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Green	600-4000mcd	Straw hat	120°C	505-530nm	3.0-3.4V	15-20mA
	2000-20000mcd	Round	25°C
	2000-18000mcd		45°C
	2000-18000mcd		60°C
	800-14000mcd	oval	80°C
	800-14000mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Yellow-Green	10-15mcd	Straw hat	120°C	568-575nm	1.9-2.3V	15-20mA
	50-80mcd	Round	25°C
	50-80mcd		45°C
	50-80mcd		60°C
	40-60mcd	oval	80°C
	40-60mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Wavelength	Voltage	Current
Violet (Purple)	150-250mcd	Straw hat	120°C	360-410nm	3.0-3.4V	15-20mA
	200-300mcd	Round	25°C
	200-300mcd		45°C
	200-300mcd		60°C
	150-250mcd	oval	80°C
	150-250mcd	Square	90°C
Color	Luminous Intensity(mcd) (min.-max.)	Shape	Viewing angle	Color Temperature(k)	Voltage	Current

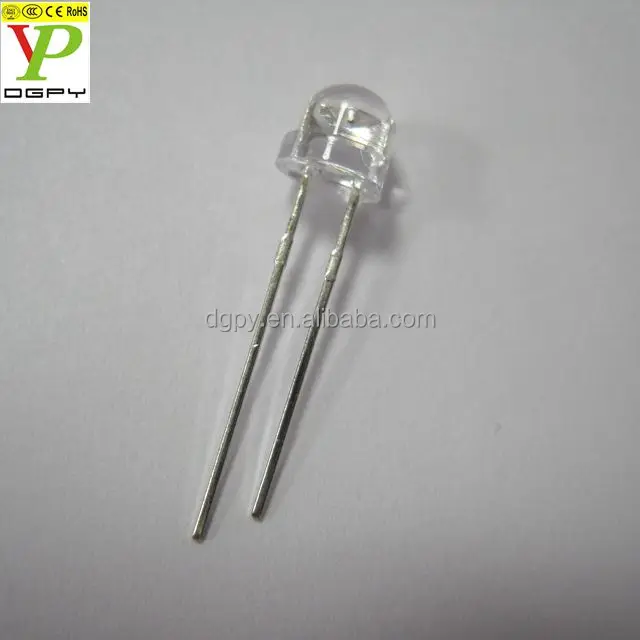

White	600-2500mcd	Straw hat	120°C	2800-13000K	3.0-3.4V	15-20mA
	6000-25000mcd	Round	25°C
	6000-20000mcd		45°C
	6000-20000mcd		60°C
	800-4000mcd	oval	80°C
	800-4000mcd	Square	90°C

Specification:

Package: 1000pcs/Anti-Static Bag

Payment:

T/T, PAYPAL, Escrow or other payment way as you like.

Shippment:

DHL, UPS, FedEx, EMS, TNT or Registered Airmail .

Delivery Time:

1. By UPS, DHL, FedEx: 3-5 business days;

2. By airmail: 1-2 weeks to ASIA, West EURO, and North America.

                        2-3 weeks to South America, Mid-East, East EURO and Africa.

3. By EMS: 5-7 business days

Warranty: 100% Money Back Guarantee.

1. Due to the parts we sell are 100% tested and the high risk of user error, you must provide details of the repairs made, test results, and photos a long with your claim.

2. Our warranty does not extend to any products that are physically damaged or prdoucts that have not been used under normal operating conditions.

3. The return item must be in original same as we sent.

4. Buyer pay for the return shipping fee.

Testing:

Certificates:

What you want what we can do !

1. Chip Material: AIGalnP

2. Shape: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED, bullet LED, concave LED, rectangle LED
3. Available Size: 2mm, 3mm, 5mm, 8mm, 10mm, 12mm,20mm
4. Lens type: Water clear,colored diffuse
5. Emitted color: Red, White, Yellow, Orange, yellow-green, Green, Blue,Purple, RGB flash
6. Different angle available
7. Low power consumption, high intensity, uniform illumination
8. Solid-state, high shock and vibration resistant
9. Major reduction in power cost
10. No RF interference
11. Maintenance free, easy installation
12. Long life 70,000-100,000hours
13. Superior ESD protection

Primary competitive advantage of LED diode:

1. Big order offer for free shipping by express;
2. Small order available ;
3. Top quality raw material;
4. International Approval;
5. Prompt delivery;
6. Guarantee/warranty;
7. Excellent packaging;
8. Environment friendly;
9. Excellent performance;
10. Good service;
11. Customaries design is available, free combination.

Dongguan Pengyuan Opto-electronic Techonology Co., Ltd. was established in 2003, which is located in Shilong, Dongguan. We are a professional manufacturer of light-emitting diode LED, Dip LED, SMD LED, Infrared LED, Strip LED, High Power LED and LED bulbs.

PY has strong technical force, high standard dust-free workshops and advanced entire automated electron systems with bonding wires, pressing dies & automatic spectrophotometric machines. The annual output reached 50,000KK.

With an increasing number of orders each year, our business quickly expands to global markets...
