1.8kw 2.5hp gasoline engine

Product Overview

Description

Specifications :

Engine Model	152F	154F	156F	160F	168FA
Engine type	4-stroke single -clinder,air-cooled
BorexStroke (mm)	52x46	54x46	56x40	60x42	68x48
Displacement(ml)	97.7	97.7	98.5	118	163
Compression Ratio	5.6:1	6.0:1	8.0:1	8.5:1	8.5:1
Theoretical Maximum Output Power	1.6kw/3600rpm	1.8kw/3600rpm	2.2kw/3600rpm	2.9kw/3600rpm	4.0kw/3600rpm
Rated output power	1.2kw/3600rpm	1.4kw/3600rpm	1.5kw/3600rpm	2.2kw/3600rpm	3.4kw/3600rpm
Horse Power	2.5Hp	3Hp	3Hp	4Hp	5.5Hp
Max Torque	3.8N.m/3000rpm	3.8N.m/3000rpm	4.8N.m/3000rpm	5.7N.m/3000rpm	10N.m/3000rpm
Ignition system	Transistorized Magneto	Transistorized Magneto	Transistorized Magneto	Non-contact Transistorized Magneto(TCL)	Non-contact Transistorized Magneto(TCL)
Start System	Recoil Start
Air Cleaner	Semi-dry type			Semi-dry type /Oil bath type
Fuel Tank Capacity	1.4L	1.4L	3.0L	2.5L	3.6L
Fuel Consumption	≤450g/kw.h	≤450g/kw.h	≤420g/kw.h	≤420g/kw.h	≤395g/kw.h
Oil Capacity	0.35L	0.35L	0.4L	0.6L	0.6L
Packing Detail
Dimension (LXWXH)mm	325x315x415	325x315x415	440x390x380	395x332x380	415x380x390
Net Weight	9KG	9KG	10.5kg	13kg	15kg





Referend Gaoline engines as below :



154F ------3.0hp

160F-------4.0hp

165FA-------5.5hp

165FB----------6.0HP

170F---------7.0hp

173F---------8.0hp

177F---------9.0hp

182F---------10.0HP

188F----------13hp

190F------------15hp

192F-----------17.0hp

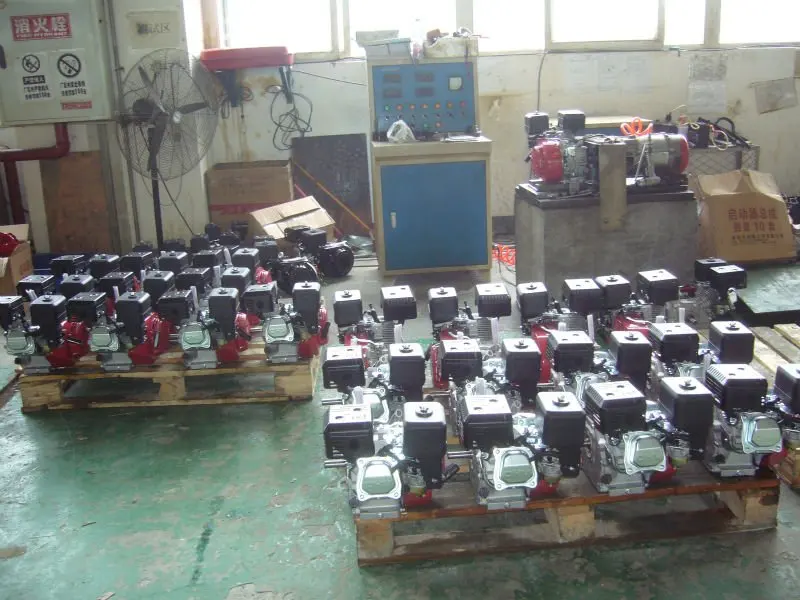

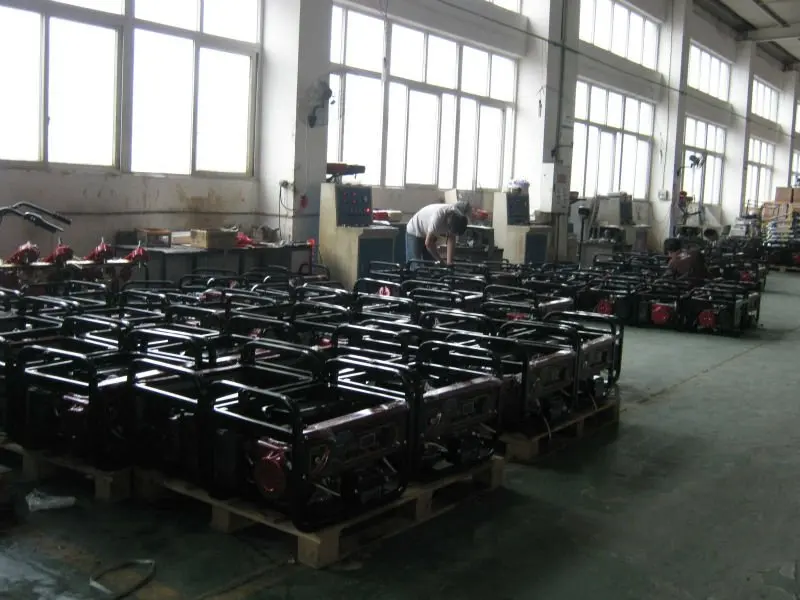

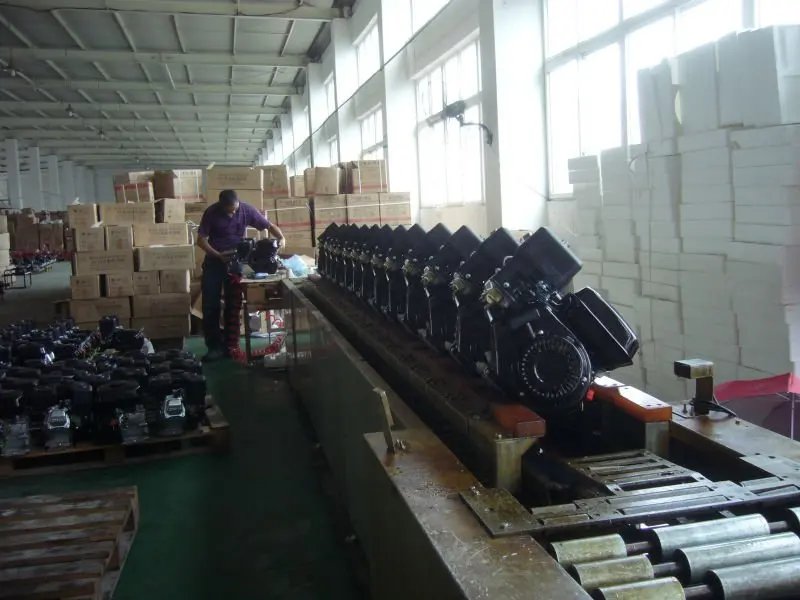

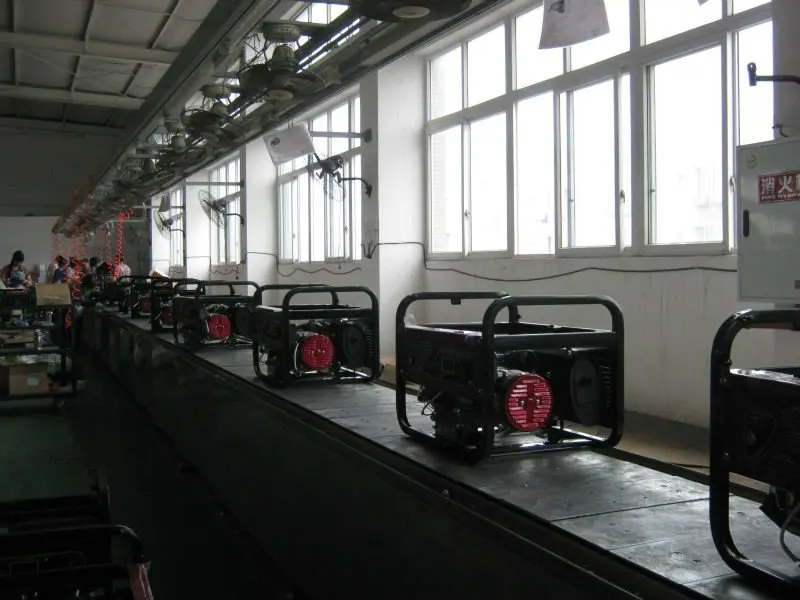

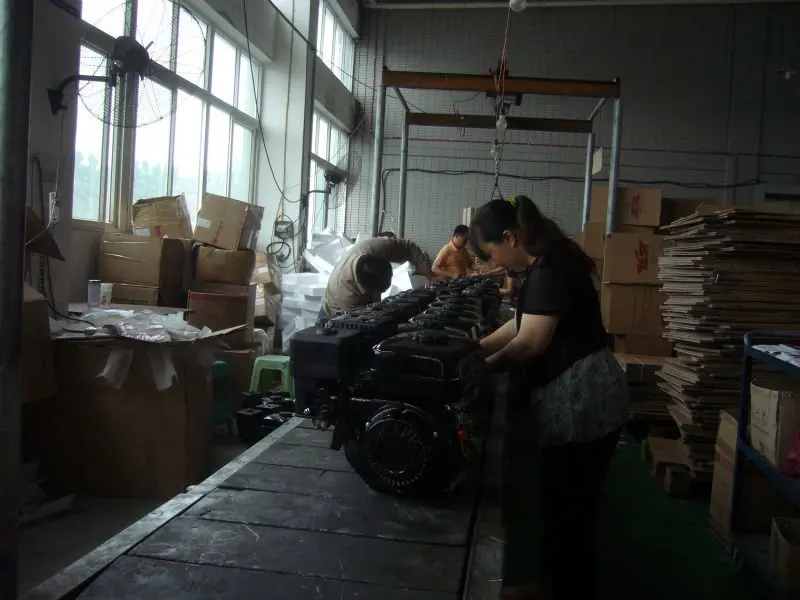

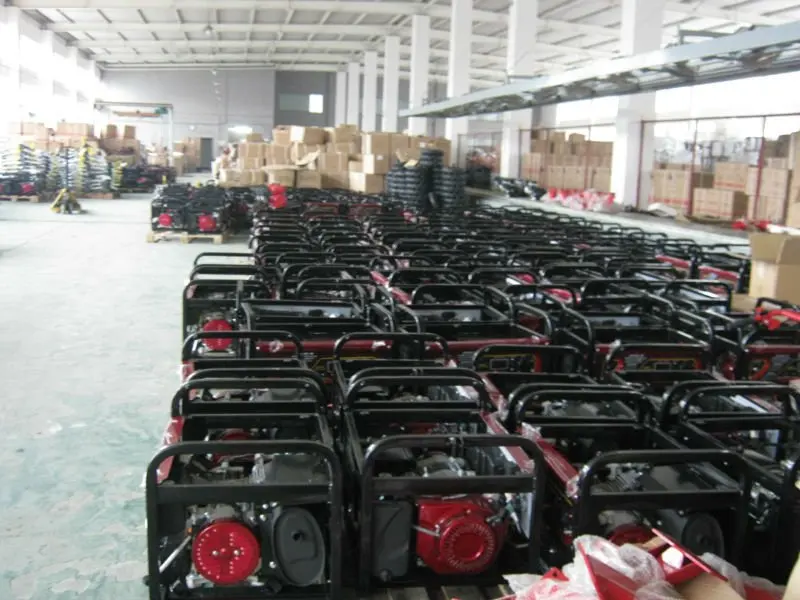

Our Factory Album
