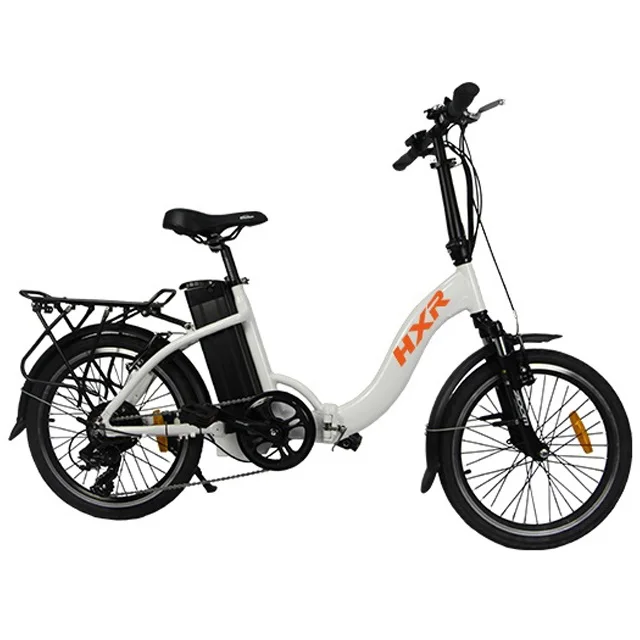

250W electric folding bicycle with CE certificate

Product Overview

Description

   specal design folding electric bicycle



Electric system
Motor	250W Brushless(8fun)
Battery	Lithium 24v/36v 10ah
Charger	220 / 110V, 50 - 60Hz
PAS	1:1 intelligent pedal assistant system
Throttle	Twist intelligent speed throttle
Controller	Intelligent controller(lishui)
Main Components
Frame	6061 Aluminum alloy
Tyres	20x1.75(Kenda/CST)
Rim	Al alloy double wall , CNC side wall
Front fork	Al alloy  fork
F/R brake	V-brake
Speed gears:	7-class Shimano
Spokes	Stainless spokes
Mudguard	fender(bikeman)
Handlebar	Al alloy  (zoom)
Stem	Al alloy  (zoom)
Brake lever	Al alloy with power off switch.
Chain	Rust resistant chain KMC
Saddle	city style saddle
Seat post	Al alloy with suspension
Pedal	foldable
lights	F/R LED lights Spanniga
Display	LED-display (kingmeter 790)
Performance
Max speed	25km/h
Driving distance	45-70KM
Charging time and life	6-8 hours,>500 times
Max loading	125kg
G.W./N.W.	28/22.5Kg
Product size	1550×640×1162mm
Packing size	1400×270×640mm



         the  folding ebike details as follow:

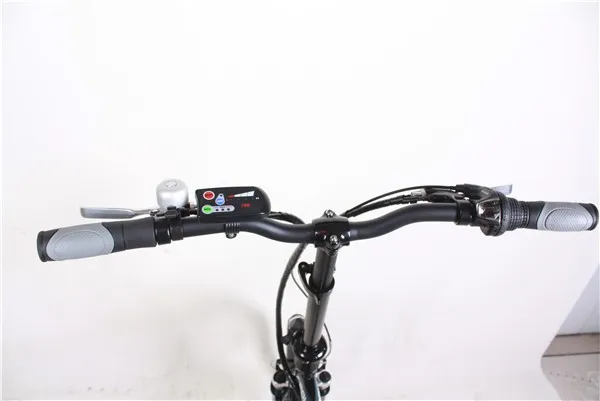

                        led-display

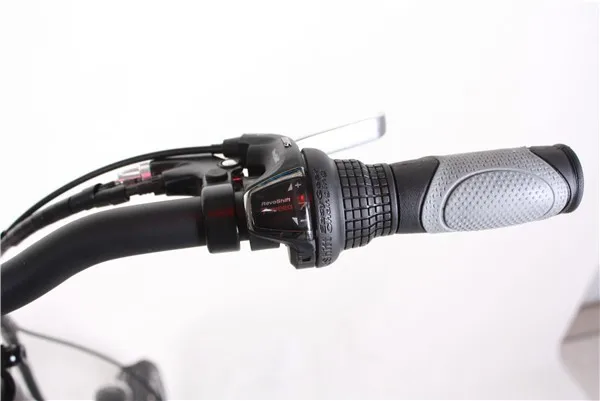

                        shimano 7speed

             comfortable saddle

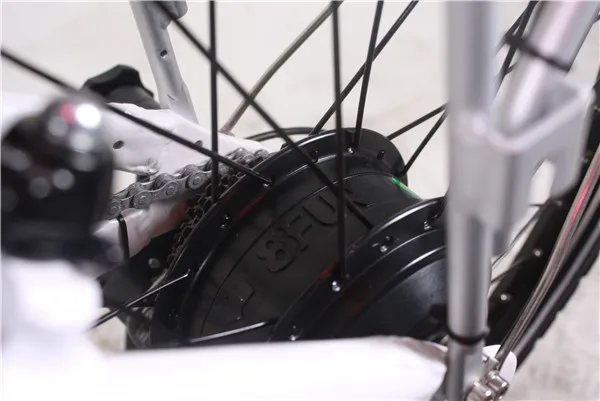

                         8fun motor

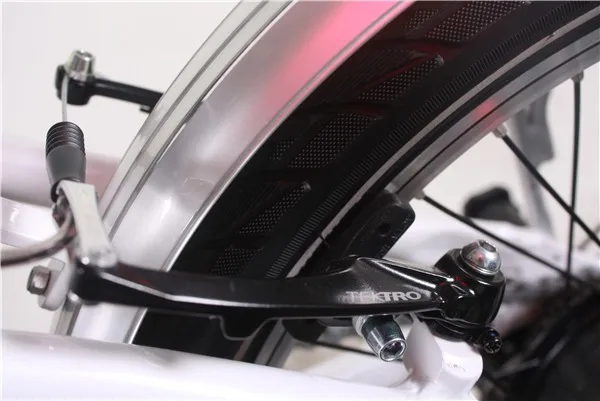

                       TEKTRO V-BRAKE

                                 foldable
