Advanced Technology Rubber Wood Pellet Mill Biomass Pelletizer
- Category: >>>
- Supplier: Jiangsu Yongli Machinery Co. Ltd.
Share on (60105940365):
Product Overview
Description

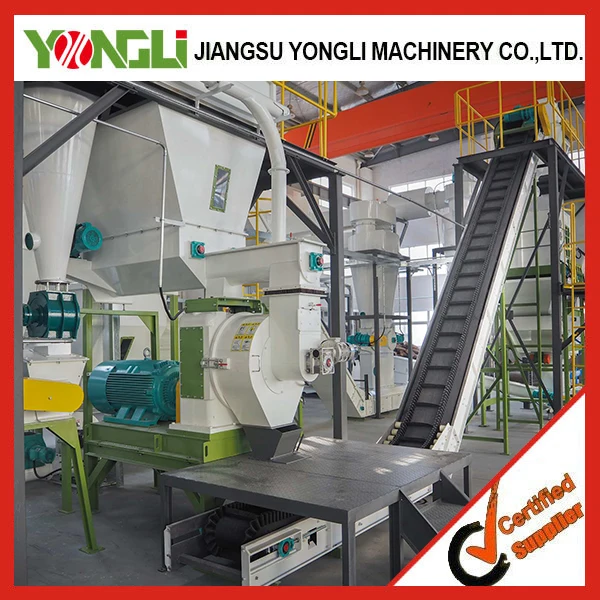

Advanced Technology Rubber Wood Pellet Mill Biomass Pelletizer
Rubber Wood Pellet Mill
Basic features of Wood Pellet Mill
1.Available raw material: woodiness, straw, peanut shell, palm nut, alfalfa,coconut shell, cotton seed, bamboo dust, elephant grass, sugar cane, pulp, olive slag and so on.
2.Forced feeder:Forced feeding into pelletizing chamber, make pellet milloperate stable and with high efficiency.
3.Gear reducer with Aluminum Alloy housing, with compact structure, attractive appearance & high driving efficiency.
4.Driven by gear. Elegant and efficient gearbox grants pellet mill with high driving efficiency.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Inner diameter of die (mm) | Pellet size (mm) | Dimension (mm) | Net weight (T) |
YPM250 | 0.1-0.2 | 18.5 | 250 | Ø6,Ø8,Ø10 | 1300*1330*850 | 0.73 |
YPM320 | 0.3-0.5 | 37 | 320 | Ø6,Ø8,Ø10 | 2100*1100*1140 | 1.2 |
YPM350 | 0.5-0.8 | 55 | 350 | Ø6,Ø8,Ø10 | 2500*1100*1150 | 1.65 |
YPM420 | 0.9-1.2 | 90 | 420 | Ø6,Ø8,Ø10 | 3000*1200*1470 | 2.8 |
YPM520 | 1.3-1.8/1.8-2.5 | 132/160 | 520 | Ø6,Ø8,Ø10 | 3200*1300*1420 | 4 |
YPM600 | 2.5-3 | 185 | 600 | Ø6,Ø8,Ø10 | 3000*1750*1810 | 4.5 |
YPM660 | 3-4 | 200 | 660 | Ø6,Ø8,Ø10 | 3570*1800*1850 | 7.5 |
YPM800 | 4-6 | 315 | 800 | Ø6,Ø8,Ø10 | 4300*1900*2040 | 11 |
Attractive advantages
1. Over 20 years service life
2. Non-dust
3. Siemens motor, Imported SKF/NSK bearing
4. Equiped with auto cooling and oil adding system
5. National patent
6. Reasonable price

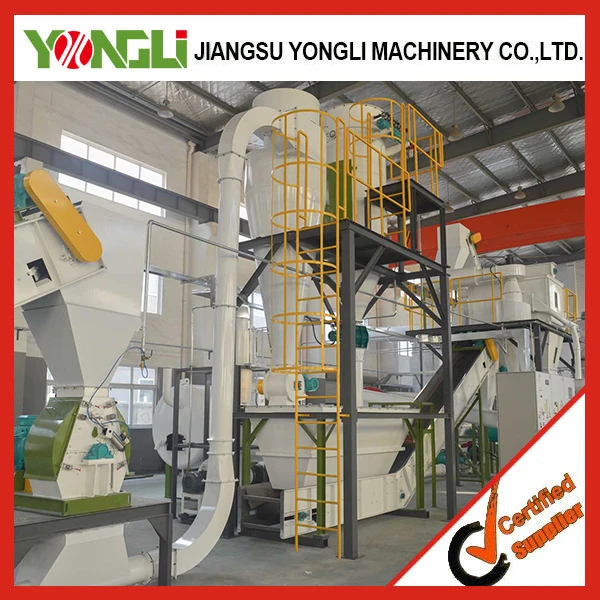

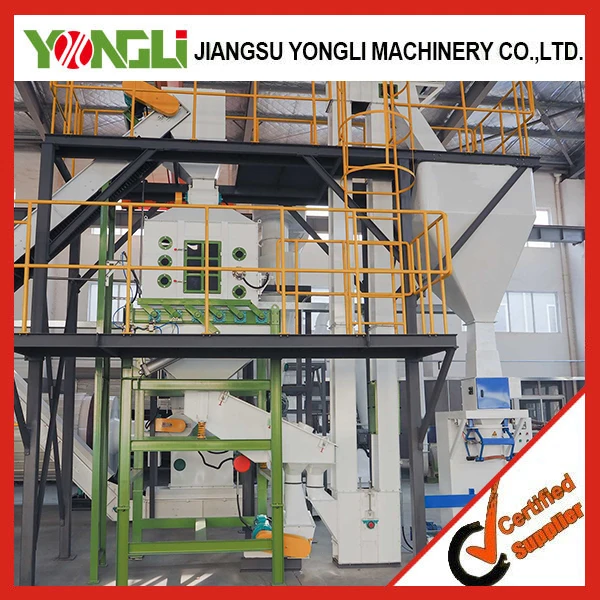

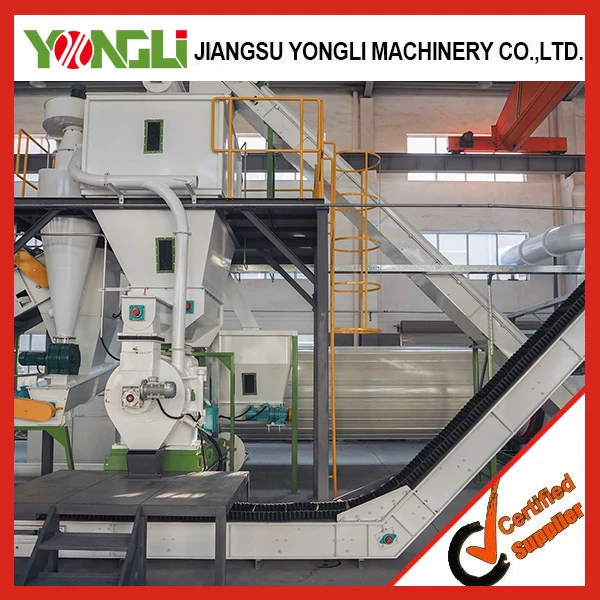

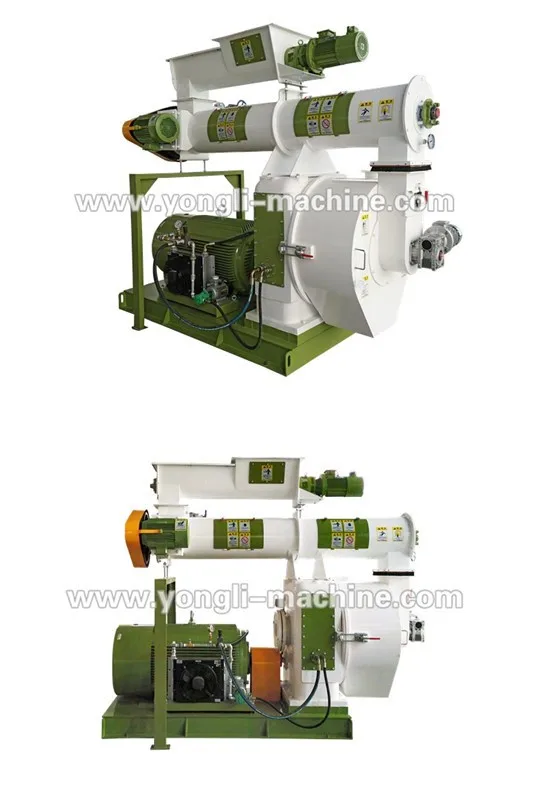

Rubber Wood Pellet Mill Show

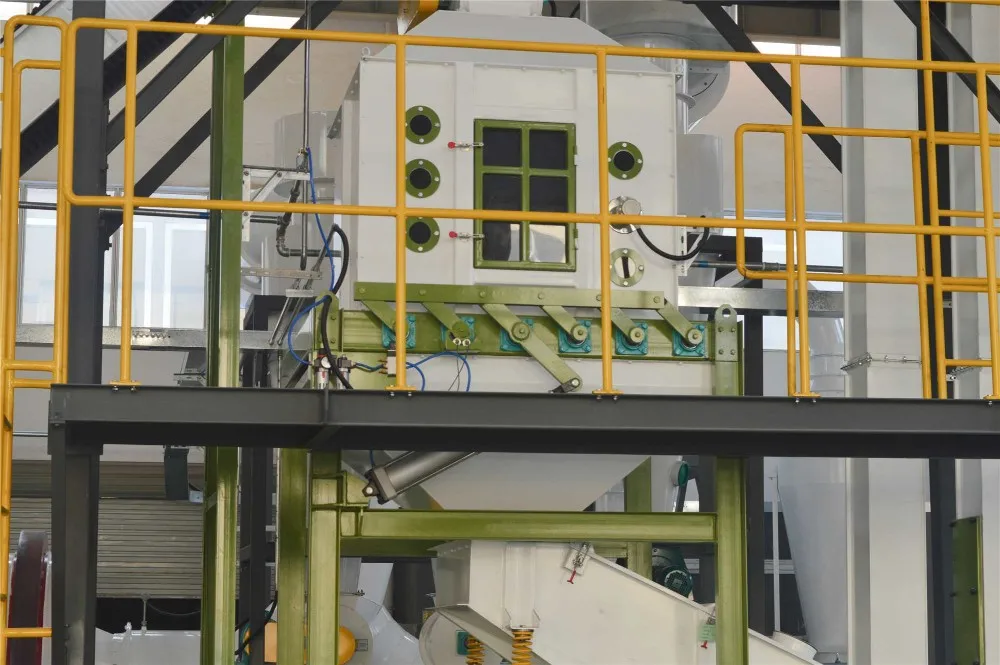

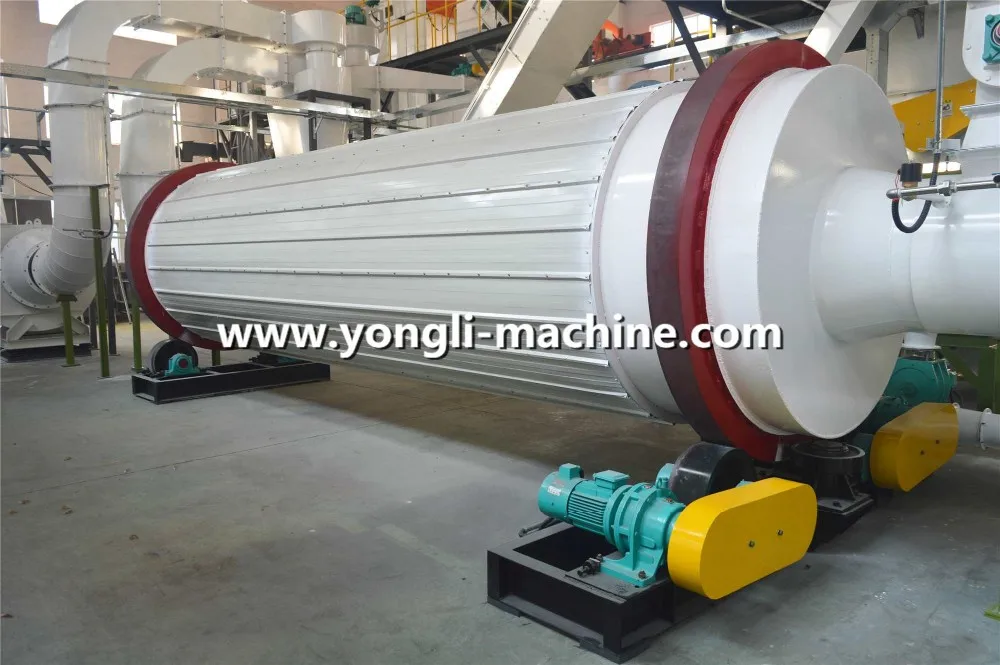

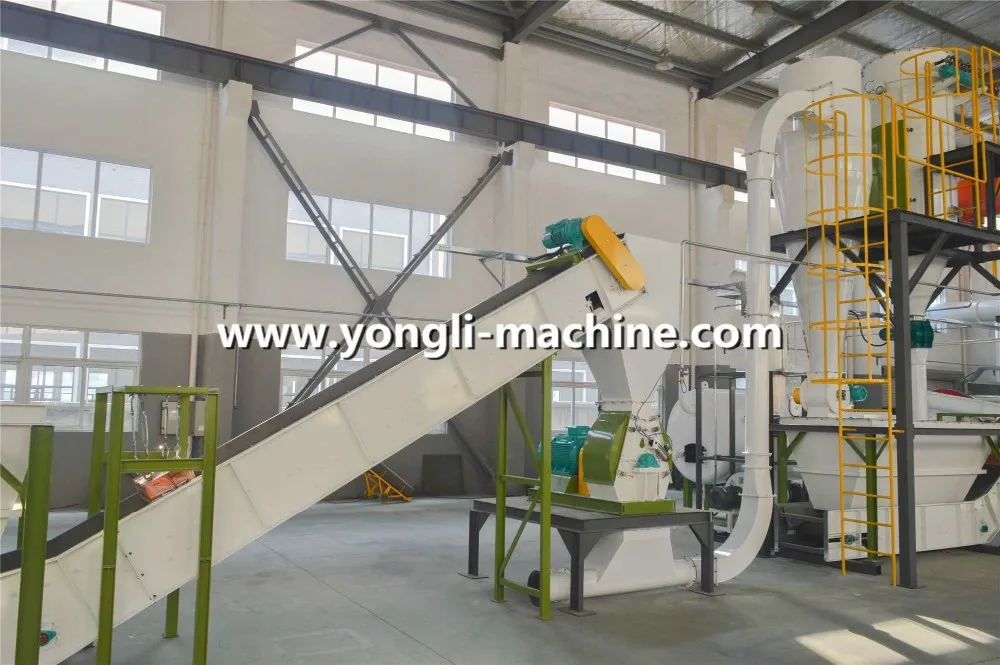

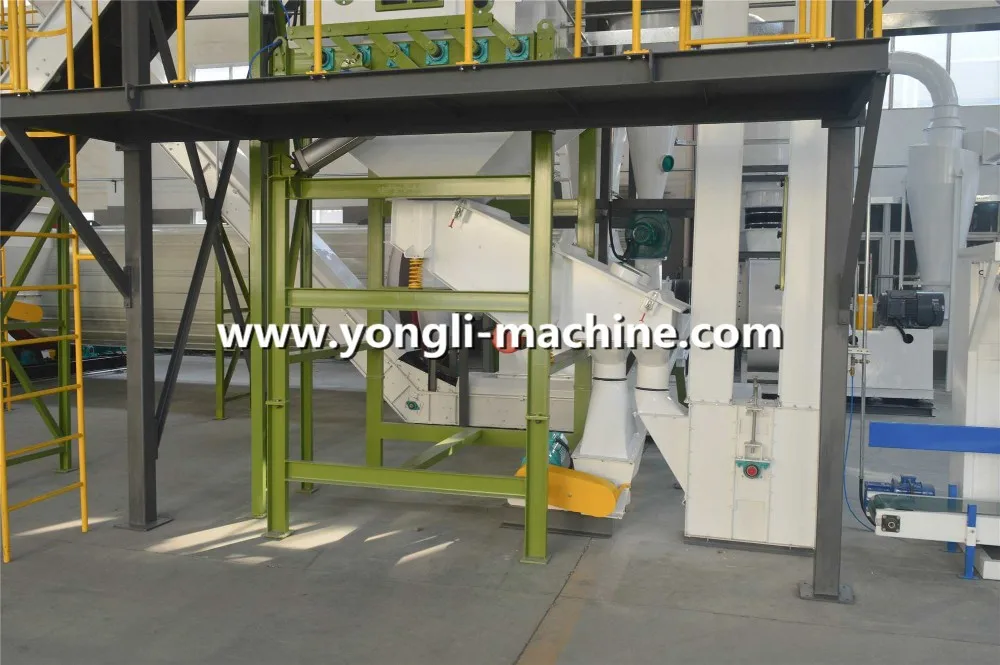

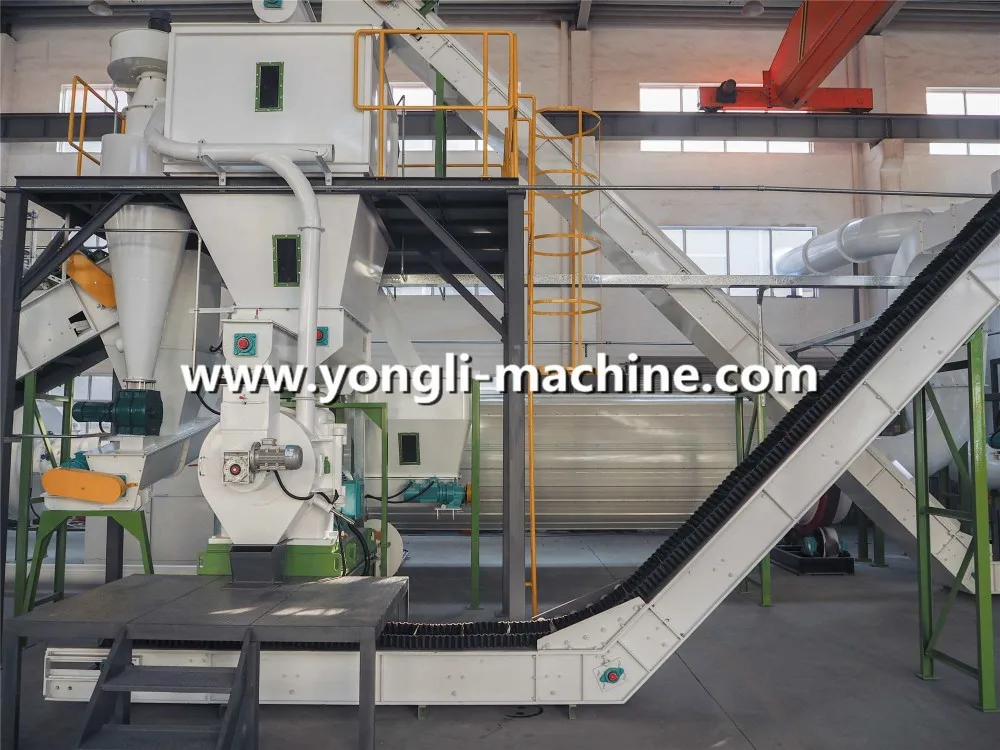

Complete Rubber Wood Pellet Production Line

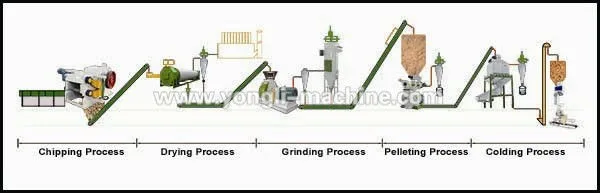

Flow Chart
1.The first step grinding process
2.The second step drying process
3.The third step pelleting process
4.The fourth step cooling process
5.The fifth step screening process

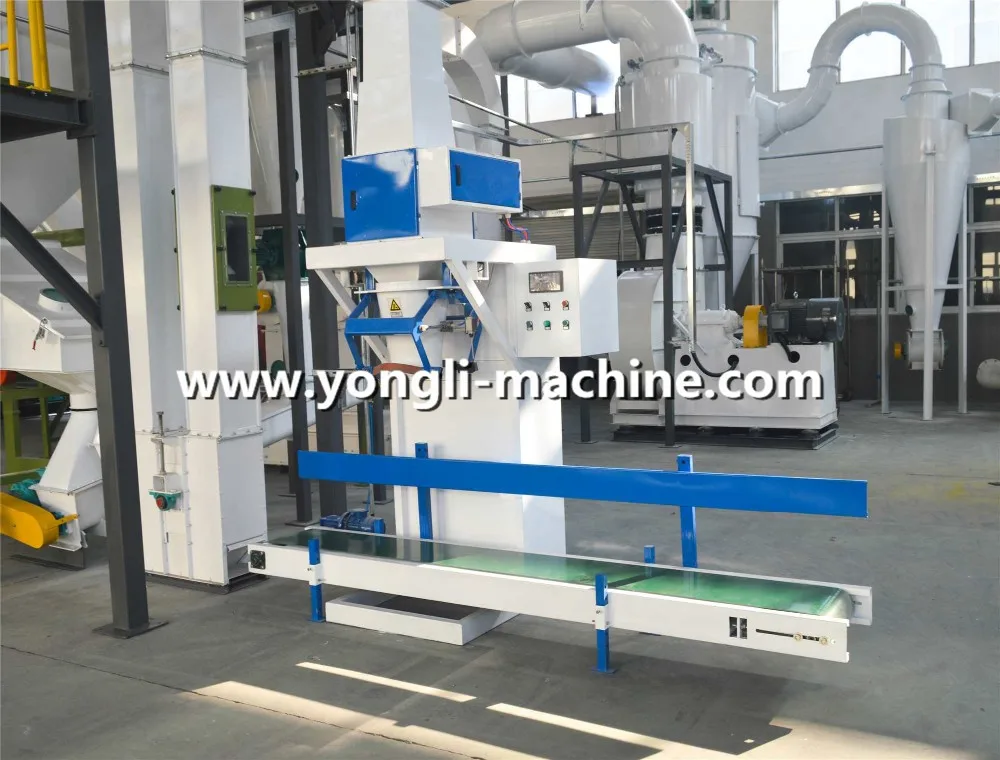

6.The sixth step packing process

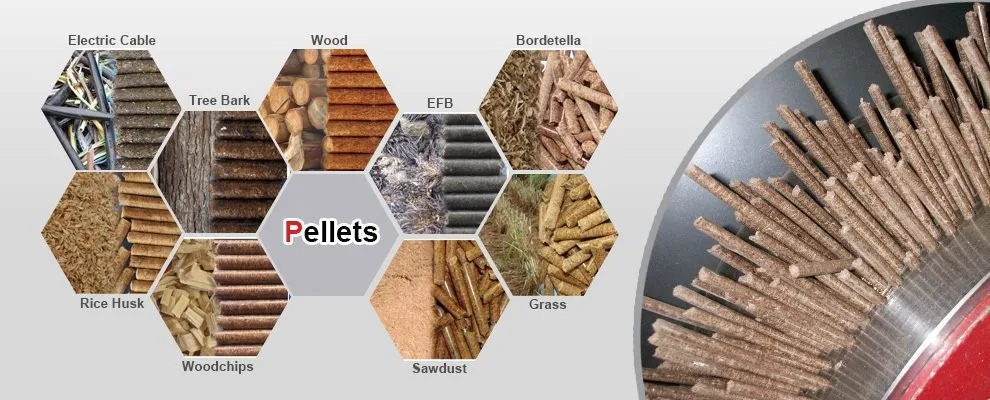

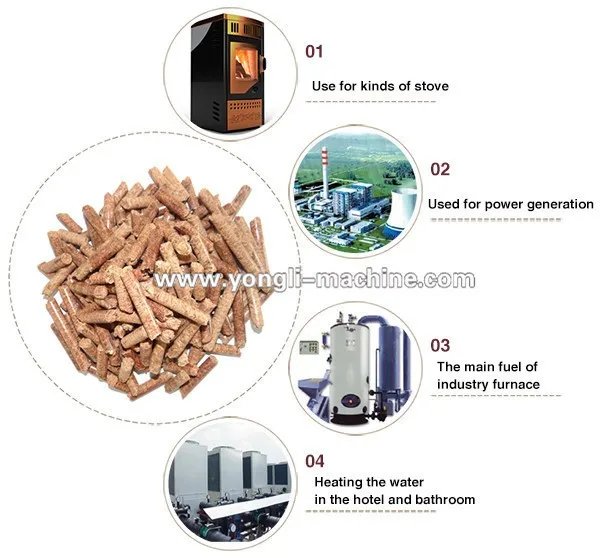

Wood pellets fuel show
Application
Yongli wood pellet press is widely used in biomass energy:
Such as fuels plant, power plant, wood processing plant,fertilizer plant,chemical plant and so on.
About Our Company
YONGLI was established in 2003 with an occupation of 22,000m2, located in the scenic Tian mu Lake, Li yang, Jiang Su, China, which is a national 5A tourist place. YONGLI is specialized in the design, fabrication and installation of chipping line, pelleting line, which includes pellet mill, hammer mill, drum dryer, wood chipper, pellet mill dies, roller parts etc for Feed, Biomass and Pulp paper industries.
YONGLI passed the audit of ISO9001 quality system and all finished products meet the CE standard. We insist on “Quality is the soul of company". Our processing equipment are used the most up-to-date CNC Machine Center. Heat treatment is conducted “in-house"assuring consistent and strict quality standards. Non-dust workshop are highly recognized by overseas clients. YONGLI owns a dynamic R&D team, which follows the principle of “Motive through Innovation, Stand through Quality, Develop through Technology" leading us to supply convenient turn-key projects to clients.
Under the principle of “High Quality, Competitive Price, Technical Innovation, Excellent Service?we have won high reputation by our domestic and overseas clients. Up till now, we have already exported our products to more than fifty countries such as Portugal, Greece, Russia, Latvia, France, Lithuania, Slovenia, Belgium, Hungary, Ukraine, Croatia, Romania, Turkey, Tunisia, Algeria, Malaysia, Vietnam, Korea, Thailand, Indonesia, Sri Lanka, Dubai, Australia, New Zealand and so on. We promise that our customers can get optimum benefit at minimum risk.
We are sincerely hoping to establish trustworthy and long-term relationship with clients all over the world to develop and move forward hand in hand together!
Delivery Management
When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
About Service
We insist on "Quality is the soul of company", we own outstanding R&D team with the sense of innovation and cooperation.
pre-sale service
Provide customers the parameters and confirm technical points
Share photos and videos WIth clients
Show our factory to clients for checking
On-purchase service
Keep clients informed Of the production progress
Send photos to clients before shipment for checking
Arrange the visa for engineers who will go for guide assembly
After-sale service
Training and all-around technical guidance for operation commission and maintenance
Engineers abroad to for guide assembly
Detailed drawings from front view, vertical view ,side view.
Thank you for your reliance and support!
Certificates
1.The quality assurance system of Jiangsu Yongli Machinery Co., Ltd is authenticated with ISO9001 quality assurance system.
2.The products of YONGLI are issued CE certification by European Union.
YongLi Team
If you are interested in our products ,don't hesitate to contact us ! we are looking forward to your valued inquiry!
YONGLI Customers
Many clients come to visit YONGLI factory for face to face discussing the technology drawing and order for details! You are also always welcome!
Packaging & Shipping
YONGLI provide shipment terms per clients request like EXW factory, FOB shanghai, CFR & CIF client's port. The details for of shipment pictures for YONGLI machine as below:
FAQ
1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Yongli workshop before shipment.
2). Yongli wins 40 national patents for machines by our senior R&D engineers.
2. Q: What is your superiority comparing with other suppliers?
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
3. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.
Answer: Sure, we provide it. And we can provide free training for on-site workers.
4. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
5. Q:What shipment terms you offer?
Answer: We can offer EXW, FOB, CIF, CFR etc based on your request.
Answer: We can offer EXW, FOB, CIF, CFR etc based on your request.
6. Q:What payment terms you take?
Answer: T/T, LC at sight etc.
Answer: T/T, LC at sight etc.
7. Where is your factory located? How can I visit there?
Answer: Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
Answer: Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
8. How to contact with us?
Attn: Jack Wang
