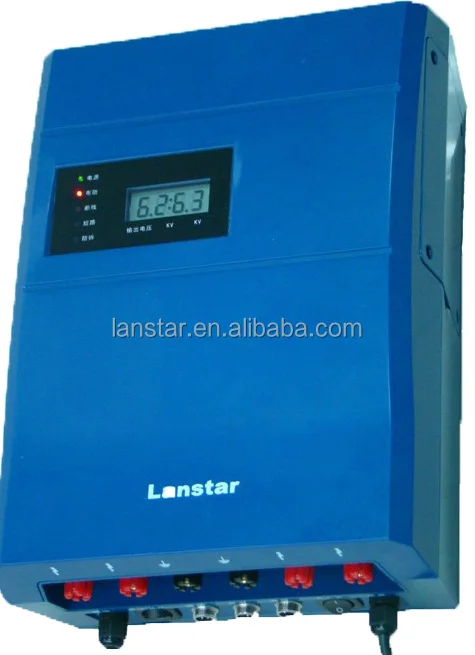

Single Zone Electric Fence Energizer with Alarm for Residential LX 2008SCD

Product Overview

Description







Residential use electric fence energizer with electrified fencing



Residential use electric fence energizer with electrified fencing  ,generates high voltage pulse of 5KV-15KV to intruders touching the fence,which establishes a physical and psychological barrier to prevent invasion .



Features

1.Differential voltage output technology: every wire has voltage, have the differential voltage between the two
adjacent wires.

2.LCD or LED indicate the working state and the voltage on every wire of fence.

3.High/low voltage switch manually, long-distance equipment auto switch function.

4.Short circuit, break and tamper alarm, Self-inspection System for equipment fault
5.Waterproof casing and downward appearance design leading the industry development.
6.RS 485 bus control, keypad, computer, network and multiple long distance management solution.
7.DC12V, NC/NO dry contact alarm output, can work with other modern security products.

8.Set up alarm delaying triggered time freely.

9.Lanstar electric fence energizer forperimeter security  with CE,ISO certificate



Residential use electric fence energizer with electrified fencing with high voltage pulse to intruders tonuching the fence .

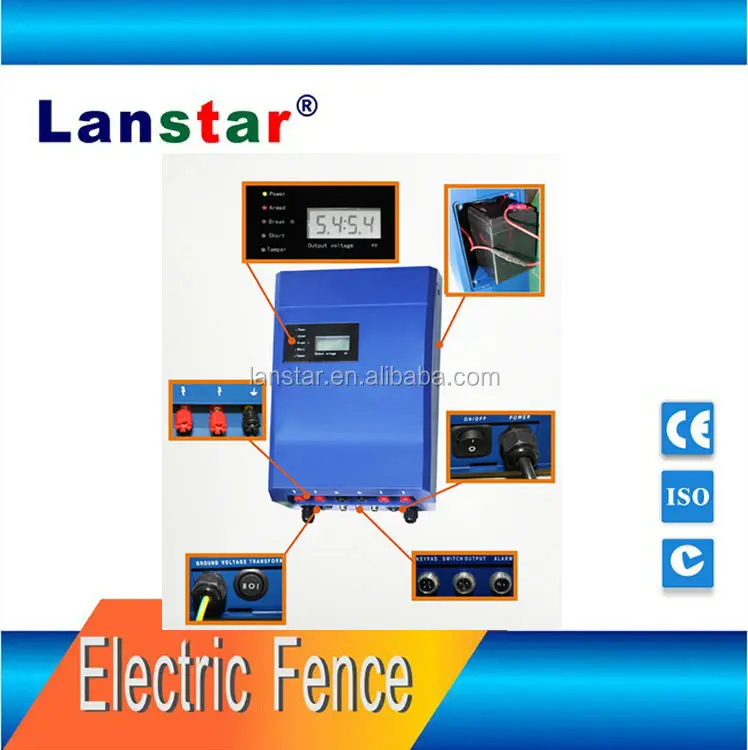

Interface specification :

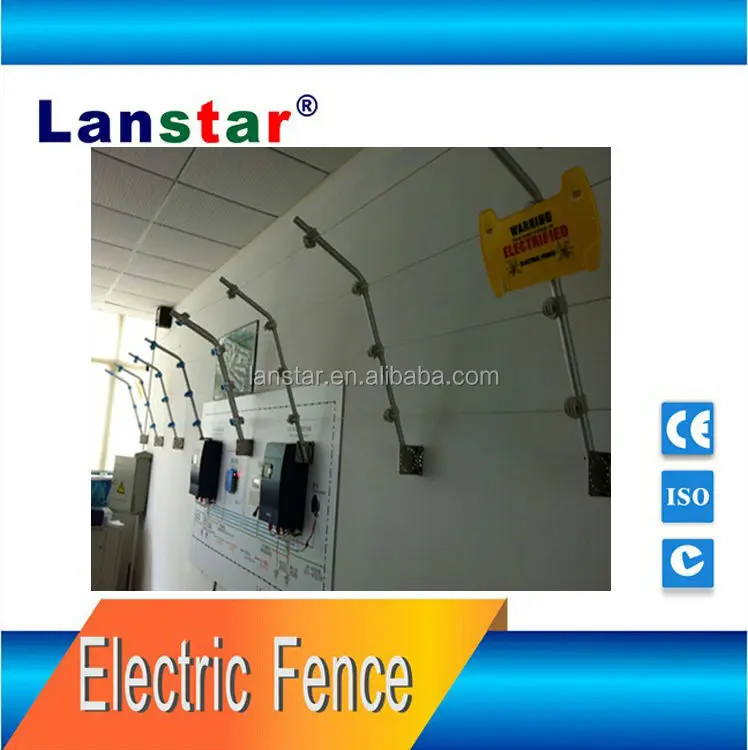

Exihibition pictures:



Technique specification:



1.Power supply :AC180V-240V50Hz
2.System power consumption : 10 Watt
3.Temperature:-40 to +50°C
4.Relative humidity :≤95%
Output parameter:
Output peak voltage: 5KV~10KV
Output low voltage: 700~1000V
Peak current of pulse: <10A
Pulse duration: ≤0.1s
pulse interval time: 1s
Max quantity of electricity of pulse: 2.5mC
Max energy of pulse: ≤5.0J



Packing details:



Demension: 410×320×220 (mm)
Net Weight: 4.2kg(Without battery)
Color: Blue
Packaging Details: Carton package







Our Industrial Park





Sales Department

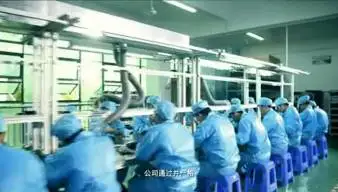

Production Line



Residential use electric fence energizer with electrified fencing

1.Sample order acceptable

2.Customized logo with OEM service is available for bulk order

3.Warranty:3 years(except artificial damage and  vis major)

4. Considerate service after sale

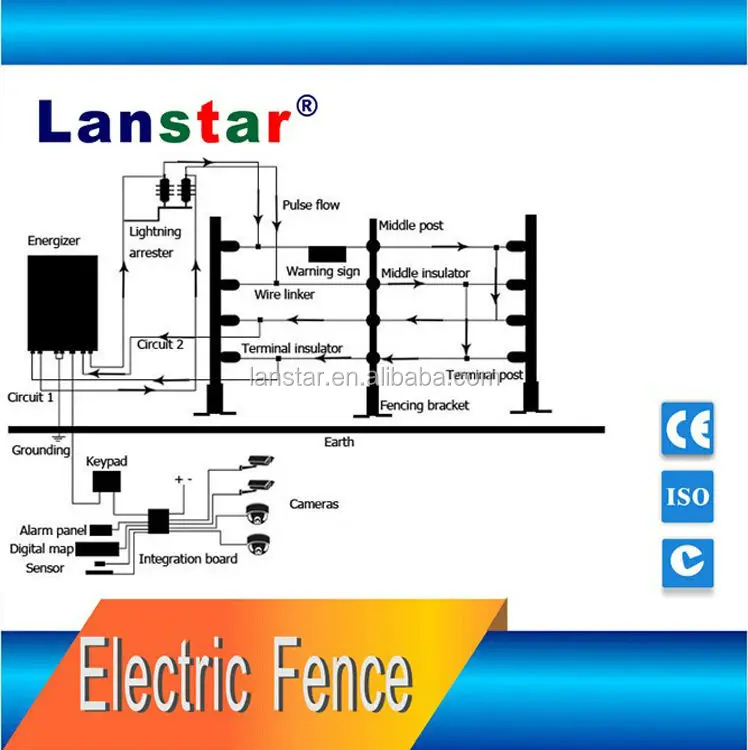

 What is electric fence system?



Electric fence system(the electric fence energizer and front fence ) is a psychological and physical barrier to detect,deter and delay intruders or wild animals with non-lethal high voltage pulse,which is widely used in farming and security areas.





Why choose us?



• Years of experience in electric fencing field


• Professional staffs for providing different solutions


• High Quality products and competitive prices


• Factory warranty with CE certificate and ISO9001:2008 certificate



Certificate



Residential use electric fence energizer with electrified fencing with high voltage pulse to intruders tonuching the fence . which establishes a physical and psychological barrier to prevent invasion .
