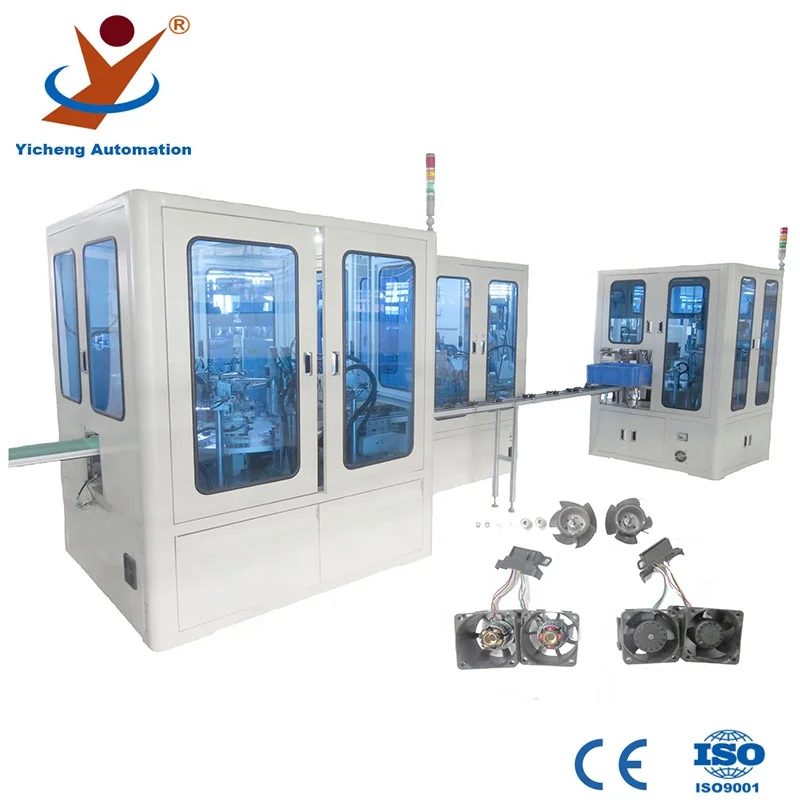

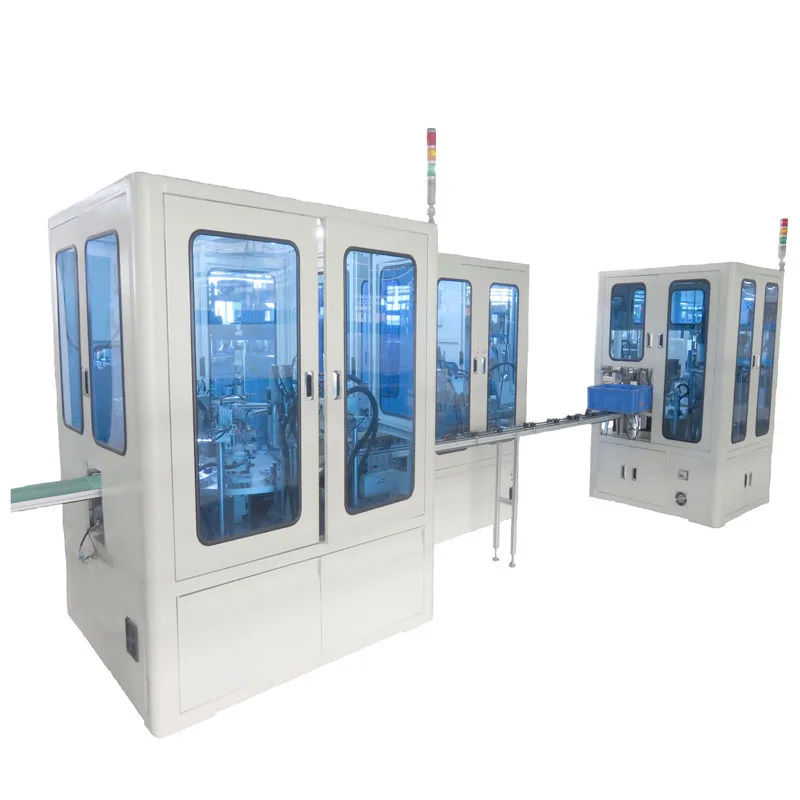

Automatic Cooling Fans Assembly Machine

Product Overview

Description

Automatic Exhaust Fan Assembly Machine Machinery in China





Function:

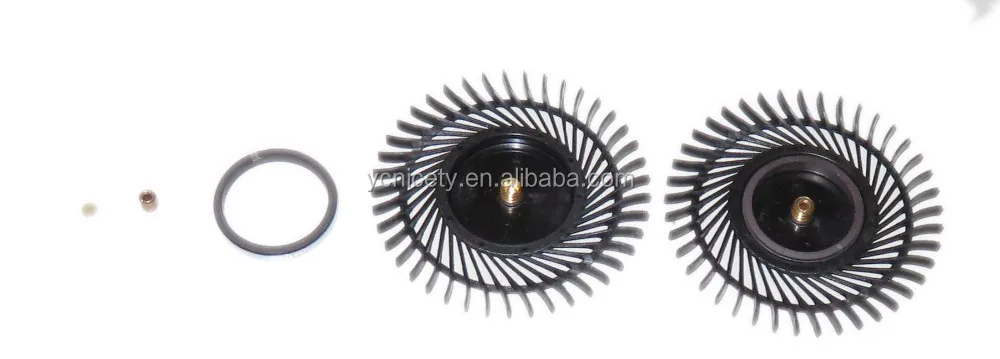

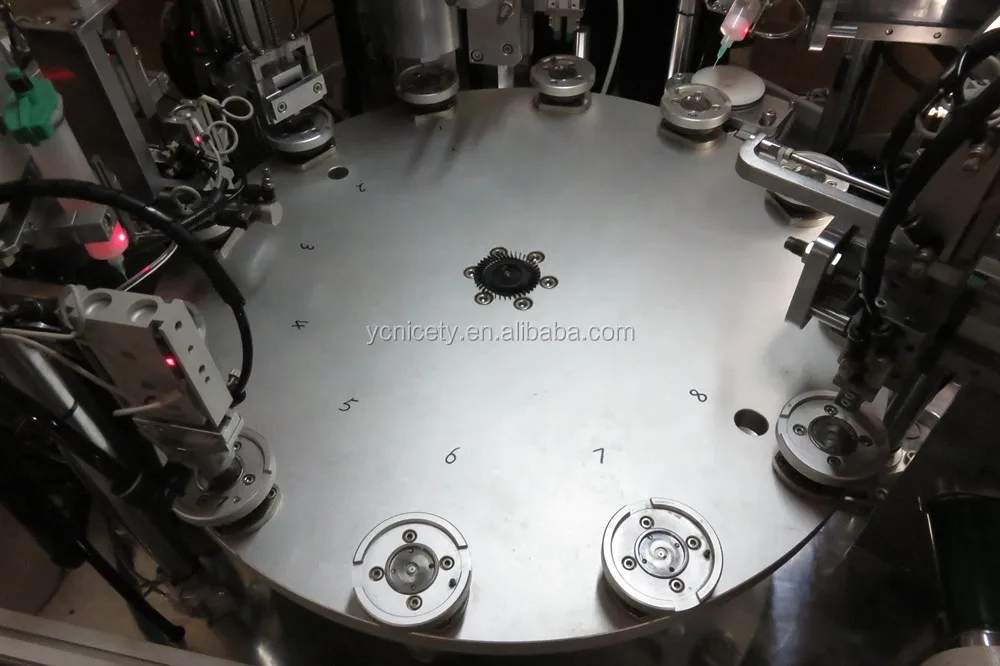

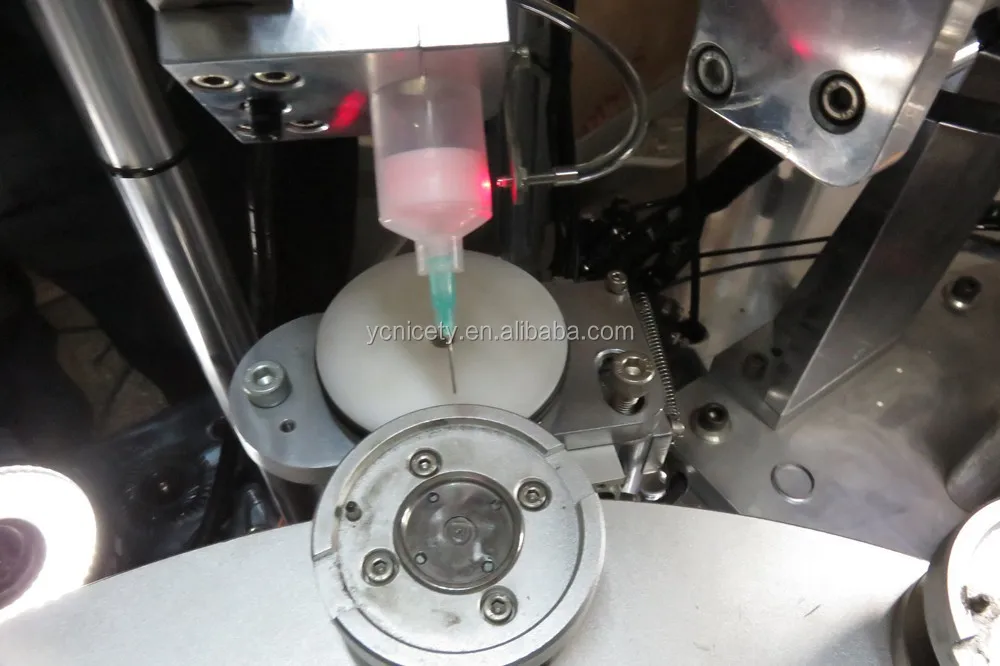

PLC control system, auto-complete fan housing (pre-stator), copper bearings, blades, two rubber seal oil ring and buckle assembly. Automatic pressure stator automatic point oil, defective automatic filtering.





Application:
Mainly used in heat sink, cooling fan production areas, the core of the fan assembly automation materials.



Technical Parameters:



Input Voltage:	200-240VAC, 50-60HZ
Input air pressure	4.5-8.0kgf/cm2
Feed Mode	Feed by bowl feed automatically
Dimension	2500(L)*1100(W)*1900(H) (mm)
Weight	about 400 kg
Cycle Time	6-8 pcs/min



Surface treatment: all stell parts are chrome-plating, all aluminium parts are anodized. The main standard parts in our machine were imported famous brand, guarantee accurate operation.





Advantages:

1.Equipped with metal frame to protect from dust, and make more safe

1 PLC control: Color Weiwin touch screen, Mitsubishi PLC control;
2 Pnuematic components: AIRTAC cylinder drive,  Panasonic or  Keyence optical sensor
3 Two vibrator feeding, terminals and vibration plate painting, coated frame

5 Human damage, the machine warranty period of one year, wearing parts warranty for six months;
6 Alarm indication

7.Equipped with CCD tester





Note: the actual product may be vary from below picture.
