Hgih Vacuum PVD coating machine /equipment for watchcase /watch strap
- Category: >>>
- Supplier: Qingdao Ubu Vacuum Equipments Corp. Ltd.
Share on (60106140117):
Product Overview
Description
Technical Parameters
Specification and Dimension:
| Model | LZ-1000 | LZ-1200 | LZ-1300 | LZ-2000 | LZ-2000 | LZ-2000 |
| Vacuum Chamber Size(mm) | ø1000×H1100mm | ø1200×H1300m | ø1300×H150000mm | ø2000×H2100mm | ø2000×H3500mm | ø2000×H4000mm |
| Application | Hardware industry, sanitary appliance industry, decoration industry, household appliances industry | |||||
| Faucet, stair handrail, household appliances, LOGO signs, stainless steel frame, stainless steel parts and plate, etc... | ||||||
| Coating Film Type | Ti-Gold, Rose Gold, Champagne Gold, Japanese Gold, Bright Silver, Rainbow, Jewelry Blue, Rose Red, Black, etc. | |||||
| Vacuum Chamber | Vertical door, hanging or horizontal cart structure, equip with pumping system and water cooling system | |||||
| Vacuum System | Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump or Molecule Pump(specific model according to customers' requirements) | |||||
| Vacuum Measurement System | 1 set pirani, 1 set cold cathode, 1 set diaphragm gauge | |||||
| Supply Type | DC power, MF power, pulse power(bias power, arc power) | |||||
| Ultimate Pressure | Non-loading cold state 1.0- 6.0×10-4Pa | |||||
| Arc Source | 8-10 set | 8-12 set | 12-16 set | 18-26 set | 22-28 set | 22-36 set |
| 200A-300A | 200A-300A | 200A-300A | 200A-300A | 200A-300A | 200A-300A | |
| Bias Power Supply | 40KW/1 set | 40KW/1 set | 40KW/1 set | 50KW/1 set | 50KW/1 set | 60KW/1 set |
| Magnetron Power Supply | 1-2 set | 1-2 set | 2-3 set | 2-3 set | 2-3 set | 2-3set |
| Rotation | Multi-axis planetary with frequency control(can be controlled and adjusted) | |||||
| Baking Temperature | Normal temperature - 450℃ can be controlled and adjusted(PID temperature control) | |||||
| Gas | 3 or 4 ways working gas flow control and display system matched with auto gas adding system | |||||
| Ar, N2, O2, C2H2,etc. | ||||||
| Cooling Method | Water cooling circulation, equip with industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide) | |||||
| Controlling Method | Manual, half-auto, auto, touch screen operation, PLC or computer controlled | |||||
| Supply Index | Air Pressure 0.5-0.8MPa, Water Temperature≤25℃,Water Pressure≥0.2MPa | |||||
| Warning | Alarming system will work when hydropenia, over-voltage, circuit break such abnormal situation happens and carry out related protect solution and electric interlock. | |||||
| Total Power | 60~80KW | 60~90KW | 90~120KW | 165~185KW | 185~200KW | 200KW |
| Output Frequency | Voltage 380V,Frequency 50Hz(equip as customers' national electricity standard) | |||||
| Occupation Space | 15~50m² | 15~50m² | 25~55m² | 25~55m² | 35~55m² | 35~55m² |
| Remark | Design and produce special machine according to customers' require, can add magnetron sputtering target,MF twins target,etc. | |||||

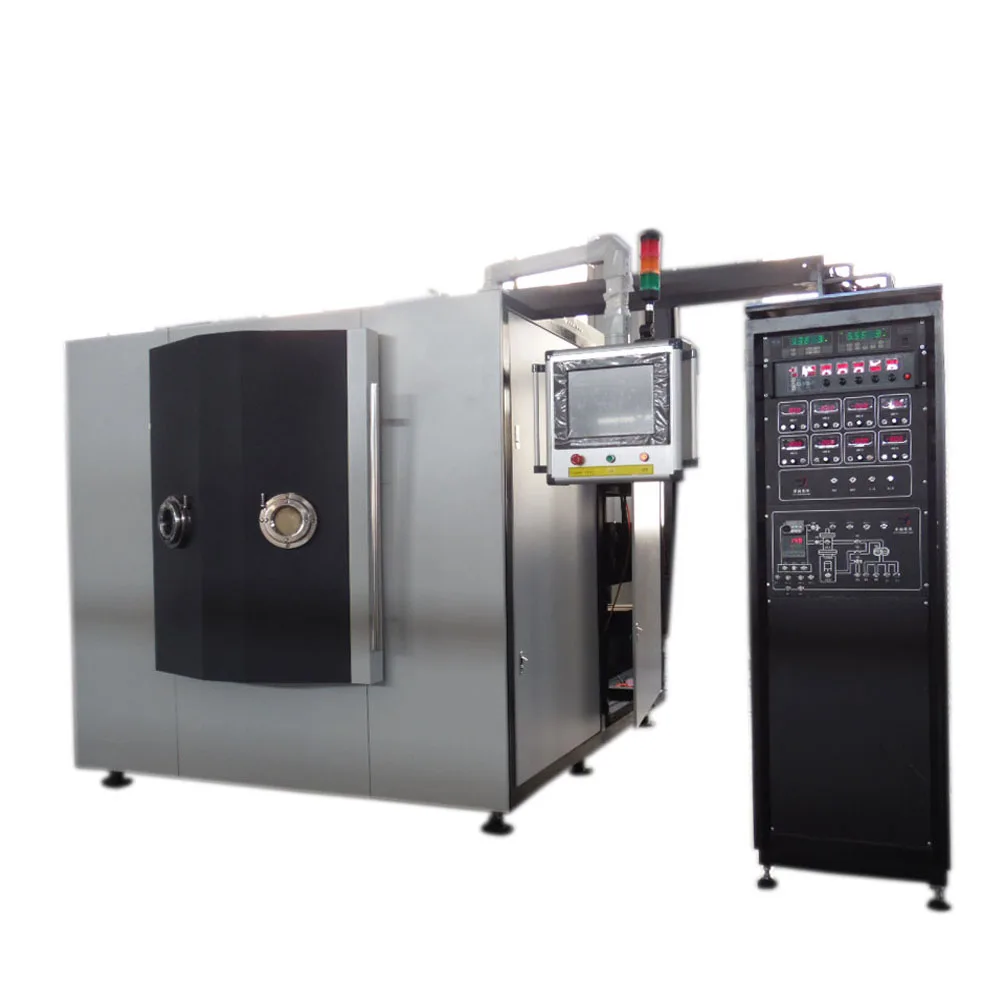

PVD coating machine

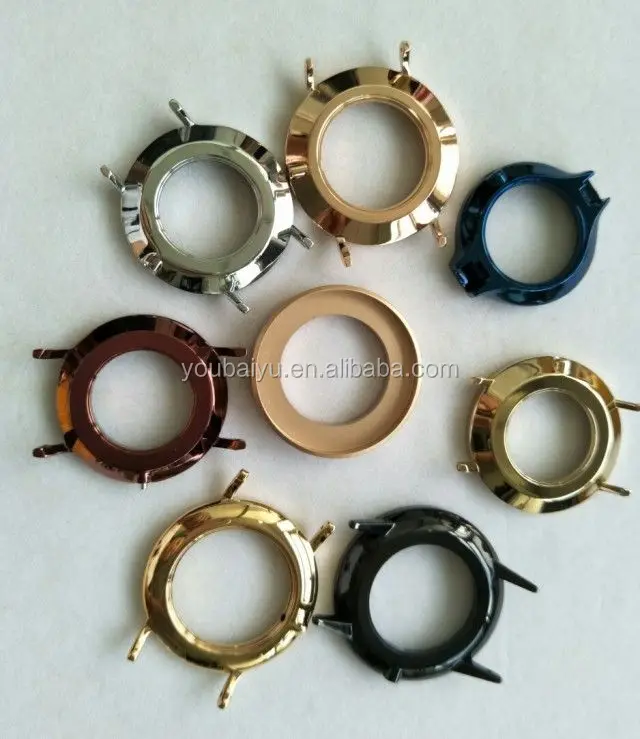

Finished Products
Packaging & Shipping
High quality strong Plywood cases packaging and transportation by sea .
Company Information
Qingdao UBU Vacuum Equipments Corp., Ltd. is a professional engaged in various high vacuum Ion plating equipment manufacturing sales, vacuum unit vacuum pump sales, PVD coating process, vacuum equipment accessories sales and upgrading of old and new high-tech enterprises, the company can configure the multi-arc based on user demand target, rotating magnetic target IF twin sputtering target, unbalanced magnetron sputtering target and the arc column, large flat arc, multi-target can be achieved in a room and can be equipped with advanced computer automatic control system, the whole process is automatic control.
Our Services
Before sales:
- Our engineers are ready to provide custom made design and recommendation for each customer's case.
- We provide professional consulting service for PVD coaters and lines.
- We also have set up good relations with the suppliers of relative consumables and parts for your needs
After-sales
- We will send the engineers to your place for installation, fine tune and for operation training.
- We will provide troubleshooting service all lifetime.
- The warranty period of the machine is 1 year.
- We will contact you to ask for about the conditions of the machine in periodically.
- We also provide the service for further extension on your existing machine.
