CS game 0.68' Paintball Making Machine with image Print device for encapsulation

Product Overview

Description

Description:

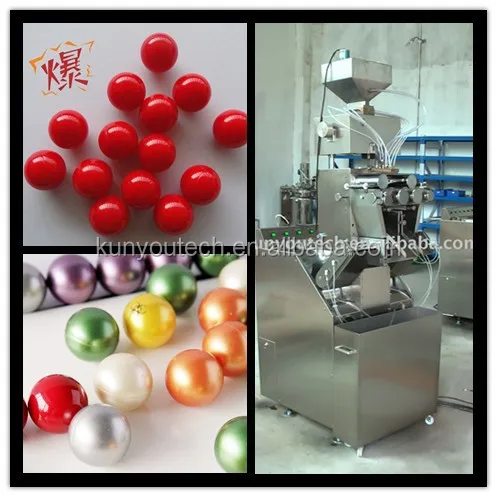

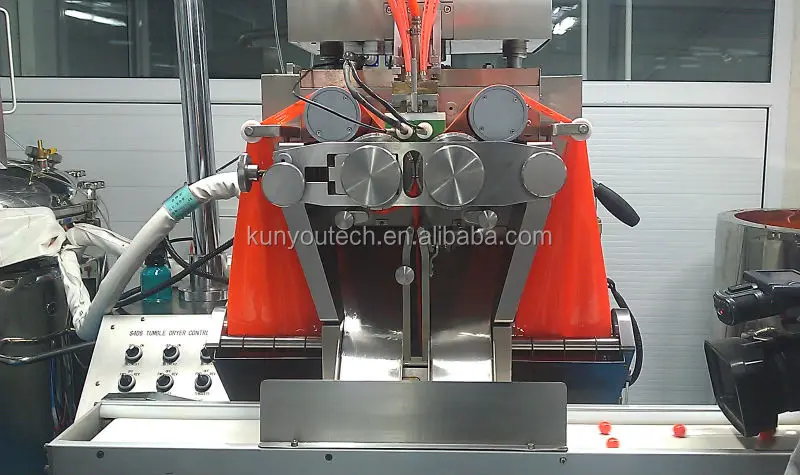

S406PB paintball making machine's die roll is 152 mm long. The die roll's rotation rate can be regulated during 0~5 rpm, so users can choose the most appropriate speed according to diffrent material and process parameters. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The spilt structure of cooling fan reduces the thermal effect to the perssure pill. Besides, the gelatin barrel is installed with wheels which can be moved more conveniently and easily. The machine's oil roller is made of stainless steel material, so it's more in line with the repuirementS of GMP.





Products information

The features of S406PB paintball making machine:



1. Good stability



2. Adjustable rotation rate during 0-5rpm



3. Easy to operate and clean, conforming to GMP



4. Compact and beautiful



5. It can be assembled or disassembled with single hand



6. Big air flow



7. Reduce the oil consumption



8. The cable plug has good waterproof and oil proof function



9. High technical loading capacity



10. High precision



11. Easy to move and operate



12. Drum design to prevent gelatin wrinkling and sideship





 Specifications:



Model	S406PB
Die roll diameter	Φ 103mm
Die roll length	152mm
Die roll speed	0~5rpm
Plunger numbers	10
dimension	880X640X1900mm
weight	900kg
Power consumption	2.75kw
Control mode	PLC+HMI Switch/buttons
Output rate	8#OV 43470 pcs/hour



We hope we can find you and you can find us ---Beijing KUN YOU Pharmatech Co.,Ltd







What is the advantages of Automatic Pintball making machine ?

1)We are factory, direct sales with competive price;

2)More than 20 years experience;

3)Professional designer and worker to serve you;

4)This machine with a strict inspection before out of storage;

5)This machine use a large number of 316 stainless steel;

6)This machine use world famous electrical and pneumatic components,such as Siemens, omorn ,Airtac, Mitsubish,  Schneider etc.

7)Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free.

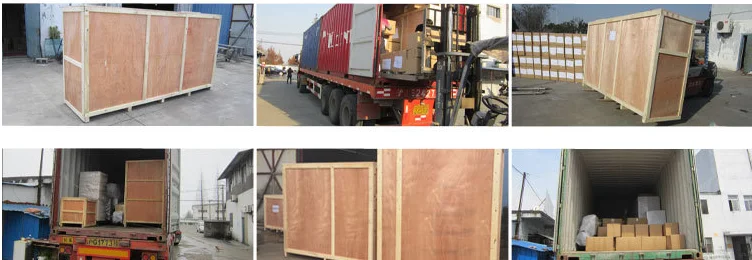

Packing&Shipping



We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes.

We ship the whole line of macine by ocean through the freight agent.



Our services

We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.

Company Information

Beijing KUN YOU Pharmatech Co., Ltd., which is established in 2008, has been focusing on designing, manufacturing and selling pharmaceutical machinery, food machinery and paintball machinery.
KUN YOU Pharmatech provides various models of Softgel Encapsulation Machines (soft capsule encapsulation machine, paintball machine, soft gelatin capsule machine), such as S406 with 6" dies, the medium size S407 with 7.5" dies and the latest and largest S610 with 10"dies. Here, you can find whatever paintballs and soft capsules that you need. Welcome to Beijing KUN YOU Pharmatech Co., Ltd. We look forward to cooperating with you!



After more than ten years of unremitting efforts, our continuing research and cooperation with many domestic and foreign  pharmaceutical factory, plant health products and paintball production factory, not only enable us to make a lot of technical innovation in soft capsule equipment, but also to accumulate rich experience in the production process of soft capsule.  We also have rich experience in softgel formulation and manufacturing process. We have three sets of high accuracy CNC milling machine, together with lathe, grinding machine, EDM machine, wire cutting machine, we can make state-of-the-art equipments and softgel die roll.

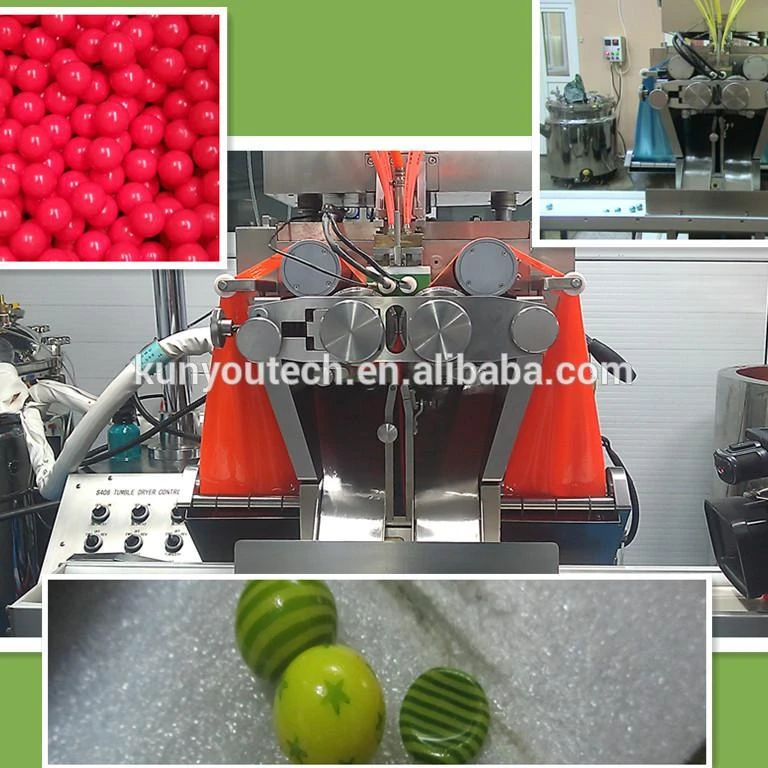

Product samples.
