Product Overview
Description
Electronic Linear Cutter Blade Grinder GD-700 Straight Knife Sharpening Machiner
Product description
GD-Z700 Auto straight knife sharpening machine mainly used for sharpening various types of the straight blade cutting tools at different angles. It is suitable for grinding different types of straight blade cutting tools such as furniture making,wood processing, printing and textile industry etc.
Characters:
1. knife sharpening machine has good and reasonale appearance arrangement,it consist of the 7 components including the main body,the workbench, the carriage, the grinding head, the automatic feeding, the circuitry and the cooling, the structure of each section is compact.
2.Knife making grinder is equiped with manual and automatic feeding griding device. The automatic feeding amount can be adjusted according to actual requirement by adjusting the position of the position rod, and control the feeding amount.
3.Working table can be adjusted the angle from 0 degree to 90 degree.
4.It clamps the blade with electric chuck, so the clamp is safe and reliable.
5.The grinding head feed the blade adjusting speed with the speed frenquency transformer, the feeding speed can be adjusted in uniform in the range of 0-60Hz according the the workpiece, assuring the grinding quality.
6.700mm,850mm,1000mm,1500mm,3000mm for choosing,price is defferent
Parameter of the Linear Knife Grinder :
Max Grinding Wheel Dimension: 700mm |
Main Motor Power: 1.5kw |
Effective Gringding Length: 700mm |
Feed power of motor: 60w |
Grinding Cutter Adjusable: 0-90degree |
Worktable rotation Angle:0~90degree |
Grinding Wheel Specification: 32x50x150mm |
Water Pump Motor: 40w |
Rated power:1500W |
Voltage:380V |
Wheel Head Rotate Speed: 2840r/min |
weight :230kg |
Packing size:L1200x W850x D 1470 mm |

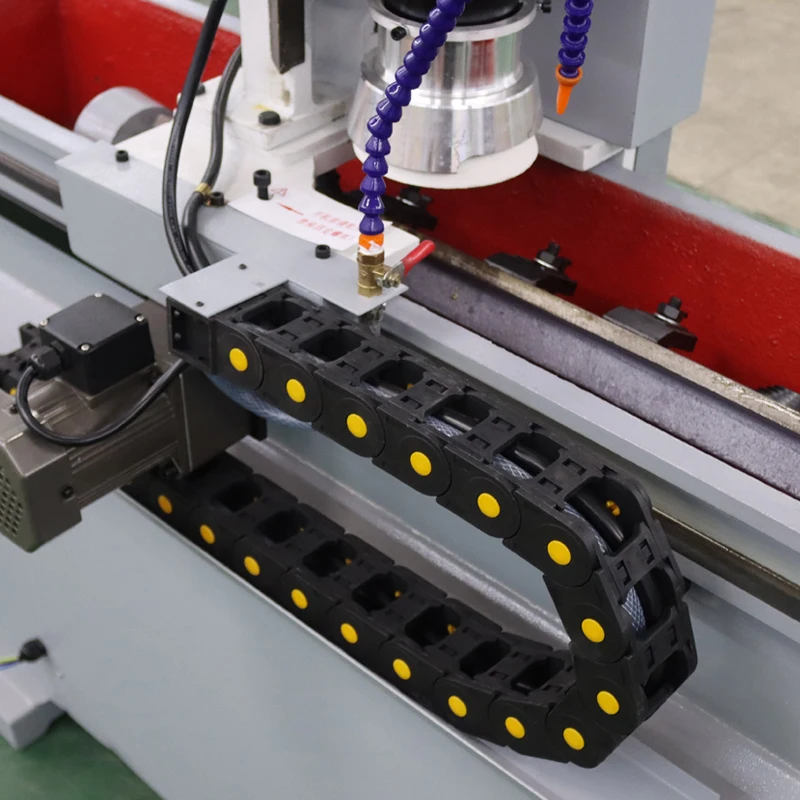

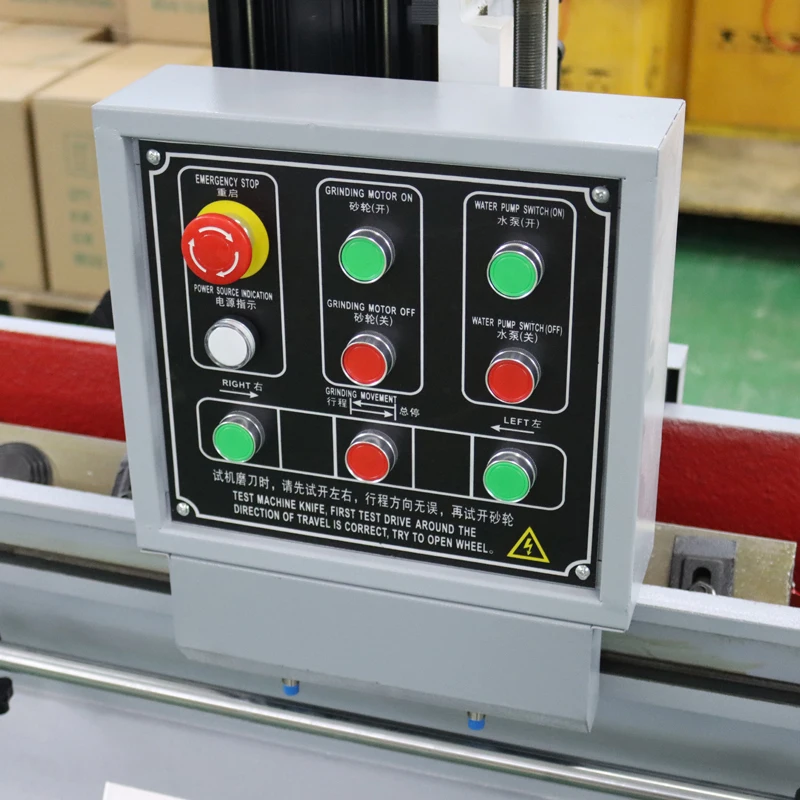

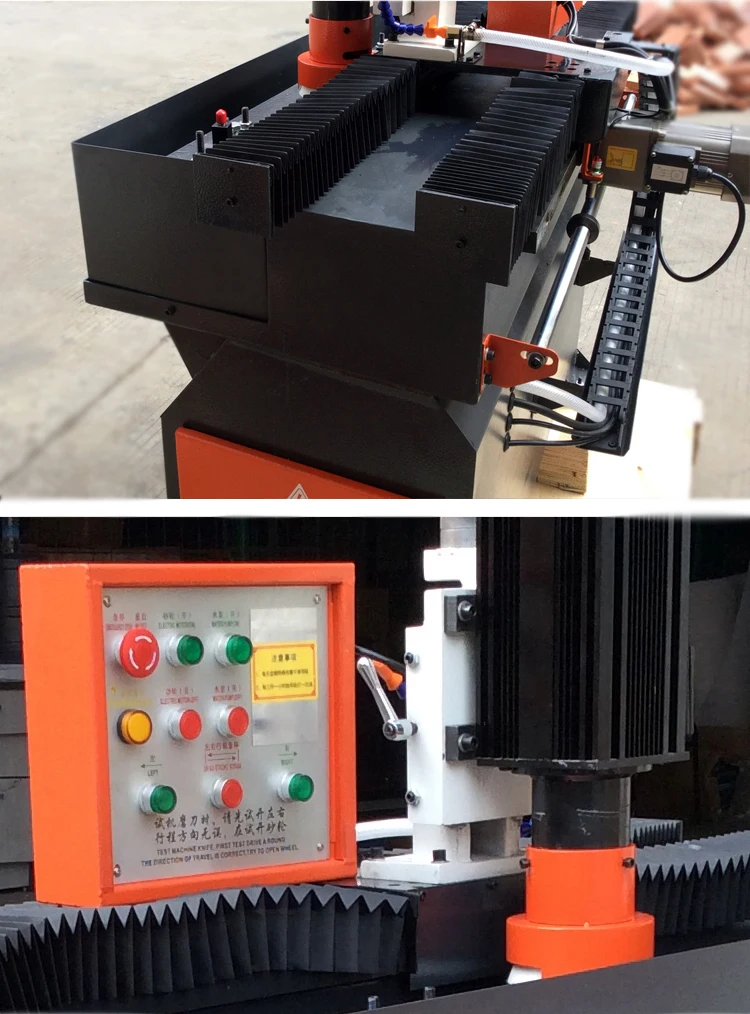

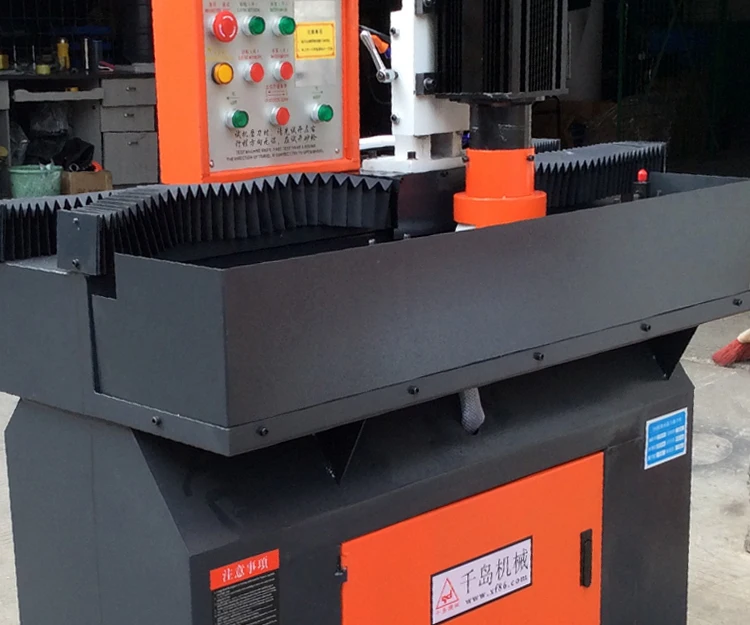

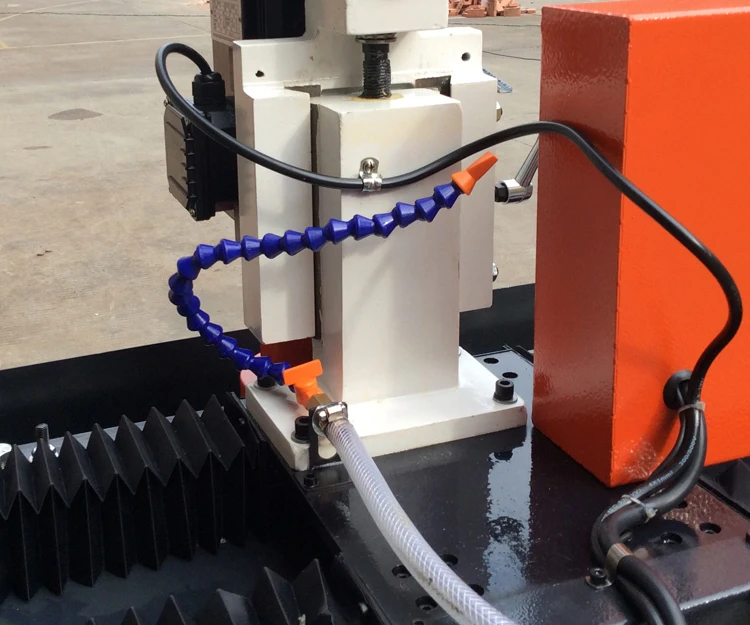

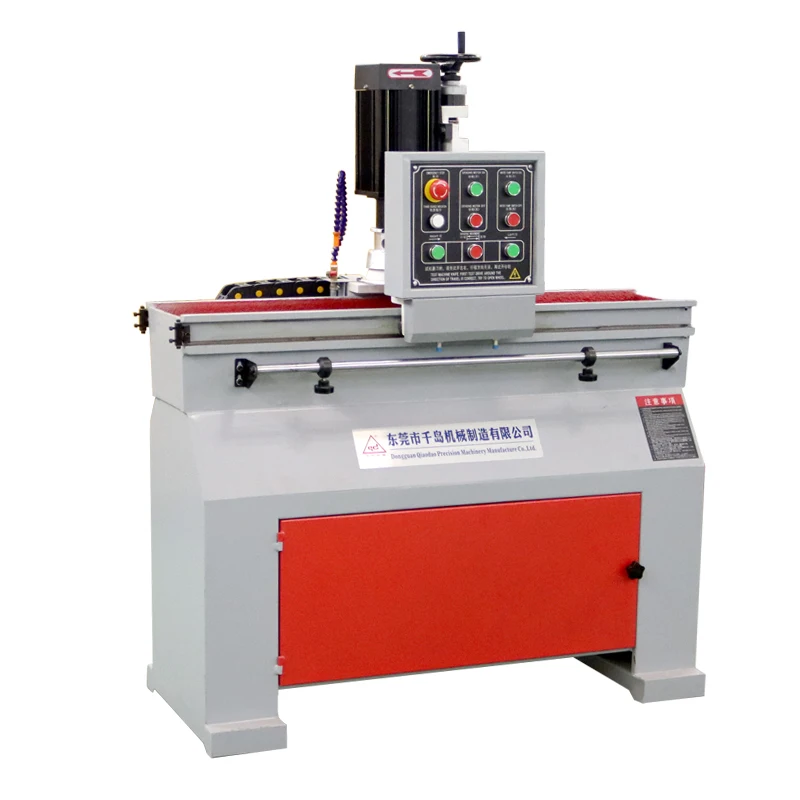

Detailed Photos:
Company Information
FAQ
1.Q: What is your MOQ of this item?
A: Our MOQ is one set.
2.Q: What is the delivery time?
A:It will take 5~7 days if the goods are in stock, and 15-30days if the goods out of stock, depends on your order quantities.
3.Q: Is it all right to make our own brand name?
A: OEM is acceptable.
4.Q: Where is your Loading Port?
A: Shenzhen / Guangzhou ,China port.
5.Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in drill bit grinder, end mill re-sharpener, screw tap re-sharpener, lathe tool grinder, saw blade re-sharpener, chamfer, universal cutter grinder, tapping machine and electrical tapping machine more than 10 years.
6.Q:How many exhibitions will you participate in every year?
A: As last year we took part in 10~20 exhibitions, which include 3 exhibitions in oversea.
7.Can you provide the CE certification?
A: Yes, we can provide CE certification for our products.
