alloy steel scm435
scm435 steel at best price
scm435 steel material is Japan standard which is widely used in Asia countries. It's equivalent material such as:
sae4135, astm4135 in German Standard
scm435 in Japan JIS standard
34CrMo4 steel in German DIN standard and
35CrMo steel in Chinese GB standard.
aisi4135 steel with good steel properties is widely used in Industry manufacturing such as shafts, piston rod, machinery parts, automobile components...
aisi4135 steel specification is as following, s45c steel chemical composition, steel properties, steel standards etc.
1. Production Form: Hot-rolled/cold drawn/ forged round/square/flat bars
2. Manufacturing Process: EAF/LF/VD/CC/HOT ROLLED/COLD DRAWN/FORGED
3. Steel Grade:
|
GB |
ASTM/SAE/AISI |
JIS |
DIN |
|
35CrMo |
4135 |
scm435 |
34CrMo4 |
4. Chemical Composition:
|
C |
Si |
Mn |
S |
P |
Cr |
Mo |
|
0.32-0.40 |
0.17-0.37 |
0.40-0.90 |
0.035(max) |
0.035(max) |
0.80-1.10 |
0.15-0.25 |
5. Mechanical Properties:
|
Yield Strength(MPa) |
Tensile Strength(MPa) |
Elongation (%) |
Reduction of Area(%) |
|
835(min) |
930(min) |
12 |
45 |
6. Size tolerances:
Hot-rolled steel round or square bar:
|
d/a(mm) |
5.5-7 |
7-20 |
20-30 |
30-50 |
50-80 |
80-110 |
110-150 |
150-190 |
190-250 |
|
(mm) |
+0.30 -0.30 |
+0.35 -0.35 |
+0.40 -0.40 |
+0.50 -0.50 |
+0.70 -0.70 |
+1.0 -1.0 |
+1.3 -1.3 |
+2.0 -2.0 |
+2.5 -2.5 |
7. Quality Condition:
1): Straightness: 3mm/m (max)
2): The ends will be end cut
3): No cracks inner or on surface
8. scm35 steel bars in different shapes:

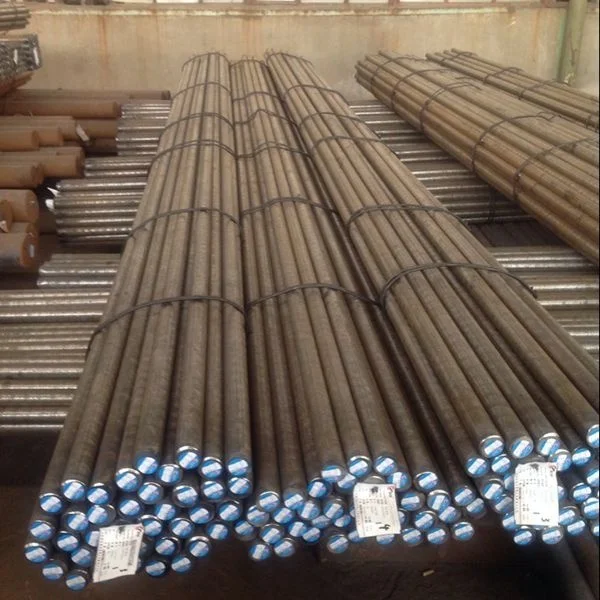

scm35 steel round bars:

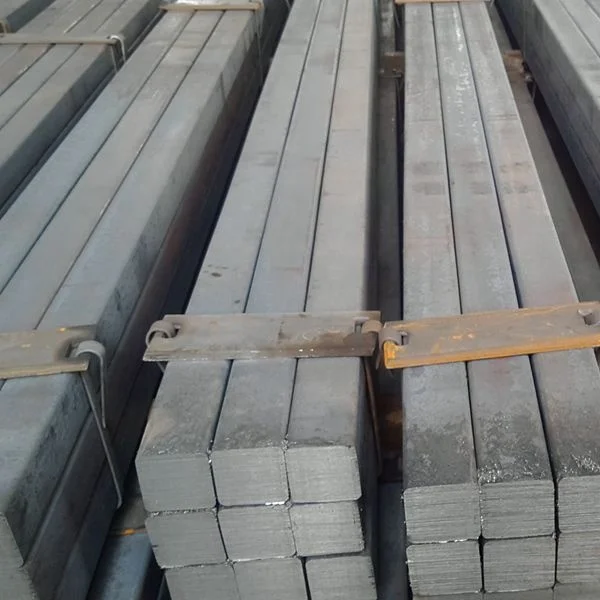

scm35steel square bars:


9. scm435 steel bars indifferent delivery condition:

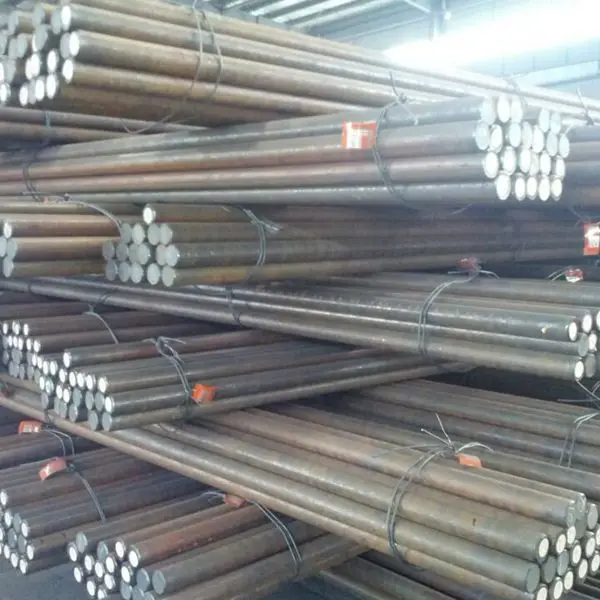

scm435 hot rolled steel bars:

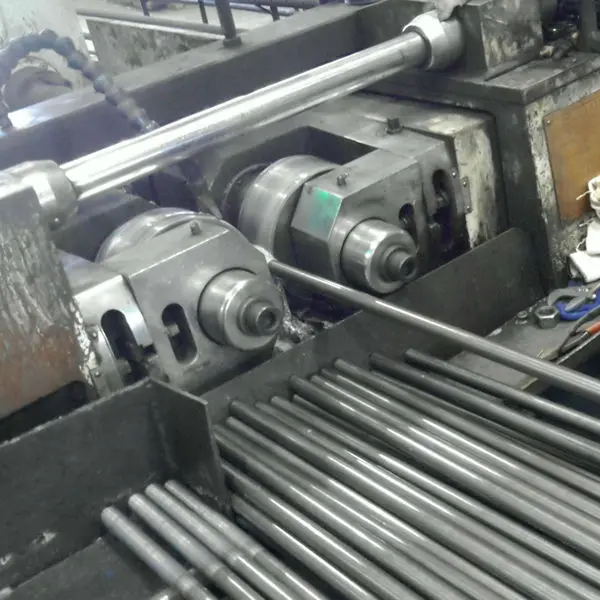

scm435 cold drawn steel bars:

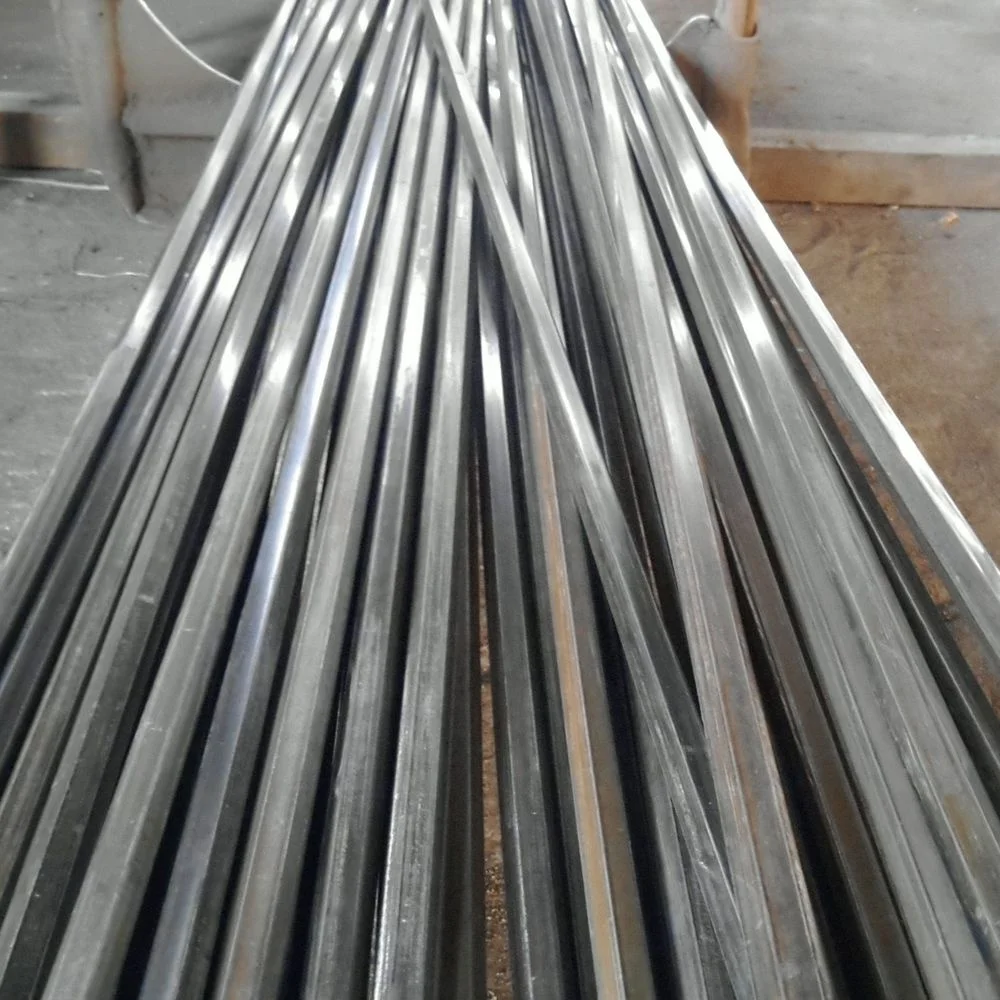

scm435 peeled steel bright bars:

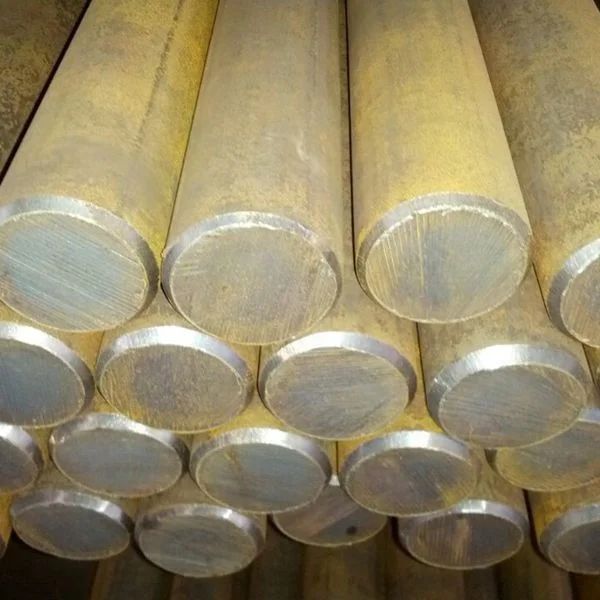

scm435 chamfered or beveled steel bars:

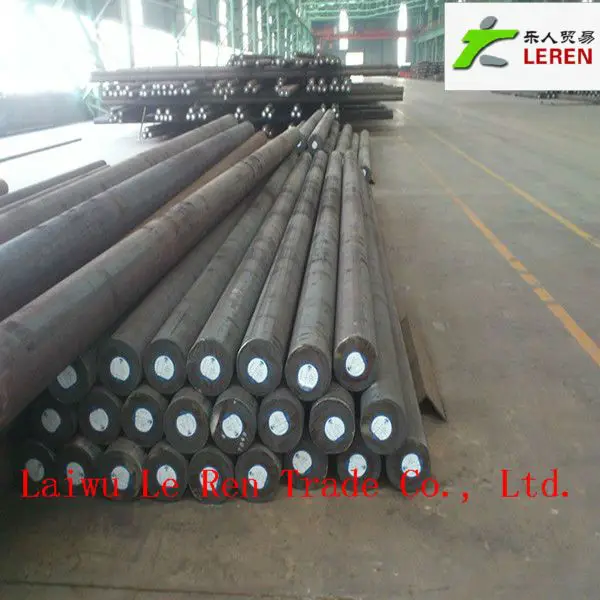

Established in April, 2009, under the leadership of the builder who is specialized in steel producing for 25 years, with rich steel technology and knowledge, LAIWU LE REN TRADE CO., LTD. Forges one professional steel exporting team and builds one steel further processing factory.
Supplying professional Service
Our management philosophy: To exceed customers’ expectation; To realize employees’ dream. As a processional steel exporting company, we aim to help the customers to create the commercial value by supplying steel solutions, to solve customers’ pain points and to supply efficient, thoughtful and professional service.
Focusing on high-quality goods
Our steel processing factory, SHANDONG LE SHAN MACHINERY CO., LTD aims to provide personalized demand products with good mechanical properties. Our factory is equipped with advanced machines such as cold drawing machines, peeling machines, fine straightening machines, fast cooling cutting machines, centerless grinding machines, continuous annealing furnaces, medium frequent Q&T machines, Ultra testing and Eddy current testing assembly line and complete testing equipment in Lab under the guidance of ISO9001 Quality Management System. Our products are widely used in the high strength and prestressed projects in industries of oil & gas, petrochemical, bridge, tunnel, wharf, steel structure construction etc. The annual productivity is 40,000.00 tons.

A: We have our own factory with complete production equipment and inspection facilities.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us sa bellow:
