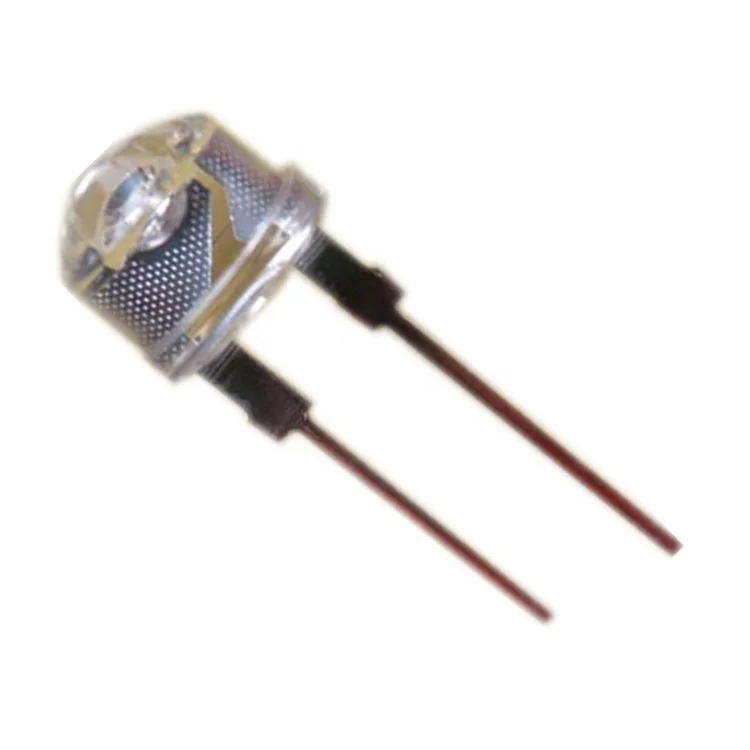

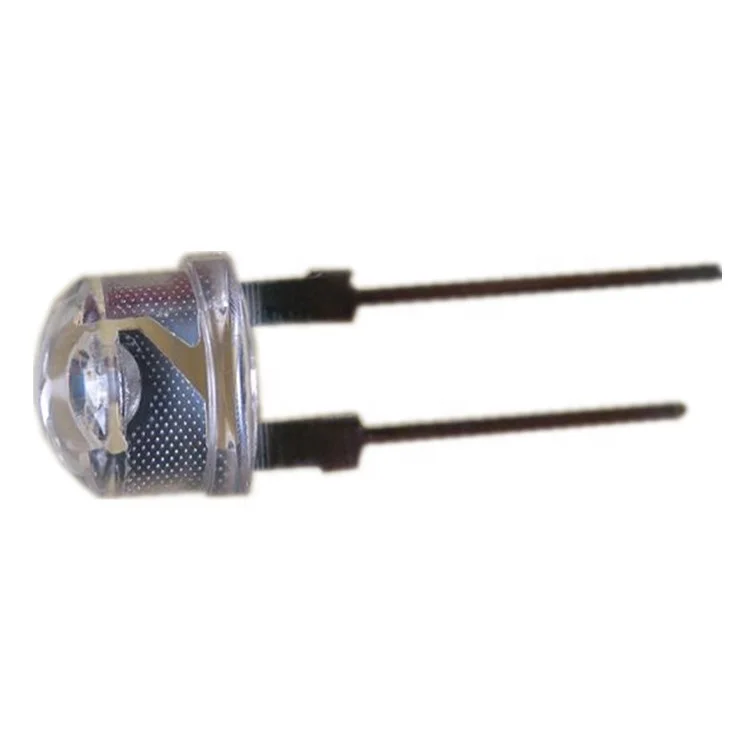

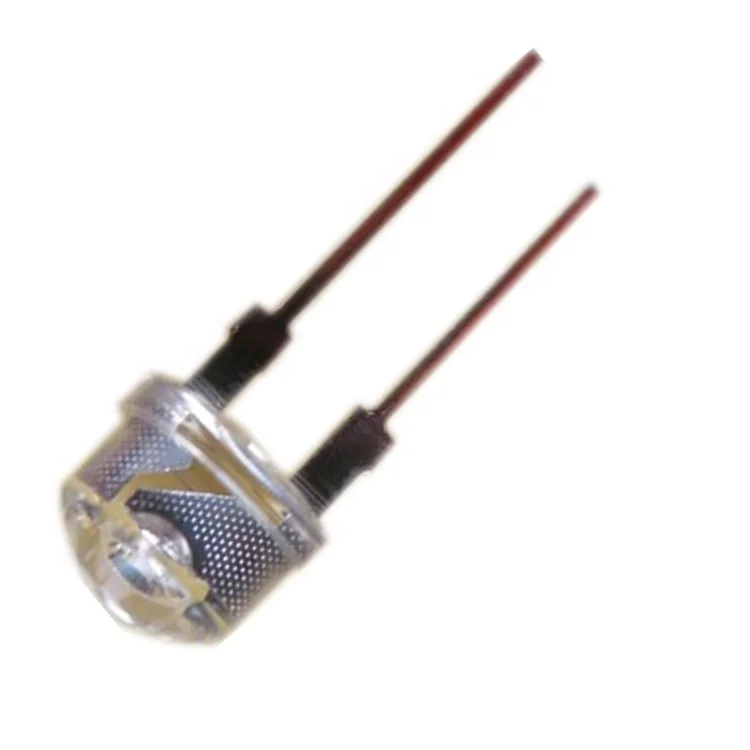

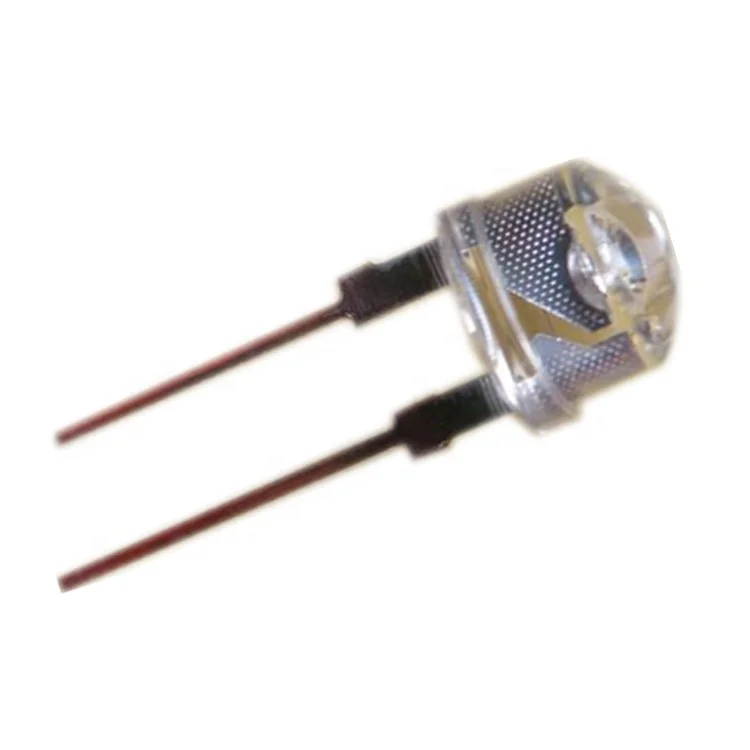

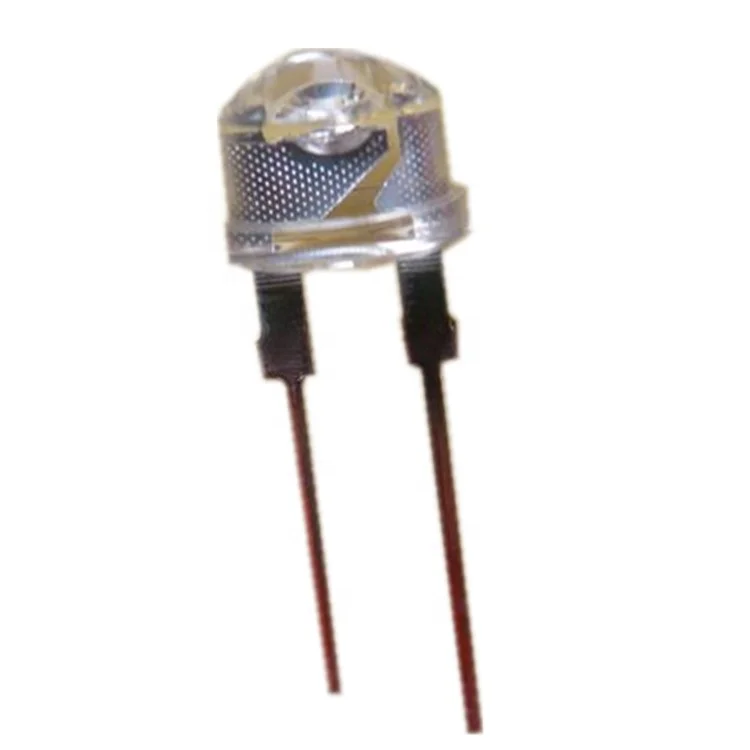

Chinese special wavelength LED manufacturer offer water clear 8mm straw 3000nm InGaAsPb middle infrared diode with ROHS
- Category: Electronic Accessories & Supplies >>>
- Supplier: Shenzhen Starsealand Opto Electronics Co. Ltd.
Share on (60106857370):
Product Overview
Description
Chinese special wavelength LED manufacturer offerwater clear 8mm straw 3000nm InGaAsPb middle infrared diode at competitive price with ROHS
Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .
Applications:
1. oxygen meter
2.Gene testing device
3.motion capture
4. iris authentication
5.Vein certification
6.Surveillance camera
7.Color selection
8.encoder
9.Appearance inspection
10.solar simulation
11.photo therapy
Product Description
Item | Symbol | Value | Unit |
| forward current | IF | 20 | mA |
| Pulse forward current | Ip | 200 | mA |
Power dissipation | PD | 200 | mW |
Operating temperature | Topr | -20~+75 | °C |
Storage temperature | Ystg | -30~+80 | °C |
Reverse voltage | VR | 5 | V |
Sold soldering temperature | Tsol | 260°C/3Sec | --- |
Item | Symbol | condition | Min | Type | Max | Unit |
DC forward Voltage | VF | Ip=200mA | 0.3 | ---- | 0.5 | V |
DC reverse Current | IR | V=5V |
|
|
| μA |
Peak Wavelength | λP | Ip=200mA | 2900 | 3000 | 3100 | nm |
Spectrum Radiation Bandwidth | Δλ | Ip=200mA | 600 | 700 | 800 | Nm |
Radiant Power | Φe | Ip=200mA | 12 | 14 | 16 | μW |
50%Power Angle | 2θ1/2 | Ip=200mA | ---- | 120 | ---- | deg |
Switching time | tr, tf | Ip=200mA | 10 | 30 | 50 | ns |

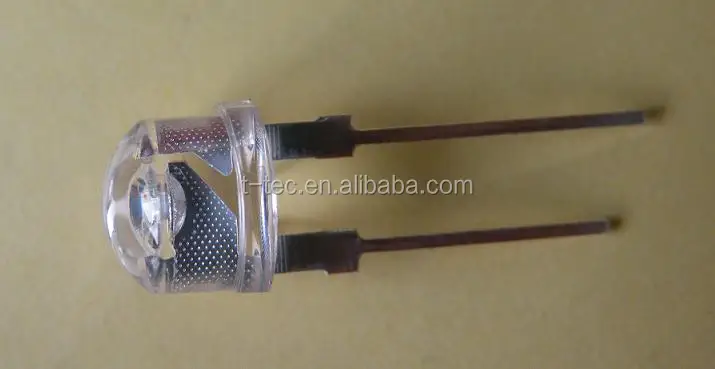

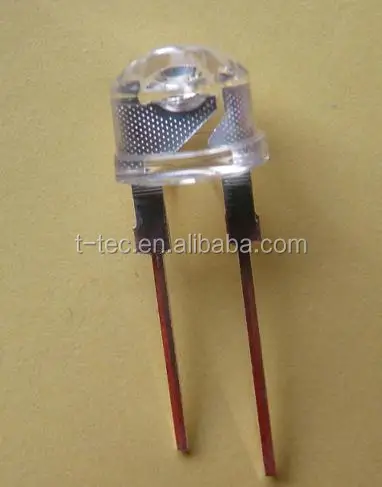

Appearance
Size drawing
Packaging & Shipping
packaged in pp bag
shipping way
Our Services
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
FAQ
Q:How can I get your pricelist?
A:Please Email us your country name, your detailed contact telephone, fax number, part# you need and how many pieces
you will buy.
Q:If I place an order, how long will it take to delivery it?
A:It usually takes about only 2-3 days on receipt of payment, depends on the quantity ordered and the stock status.
Q:How do you deliver parts to us?
A:Normally sent to you by DHL, UPS,TNT etc Worldwide Express or by shipment. Delivery charge is ofen $35.00 with packaging less than 0.5KG,more depends on its detail weight.
Q:How is the payment made?
A:There are different payment options. You may choose any of following at your convenience.
by western union: you can find your local service from www.westernunion.com.
by T/T (wire transfer) you can pay to our company account for large quality order.
