Plastic pressure pvc pipe ming pvc pipe and fittings

Product Overview

Description

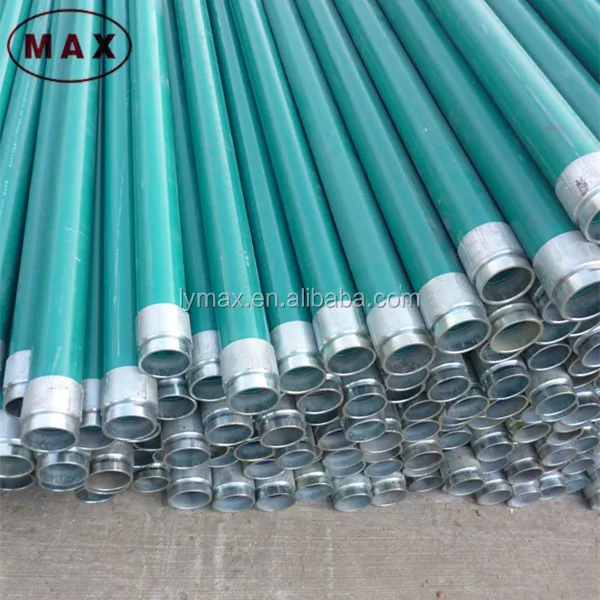

Plastic pressure pvc pipe ming pvc pipe and fittings

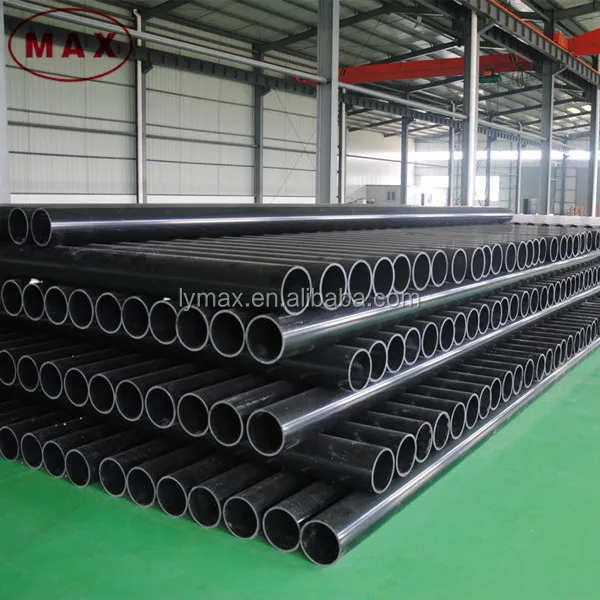

Coal mine UPVC pipe's full name is coal mine polyvinyl chloride pipe. Because of its wide application in gas drainage, it is also called gas pipe. Compared with conventional coal mine pipes, coal mine UPVC pipe is the optimal material instead of conventional steel pipe and glass steel pipe.



Coal mine UPVC pipe has following characteristics:
1. Light weight and easy installation.
2.Anti-corrosion and anti-aging.
3. UPVC pipe has good performance of high strength and excellent crack resistance.
4.Self-lubricating and no-scale.
5.Anti-static, anti-flaming and safer in use.
6.Low cost in transportation, installation, refit and disassembly.





PVC mine pipe is widely used for:
Drawing out methane pipe/coal mine gas drainage pipe;
Power cable pipe, optical fiber cable pipe, communication signal cable protection pipe;
Coal mine compressed air and ventilation pipe;
Other pressure pipes under the environment with gas or dust;

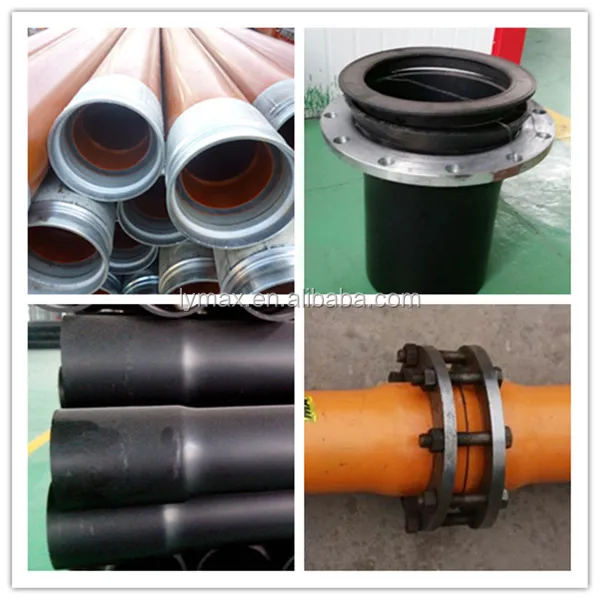

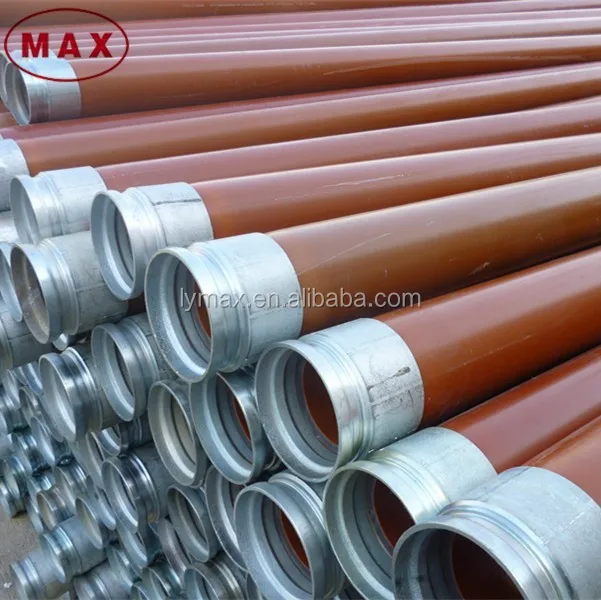

Coal mine UPVC pipes have several connection ways that includes flaring socket connection, flanged joint, threaded connection, anulated connection



Mining UPVC Pipe Specification Table



PVC PIPE (MT558.2-2005)
Specification	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa
	Thickness	Thickness	Thickness	Thickness	Thickness
25				2.0	2.3
32				2.3	2.9
40		2.0	2.4	2.9	3.6
50		2.4	2.9	3.6	4.5
63	2.3	3.0	3.7	4.6	5.7
75	2.7	3.6	4.4	5.4	6.8
90	3.2	4.3	5.3	6.5	8.2
110	4.0	5.3	6.5	8.0	10.0
125	4.5	6.0	7.4	9.0	11.4
140	5.0	6.7	8.2	10.1	12.7
160	5.8	7.7	9.4	11.6	14.5
180	6.5	8.6	10.6	13.0	16.4
200	7.2	9.5	11.8	14.5	18.2
225	8.1	10.7	13.2	16.3	20.4
250	9.0	11.9	14.7	18.1	22.7
280	10.1	13.3	16.5	20.3	25.4
315	11.3	15.0	18.5	22.8	28.6
355	12.8	16.9	20.9	25.7	32.2
400	14.4	19.0	23.5	29.0	36.4
450	16.2	21.4	26.5	32.6
500	18.0	23.8	29.4	36.2



















Any query, please don't hestitate to contact us at any time and welcome to your any inquiry!
