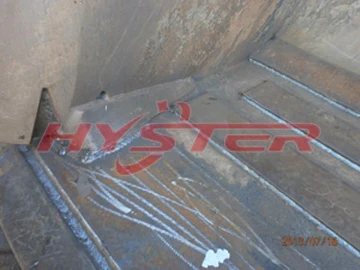

HV600 Chromium Carbide Overlay Wear Plate

Product Overview

Description

hardface wear plate

HV600 Chromium Carbide Overlay Wear Plate hardface wear plate compound wear plates for mining quarrying bucket wear protection

Specifications

Wear plate C:4.0%~5.5%,Cr:21%~27% Hardness:minHV600 Tolerance:1mm 1500x3000mm,1200x2400mm

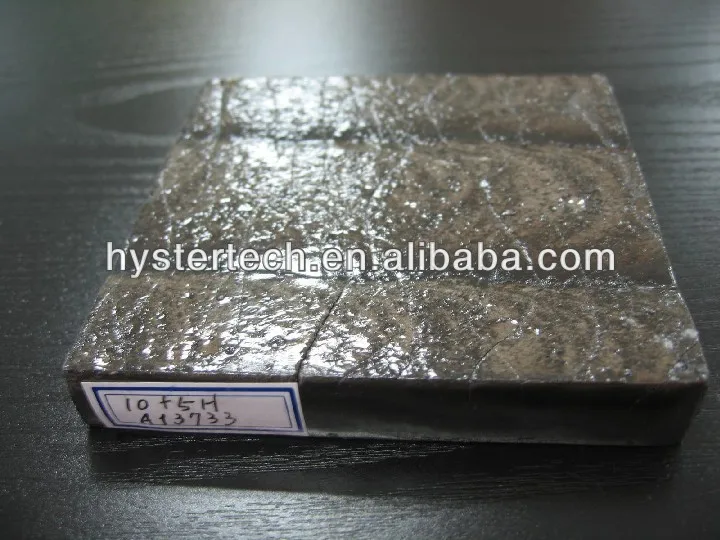

Chromium Carbide Overlay Wear Plate





 OVERLAY-PLATE is welded by chromium carbide overlay on a mild steel backing plate. Manufactured by our own design's welding machine with exclusive technique. OVERLAY-PLATE has excellent performance in abrasion resistant.



CHEMICAL COMPOSITION C 4.0%~5.5% Cr 21%~27%



BACKING PLATE Standard: SS400 mild steel or equivalent Stainless or others upon request



HARDNESS HV600±



TOLERANCES ± 1mm



HEAT RESISTANCE Maximum: 400 degree



MICROSTRUCTURE Mixture of high volume hexgonal shaped chromium carbide

in tough austenitic and martensitic matrix(GRADE 2355)



PENETRATION TO THE BASE METAL 1.5mm



COLD FORMING Minimum Radius: 150mm( for 6+4 )

Suggested: using hydrolic press to bend plate



CUTTING Plasma( from backing plate side ) / Laser Cutting / Water Jet Knife



Unit **mm

Standard Overlays	Weight per sq/m	Standard Sheet Size	Overall Thickness
4 ON 4	62	1500x3000 / 1200x2400	8
4 ON 6	77	1500x3000 / 1200x2400	10
6 ON 6	92	1500x3000 / 1200x2400	12
5 ON 8	100	1500x3000 / 1200x2400	13
6 ON 8	108	1500x3000 / 1200x2400	14
5 ON 10	116	1500x3000 / 1200x2400	15
9 ON 10	146	1500x3000 / 1200x2400	19
10 ON 10	157	1500x3000 / 1200x2400	20
12 ON 12	162	1500x3000 / 1200x2400	24
17 ON 12	222	1500x3000 / 1200x2400	29





Specifications

CrC compound plate C:4.0%~5.5%,Cr:21%~27% Hardness:minHV600 Tolerance:1mm 1500x3000mm,1200x2400mm

CrC compound plate



Chromium Carbide Overlay Wear Plate, cladded wear plate, compound wear plates



OVERLAY-PLATE is welded by chromium carbide overlay on a mild steel backing plate. Manufactured by our own design's welding machine with exclusive technique. OVERLAY-PLATE has excellent performance in abrasion resistant.



CHEMICAL COMPOSITION C 4.0%~5.5% Cr 21%~27%



BACKING PLATE Standard: SS400 mild steel or equivalent Stainless or others upon request



HARDNESS HV600±



TOLERANCES ± 1mm



HEAT RESISTANCE Maximum: 400 degree



MICROSTRUCTURE Mixture of high volume hexgonal shaped chromium carbide

in tough austenitic and martensitic matrix(GRADE 2355)



PENETRATION TO THE BASE METAL 1.5mm



COLD FORMING Minimum Radius: 150mm( for 6+4 )

Suggested: using hydrolic press to bend plate



CUTTING Plasma( from backing plate side ) / Laser Cutting / Water Jet Knife

Unit **mm

Standard Overlays	Weight per sq/m	Standard Sheet Size	Overall Thickness
4 ON 4	62	1500x3000 / 1200x2400	8
4 ON 6	77	1500x3000 / 1200x2400	10
6 ON 6	92	1500x3000 / 1200x2400	12
5 ON 8	100	1500x3000 / 1200x2400	13
6 ON 8	108	1500x3000 / 1200x2400	14
5 ON 10	116	1500x3000 / 1200x2400	15
9 ON 10	146	1500x3000 / 1200x2400	19
10 ON 10	157	1500x3000 / 1200x2400	20
12 ON 12	162	1500x3000 / 1200x2400	24
17 ON 12	222	1500x3000 / 1200x2400	29

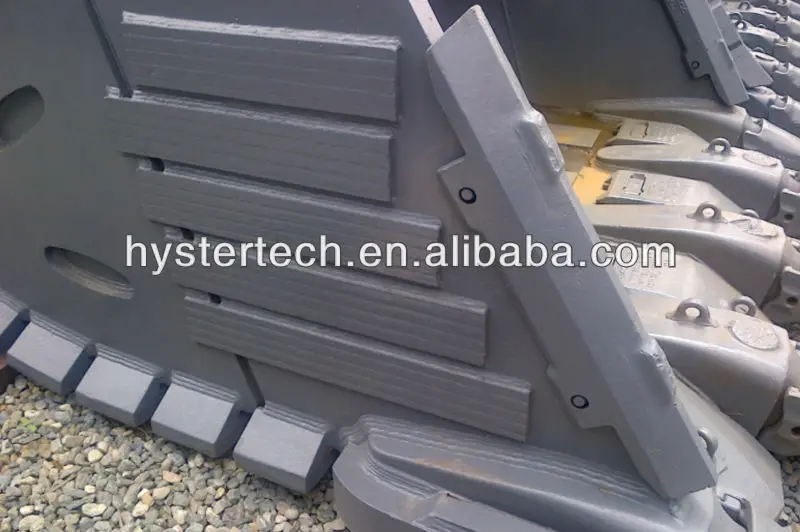

APPLICATIONS -ASH LINES -BLAST FURNACE BELL & BURDEN

-ELBOW -SINTER PLANT -BUCKET & LIPS -DRAG LINES -CHUTE & HOPPER LINERS -DUCT

-CLASSIFIER -FAN BLADES & HOUSINGS -MINE CAR LINERS -CYCLONES -ORE CHUTES

-DISCHARGE FUNNELS -SLAG CHUTES -DREDGE PUMP SIDE PLATES

-EXTENSION RING -CEMENT KILNS -VIBRATOR PAN FEEDEER LINER -GRIZZLY BARS

-SINTER BREAKER BAR -CONVEYOR CASINGS -GREEN WALT CRUSHERS -STEEL PLANT



WE ARE OEM FACTORY FOR SIMCO, FORDSTEEL, BYG SPAIN ,ASGCO,CAT,ESCO,ETC.

Typical products,

Chocky bars Standard wear bars Knife edges

Wafer strips Wear buttons& donuts Skid bars

Wear plates Shredder hammer tips Shaped wear bars

overlay wear plates cutter tooth custom made products



white iron wear plates   chromium cabirde wear blocks

ASTM A532 Class 2 15/3 CrMo casting + Q235 mild steel backing plate

outstanding wear resistance 63HRC/ 700 BHN + excellent impact toughness

durable + weldable / various shape



welcome to contact sales01(@)hystertech.com, Alice is waiting for your email, thank you!
