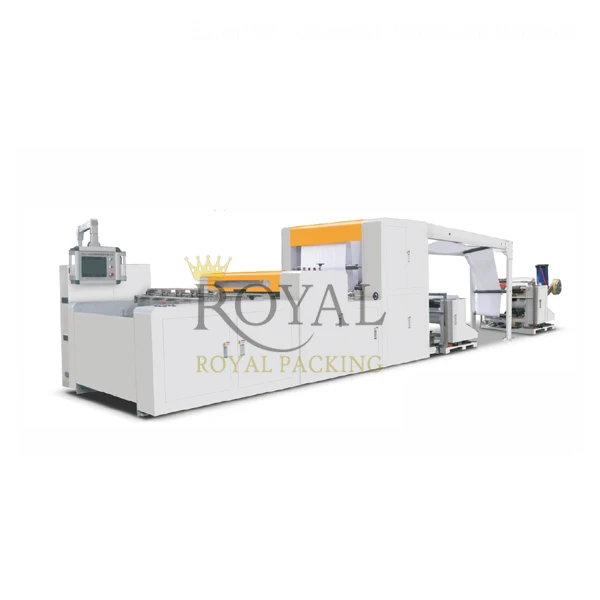

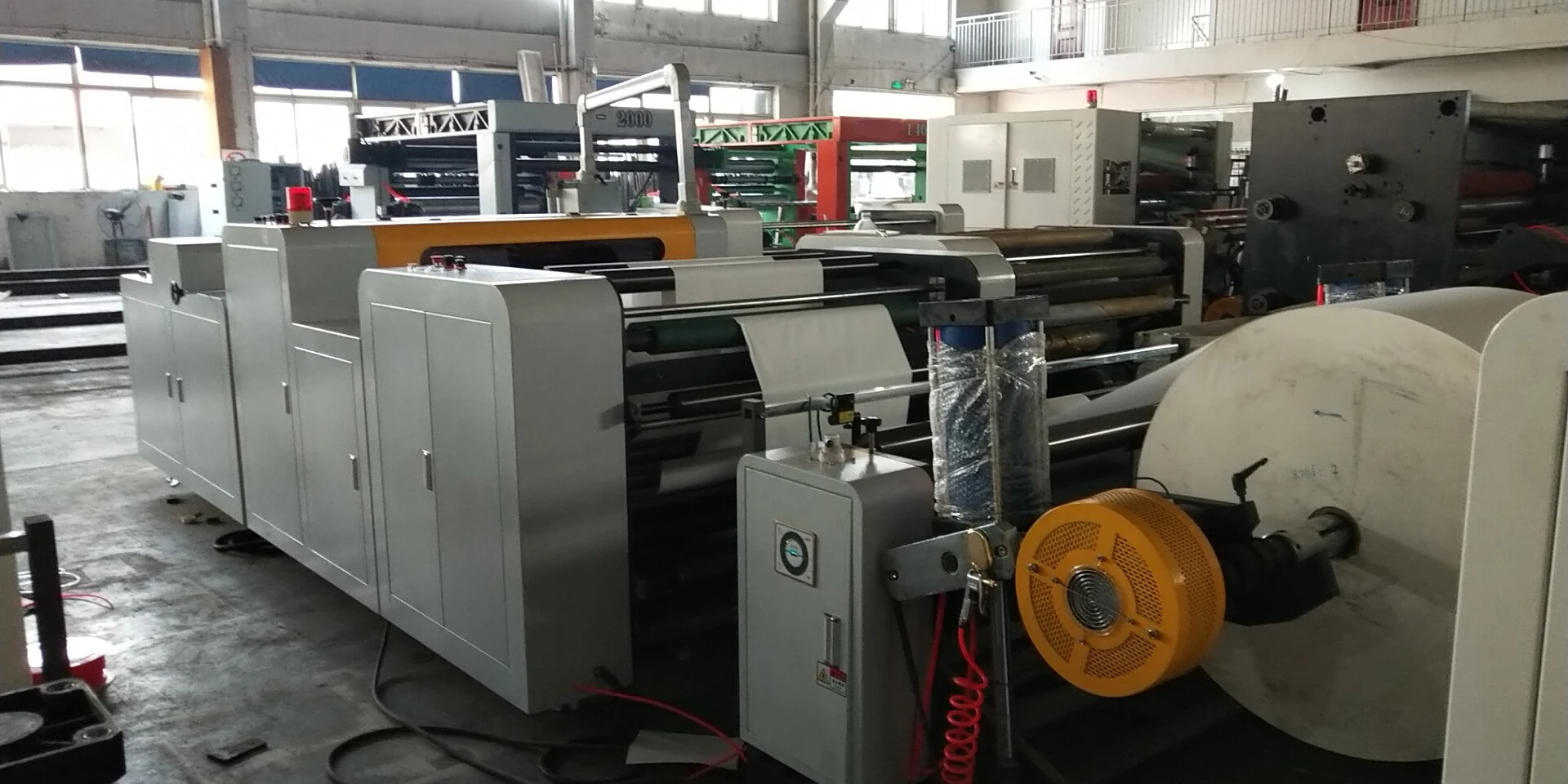

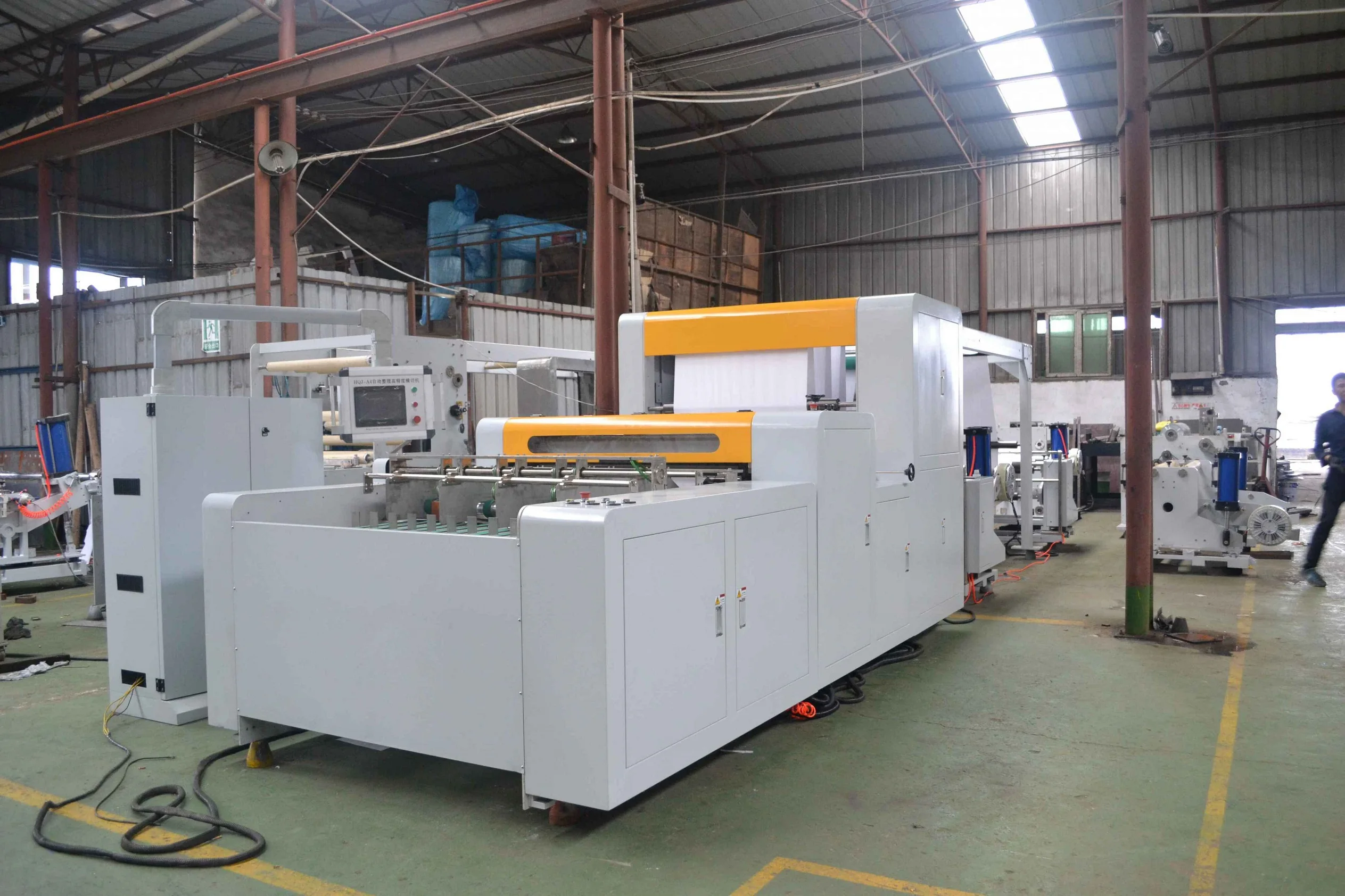

This machine is suit for cutting big rolling packaging materials such as paper, PVC, PET film paper plastic, multicolor laminated material, etc.
lAdopts pneumatic automatic materials loading system with much easy operation and convenience
lAdopts down-up recurrent cutting with orderly finished products and without water caltrop; meantime, it can be used for horizontal cutting and vertical cutting at one time
lIt adopts servo motor for controlling constant-length cutting。

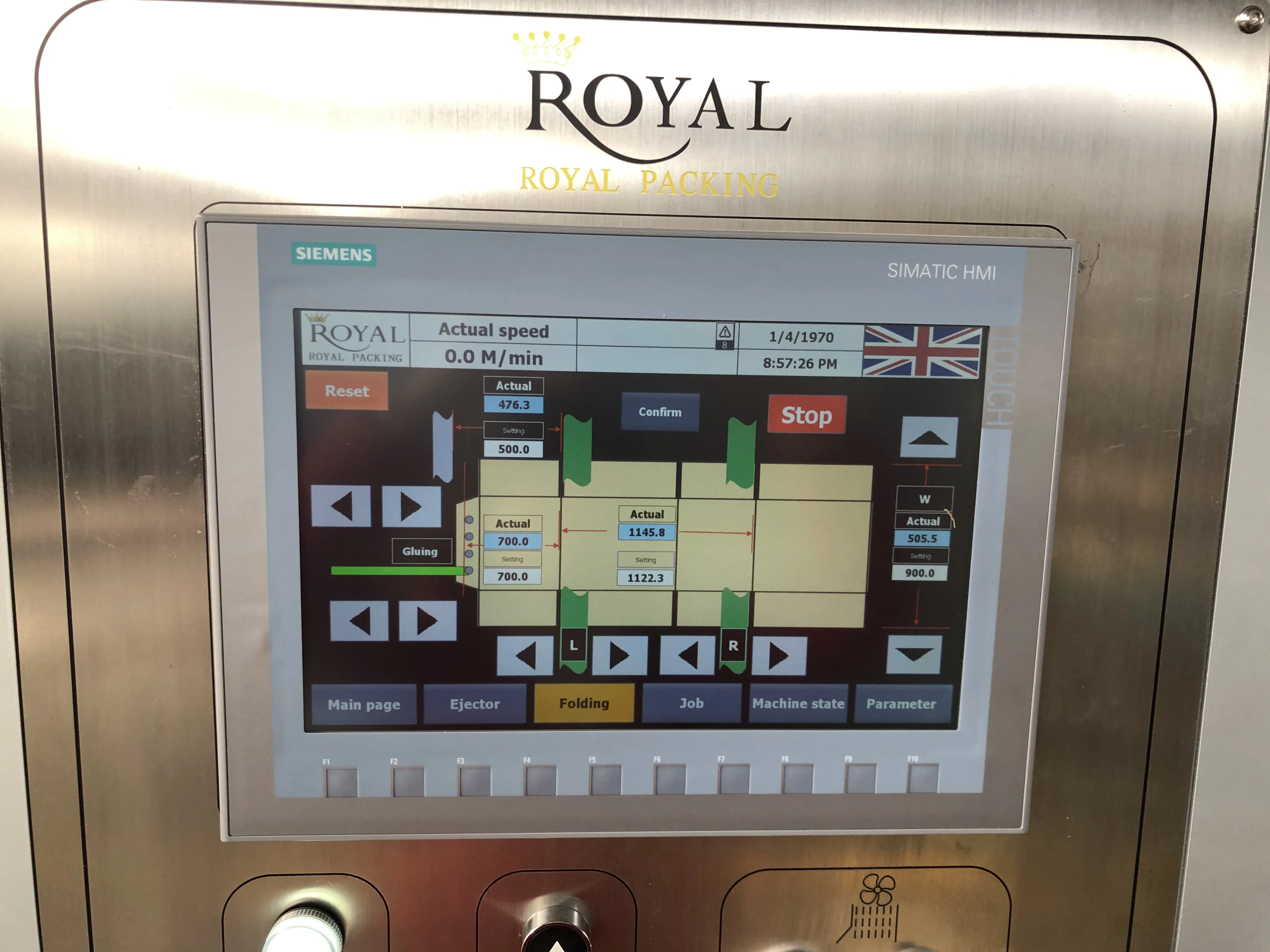

lIt adopts computer control, contact screen operation
lIt adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise.
lThis machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste
lIt has the functions of high-precision of cutting, high speed,etc . pneumatic structure combined with computer control be adopted for transmission section ,making it become much more steady operation
lIt has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system
Product Paramenters
Model
RYQJ-800D
RYQJ-1100D
RYQJ-1300D
Max diameter of material
Φ1400mm
Φ1400mm
Φ1400mm
Max. width of cutting
800mm
1100mm
1300mm
Min. width of cutting
50-100mm
50-100mm
50-100mm
Length of cutting
20-800mm
20-800mm
20-800mm
Reference weight of cutting paper
0.05-1.2mm
0.05-1.2mm
0.05-1.2mm
Precision of fixed length
±0.2mm
±0.2mm
±0.2mm
Speed
10-150times/min
10-150times/min
10-150times/min
Total Power
4.5kw
4.5kw
5.5kw
Weight (approx.)
2300kg
2700kg
3100kg
Overall dimension(LxWxH)mm
5000×1700×1200
5000×1900×1200
5000×2100×1200
Note: If you need other sizes, we can based on your requirement to make for you.
Due to the technological upgrading, ROYAL reserves the right to modify the relevant parameters and functions, without prior notice.

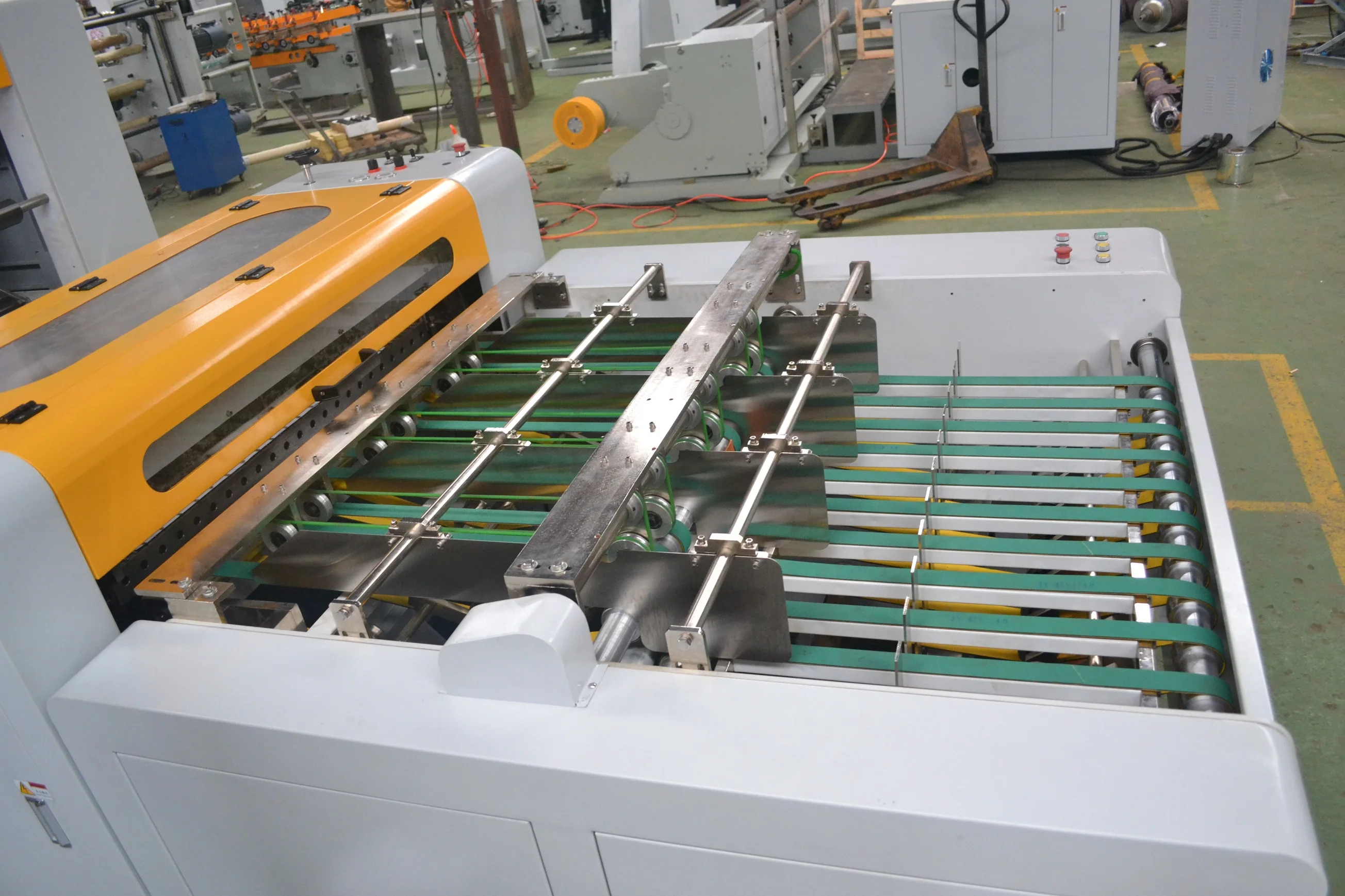

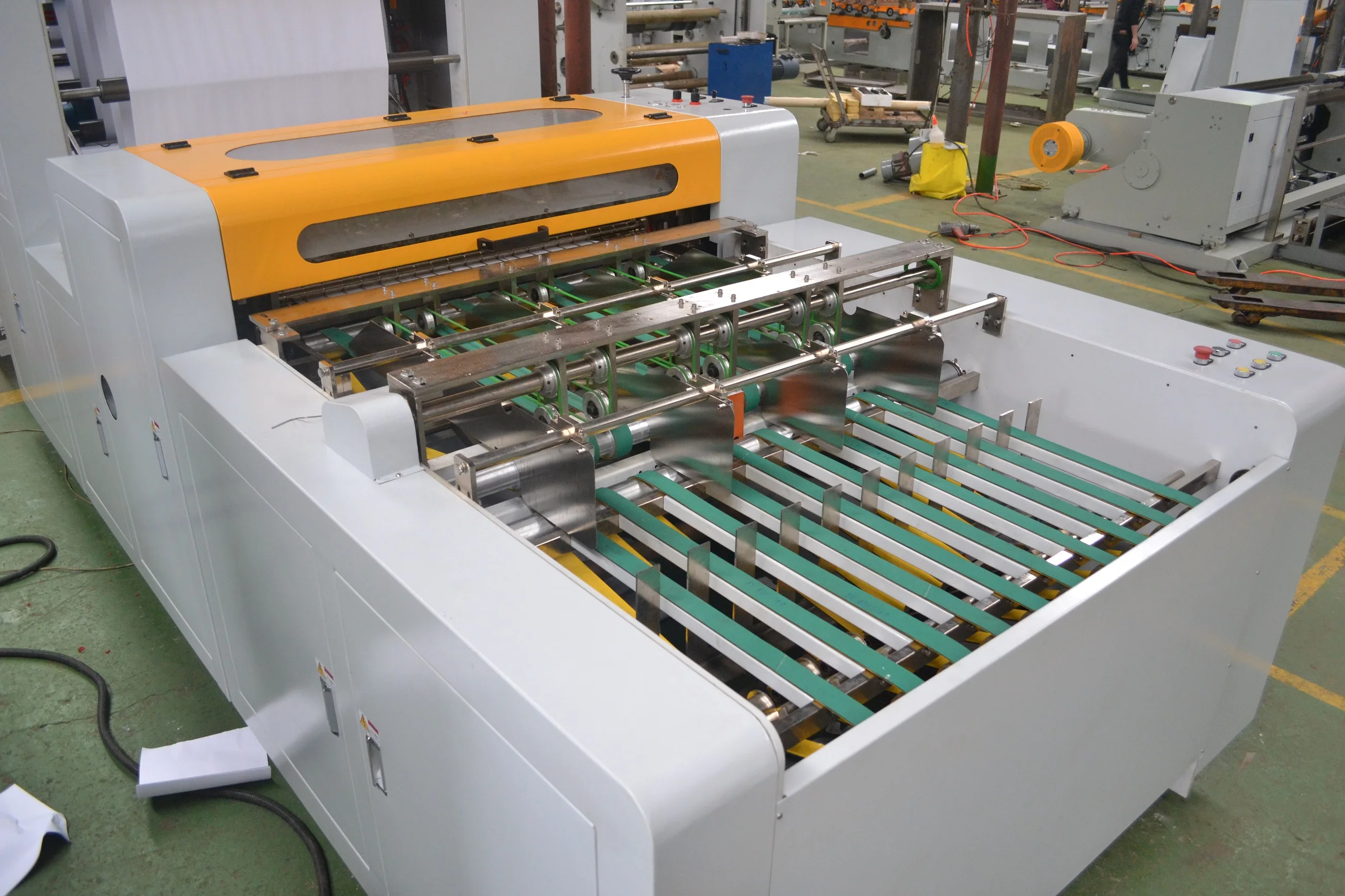

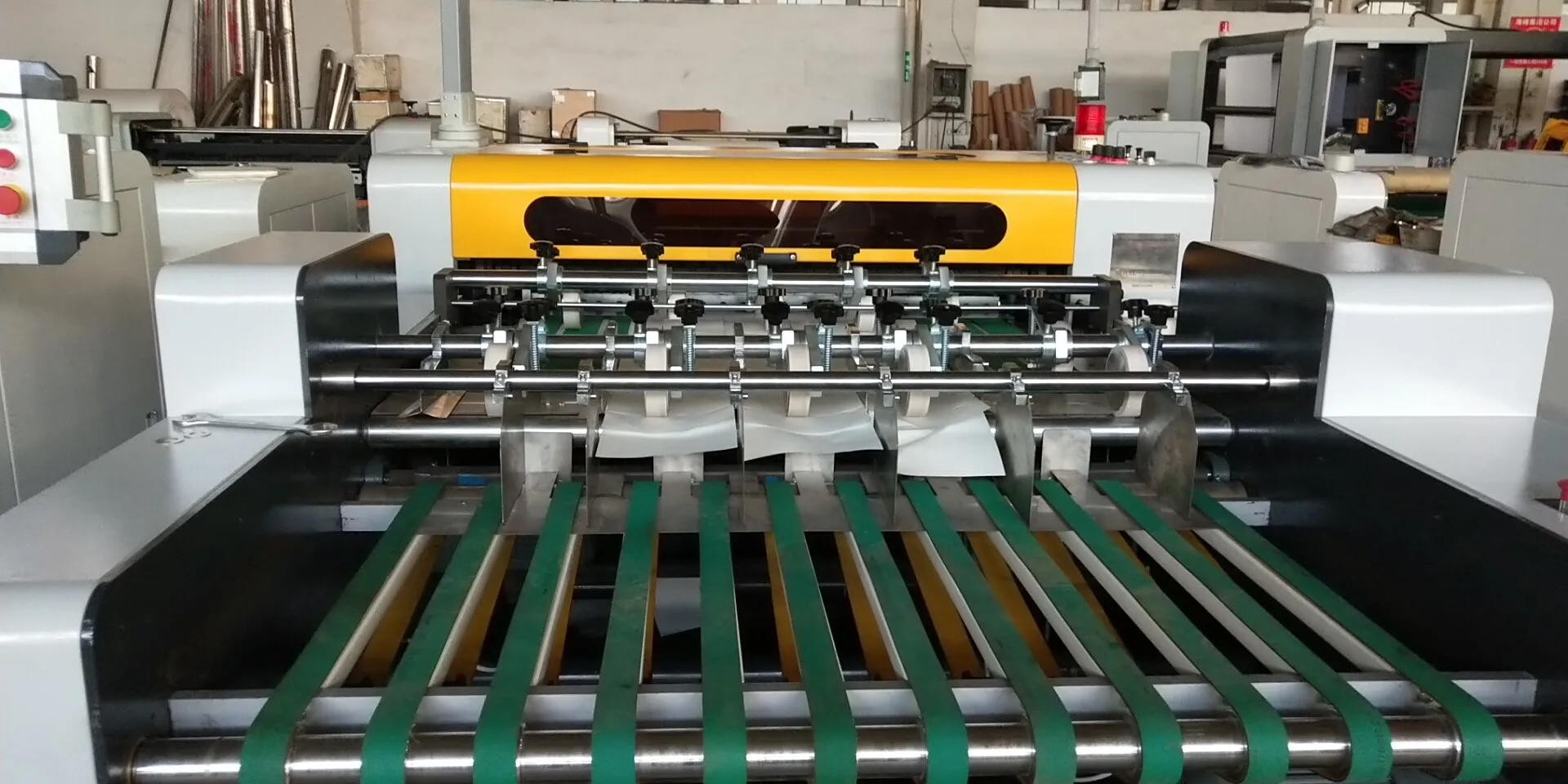

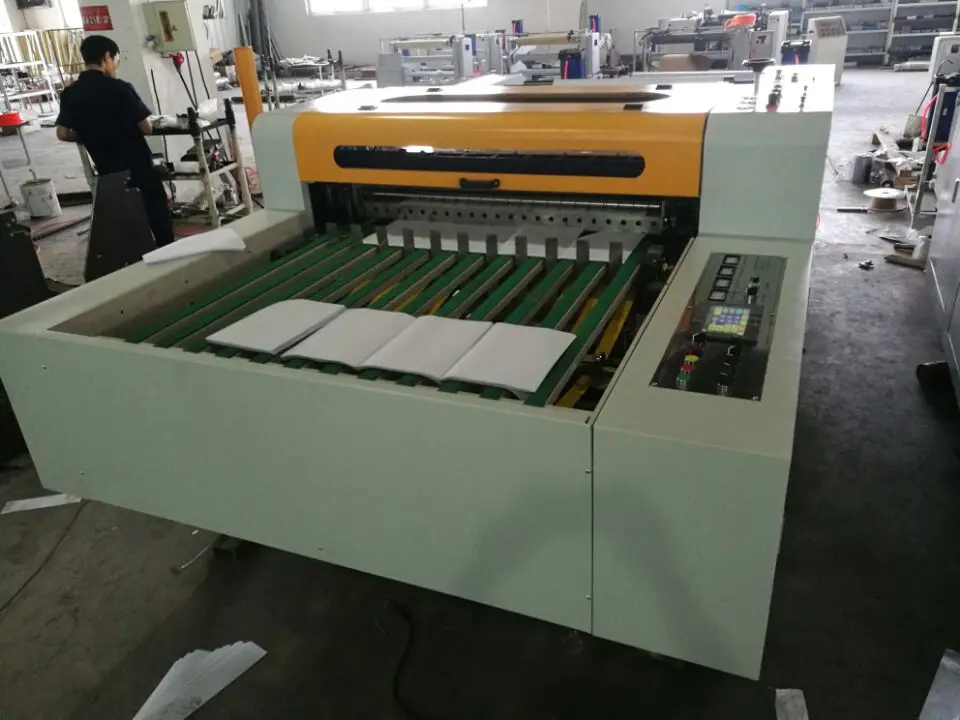

Machine Details

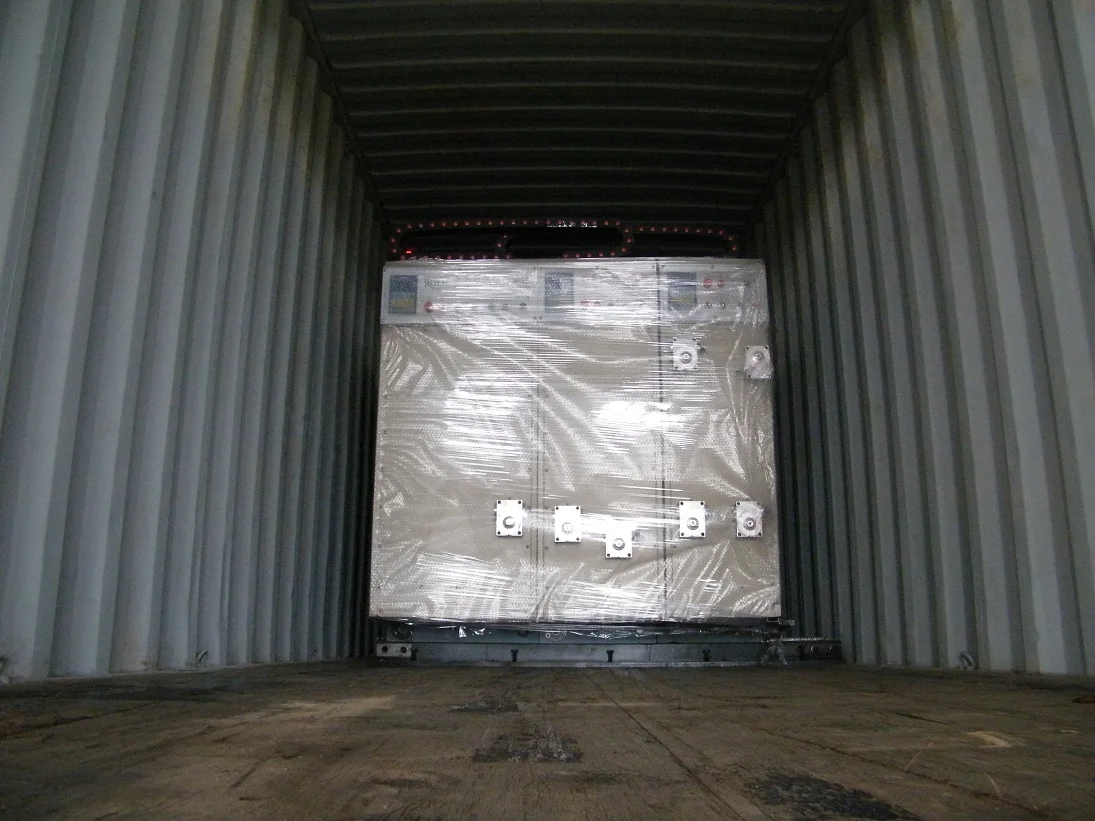

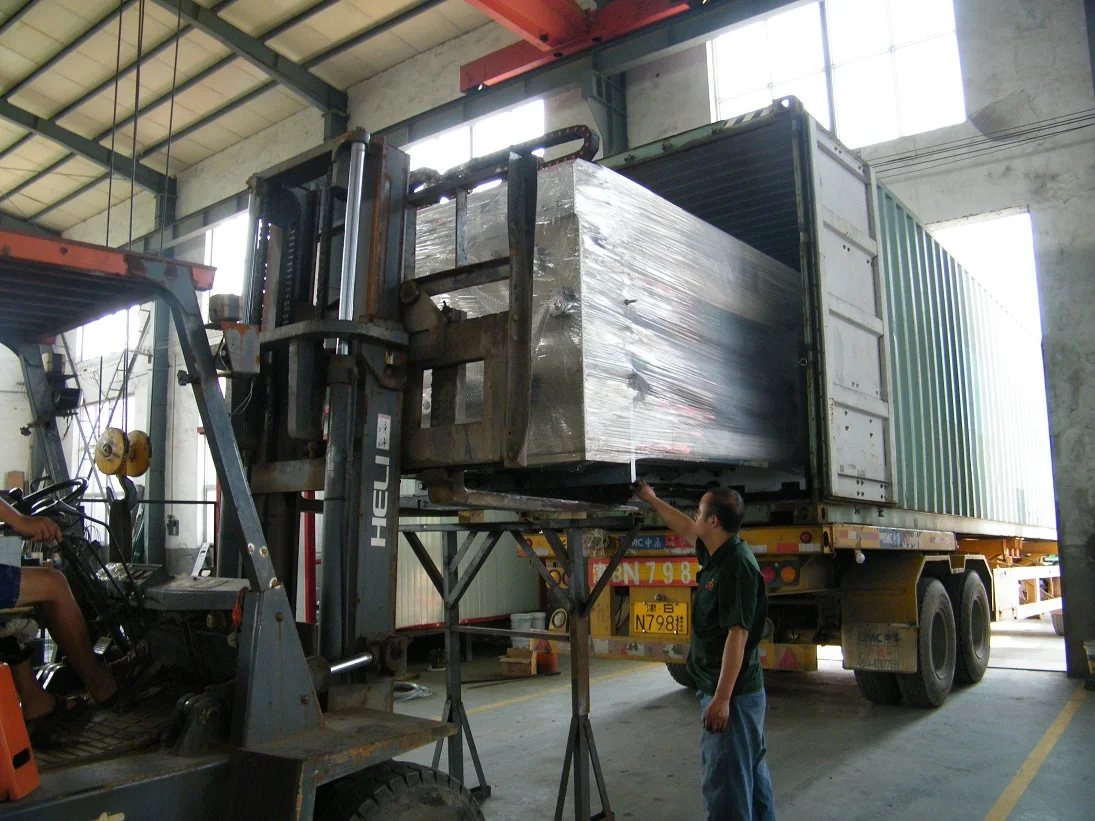

Package & Loading

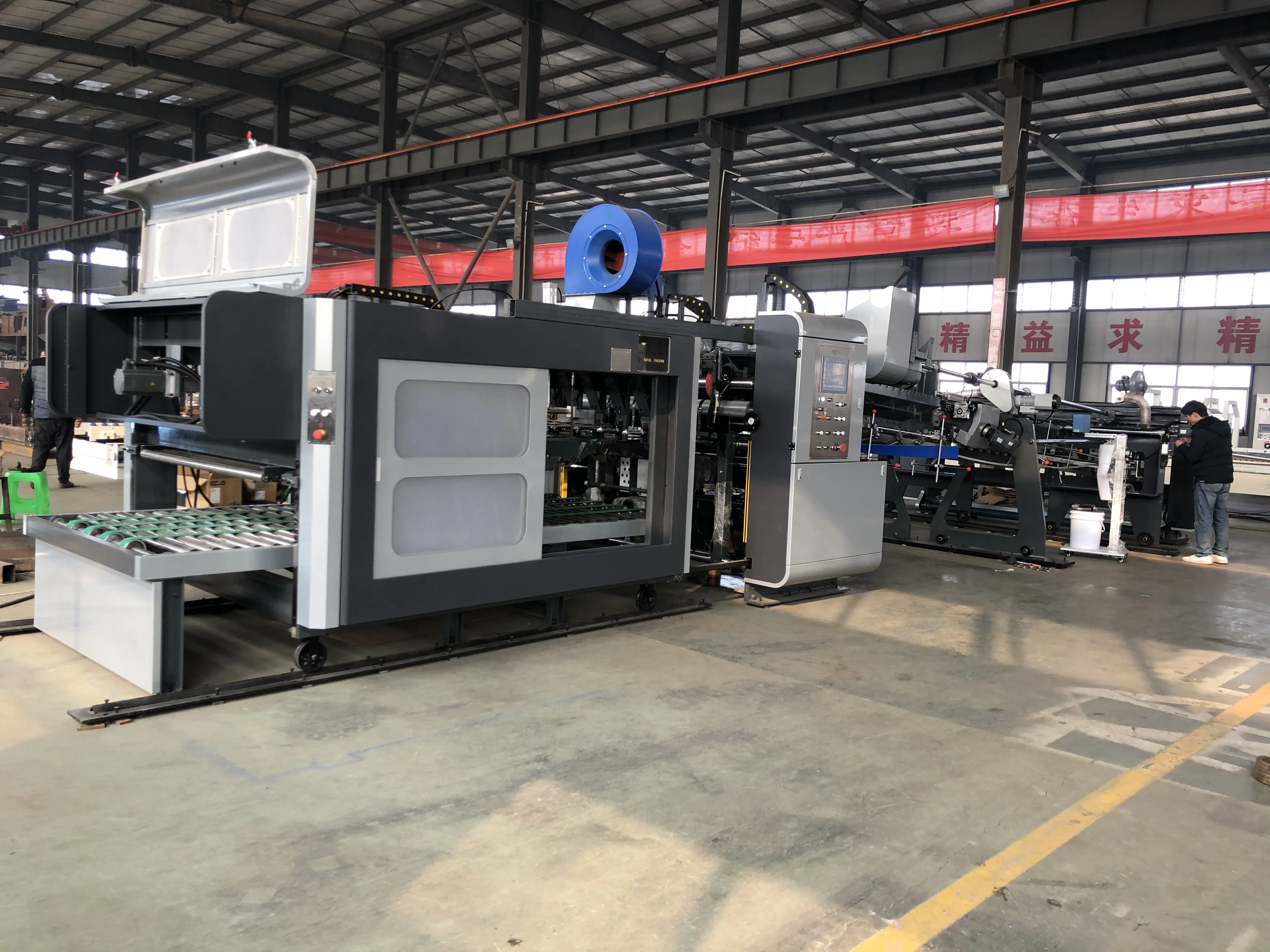

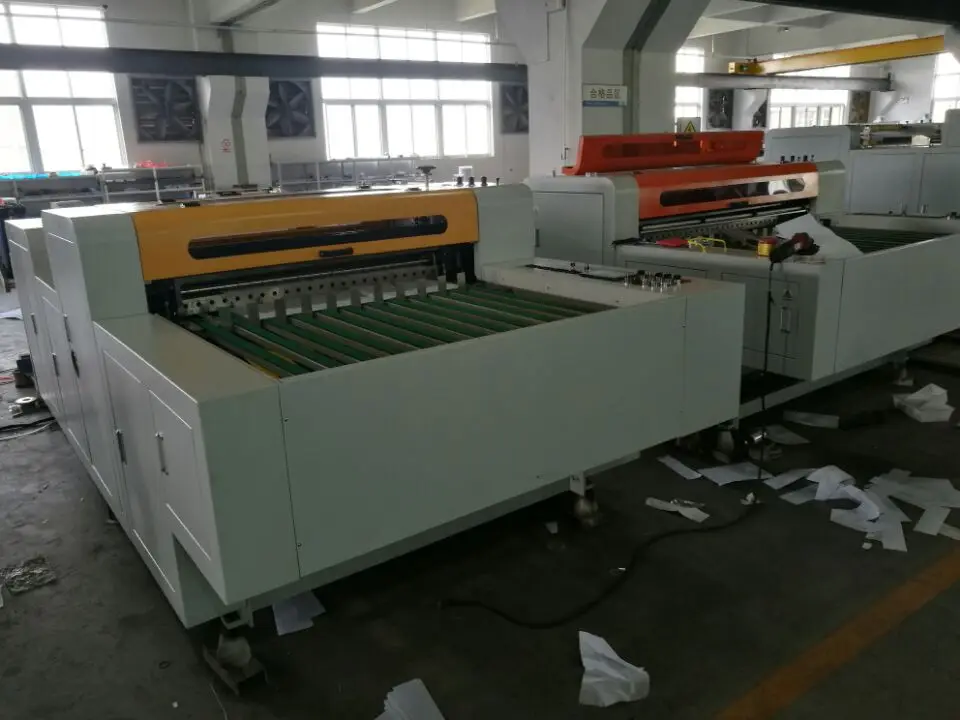

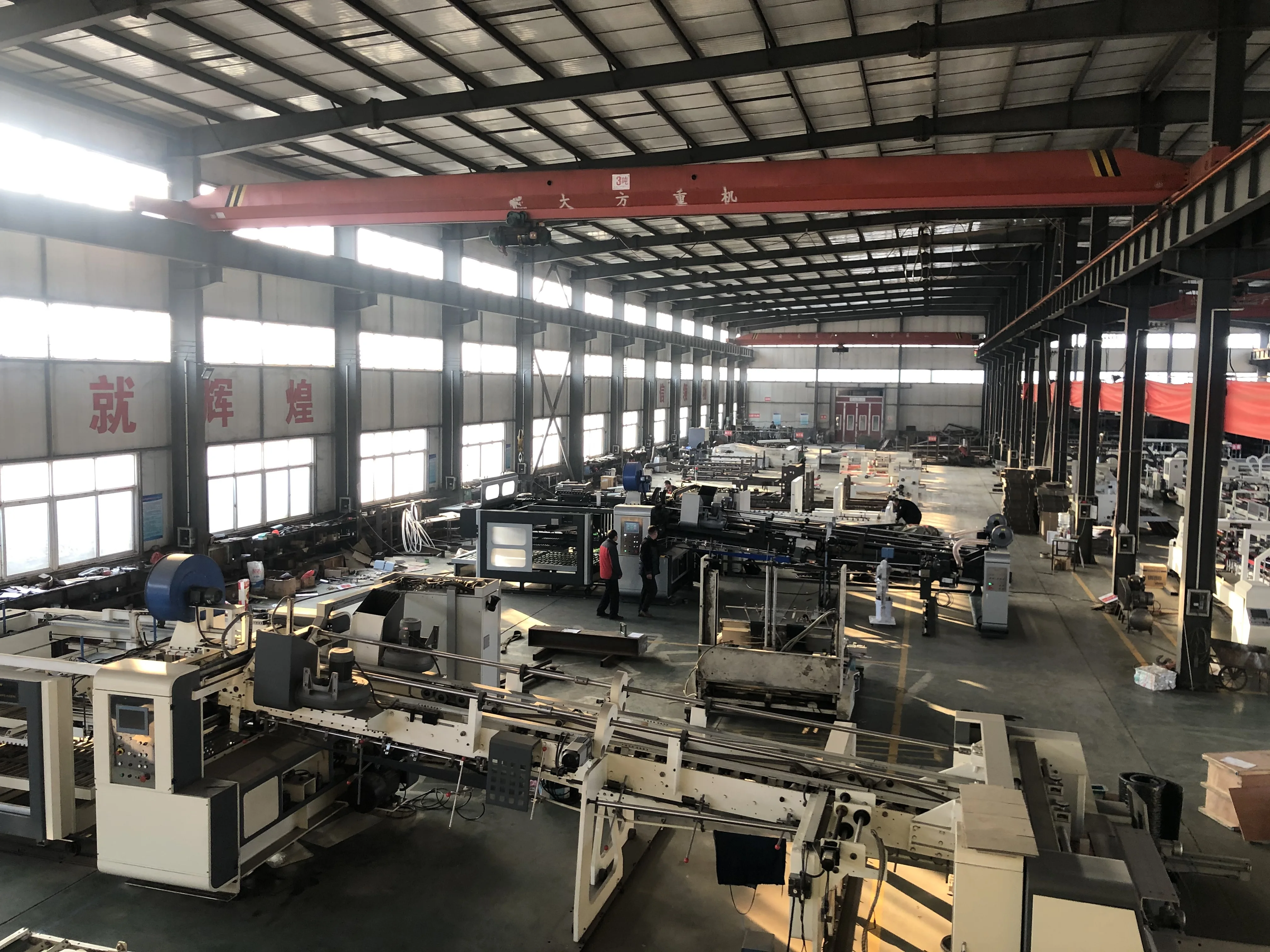

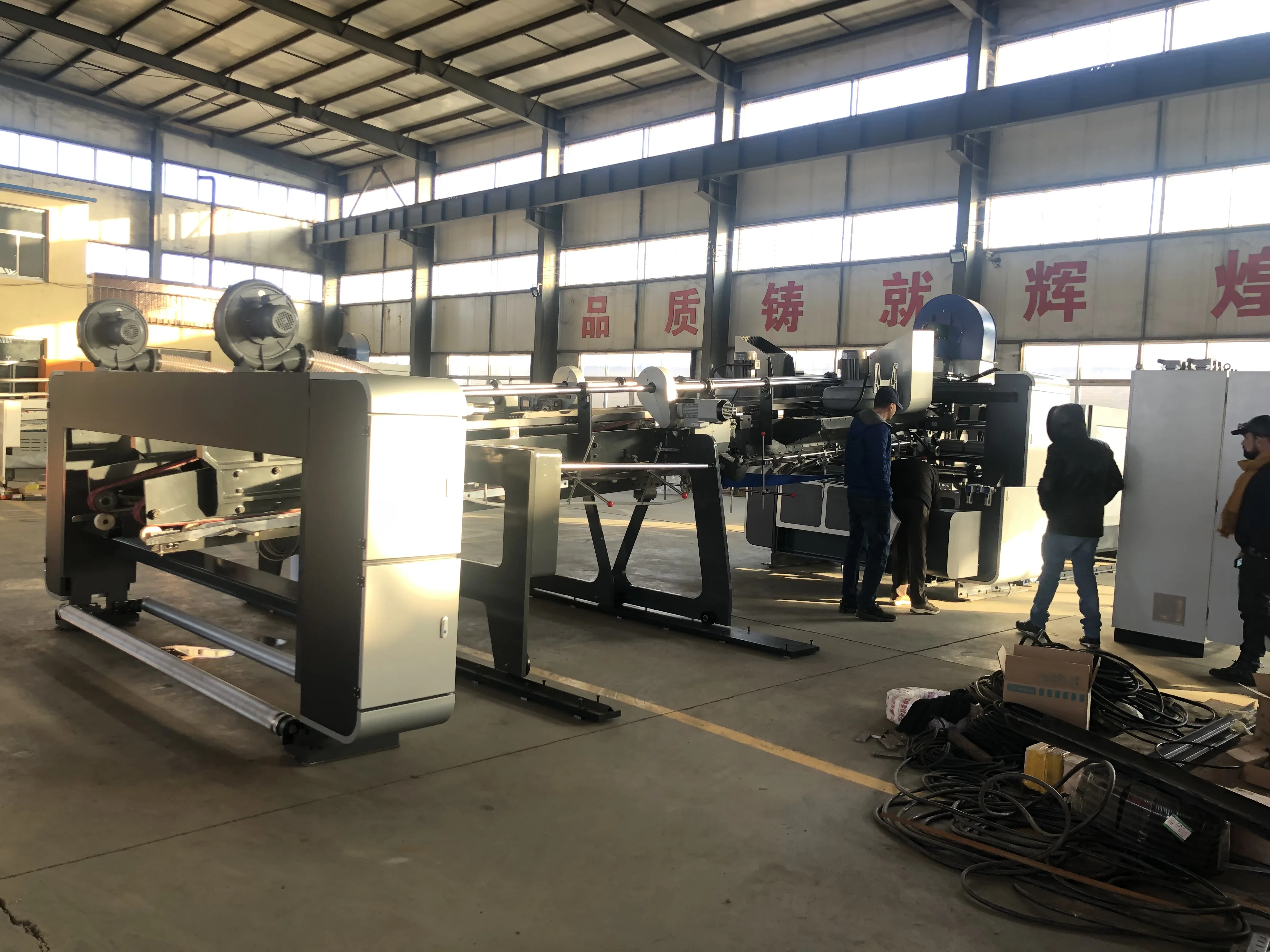

Factory photos
CE Certificates
Company Profile
Cangzhou ROYAL Packing Machinery Co.,Ltd.
(Hangzhou ROYALL Import & Export Co.,Ltd.)
is founded in the 1990s, located in the national packing equipment production basement in Hebei Cangzhou city. We are professional producer for carton and box Folder Gluer machine. Our factory has 25000m2 area, 108 workers with 15professional engineers. We have advanced processing equipment, with our professional technology, we offer super quality Corrugated Paperboard machines for our customers.
Royal Packing is mainly engaged in the R&D, design, production and trade of paper production machinery and carton machinery. We are located in Hangzhou city, Zhejiang Province. Neighboring Shanghai port, Ningbo port, Hangzhou Xiaoshan International Airport and Shanghai Pudong International Airport, the transportation and environment are excellent.
Royal Packing focuses on:
*Paper & Cardboard Production Line, Equipment & Spare parts.
*Corrugated paperboard Production Line, Equipment & Spare parts.
*Printing machines and spare parts.
We have our own factory in Hebei Province, China. We have high quality employee team, we have special engineers, and special operators for export work of machines. We cooperate with many special factories which produce good quality machines to fulfill our products library. With good quality products and high efficiency service, and the competitive prices, our products are welcomed by many users. Royal is happy to offer the technological service for you all the time.
Royal Packing has import and export office in Hangzhou and has established well market channels both domestically and overseas. We have our sales branches in Amman city, Jordan. Royal products are exported to many countries such as Russia, Jordan, Egypt, Samoa, Vietnam, India, Turkey and so on. Our products are popular in the world market, and enjoy a good reputation from our customers. Based on the technology, developed by innovation, joining hands with friends, Royal highly welcomes friends from all over the world to cooperate with us, and share our development and progress together.
