Super bright Red Blue Green Amber white 5mm led light emitting diode
- Category: >>>
- Supplier: Shenzhen Tianshengda Optoelectronic Co. Ltd. [Guangdong China]Shenzhen
Share on (60107791021):
Product Overview
Description
Super bright Epistar white 5mm led diode ,led 5mm,DIP 5mm led , 5mm led light emitting diode :
Our Advantages:
1)High intensity and low light decline
2)Standard T-1 3/4 diameter package,With Flange
3)General purpose leads
4)Reliable and rugged
5)High brightness and long life time
6)Famous chips:Epistar of Taiwan
7) Accord with CE &Rohs
8)Red 620-625-630nm,Yellow 585-595nm,Blue460-470nm ,Green 515-525nm,UV 370-420nm ,IR 850&940nm,4-PIN RGB,2-PIN RGB fast flashing,Slow flashing ,warm white 3000-3500K,pure white 4000-4500K ,and cool white 6000-6500K (Optional) ;
9)Wide viewing angle range are optional (8deg,15deg,25deg,40deg,60deg,90deg,120deg and 180deg)
10)Lens color :Water clear ,White diffsued and coloured body are available;
11)Diameter of Round LED:1.8mm,3mm,4.8mm,5mm,8mm and 10mm(Optional)
12)led shape:Round,Flat top, Rectangle,cylinder-shaped and so on are could make for you if you needed .
13)Free samples and no M.O.Q
14)Factory price and fast delivery
15)All of our raw material are accord with Rohs
Package Dimension of 5mm led diode :
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.20mm unless otherwise noted.
3. Protruded resin under flange is 1.0mm max.
4. Lead spacing is measured where the leads emerge from the package.
5. Caution in ESD:
Static Electricity and surge damages the LED. It is recommend to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.
Specifications of super bright 5mm led diode:
| Parameter | Units | MAX. |
| Power Dissipation | mW | 80/100 |
| Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | mW | 150 |
| Continuous Forward Current | mA | 30 |
| Derating Linear From 50°C | mA/°C | 0.4 |
| Reverse Voltage | V | 5 |
| Operating Temperature Range | -40°C to +85°C | |
| Storage Temperature Range | -40°C to +105°C | |
| Lead Soldering Temperature [4mm(.157”) From Body] | 260°C for 5 Seconds | |
| Part No. | Emitted Color | Voltage | Current | Iv(mcd) | wavelength | Angle |
| TL-BR334 | red | 1.8-2.2V | 20mA | 12000-15000 | 625-630nm | 15 |

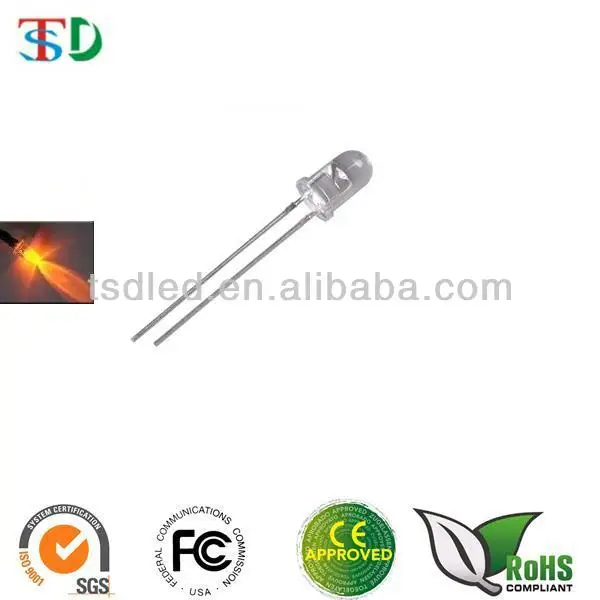

| TL-BA334 | Amber&Yellow | 1.8-2.2V | 20mA | 12000-15000 | 588-592nm | 15 |

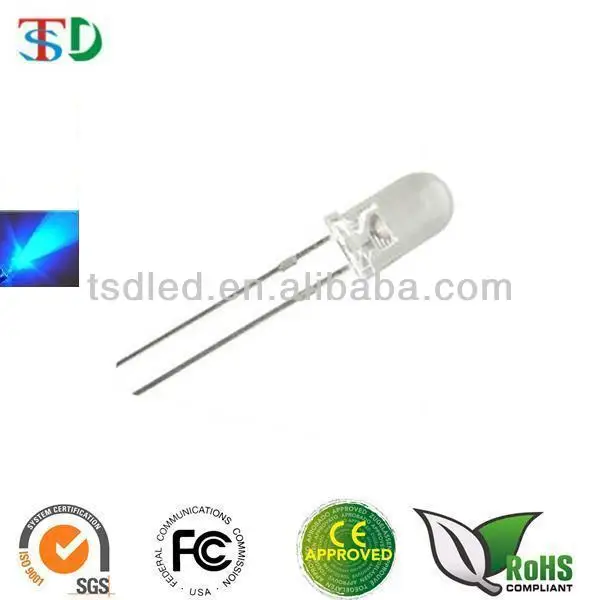

| TL-BB3N4 | blue | 3.0-3.4V | 20mA | 8000-12000-15000 | 465-470nm | 15 |
| TL-BG4334 | green | 3.0-3.4V | 20mA | 20000-30000 | 515-520nm | 15 |

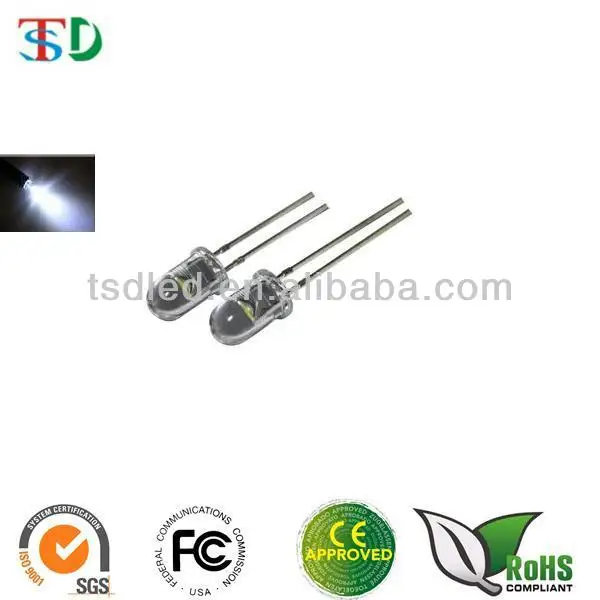

| TL-BW3N4 | white | 3.0-3.4V | 20mA | 15000-20000-25000 | 2700-12000K | 15 |
Notes:

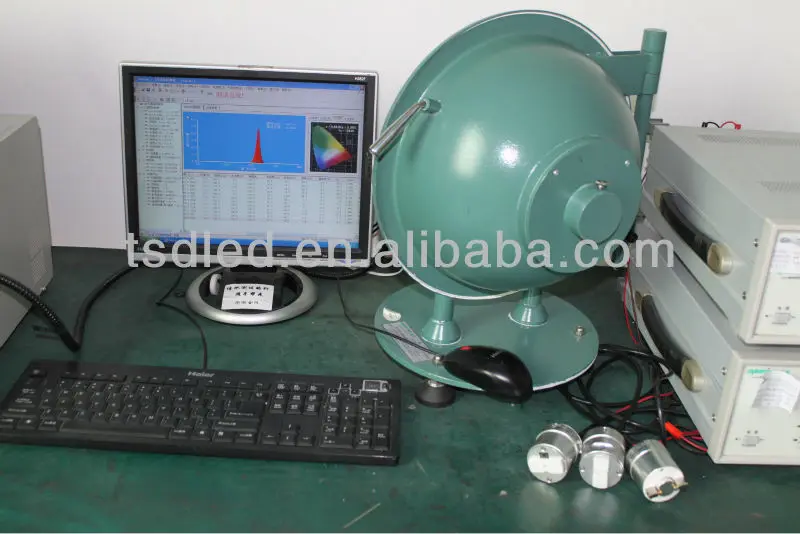

- 1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
- 2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
- 3. It use many parameters that correspond to the CIE 1931 2°. X, Y and Z are CIE 1931 2°values of Red, Green and Blue content of the measurement.
Application of 5mm led :
1)LED Lighting
2)led bulb,led spotlight
3)Through hole letter
4)DIP LED tube light
5)Display array
6)others
Trade Terms
1.Payment: T/T in advance (Western Union or PAYPAL are welcomed)
2.Production lead time :within 3working days for samples,5-7 working days for bulk order
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.Discounts are offered based on order quantities
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information.
Shipping:
1)We can shipping all over the world by DHL,Ups,FedEx and TNT.The packing is very safe and strong,if you have any special needs ,please let me know.
2)It will take around 3-5 working days to reach your hands.
3)We only guarantee delivery in time but we wouldn't control exprss delivery time.Our related sales person will be responsible to send the AWB(Tracking Number) for the delivered goods in the next workday.You can check the AWB on the website which we send to you.For the AWB you also can call to the local branch of the express company in your country .
4)Delivery :3-5 working days for sample order,7-10 working days for bulk order .
Packing:

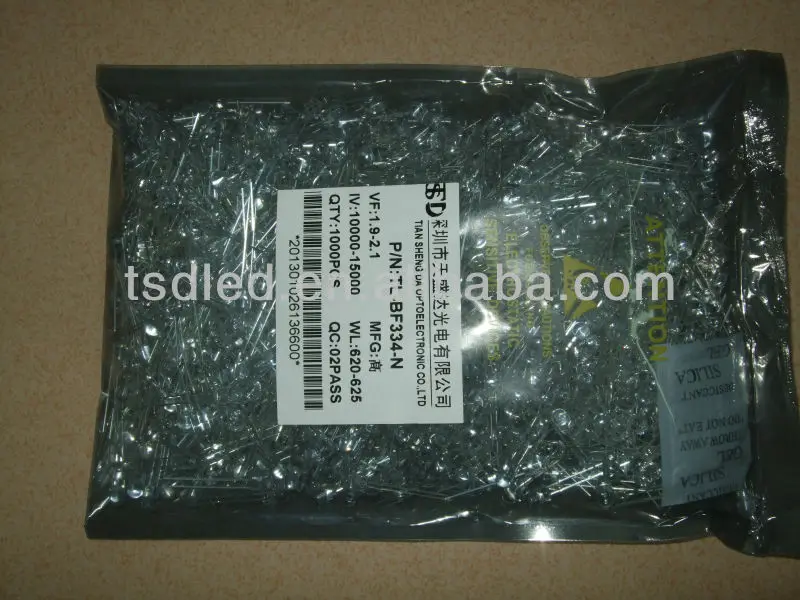

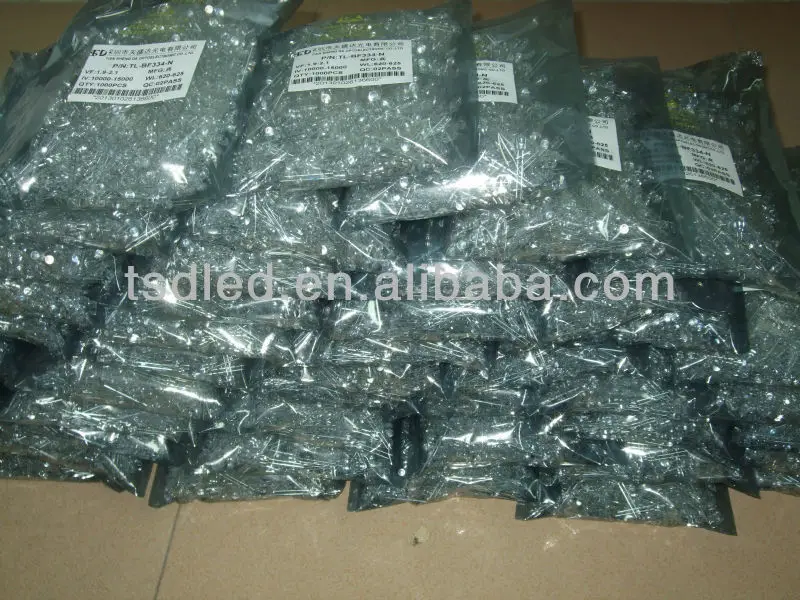

* All of DIP leds are packaged in anti-static bags .1000PCS/bag,Net weight:305g/bag;
* 50K PCS make a standard carton; Gross weight :16.8KG/Carton;
FAQ:
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples within 20pcs of each color. and buyer pay for shipping cost .
Q2: Do you have any MOQ limited?
A: We have not any request to MOQ.
Q3: What’s the lead time?
A: Sample order :3-5days.
Mass production: 7-10days.(according to the quantity of the order )
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to reach your hands
Q5: Do you accept drop shipping
A: Yes, it is available.
Q6: What's the payment method you accept?
A: TSDLED accept below two different payments:
1. T/T(Bank to bank payment)
2. WU(Western Union)
