direct drive vertical wind turbine wind power generator

Product Overview

Description

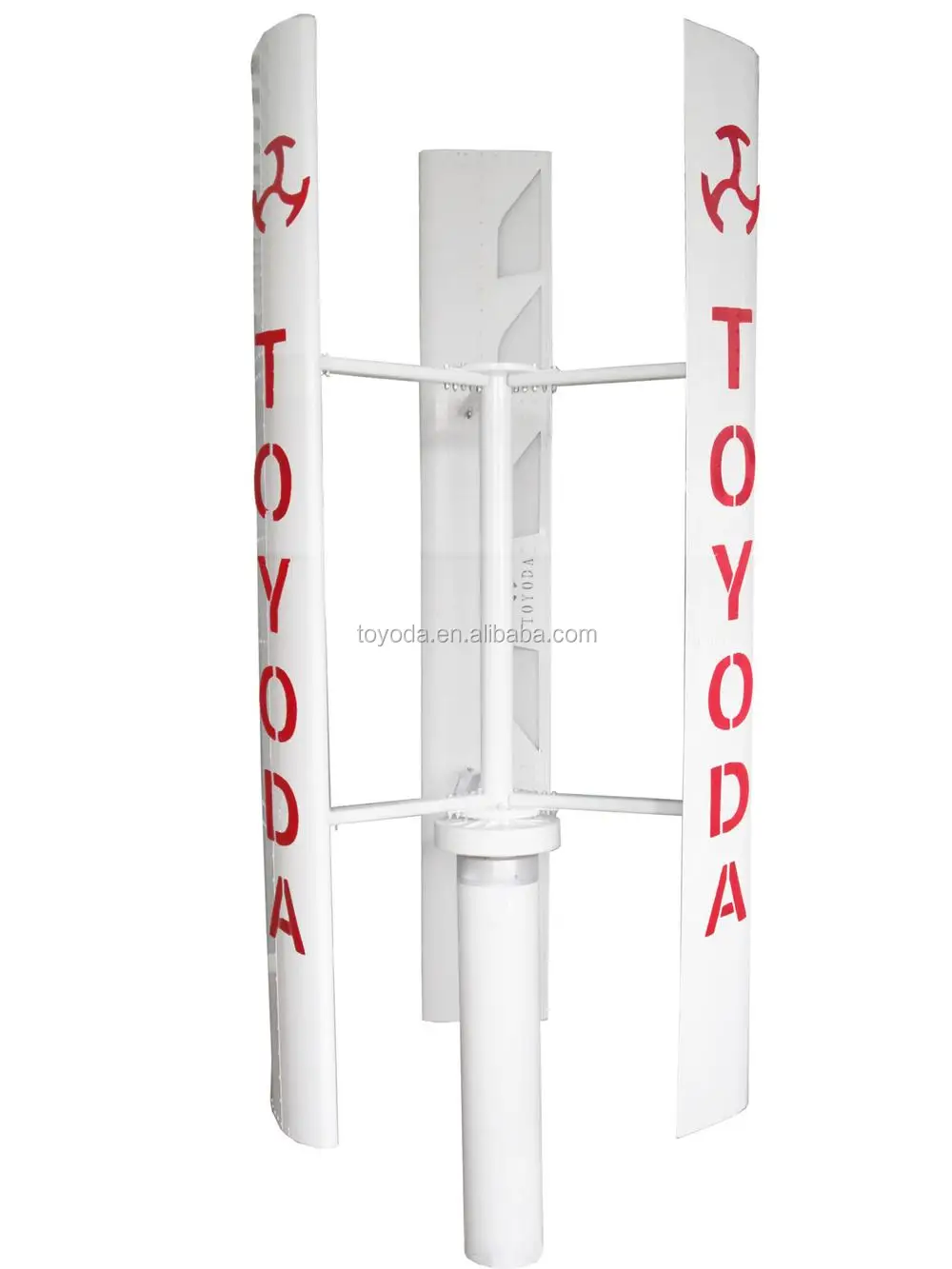

direct drive vertical wind turbine  wind power generator



Some Details of the wind generator

Model	TYD-250	TYD-350A	TYD-350B	TYD-450B	TYD-600
Internal structure	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC
dimension	250mm*85mm	350mm*107mm	350mm*117mm	450mm*148mm	600mm*188mm
magnetic material	rare-earth magnet	rare-earth magnet	rare-earth magnet	rare-earth magnet	rare-earth magnet
Rated Power(W)	300	1000	2000	5000	10k
Rated current(A)	8	13	14	17	34



 ABOUT US

 Tangshan TOYODA Technology Co.,Ltd, joint-ventured with MIC, is a high-tech enterprise specialized in the wind-power electricity and exploitation of solar energy, taking possession of dozens of independent intellectual property rights and proprietary technologies. TOYODA is a manufacture integrating with scientific research, manufacturing, market and after sale service.

FEATURE OF WIND GENERATOR

Axial type; outer rotor; iron-coreless; three-phase AC

Gear-free direct drive mechanism

Unique reinforced structure of flange ensures wind resistant ability strong and a good resistance to corrosion



APPLICATION:
