EDM Ruby Guide Wheel Pulley 561 Double Size OD31.5 mm * Length 39 mm for CNC Wire Cut EDM Machine

Guide Wheel/Pulley for Wire Cut EDM Machine.

1 New design, unique structure, breaking the old traditional methods, selection of imported high-grade precision bearings.

2 The salient characteristics:

• First, to achieve a reliable seal to ensure that the process to prevent the flow of fluid into the work of the internal bearings, the lubrication of bearings in good condition and the life;
• The second is to guide bearings and fused rigid greatly enhanced and improved the operation generated in the axial and radial side before beating the negative phenomena.

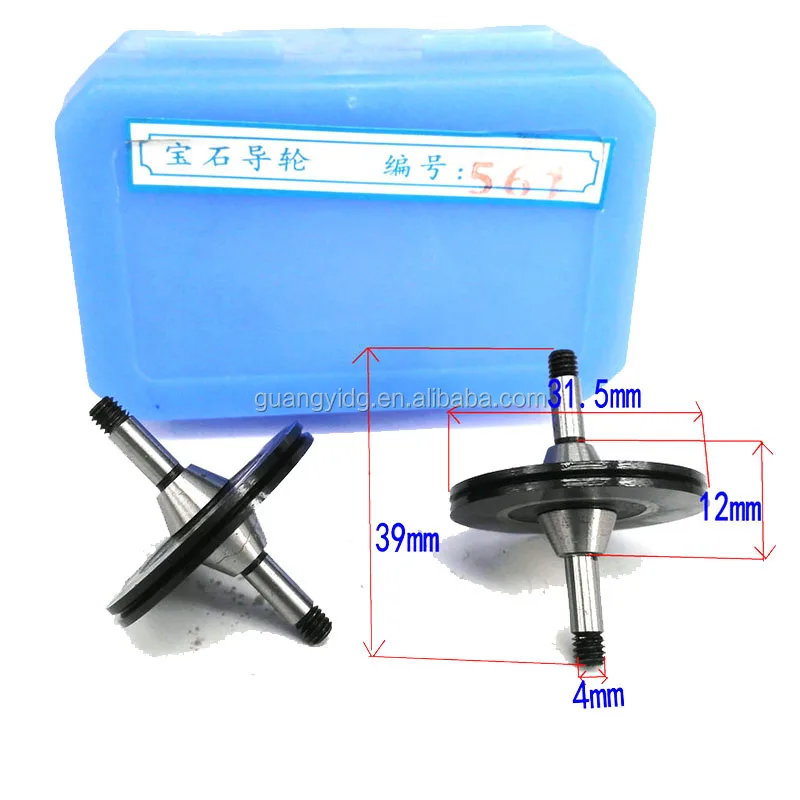

Specification of 561 pulley

Out diameter: 31.5mm

Axis diameter: 4mm

Total length: 39mm

The distance of two bearings block: 12mm

Min order: 1 pair

Material: CR12

We are manufacturer with 16 years' experience, supplying all kinds of wire cutting materials to different customers. And we also want to offer you what you need, so please let me have the opportunity if you need the moly wire, pulley, carbide, water panel, pipe guide, resin, tubes and motors.
