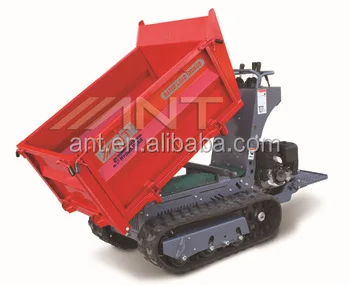

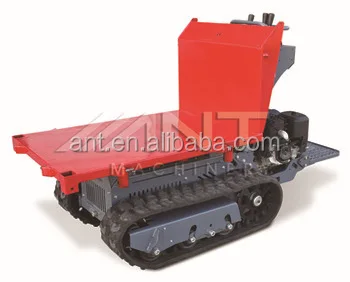

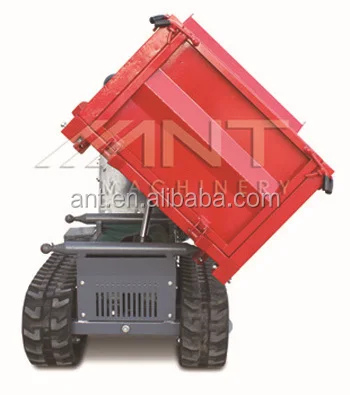

BY1000 MOTORISED WHEELBARROW MICRO DUMPER DIGGER MUCK TRUCK
- Category: >>>
- Supplier: Nantong Ant Machinery Co. Lid.
Share on (60108700352):
Product Overview
Description
Product Description
BY1000
Advantage:
1.Easy and comfortable operation due to the intuitive controls.
2.Hydraulic dumping from three sides, easily changed by screw pins
3.Easy climing and stable crossing the obstacles.
4.Spot turning, mini slipping.
| MODEL | BY1000 |
| Engine | 13hp 4stroke gasoline engine |
| Max loading capacity | 1ton |
| Max travel speed | 0-4.8km/h(0-3.9mph) |
| Transmission | |
| Hydraulic pump | 2*variable displ. |
| Flow | 2*32.4l/min(2*8.5gpm) |
| Hydraulic motors | 2*orbital |
| Brake parking | mechanical |
| Hydraulic system | |
| Hydraulic pump | gear pump |
| Flow std | 1*13.5l/min(1*3.5gpm) |
| Max pressure bar | 150bar(2180psi) |
| Main valve | 2-3way |
| Coller system oil | air-cooled |
| Skip tipping system | hydraulic |
| Tracks | |
| Standard track width | 180mm(7.1in) |
| Rocking rollers | yes |
| Track tensioning | yes |
| Loading capacity | |
| 20GP | 6pcs |
| 40GP | 14pcs |
| Packing | |
| Weight | 610kgs |
| Dimension | 182*90*96(L*W*H cm) |
| 20GP | 6PCS |
| 40GP | 12PCS |
Packaging & Shipping
Certifications
product series
Product flow chart
Company Information
Company introduction
Nantong ANT Machinery Co., Ltd., established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery, it is based in the Qidong city of Jiangsu province, which is located in the beautiful and rich Yangtze river delta
The present leading series of products include power trowel, plate compactors, road concrete cutters, tamping rammers, vibrating pokers, power barrow and so on, they have been widely used in different construction fields
Global market
Europe, America, southeast, Asia and Africa
Nantong ANT Machinery Co.,Ltd.
www.antcn.cn
