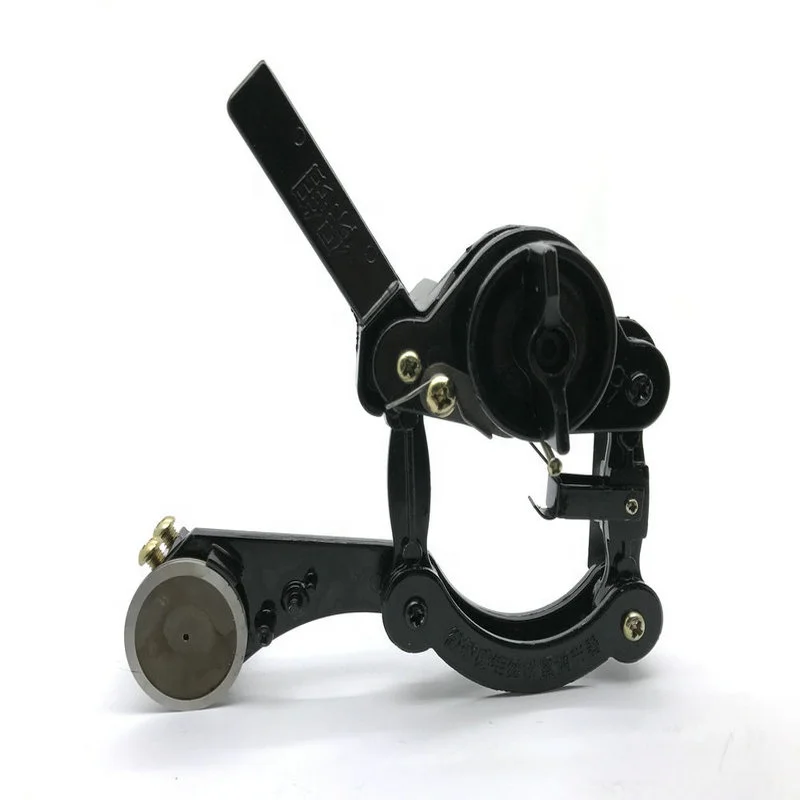

Micro Sensitive Wire Aluminum Tightness Regulator for CNC Wire Cutting EDM Machine Parts
- Category: Other Hardware >>>
- Supplier: Dongguan Guangyi Wire Cutting Materials Co. Ltd.
Share on (60108761121):
Product Overview
Description

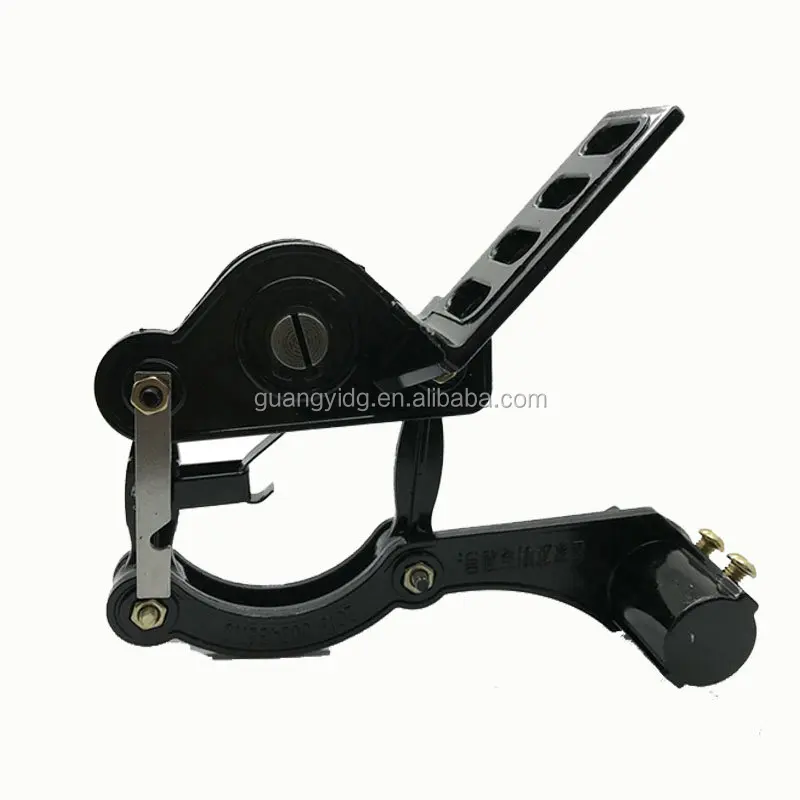

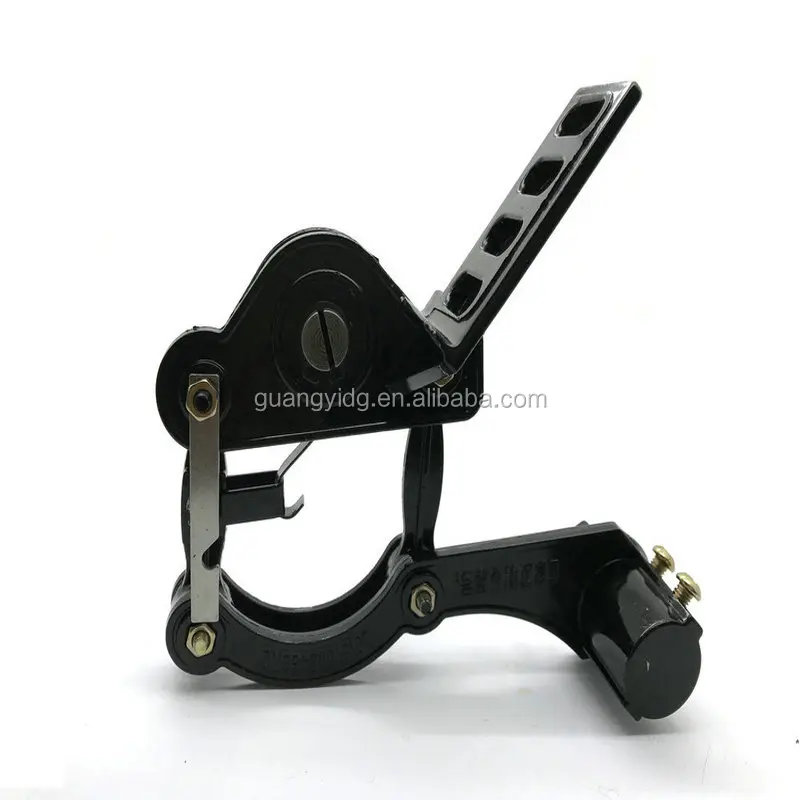

Micro Sensitive Moly Wire Tightness Regulator
Product Description
1.Restraining the phenomenons of tightness,looseness and jitter of molybdenum wire to ensure the accuracy and finish of workpiece.
2. Because of the mechanical constant force structure of regulator, it can improve the life of the electrode wire greatly.
The way to install.
No1: Bilateral pulley. (as shown in Figure 1-2)
1) Perforating two holes and tapping mo wires in the Place A and Place B((as shown in Figure 1-2) which are in the back side of the frame where placing mo wire.
The position of the holes is with the pulley of mo wire regulator aligning with the latter pulley of CNC machine as the benchmark.
The distance of the holes is with holes of the hanging plate(as shown in Figure 1-1) as the benchmark. You can adjust the height according to your machine.
2) Fixing the mo wire regulator to the back side of the frame where placing mo wire with hexagon socket head cap screws.
No.2 Unilateral pulley (as shown in Figure 1-3)
1)Perforating two holes and tapping mo wires in the Place A and Place B((as shown in Figure 1-3) which are in the back side of the frame where placing mo wire.
The position of the holes is with the pulley of mo wire regulator aligning with the latter pulley of CNC machine as the benchmark.
The distance of the holes is with holes of the hanging plate (as shown in Figure 1-1) as the benchmark. You can adjust the height according to your machine.
2) Fixing the mo wire regulator to the back side of the frame where placing mo wire with hexagon socket head cap screws.
Note: The pulley must be lower than the latter pulley of CNC machine. Please clean the regulator often to prevent the rubbish.
Packaging & Shipping
Delivery way: TNT, EMS, UPS, FED, DHL, Air transport, Sea Transport are available.We will choose the fastest, cheapest and safest shipment way for your 0.18mm edm wire cutting machine.
Advantages & Disadvantages:
• Express delivery: 4-6days, wide coverage area (volume & weight restricted)
• Sea transport: cheap, volume unlimited (long sailing time, influenced by climate)
• Air transport: 4-6days, simple packing (expensive, volume restricted)
Company Information
We are manufacturer with 16 years' experience, supplying all kinds of wire cutting materials to different customers. And we also want to offer you what you need, so please let me have the opportunity if you need the moly wire, pulley, carbide, water panel, pipe guide, resin, tubes and motors.
Our Services
Any question, please do not hesitate to contact us!
Sales: Helen Chen
China Tel: +86 076983327422 Phone Number: +86 15907699969
China Fax: +86 (0)917 3258889
Skype: Helen.chen301
Thanks for your visit to our website. Welcome to your inquiry and look forward to working with you in the near future!
