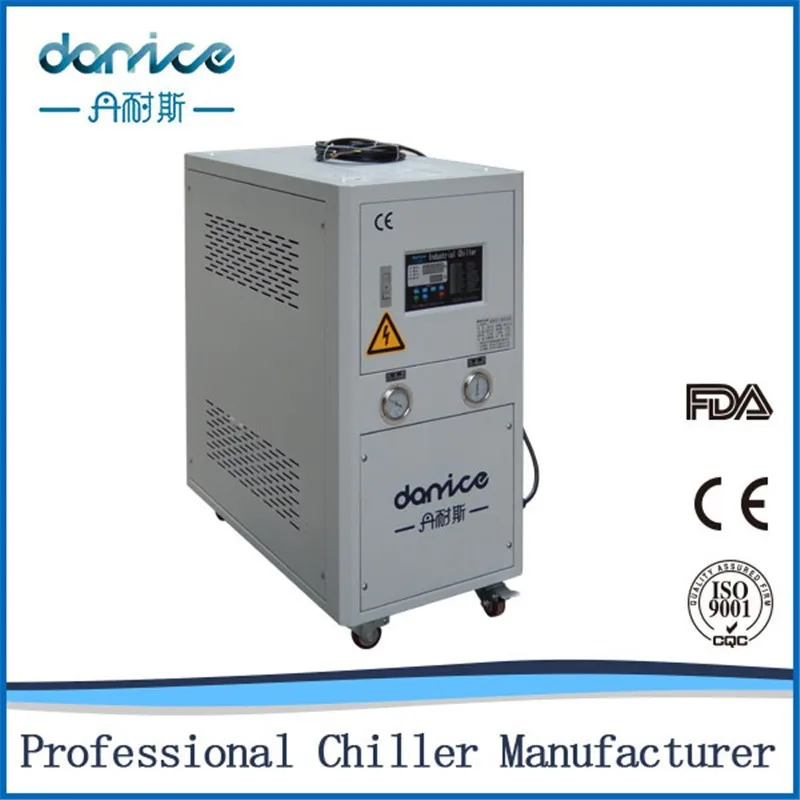

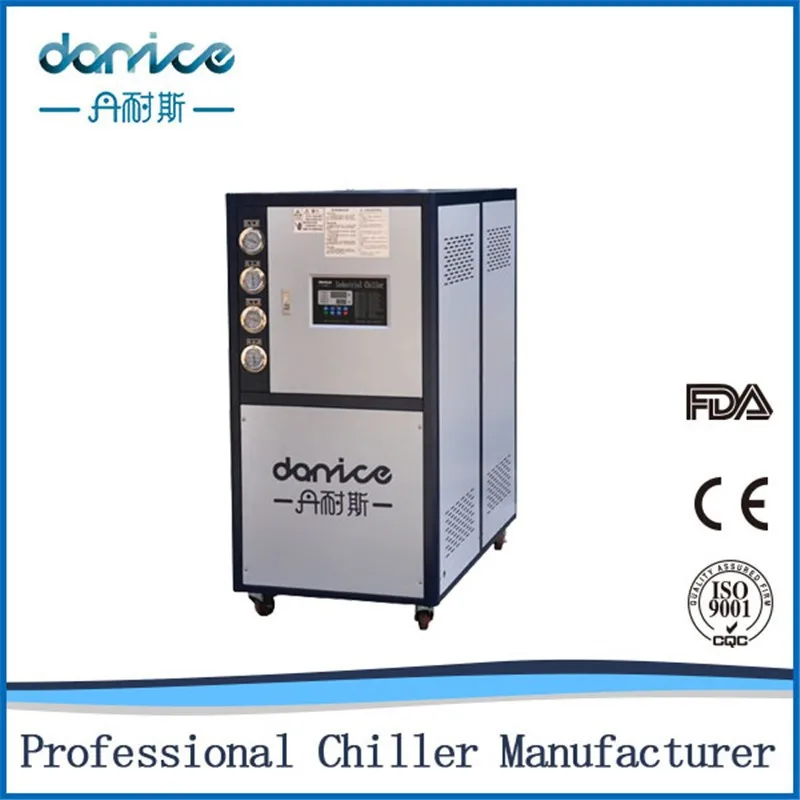

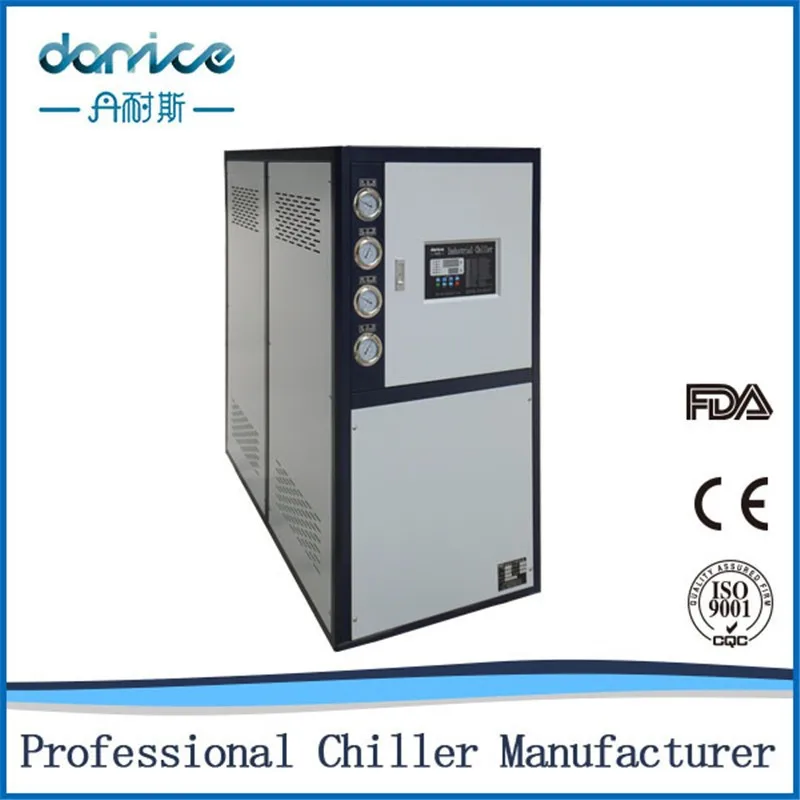

High efficiency CE Sanyo compressor 19KW portable water chiller for Injection Molding Machine

Product Overview

Description

High efficiency CE 19KW Water Cooling Chiller for Grinding Machines

Product Feature:

1.Cooling capacity:19kw(64846Btu/h)/16340kcal/h

2.SANYO, COPELAND,DANFOS famous hermetic scroll compressor,Refrigeration valves and international brands

3.The water chiller shall be used with the cooling tower, no matter what the ambient temperature is ,the

refrigeration efficiency could remain the best

4. R22,R134a,R407c,R404a refrigerant are all available,our standard chiller refrigerant is R22,if you need other environmental refrigerant R407c,134a,pls kindly let us know.

5. Water cooled chiller is also widely used in plastic industry, electrons, plating, chemical industry, ultrasonic wave cooling, printing and others. This kind of water cooled industrial chillers can precisely control the temperature  requested by the modernized machinery production, and it greatly improved

the production efficiency and quality. Danice water cooled chiller is easy to install and many models are available.

Technical Parameters:



Model				DNC-8WD
nominal cooling capacity		kcal/h 50HZ/60HZ		22532/27038
		Kw 50HZ/60HZ		26.2/31.44
Max power consumption		kw		7.75
Full load		Amp		18.8
power source				3PH - 380V/415V - 50HZ /60NZ 3PH - 200V/220V - 50HZ /60NZ
refrigerant	type			R22/R407c/134a/404A/410A
	control			Capillary/external balance of thermal  expansion valve
compressor	type			hermetic scroll
	power	kw		3.5×2
condenser	type			Shell and tube
	Cooling water flow	m3/h		5.7
	Inlet & outlet diameter(BSP)	Inch		1-1/2
evaporator	type			Tank coil/Dry shell and tube Stainless steel plate evaporate
	Tank volume	L		150
	coolant flow	m3/h		4.5
	inlet and outlet connection(BSP)	inch		1-1/2
Pump	Power	Kw		0.75
	Max flow rate	m3/h		8.1
	Max head	M		25
safety devices	Compressor overheating protection,over-current protection,high and low pressure  protection,overtemperature protection,traffic protection,phase sequence/phase  loss protection,low level protection,frost protection
dimension		mm	1250*680*1380
weight		kg	230



Notes:1.Cooling capacity is based on:chiller water inlet and outlet water temperature of 12℃/7℃,

the cooling water inlet and outlet water temperature of 30℃/35℃

  2.Scope of work:chilled water temperature range:5℃to35℃;chiller water out of the water

temperature:3℃to8℃

      The cooling temperature is not higher than 35℃ environment

      The above can be customized according to customer requirements to produce

      Specification dimension above are subject to change without notice

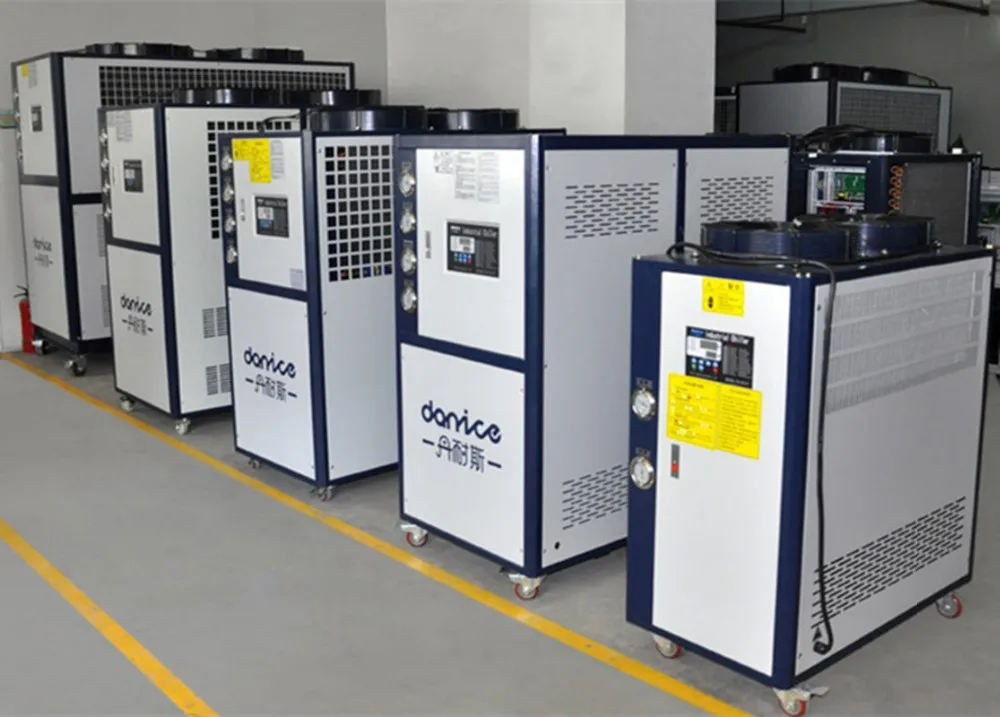

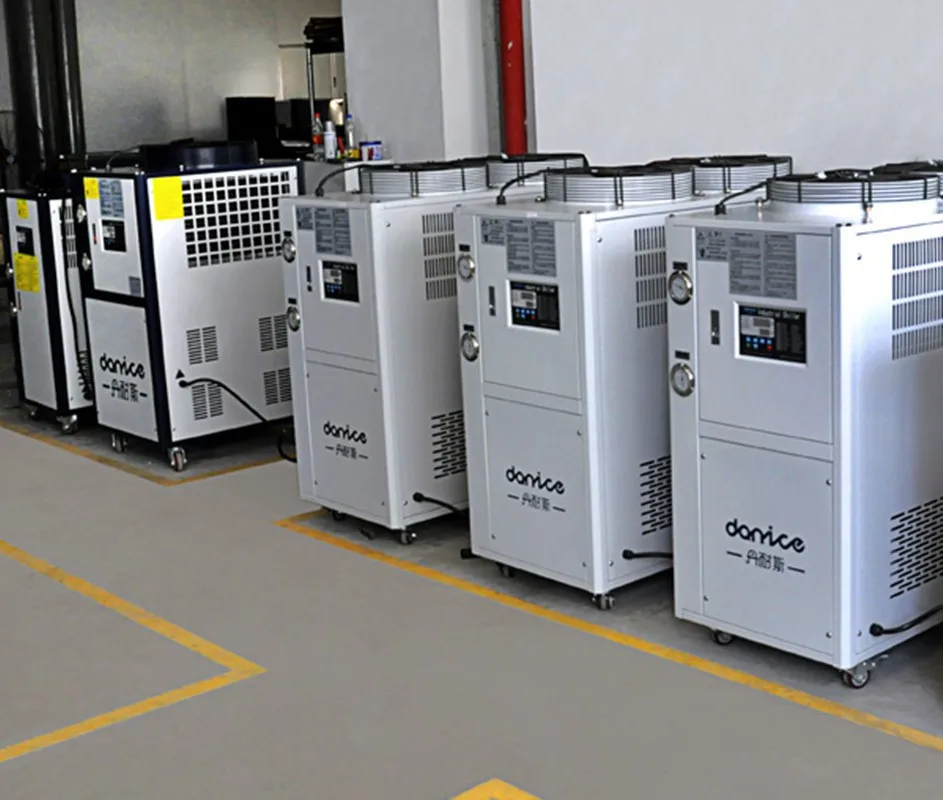

Workshop:
