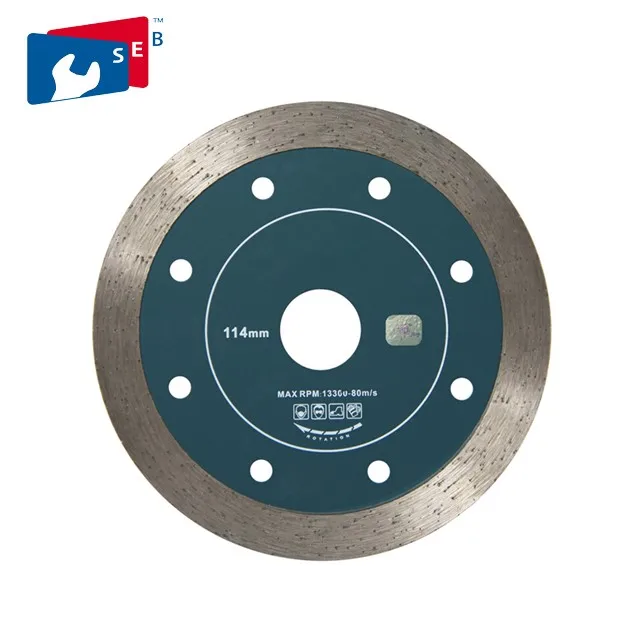

High Quality Cutting Brick Diamond Blade for Cutting Brick
- Category: >>>
- Supplier: Shanghai Shangerbo Import&Export Co. Ltd.
Share on (60109545317):
Product Overview
Description

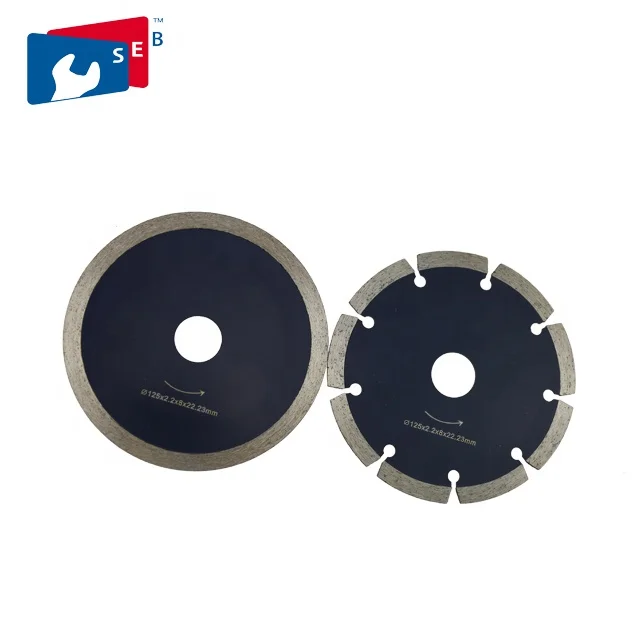

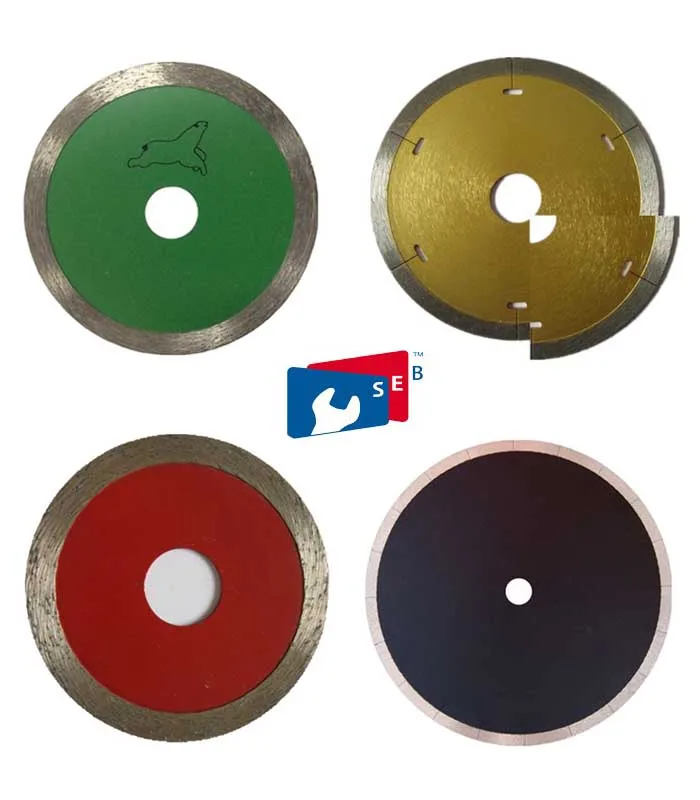

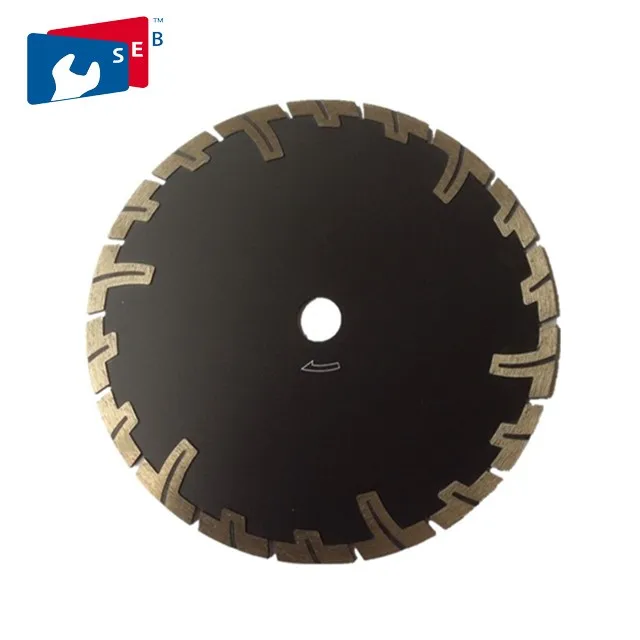

Product Display
Parameter : outer dia*inner dia*segemnt height*segemnt thickness
Application: For cutting masonry material
Size: 4''-20''diameter
Advantage: Without Drop Segment (Low Protection Teeth).
fast, free, smooth cutting,no chipping
Reduce cutting friction a lot, improve slab flatness, save energy.
high sharpness
Product features
1.Use high quality blank.
2.Diamond segment use high quality emery and special mixture.
3.Saw blade is very sharp, high efficiency and stable performance.
3.fast cutting speed without chipping.
4.The segment welding way is silver soldering.makes it more firmly on the blank.
5.Mature production process.
7.Strict product quality inspection processes.
8.Rapid delivery process.
9.Perfect after-sale service, if you has any problem, contact us anytime.
Saw blade speed:
When sawing granite, saw blades linear velocity can be in 25 m ~ 35 m/s within the scope of the selected.
Particle size
The commonly used diamond grain size in the range of 30/35 ~ 60/80. The hard rock, should be selected with a fine granularity.
Description
1. Diamond cutter blade, we adopt unique formula for different hardness concrete.
2. We have strict quality control system, to ensure quality stable.
3. Our saw blade have long life with sharpness in a reasonable price. We can adjust our sharpness according to the customer's specific requirements.
4. Our product can reduce cutting friction a lot, improve slab flatness, save energy.
5. We use high-frequency and Laser Welded welding and hot pressed.
6.diameter:4''-18''
Craft: laser welded, high frequency welded, sintered(hot pressed, cold pressed), eletroplated
Cutting: dry cutting, wet cutting, dry/wet cutting.
Style: continuous rim, segmented, turbo
Application: general purpose, professional for stone, masonry, glass, gemstone, construction etc.
7. Our regular sizes of diamond saw blades for masonry material are as follows:

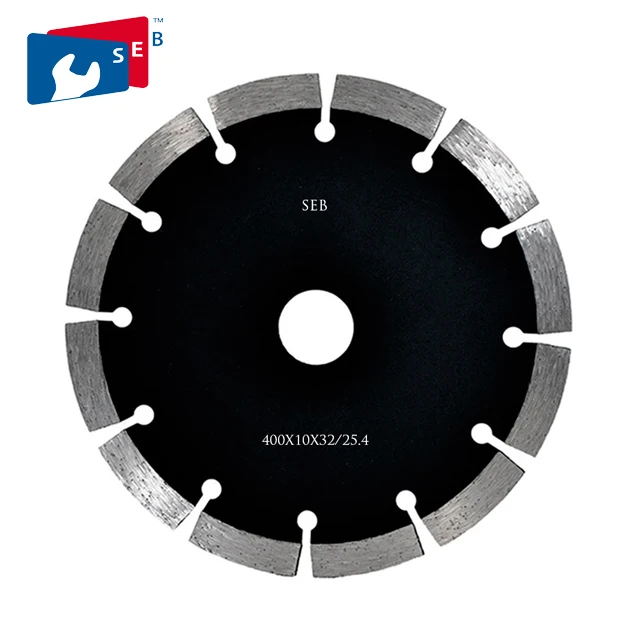

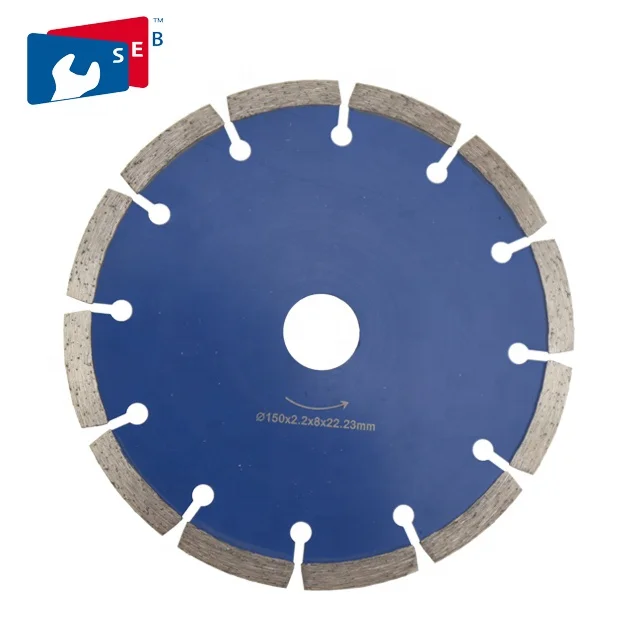

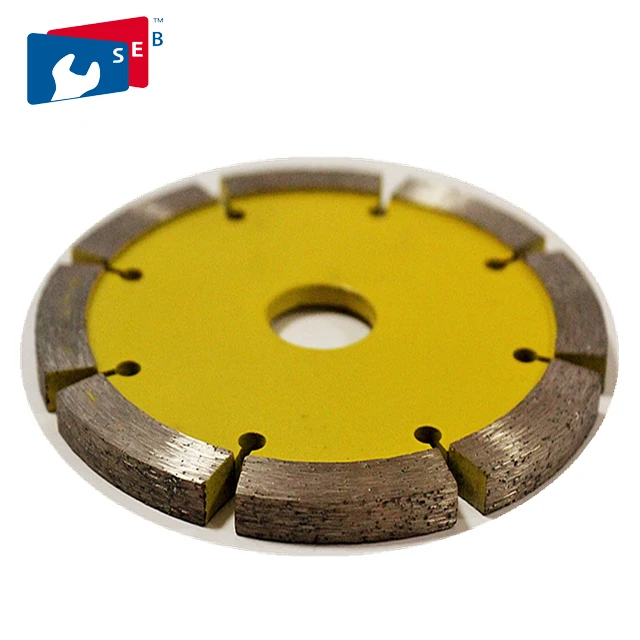

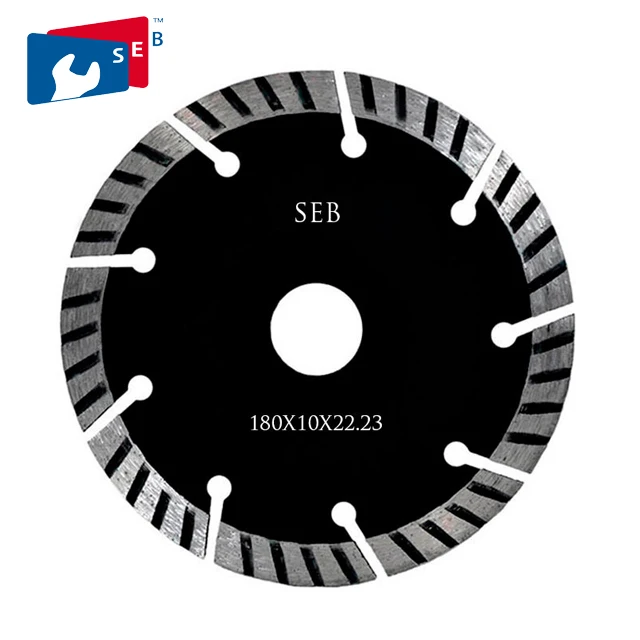

| Segmented(dry cutting) | |||||||
| Application:Used for cutting granite, marble, bricks, concrete and other stones. | |||||||
| Diameter (D) | Bore(H) | Thickness | Segment Size | Segment No. | |||
| Inch | MM | (T) | (H) | (L) | |||
| 4" | 105 | 16/20/22.23 | 1.2 | 1.8 | 7 | 35 | 8 |
| 4.3" | 110 | 16/20/22.23 | 1.4 | 1.9 | 7 | 32.3 | 9 |
| 4.5" | 115 | 20/22.23 | 1.4 | 1.9 | 7 | 38.3 | 8 |
| 5" | 125 | 20/22.23 | 1.4 | 1.9 | 7 | 37.5 | 9 |
| 6" | 150 | 20/22.23 | 1.4 | 1.9 | 7 | 33.5 | 12 |
| 7" | 180 | 22.23/25.4/30 | 1.6 | 2.2 | 7 | 35 | 14 |
| 8" | 200 | 22.23/25.4/30/50 | 1.8 | 2.4 | 7 | 39.2 | 14 |
| 9" | 230 | 22.23/25.4/30/50 | 1.8 | 2.4 | 7.2 | 34.4 | 16/18 |
| 10" | 250 | 22.23/25.4/30/50 | 2.2 | 3 | 7.5 | 37 | 16/18 |
| 12" | 300 | 22.23/25.4/30/50 | 2.2 | 3.2 | 7.5 | 35 | 22 |
| 14" | 350 | 22.23/25.4/30/50 | 2.2/2.4 | 3.2 | 7.5 | 40 | 24 |

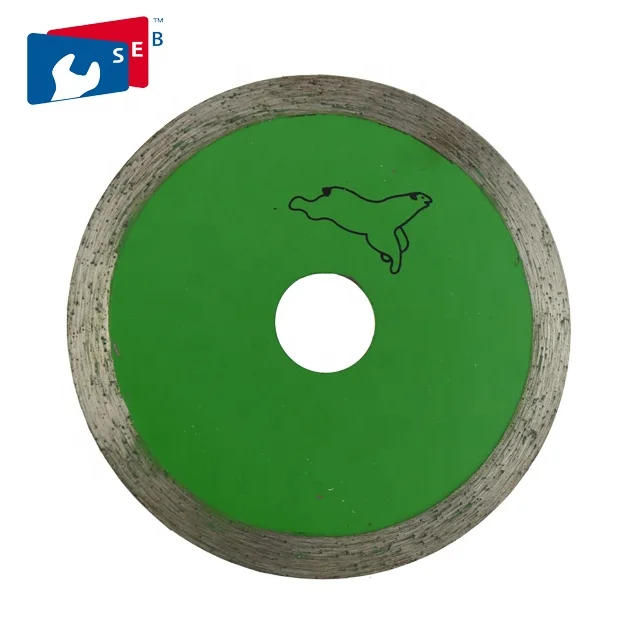

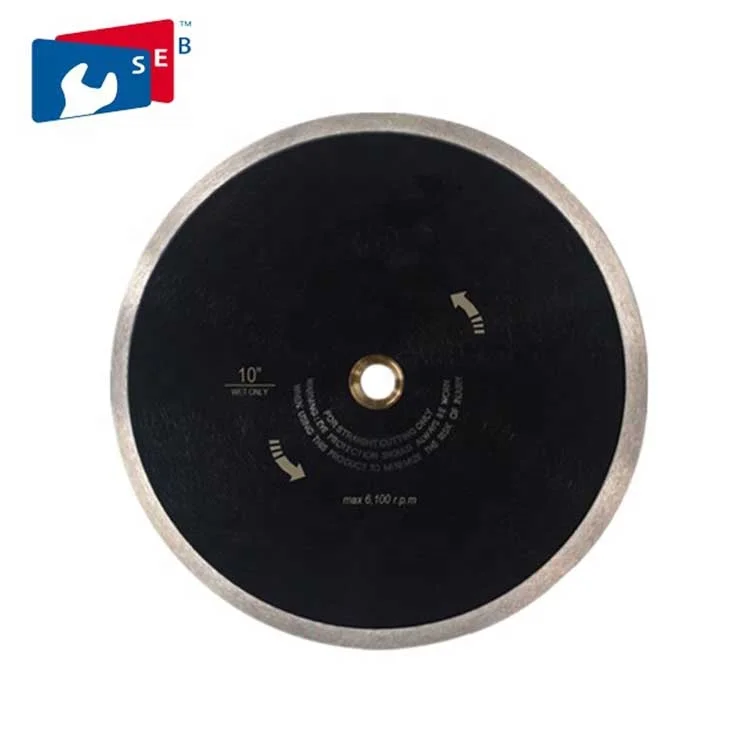

| Continuous Rim(Wet cutting) | |||||
| Application:Used for cutting granite, marble,Porcelain and other stones, with WET cutting. | |||||
| Diameter (D) | Bore | Segment Height | Segment Thickness | ||
| Inch | MM | Inch | MM | ||
| 4" | 105 | 5/8" 7/8" | 16/20/22.23 | 7/10 | 1.8 |
| 4.3" | 110 | 5/8" 7/8" | 16/20/22.23 | 7/10 | 1.8 |
| 4.5" | 115 | 7/8" | 22.23 | 7/10 | 1.9 |
| 5" | 125 | 7/8" | 22.23 | 7/10 | 1.9 |
| 6" | 150 | 7/8" | 22.23 | 7/10 | 2 |
| 7" | 180 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.2 |
| 8" | 200 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.4 |
| 9" | 230 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.4 |
| 10" | 250 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3 |
| 12" | 300 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.2 |
| 14" | 350 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.2 |
| 16" | 400 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.4 |

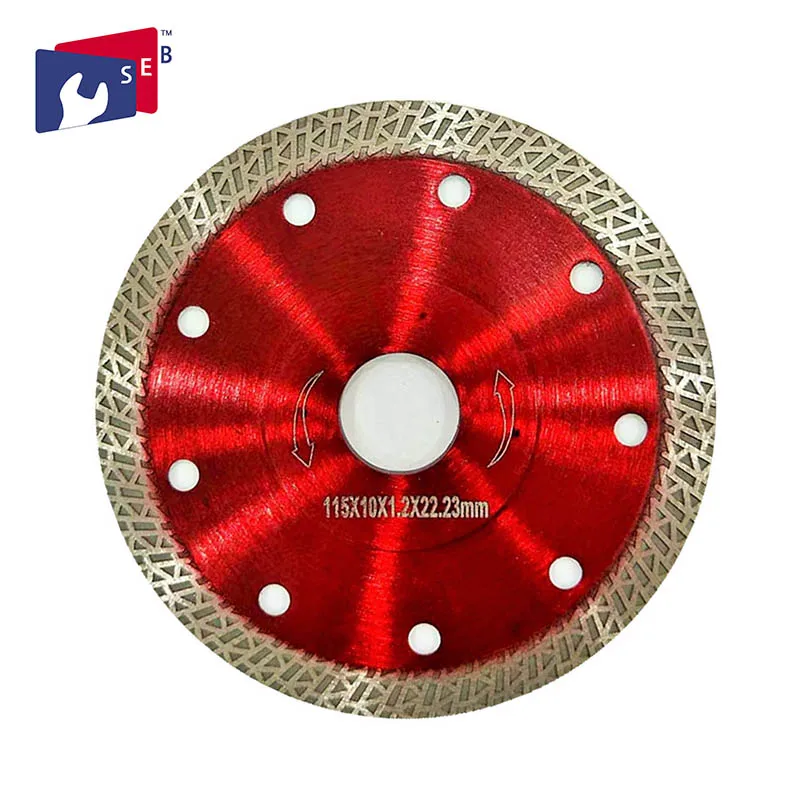

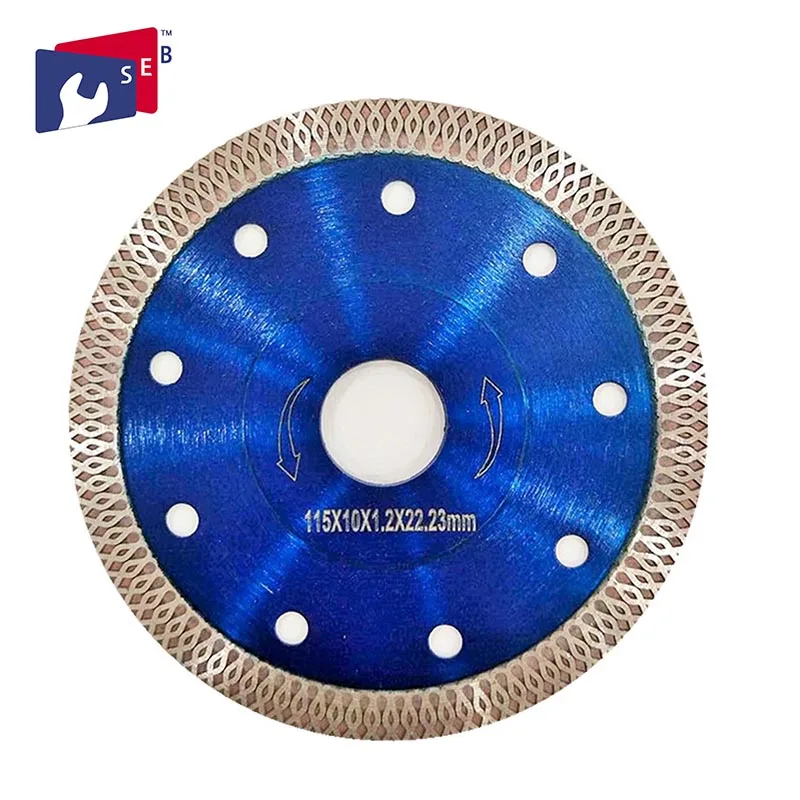

| Turbo(wet/dry cutting) | |||||
| Application:Used for cutting granite, marble,Porcelain and other stones, with WET cutting. | |||||
| Diameter (D) | Bore | Segment Height | Segment Thickness | ||
| Inch | MM | Inch | MM | ||
| 4" | 105 | 5/8" 7/8" | 16/20/22.23 | 7/10/12 | 2 |
| 4.3" | 110 | 5/8" 7/8" | 16/20/22.23 | 7/10/12 | 2 |
| 4.5" | 115 | 7/8" | 22.23 | 7/10/12 | 2.2 |
| 5" | 125 | 7/8" | 22.23 | 7/10/12 | 2.3 |
| 6" | 150 | 7/8" | 22.23 | 7/10/12 | 2.2 |
| 7" | 180 | 7/8"/1 | 22.23/25.4 | 7/10/12 | 2.4 |
| 8" | 200 | 7/8"/1 | 22.23/25.4 | 39367 | 2.6 |
| 9" | 230 | 7/8"/1 | 22.23/25.4 | 7.5/10/12 | 2.8 |
| 10" | 250 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7.5/10/12 | 3 |
| 12" | 300 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 8/10/12 | 3.2 |
| 14" | 350 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 8/10/12 | 3.4 |
| 16" | 400 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 8/10/12 | 3.6×8.0 |
Related Products
Company Profile
Factory and Team
Exhibition&Shipping
FAQ
Q: How is your quality?
A: We have a very seriously control system. Our products keep the high performance and we got good feedbacks from our customers.
Q: Can we use our brand?
A: Yes, we provide OEM service, just send us your packaging and Logo design.
Q: How can we be your agent in our country?
A: Please inform us your detailed company, we will discuss and propose helpful suggestion.
Q:Are samples available for quality test?
A:Yes,pls let us know the product requested. Sample order is available.
Q:What is the advantage of your products?
A:We are professional manufacturer in this field with lots of years R&D and market research experience, we can provide competitive price and high quality products for you.
Q:Can you help me help me design or modified the products as we requested?
A:We have R&D capability and professional & efficient team, cutomized service and OEM/ODM are welcome. We will try our best to make it come true as long as you have a good idea.
Q:When does my order to ship?
A:10-30 days after payment. Please assure your quantities, we will give you accurate lead time.
