ASME Design Code Pig Receiver And Launcher Machine

Product Overview

Description

  ASME Design Code Pig Receiver And Launcher Machine

 • Quick opening closure

 • Barometer connecting pipe

 • Relief valve connecting  pipe

 • Fluid outlet  pipe

 • Barrel body

 • Relief valve connecting  pipe

 • Variable diameter  pipe

 • Extension  pipe

 • Rear support

 • Contaminant discharge  pipe

 • Front support



 Technical Parameters

• Design Pressure: techical up to 35Mpa.

• Test pressure: Hydrotest pressure is 1.3-1.5 times of the design pressure and air-tight test pressure is

  the same as the design pressure.

• Corrosion allowable: 2mm-3mm or based on customer's requirements

• Seismic intensity: 8 degree

• Applicable medium: crude oil, finished petroleum oil (gasoline, diesel), gas, water.

• Size range from 3” to 56”.

• Class Rating from 150 – 2500.

• Materials – Carbon Steel, Stainless Steel, Monel

• Option of Pig Signallers available.

• Quick Opening Closures with Safety Interlocks.

• Third party classification society approved.

• Design codes include ASME VIII DIV. I & ASME B31.3, B31.4, B31.8.

• Full material traceability available in accordance with EN 10204 3.1.B or 3.2 Certificate.

•Applicable medium: crude oil, finished petroleum oil (gasoline, diesel), natural gas, coal gas, water.

h

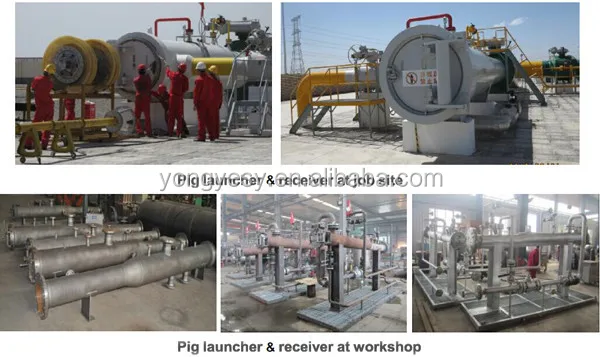

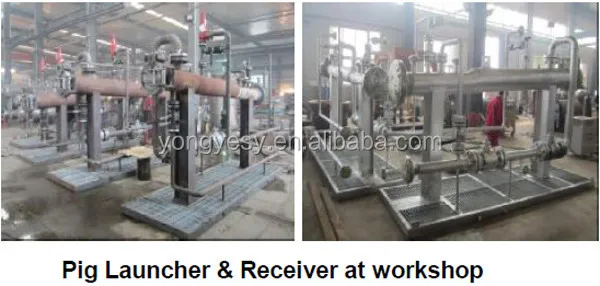

Products Picture:

 _



Quick Opening Closure (QOC)
Type	Size Range	Max. Pressure	Time of Opening	Gasket
Inserted QOC	DN100-300	35Mpa	1 Minutes	O-ring
Clamp QOC	DN100-1000	35Mpa	1 Minutes	O-ring
Internal Band Lock QOC	DN200-400	35Mpa	1 Minutes	Lip Seal
External Band Lock QOC	DN400-1600	35Mpa	50s	Lip Seal





Pig Launchers & Receivers
Design Code	ASME VIII-1, B31.3, B31.8
Size Range	DN100-DN1600
Pressure Range	Up to 35Mpa
Material Code	ASME, ASTM, API
QOC Type	Inserted, Clamp, Band lock
