Warp Knitting Machine for Knitting 3D Spacer Mesh Fabrics

Product Overview

Description

High Lights of Double-needle Bar Raschel Warp Knitting Machine For Spacer Fabrics and Plush

6 shafts E-positive yarn feeding system: Set the yarn feeding parameters through PC touch screen (equipped with the servo motors from Japanese brands)

6 guide bars EL: Pattern processes can be input through USB, active and saved with PLC (equipped with the servo motors from Japanese brands)

Digital controlled draw-off & take-up device

Main motor frequency conversion, CVT

Touch screen operation

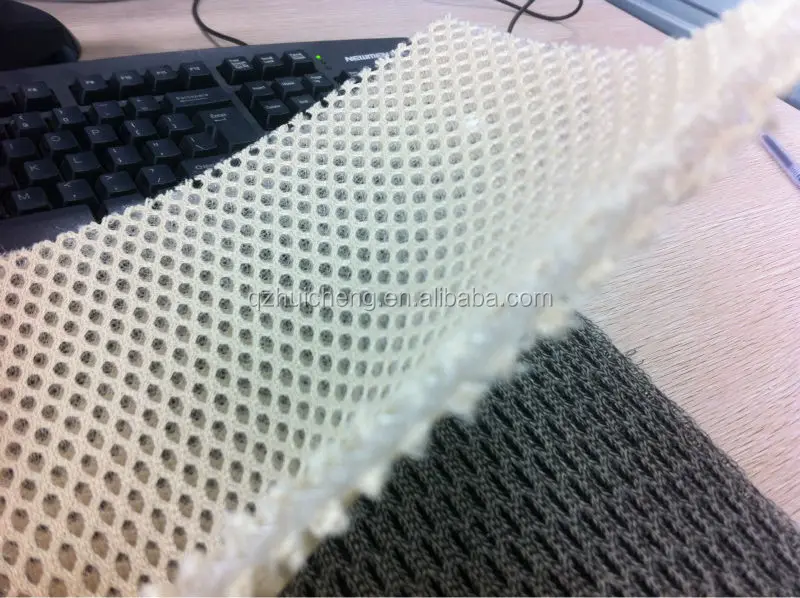

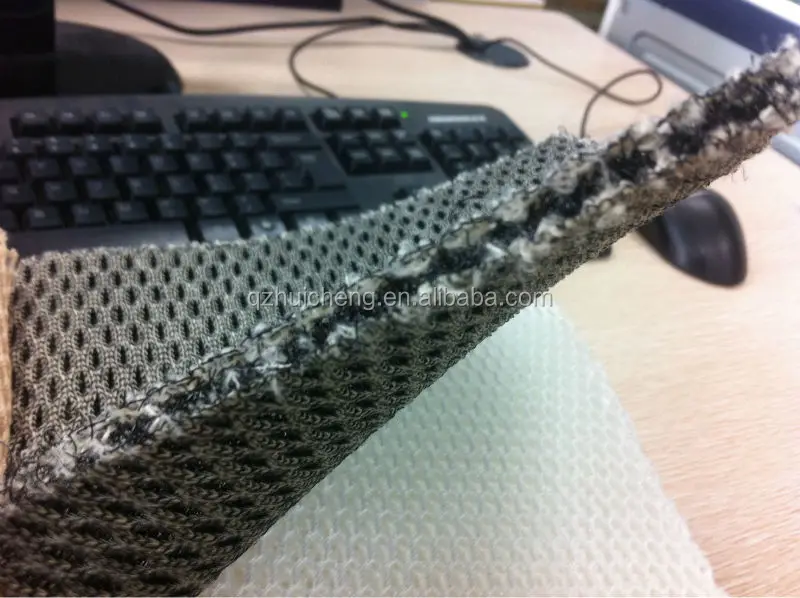

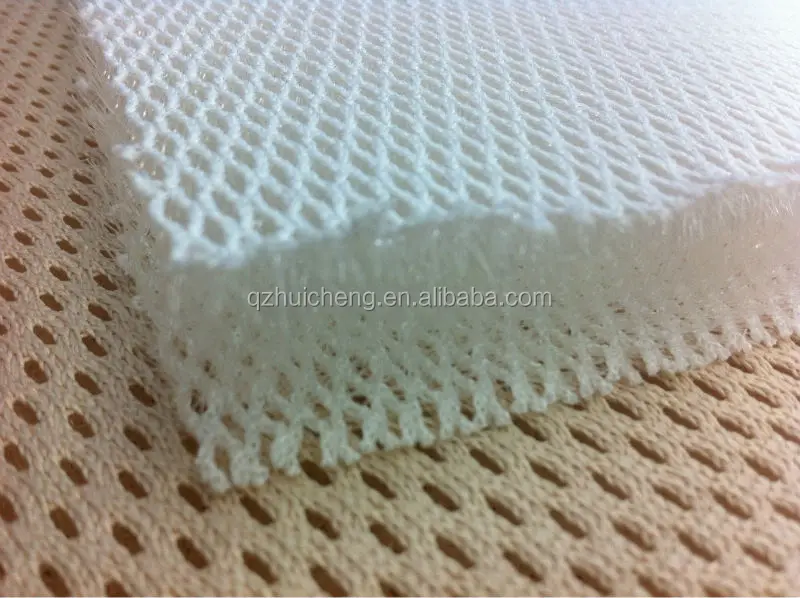

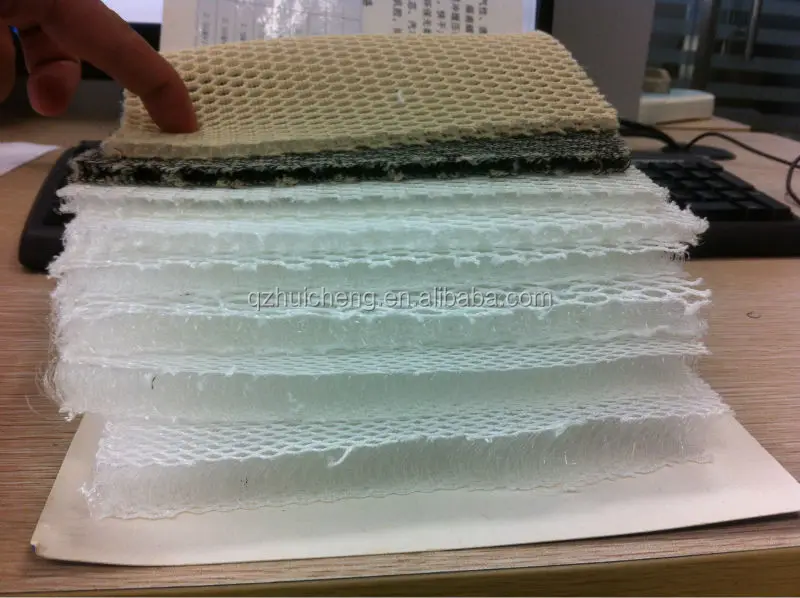

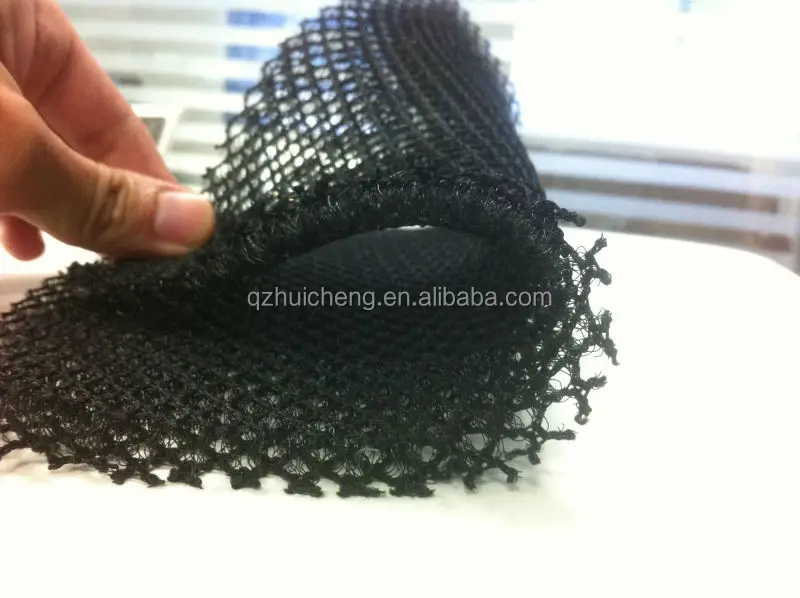

Suitable products: 3D Knitting Mattress, 3D Knitting Pillow, Car accessory

Technical Specification of Double-needle Bar Raschel Warp Knitting Machine For Spacer Fabrics and Plush

Needle-type: Latch needle

Machine gauge: E16

Products width allowance:  3505 mm (138”)

Spacer:2mm-28mm

Number of guide bars: 6

Method of warp let-off: E-positive, customized beaming parameters (EBC)

Beam size: 21” or 30”

Flange Diameter: φ530   762mm

Shaft Diameter: φ210

perture: φ153

Beam Width: 530 mm   762

Density tuning method: Digital controlled, PC touch screen operation (EBA)

Braiding method: EL

Main shaft speed: 0-300 RPM (frequency control)

Main motor: 5.5 KW

Yarn feeding motor: 1 KW × 6 pieces

Shogging motor: 0.75 KW × 6 pieces

Outline dimension: 4800mm (Length) x 5500 mm (wide) x 3300mm (height)

Total weight: Approximately 10000 Kg
