DIY Vacuum Tube With Heat Pipe Split Pressurized Solar Water Heater Kits 500Liters

Product Overview

Description

 DIY Vacuum Tube With Heat Pipe Split Pressurized Solar Water Heater Kits 500Liters

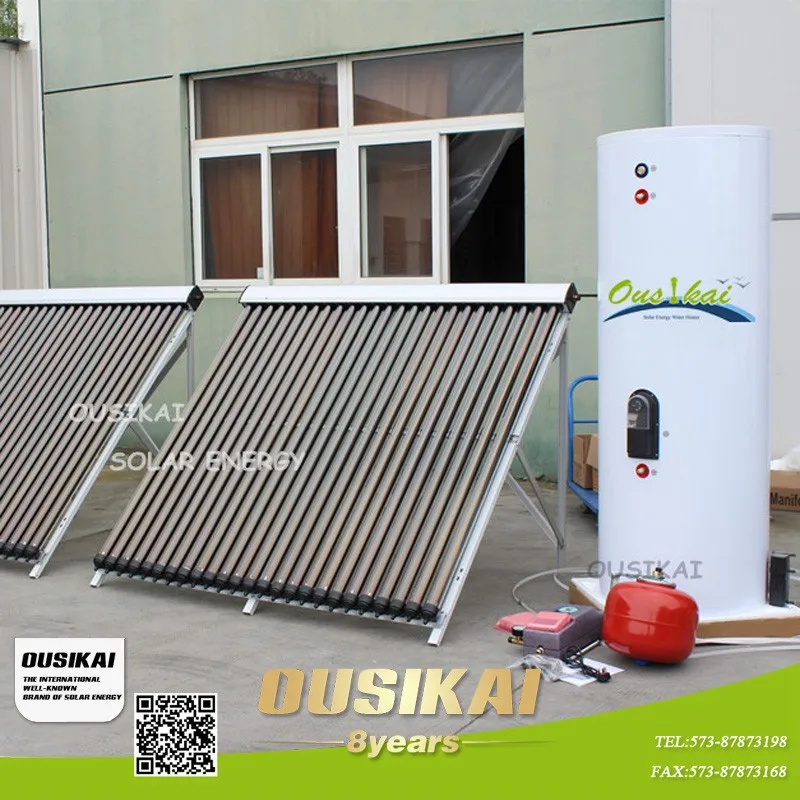

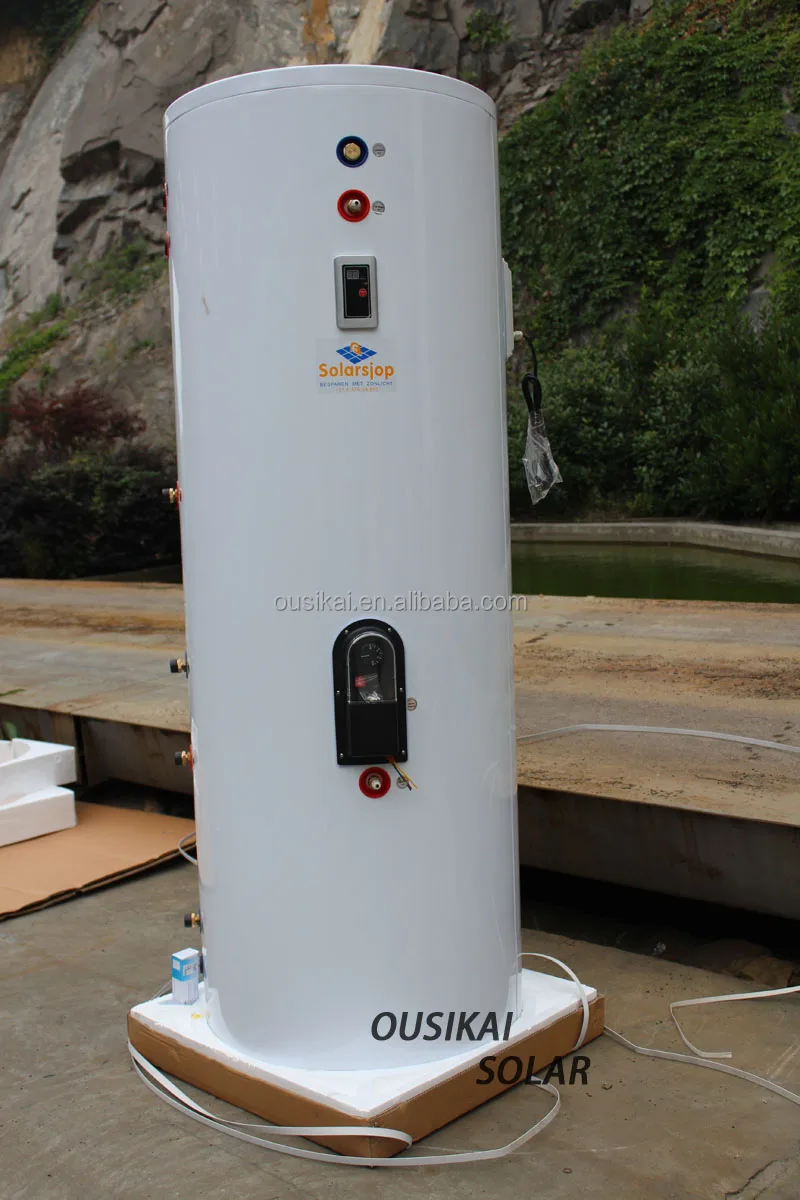

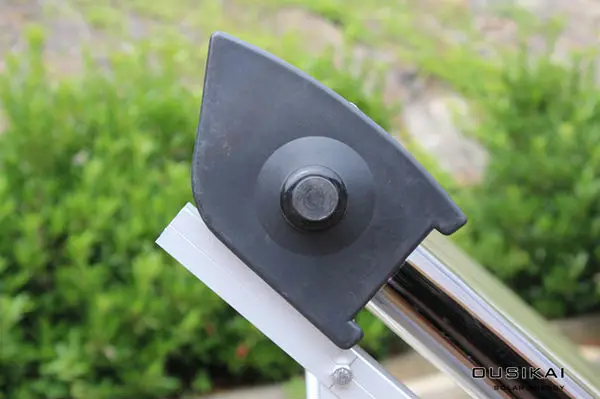

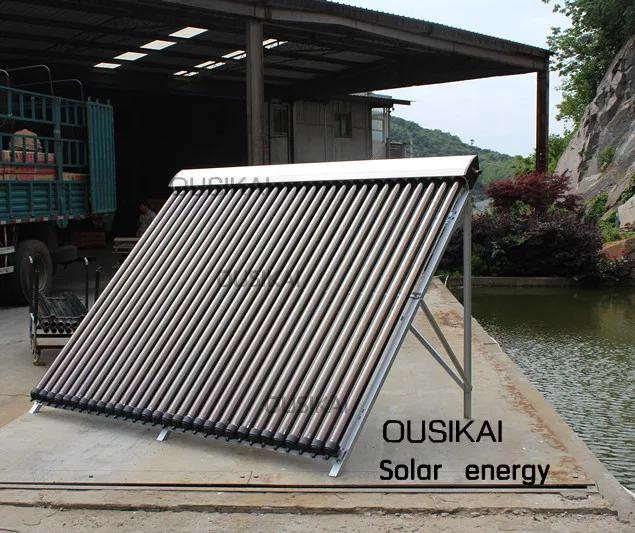

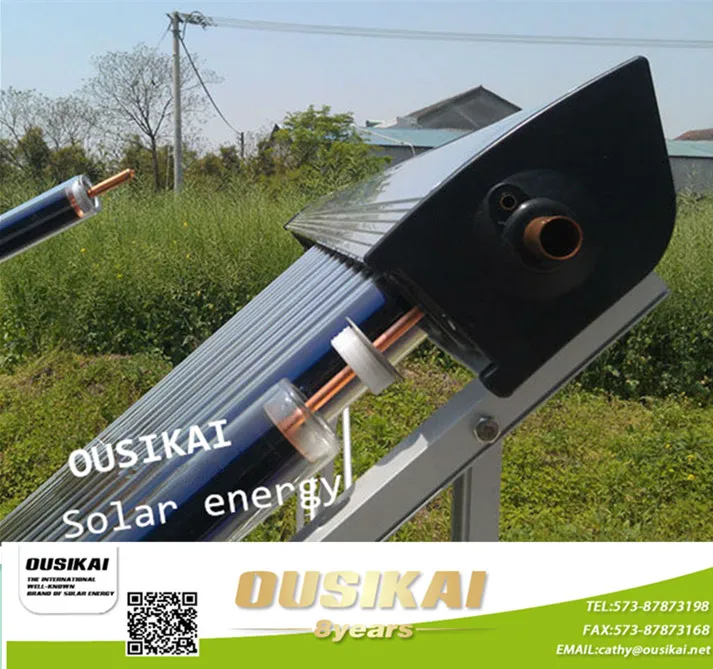

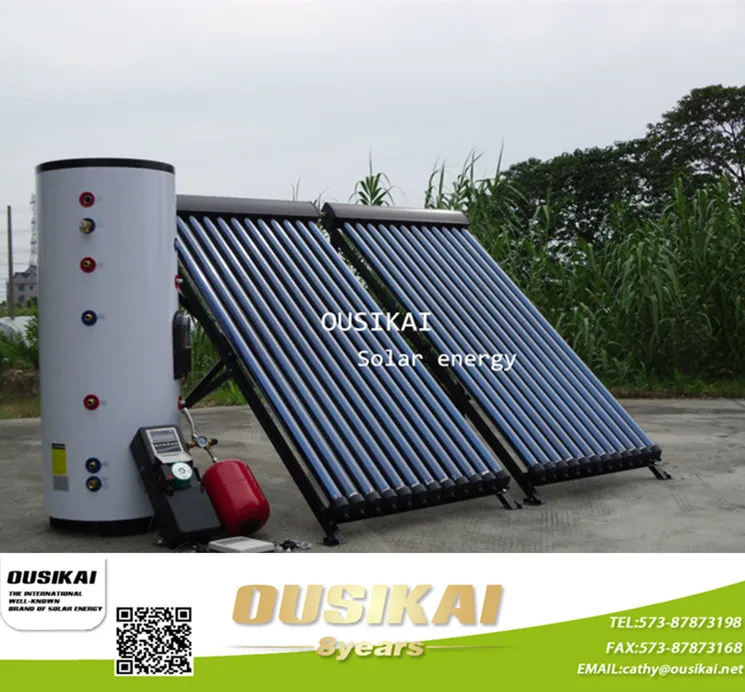

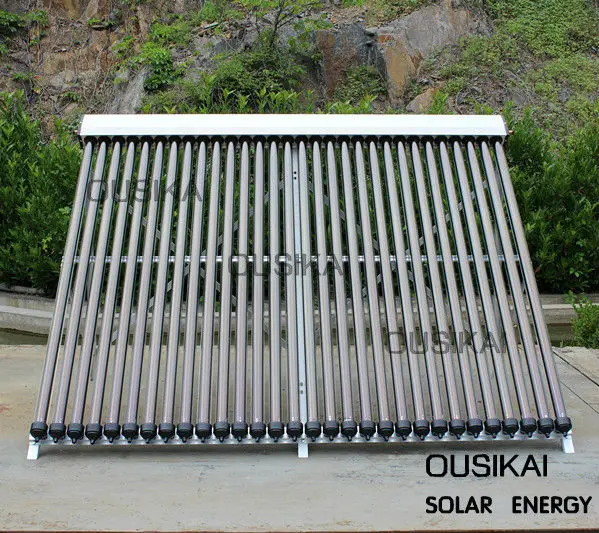

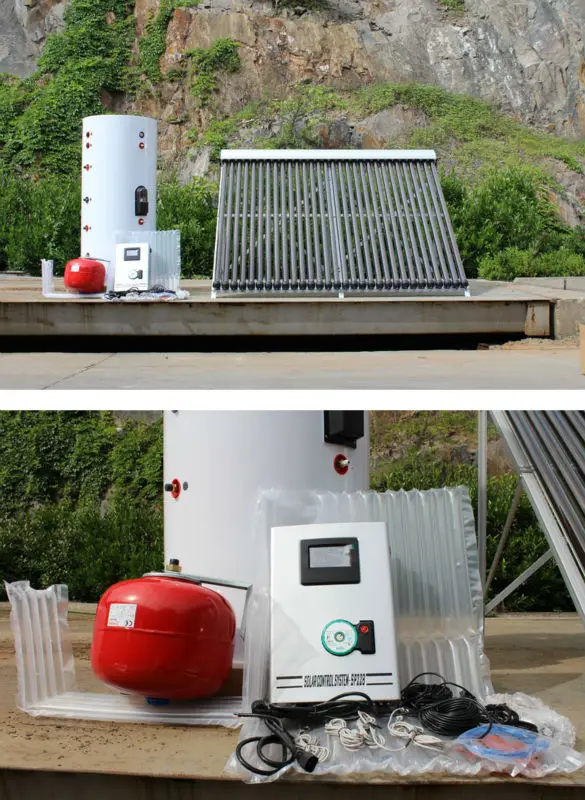

 1. OUSIKAI solar water heater pics







2. Working principle of split pressurized solar water heater

1. The collector absorbs solar energy and transmits it to the water tank through circulation .
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically.
3. The circulation pump makes heat-conducting liquid circulate automatically.
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically .
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically.



3.Features of separate pressurized system:



1 Strong hydraulic pressure makes your bathe more comfortable



2 module design, arbitrary combination, harmonious with the building perfectly



3 Intelligent controlling and multiple functions



4 Arbitrary combination with structure of your beautiful constructions



5 Separate installation conveniently



6 workable at anytime and enjoyable.



7 Working with assistant resource



8 Full set of original equipment, the life time will be much longer to ensure better using.



4.Techinical Specifications:

Name	Split pressurized  solar water heater
Material of out manifold	0.31-0.4mm thickness color steel/ fluorine carbon steel
Material of inner tank	Food grade 1.2-2.0 mm thickness SUS304 stainless steel
Material of outer tank	colour steel or stainless steel
Inlet and outlet hole	Male G3/4
Max pressure	0.6 Mpa
Solar collector tube	3.3 Borosilicate glass with SS-ALN(L)/ALNor CU/SS/ALN  coating
Thickness of glass tube	1.6mm
Vacuum tube tightness	P≤0.005 Pa
Absorption	as=0.93-0.96(AM1.5)
Emission ratio	εh=0.04-0.06(80C±5C)
Idle sunning property parameters	Y=220~260m2.C/KW
Average heat loss coefficient	ULT=0.6~0.7W/(m2.C)
Bracket:	2.0mm thickness aluminum alloy
Welding:	Argon arc welding
Fastening pieces:	Made of stainless steel screw
Tank capacity	100L,150l,200L,300L,500L,800L,1000L
Solar collector	10/12/15/18/20/24/30 tubes
OEM	Provide

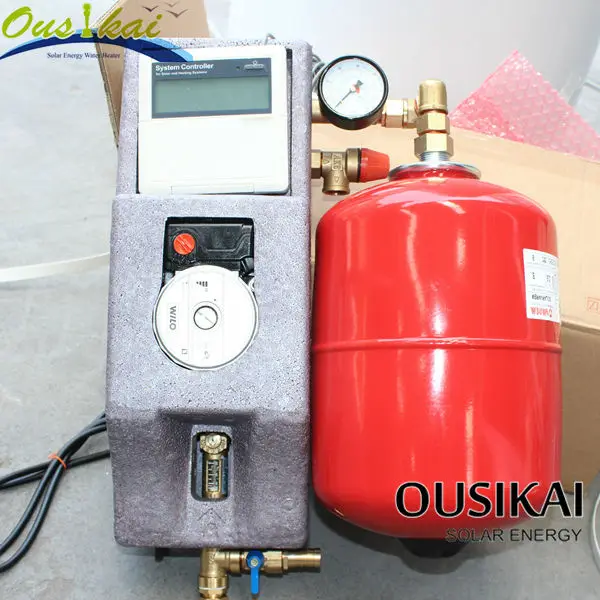

Working station	SP116,SP228
Heat exchanger length	18m

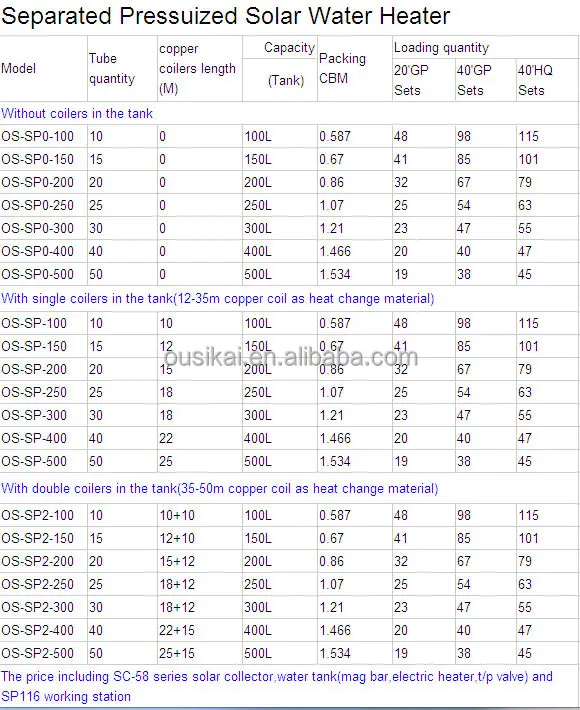

5. OUSIKAI OS-SP series catalogue

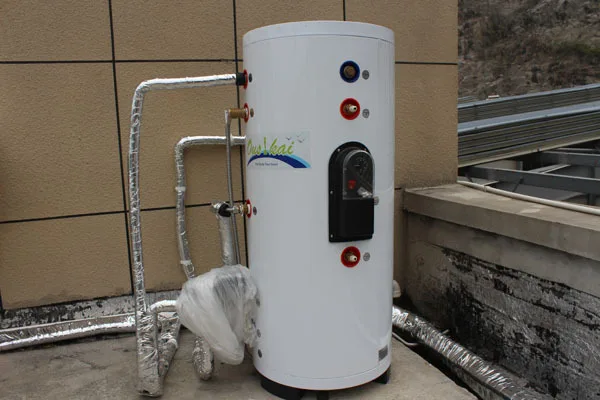

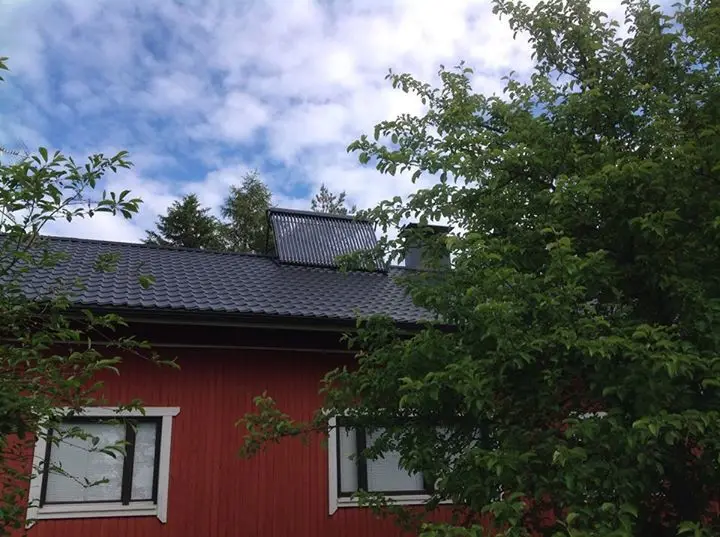

 6. Installed in Europe market
