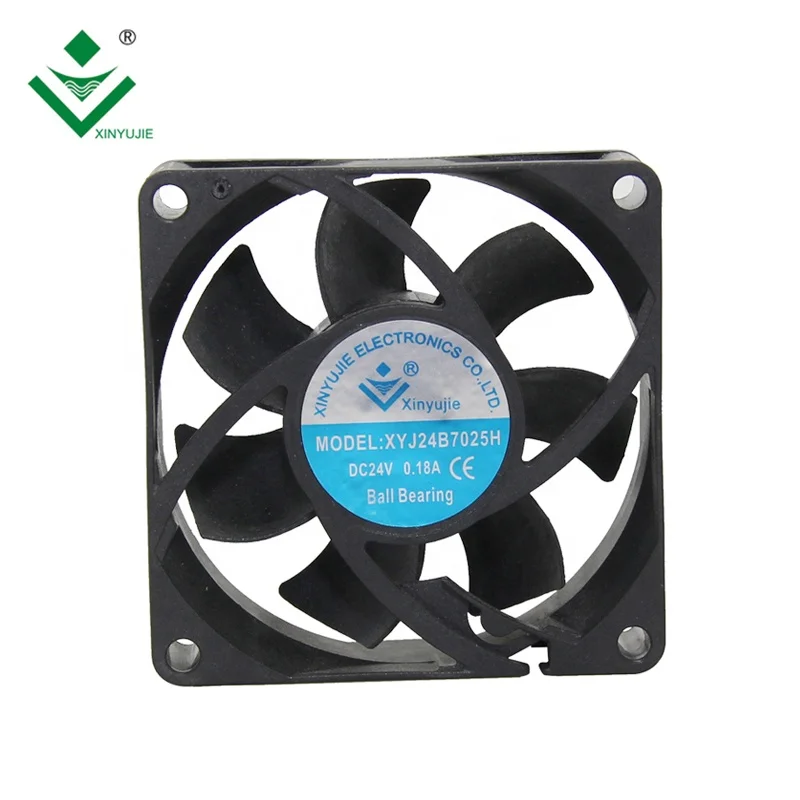

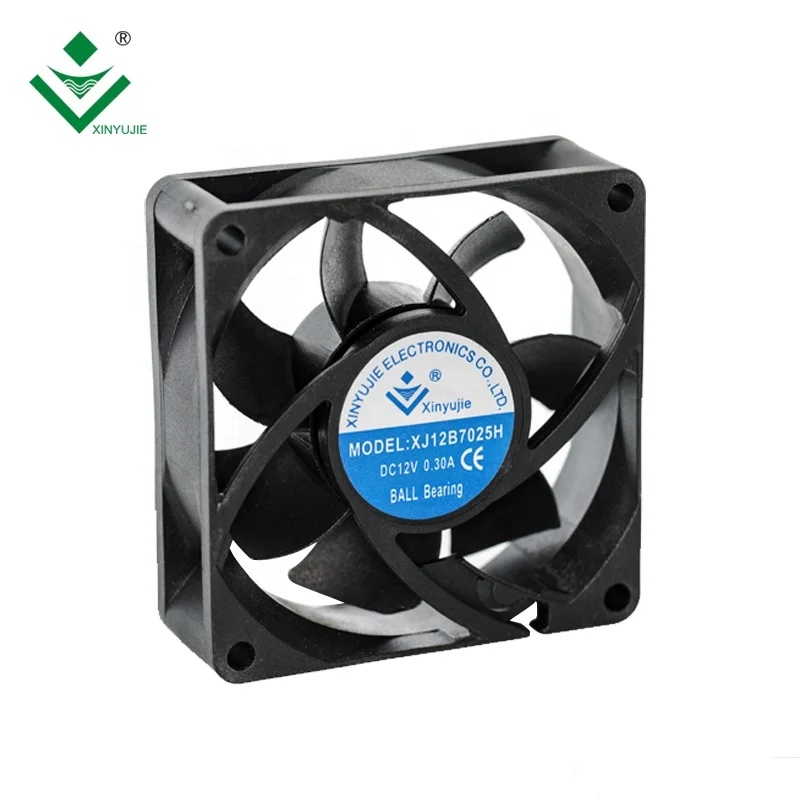

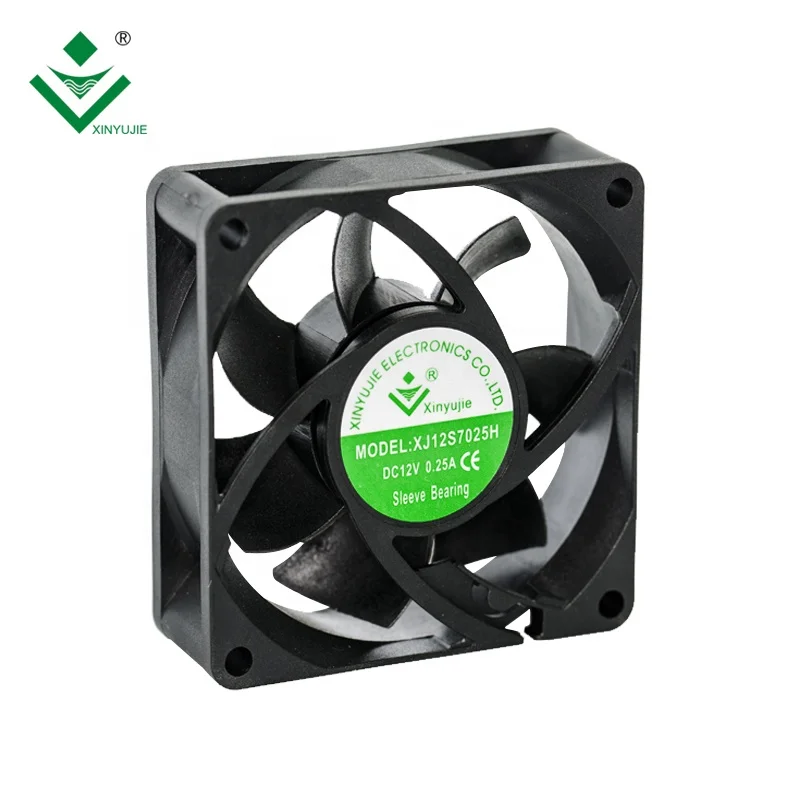

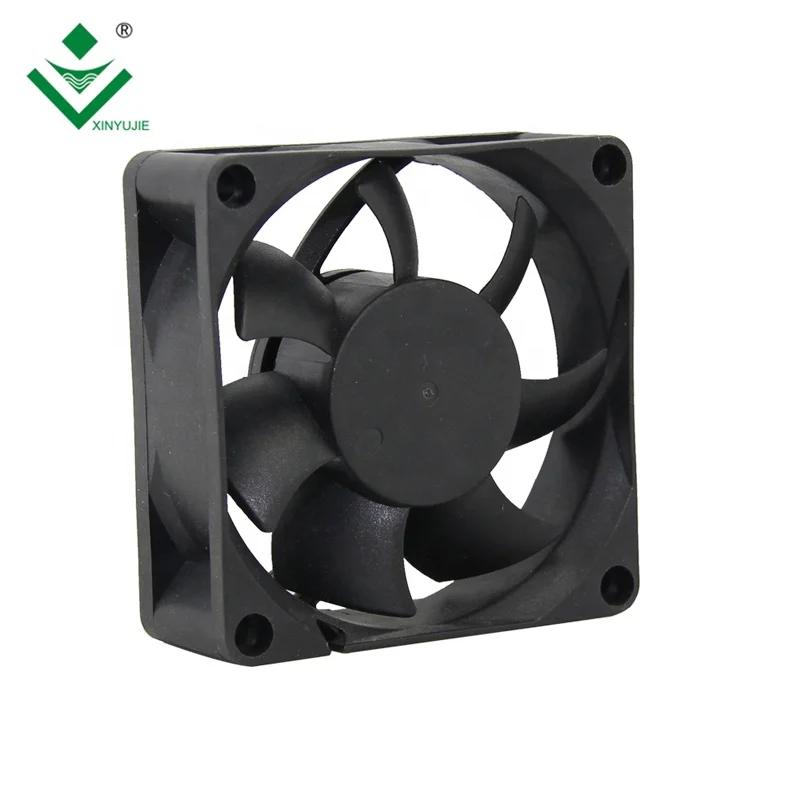

XJ7025H 70mm horizontal air flow 3 volt small fan with terminal
- Category: >>>
- Supplier: Shenzhen Xinyujie Technology Co. Ltd.
Share on (60110133699):
Product Overview
Description
XJ7025H 70mm horizontal air flow 3volt small fan with terminal
Product Description
Technical Parameter:
| Model | Rated Voltage (V) | Startup Voltage (V) | Current Amp (A) | Speed (RPM) | Air flow (CFM) | Static Pressure (mmH20) | Noise Level (dB-A) | Weight (g) |
| XJ05B7025M | 5 | 3.5 | 0.30 | 3300 | 27.89 | 3.55 | 33.8 | 68 |
| XJ05B7025L | 5 | 3.5 | 0.07 | 1800 | 14.65 | 1.04 | 24.3 | 68 |
| XJ12B7025H | 12 | 6 | 0.36 | 5100 | 43.19 | 8.33 | 44.8 | 68 |
| XJ12B7025M | 12 | 6 | 0.10 | 3300 | 27.89 | 3.55 | 33.8 | 68 |
| XJ12B7025L | 12 | 6 | 0.04 | 1800 | 14.65 | 1.04 | 24.3 | 68 |
| XJ24B7025H | 24 | 12 | 0.19 | 5100 | 43.19 | 8.33 | 44.8 | 68 |
| XJ24B7025M | 24 | 12 | 0.06 | 3300 | 27.89 | 3.55 | 33.8 | 68 |
| XJ24B7025L | 24 | 12 | 0.02 | 1800 | 14.65 | 1.04 | 24.3 | 68 |
Main Pictures:
Use environment:
Operating voltage | 4.5v~5.5v/10.2v~13.8v/20.4v~27.6v |
Operating temperature/humidity | -10℃~70℃ 35%~85%RH |
Storage temperature/humidity | -40℃~80℃ 35%~85%RH |
Difference between ball bearing and sleeve bearing:
| Ball bearing | Sleeve bearing | |
| Picture |  |  |
| Price | higher | lower |
| Brand | NSK from Japan | Made in China |
| Advantage | Stable performance,low noise,5-8 years lifetime | low cost, 2-3 years lifetime |
| Warranty | 3 years | 1 year |
| Material | Stainless steel | copper sleeve |
Optional function:
1. Waterproof Level: IPX5~IP67, fans could be work in wet environment, outdoor or under water with waterproof protection.
2. Wire leading: 2 wires(red wire:positive;black wire:negative)
3 wires(red wire:positive;black wire:negative;yellow: PWM)
4 wires(red:positive;black:negative;yellow:PWM;white:FG)
3. Additional function: auto-restart, temperature control speed, speed detection, stppage alarm, waterproof etc.
4. We default 220mm wire length without connector, could be customized as your request. we just need the picture of connector and rank of wires for confirm.
Application
1.Humidifier 2.3D printer 3.Car light bulb 4.Telecom 5.Medical Equipment
6. UPS Power 7. LED Lighting 8.Computer 9.Rice cooker 10.water fountain. etc.
Our Factory
Production Process:
Equipment:
Packaging & Shipping
Lead time:
1. Samples:3-7days
2. Mass production:10-15 working days
3. Waterproof fan need 1 more week
Packing:
Shipping:
Our Services
Guarantee:
3 years warranty for ball bearing fans
2 years warranty for hydraumatic bearing fans
1 year warranty for sleeve bearing fans
Sevice:
-OEM service based on MOQ1000pcs;
-100% test before shipping;
-UL material and waterproof material optional;
-The defective rate is less than 5 ‰;
-Provision of engineering services;
-All can be customized.
Certification:
Company Information
Company Profile:
-We are an enterprise specialized in developing and producing AC/DC/EC cooling fans.
It is applies to armamentarium, communication device, big server machine, security and protection monitoring, professional power amplifier, indoor air ventilation, instrument and equipment etc.
-We have owned professional R&D department, and we have dozens of patents of utility model and designs.
-We have full series dimension ranging from 25*25*7mm to 254*254*89mm, including sleeve bearing, ball bearing, hydraulic bearing, and the current amp, rated voltage. Speed, air flow can all be customized.
-Our Tenets: others without I have, people have my superior.
FAQ
1 What kinds of products supplied by your factory?
we provide DC cooling fan,DC blower fan,AC cooling fan and EC cooling fan.
2. whats your payment terms?
- Payment by T/T , Western Union or Paypal .
- 100% payment for sample orders .
- 30% deposit and 70% balance before shipment .
3. How to control the quanlity of products in your factory?
we take full inspection for all the fans.
If you want to learn more and get latest price pls add my skype: xinyujie05 or send inquiry to me. i will be happy to service with you !
