Carrier Refrigeration Compressor
1,5F20,5F30,5F40,5F60,5H40,5H46,5H60,5H66,5H80,5H86,5H120,5H126
2,Origin:US
3,With R22

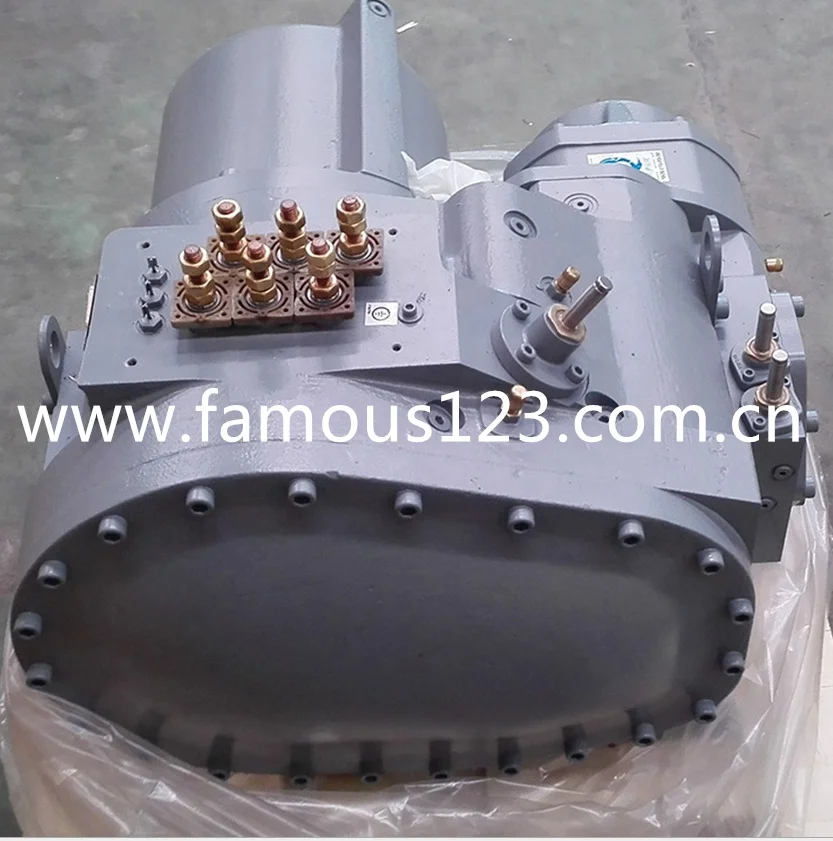

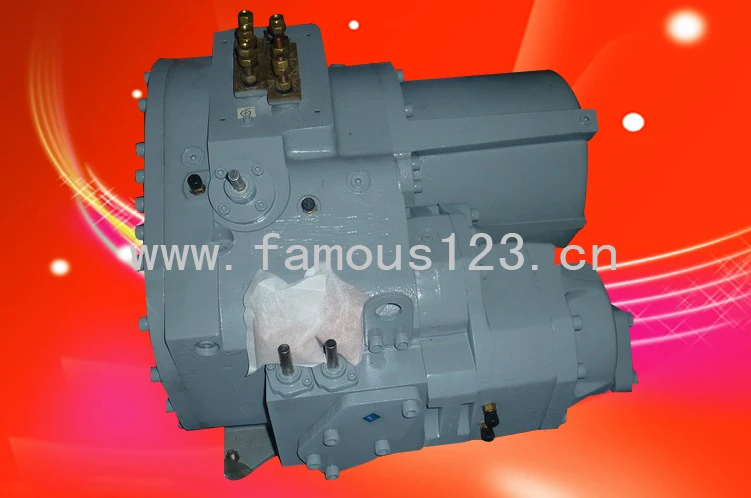

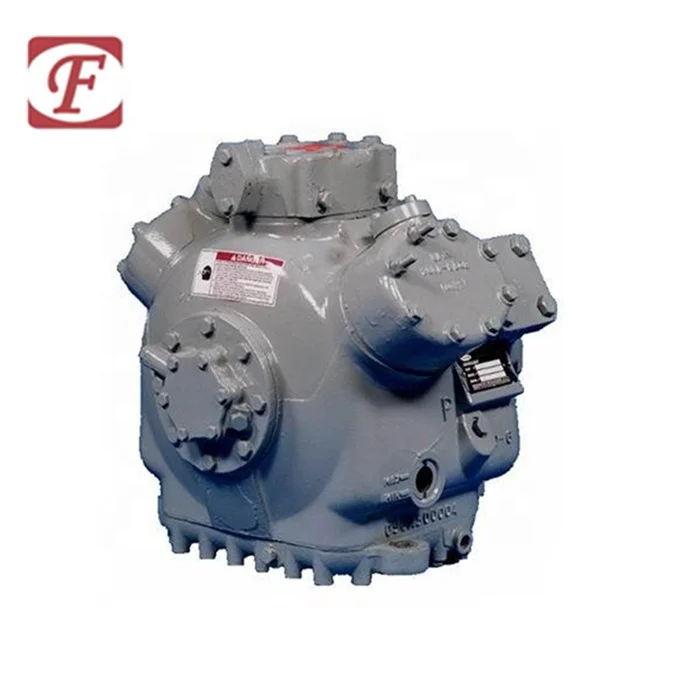

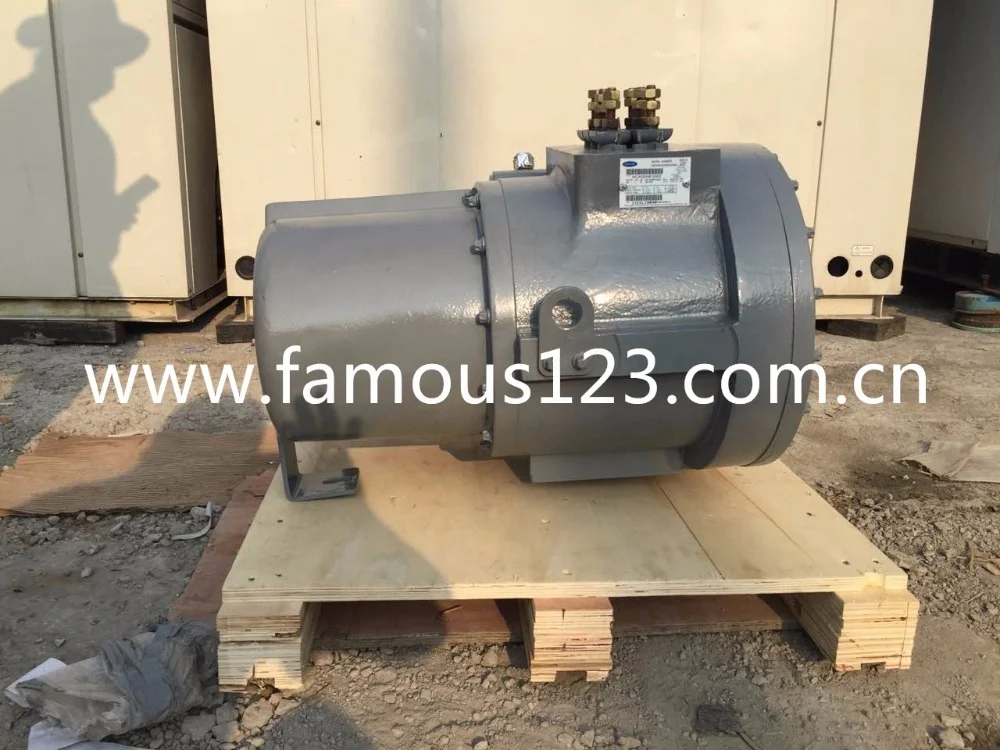

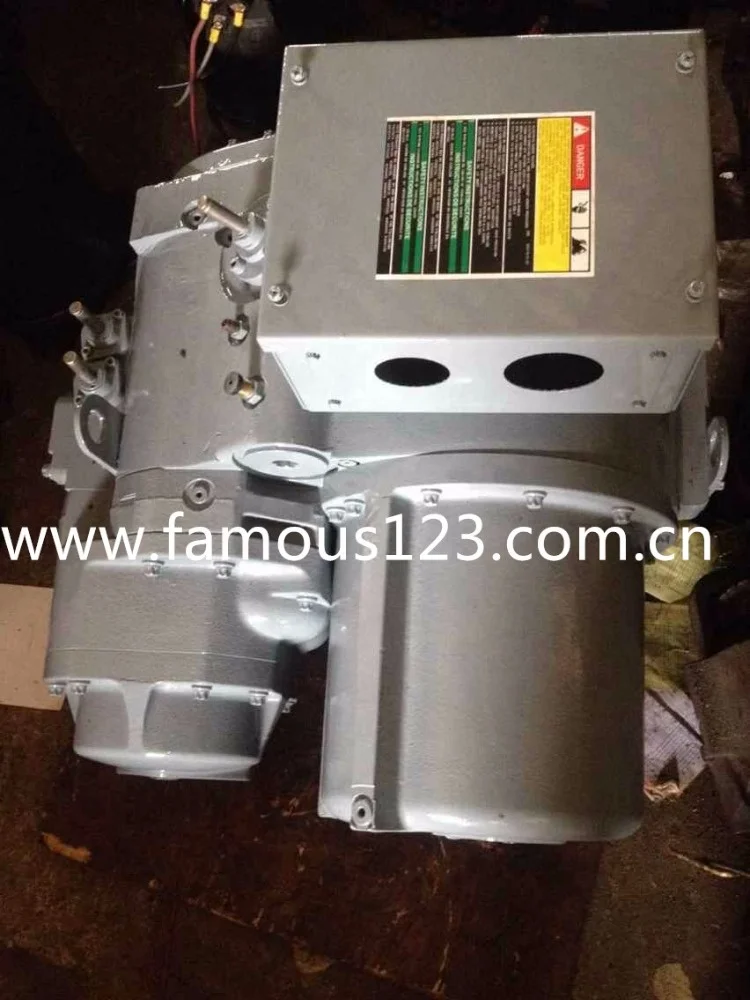

Open Type Carrier compressor

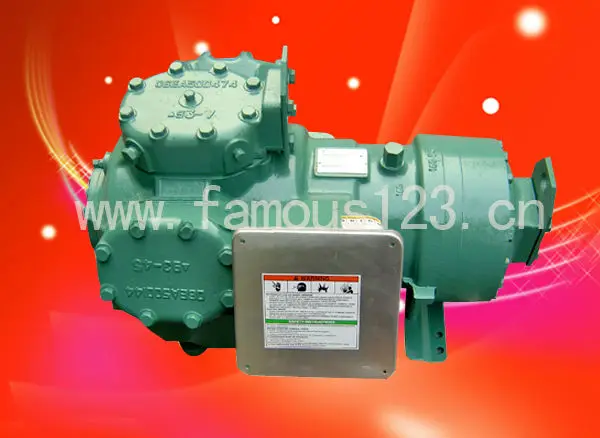

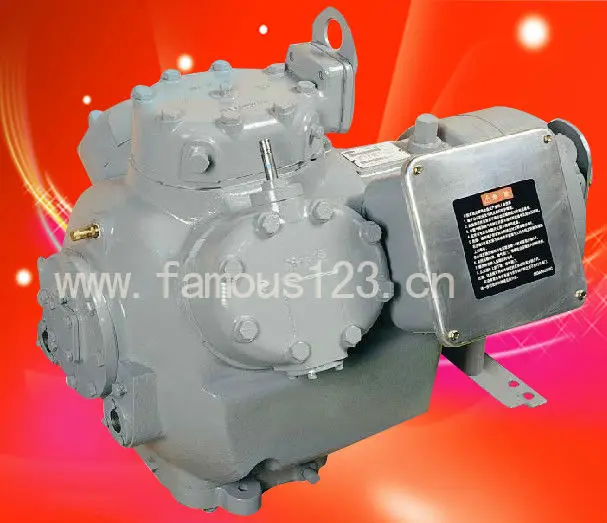

Carrier semi-hermetic Piston compressor with 06D&06Eseries,it’s very popularly use for any high-temperature&low-temperature environment:
1.Widely use in commercial refrigerant, air-conditioner,technics chilling and environment cabin.
2.With high flexibility,it’s not only can use refrigerant R-22,R12,R-501, but also fit R404a,R134a,R507
3.It’s suit for both 50HZ and 60HZ voltage.
4.With UL,CSA,ISO9002 certificate
Technical Datas:
|
Totaline part no. |
HP |
Discharge gas(m3/min) |
Cooling capacity (R-22)(50Hz)(Kw) |
Cooling capacity (R-22)(60Hz)(Kw) |
|
5F20 |
10 |
0.47 |
24.79 |
29.75 |
|
5F30 |
15 |
0.70 |
37.22 |
44.67 |
|
5F40 |
20 |
0.94 |
49.24 |
59.09 |
|
5F60 |
25 |
1.41 |
74.15 |
88.98 |
|
5H40 |
40 |
2.18 |
116.1 |
139.3 |
|
5H46 |
60 |
2.73 |
143.9 |
172.7 |
|
5H60 |
60 |
3.27 |
174.1 |
208.9 |
|
5H66 |
75 |
4.09 |
216.3 |
260.6 |
|
5H80 |
75 |
4.36 |
232.1 |
278.5 |
|
5H86 |
100 |
5.45 |
287.8 |
345.4 |
|
5H120 |
125 |
6.54 |
348.8 |
418.5 |
|
5H126 |
150 |
8.17 |
425.0 |
510.0 |
Pictures:
