TELIKOU MDS 100 wireless full duplex intercom system for stage church TV station , studio room system integration

MDS-100 One Drag Four Full Duplex Wireless Communication System

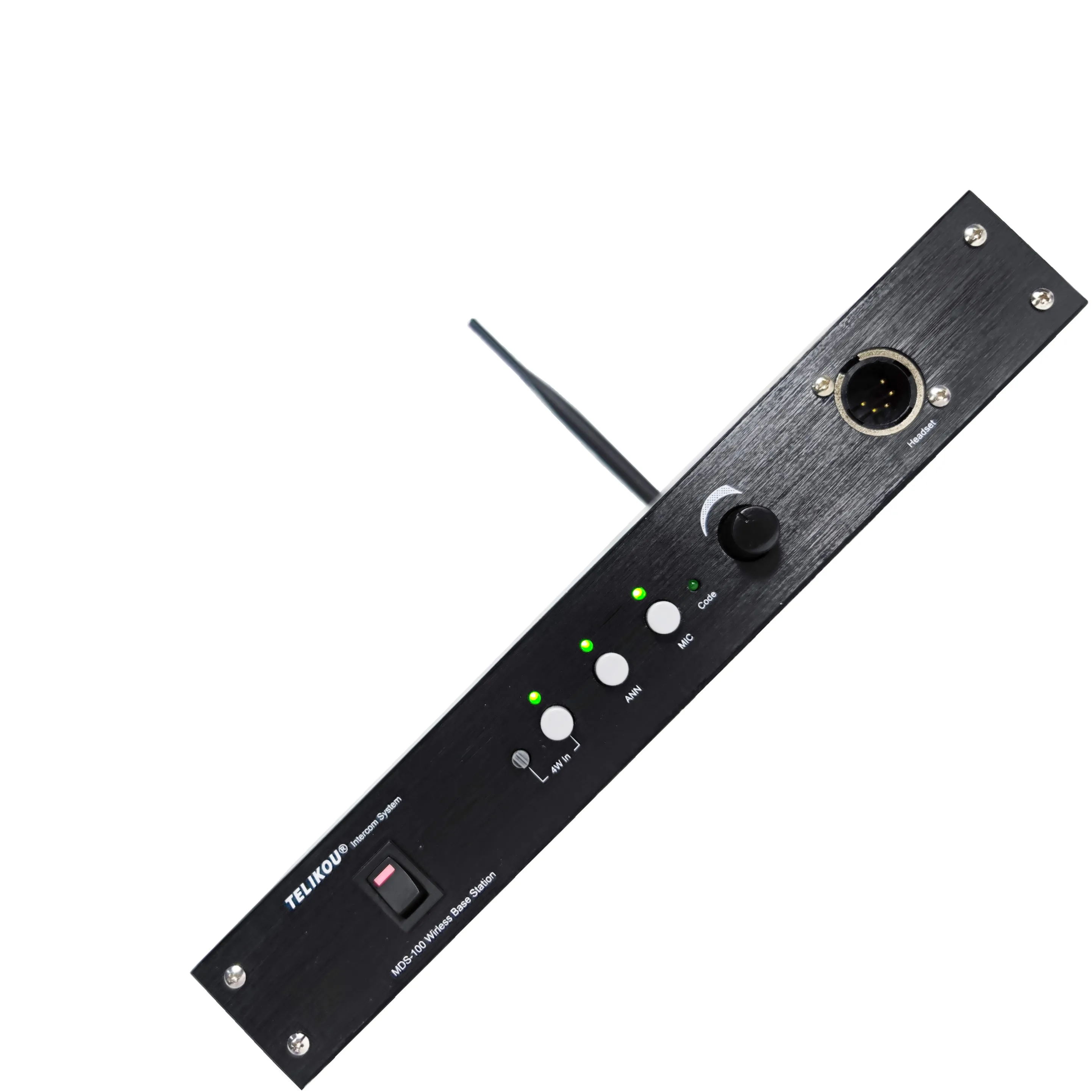

Base station: MDS-100 wireless base station x 1

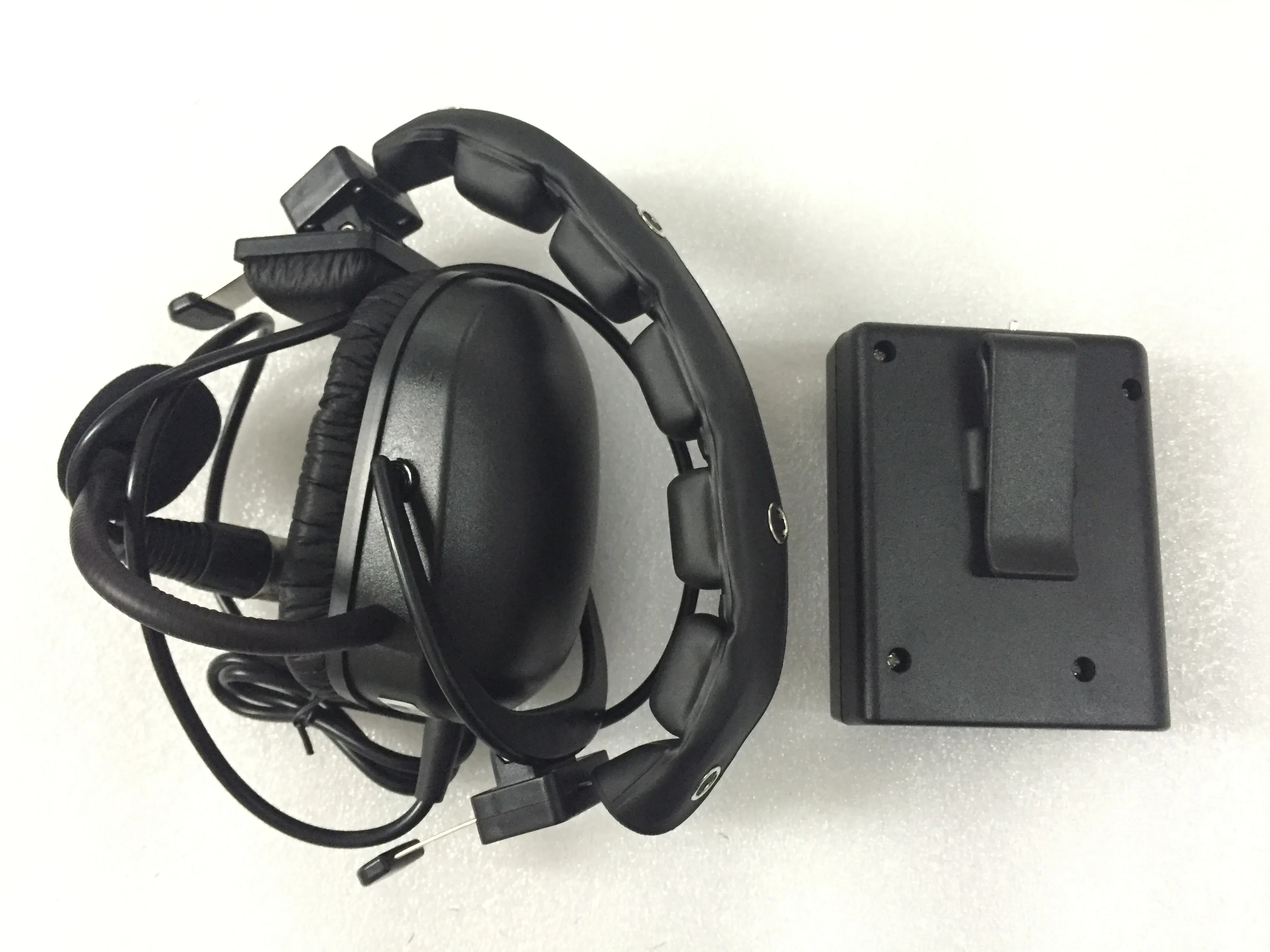

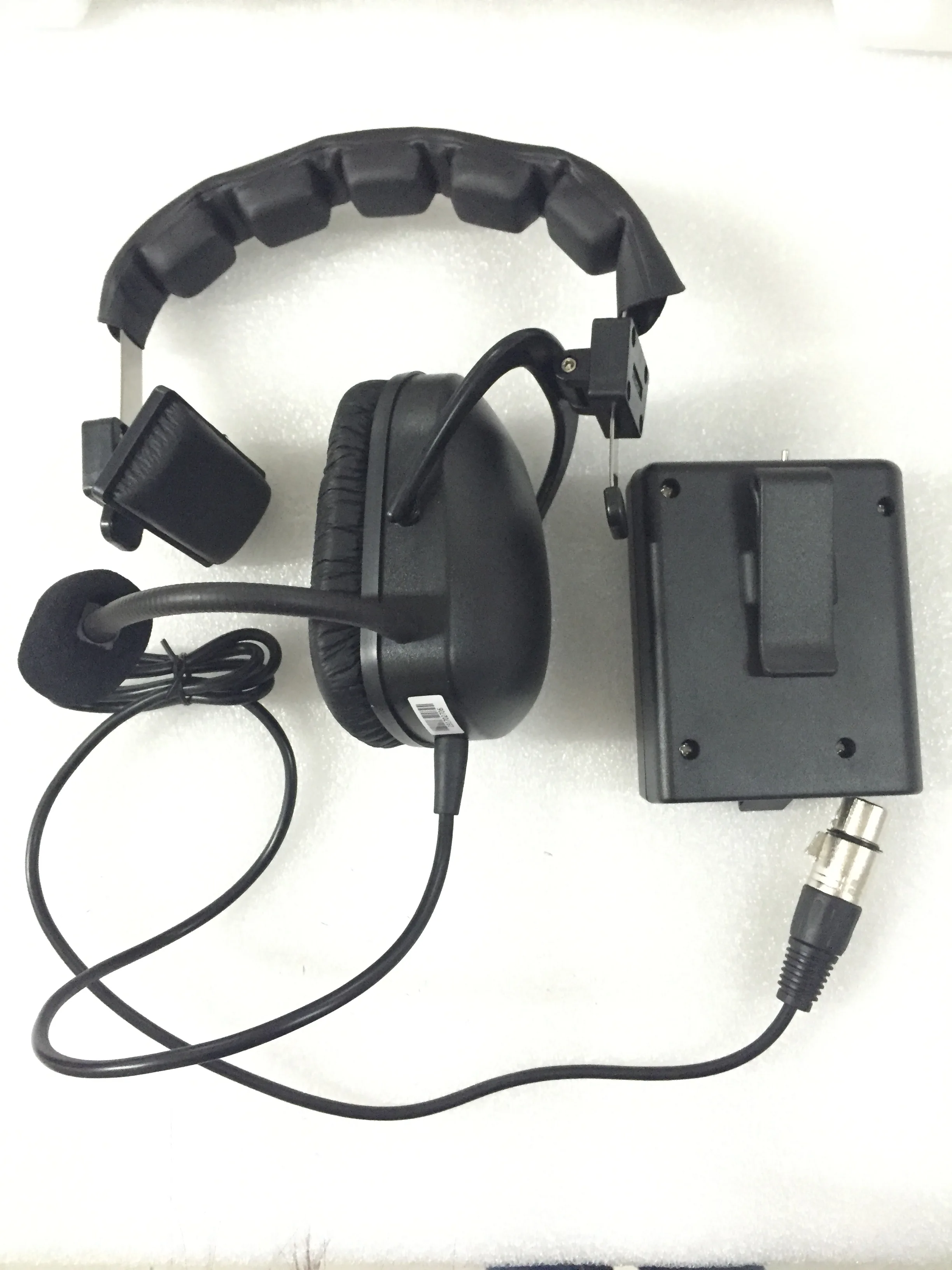

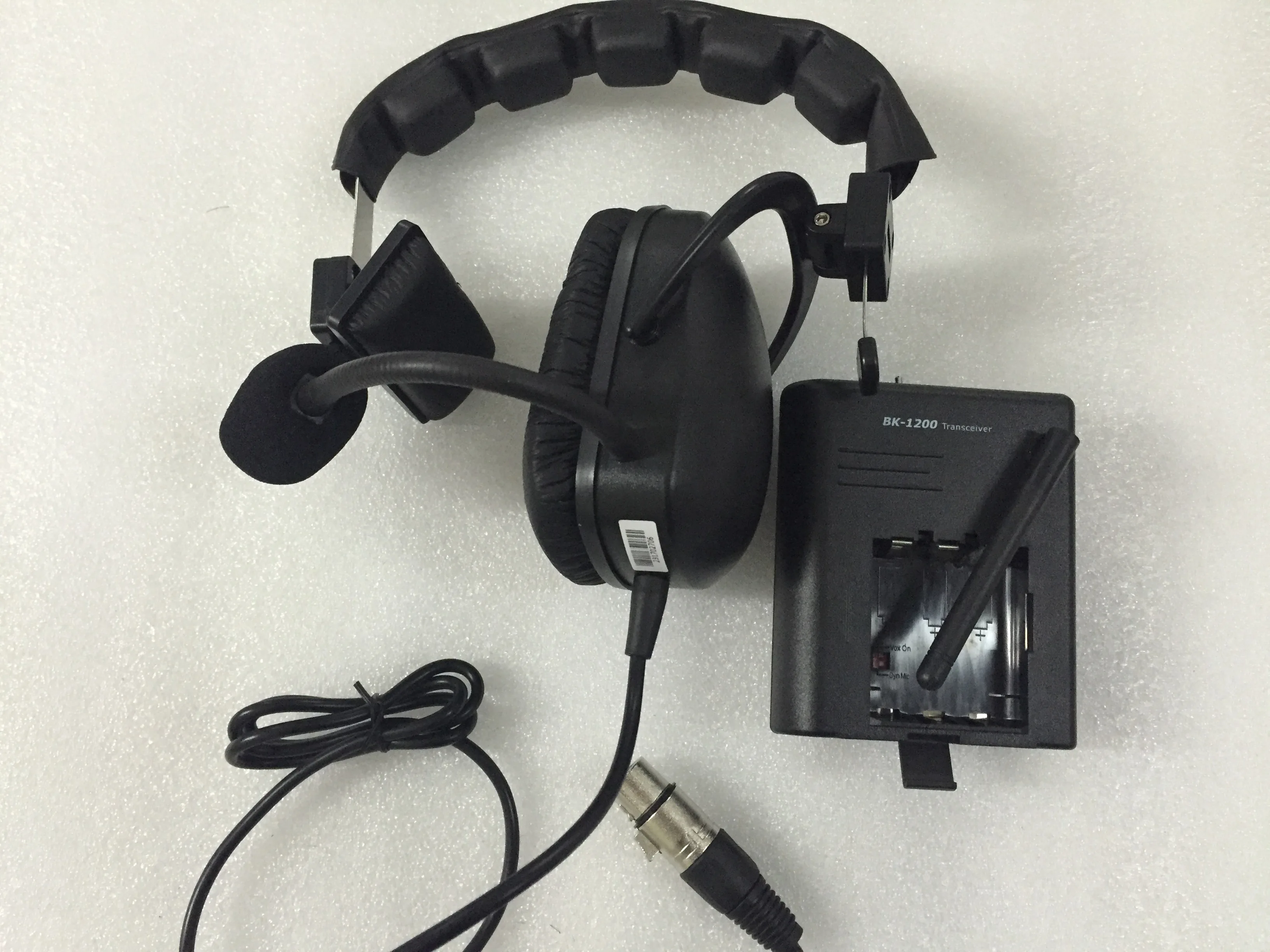

Bodypack: BK-1200 Wireless Bodypack x 4

Headset: HE-121 wireless single ear headset x 5

Each MDS-100 can connect four BK-1200 wireless bodypacks.

Technical parameters:

MDS-100 single channel wireless communication host adopts 433MHz frequency and full duplex communication .

MDS-100 is equipped with broadcast output interface, four wire interface and 12V DC power supply interface.

The 12V DC power supply interface can facilitate the use of external batteries for power supply in the field.

Technical indicators:

Operating frequency: 433MHz

Frequency range: 423.000MHz - 443.000MHz

Data transmission rate: 500KB/S

Channel interval: 1MHz

Frequency hopping points: 10

Frequency hopping speed: 100 times/S

Transmission power: 29dBm

Launch cycle: 1mS per 10mS

Modulation: GFSK

Power supply: DC 12V~30V

Operating temperature: 0 ° - 40 ° C

Relative humidity: 0-90%

Size: 111mm x 46mm x 126mm (W x H x D)

Weight: 0.36Kg

Working voltage of bodypack: 3 AA batteries

Working current of bodypack: TX: max130mA, RX: max50mA

1. Transmitting/receiving distance: an obstacle free zone within an open field of vision, and the viewing time of the host/extension antenna is 1000m.

2. The BK-1200 phone bodypack uses three AA batteries.

3. Host input voltage 90~240VAC

4. The host is equipped with two antennas

We will backed very carefully with carton , and you do not worry about in case the goods will me broken when shipping

and we will use FedEc EMS or TNT , DHL any express you want ,also you can use your own forwarder

we have a lot of advantages:

 1)any kind of  express you want

 2)packing as customer's requirement

 3)reasonable price with high quality

 4)OEM is welcome, pls feel free to contact with us, I will try my best to let you know

 5) a trial order or samle orders are also welcomed

 6)Excellent after sale service

 You can pay us through T/T, paypal

 Price term: FOB beijing

 Ful

l payment should be made before we send goods to you

TELIKOU Technologies Co., LTD established in 2002.

It is experienced in providing cost-effective and professional solutions of audio, video equipments and ODM.

Products have been used widely all over the world.

TELIKOU Technologies Co., LTD has developed a variety of products,

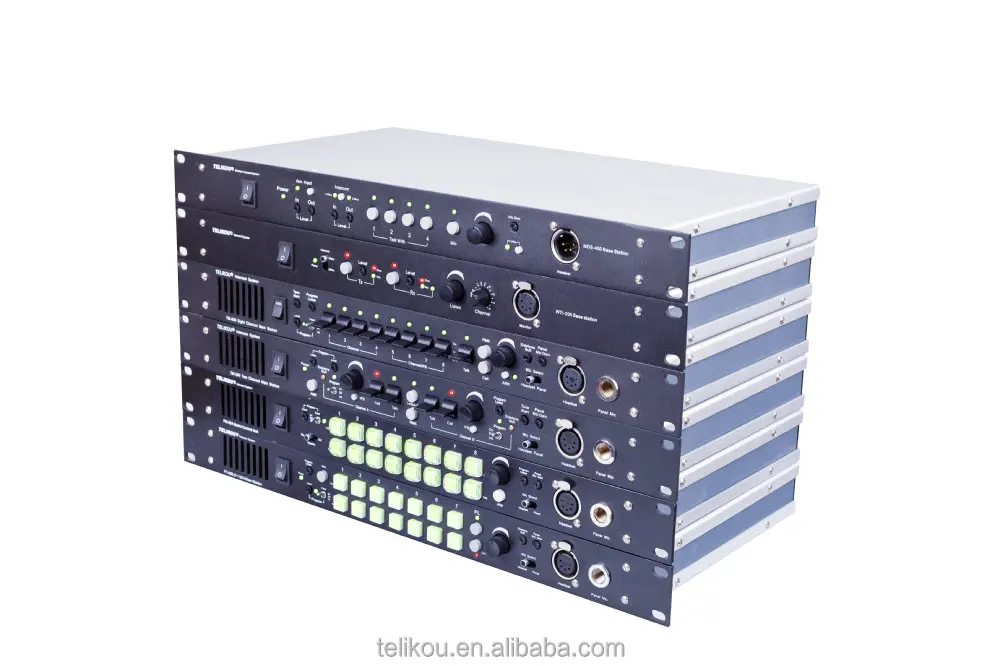

like: Intercom / Talk Back System (TBS) Teleprompter LED Light Audio
