Product Overview
Description

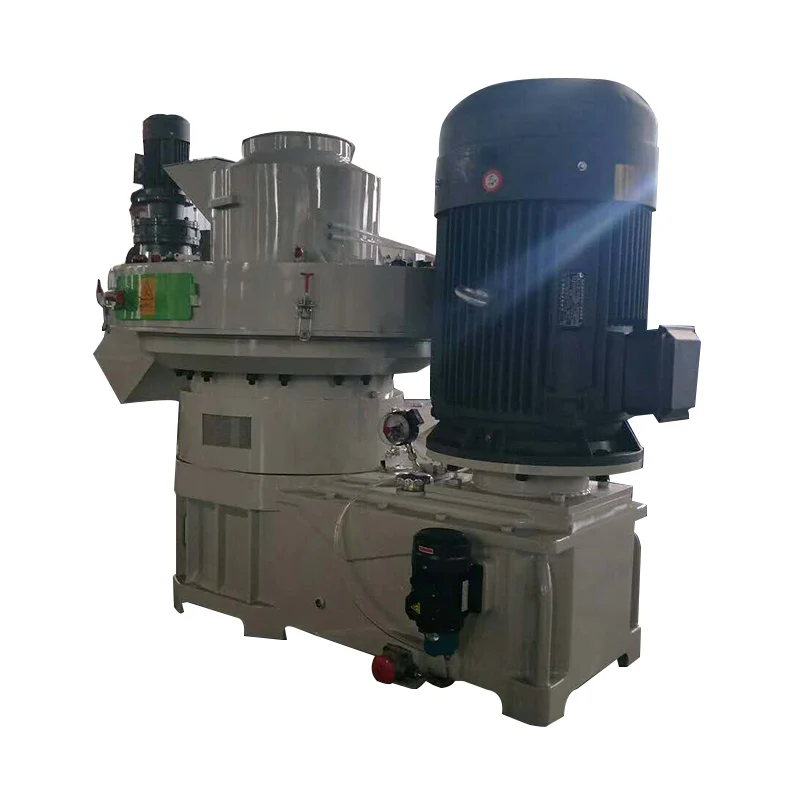

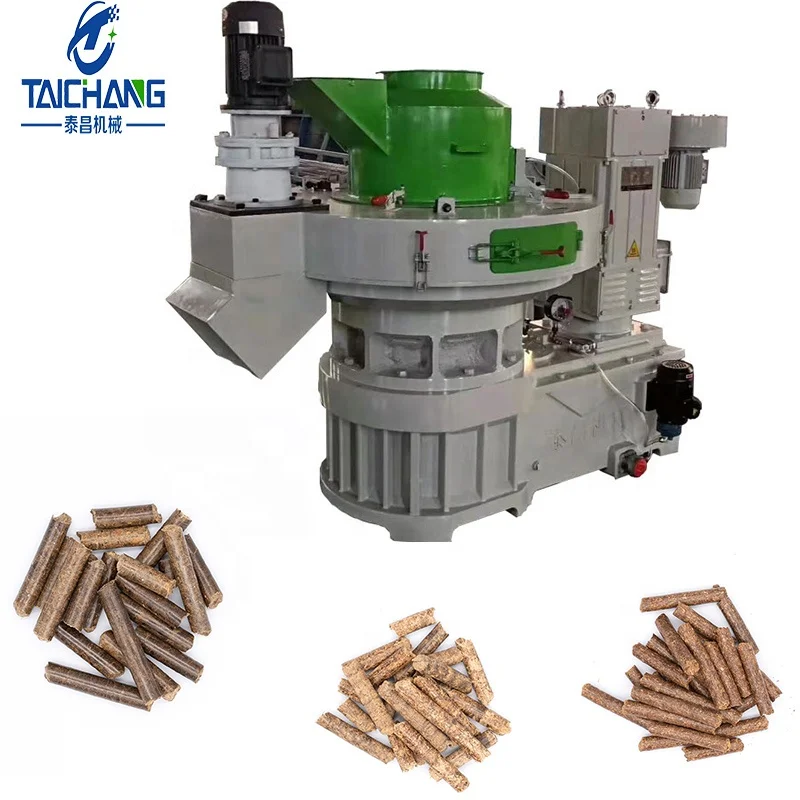

LKJ560 Wood Biomass Rice Husk Pellet Production Machine
Product Description
Introduction of the pellet mill machine
The biomass pellet machine is also called wood pellet mill or wood pellet press machine, which is used to compress various biomass materials such as wood sawdust, rice husks,corn straws into solid pellets. The biomass particles have high density, high heat and no pollution.Wood pellet machine is a biomass new energy equipment for wood pellet production and is the essential part in a whole complete wood production line.
Main Specifications of the pellet mill machine
1)Pellet machine structure: vertical type,Ring die
2)Pellet diameter: 6/8/10/12mm Pellet Moisture: 15%-20%
3)Output:1-3.5ton per hour
4) Pellet MachinePower:90-220kw
5)Pellet Mill Material: stainless stell cover and mould,45# roller wrap
6) 380v,50hz,3phases,220v,415v,60hz,3phases.also can be designed
7)Packing form: bag packing or ton packing
8)After-sales service: two years
9)Adapted Raw material:Wood dust, rice husk, corn straw, wheat straw and other crude fiber
Specifications
Advantage points of wood pellet machine
1.Ring die, vertical structure, conducive to the pelletizing room cooling
2.Die static, rollers rotating, materials centrifugal, evenly distributed around
3.Wood pellet mill can press 6-12mm pellets diameter,if you need different pellets diameter,just change the different ring die is ok.
4.Pellet mill power supply is 380v,50hz,3phases,we also can design the special motor for you,like 220v,415v,60hz,3phases.
Type | Power(kw) | Pellets(mm) | Modelφ(mm) | Output(t/h) | Dimension(mm) |
LKJ560 | 90/132+1.1+1.5+0.55+2.2 | φ6-12 | φ548 | 1-2 | 1600*1210*1700 |
LKJ700 | 132/160+1.+1.5+0.55+2.2 | φ6-12 | φ700 | 2-3 | 1650*1261*1783 |
LKJ850 | 185+1.1+1.5+0.55+3 | φ6-12 | φ850 | 3-3.5 | 1800*1450*1850 |
Advantage
1.High efficiency and output with low energy consumption.
2.Movable machine with motor, creates no oily fume or pollution, of low noise.
Advantage of high output centrifugal efficient vertical ring die wood pellet mill:

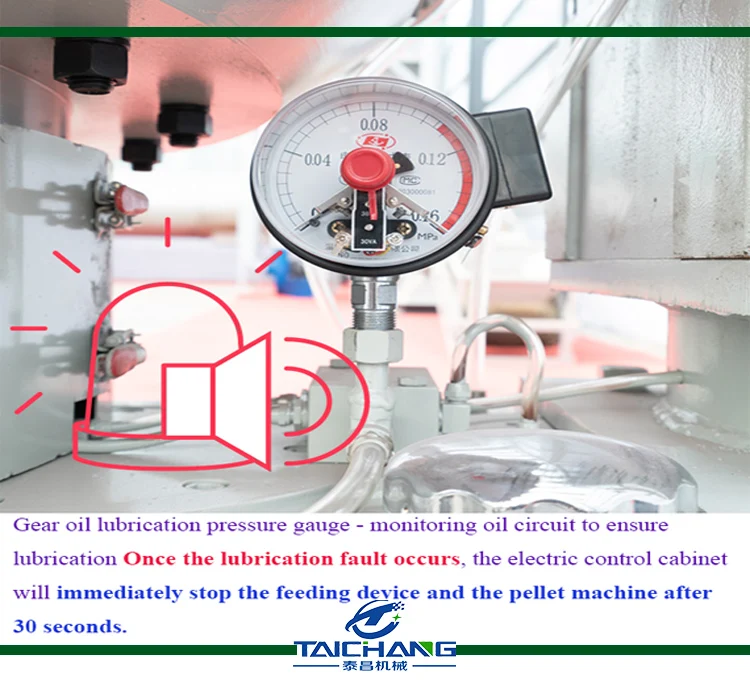

1. Gearbox: driving with high-precision gears, automatically lubricant pump system to keep the gearbox working stability.
2. Electrical motor: vertical design for the motor, mounting hole with output as the center, equidistant distribution around, more powerful and stability of machine working.
3. Blower system: Located in one side of work bin, free control the working time, the main function is distinguish and discharge steam.
Features of 1000-1500kg/h vertical ring die pellet mill
1. Vertical ring die, materials feeding vertically; No arching of raw materials, easy for heating dissipation.
2. Die fixed, rollers rotating, materials centrifugal, evenly ditributed around
3.Double-layer die, up and down dual-use, high capacity, saving energy.
4. Independent lubrication, high pressure filtration, clean and unblocked.
5. Independent and frequency changeable cutting device, ensure formation rate of pellets.
Finished pellet
Customer visit
.
Buyer Feedback
Need to supply for us:
1.The raw materials and the size you used.
2. Moisture content of the raw materials or give me the picture of raw materials.
3.The size of pellet you needed.
4.The voltage frequency in your country.
5.The output you needed in one hour.
