Full Automatic Gypsum Board Production Line Full Automatic Low Price Gypsum Board Production Line
$700,000.00-3,000,000.00

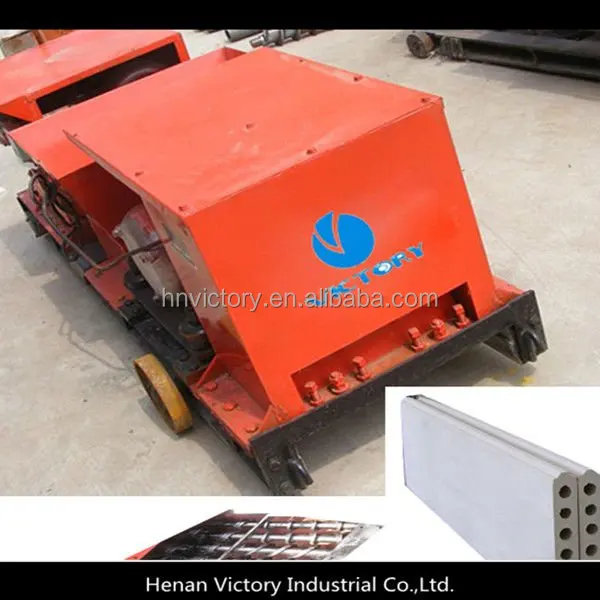

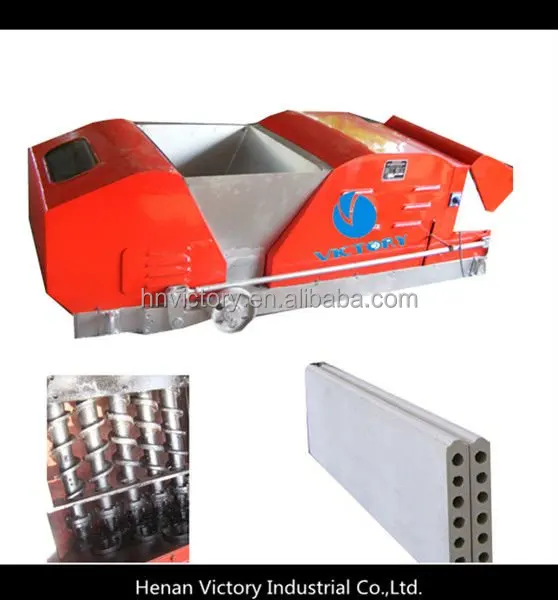

The latest Construction building equipment precast prestressed concrete wall panel extruder equipment with CE certification
- Category: >>>
- Supplier: Henan Victory Industrial Co. Ltd.
Share on (60110976962):
Product Overview
Description
Product Overview
Main Features

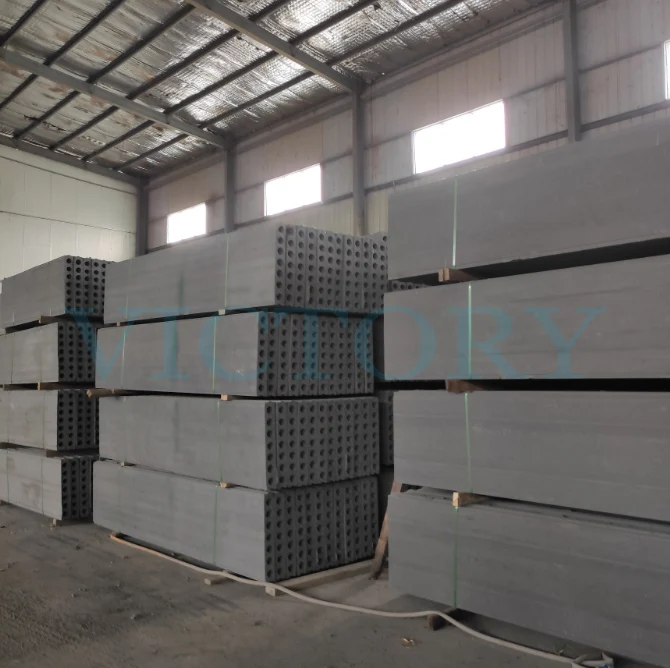

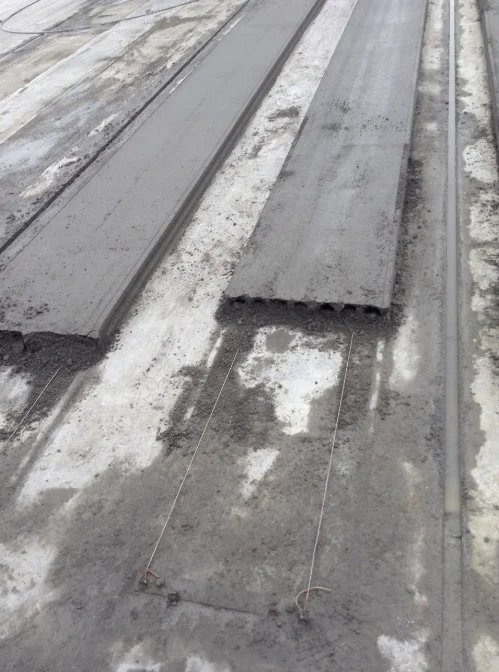

The wall which is tongued on side and grooved on the other has hollow cores running longitudinally to reduce the weight and optimize the use of materials. The tongue and groove has been specially designed to minimize the risk of cracking along the joints, which is a perennial problem in precast wall panels.
Product Details

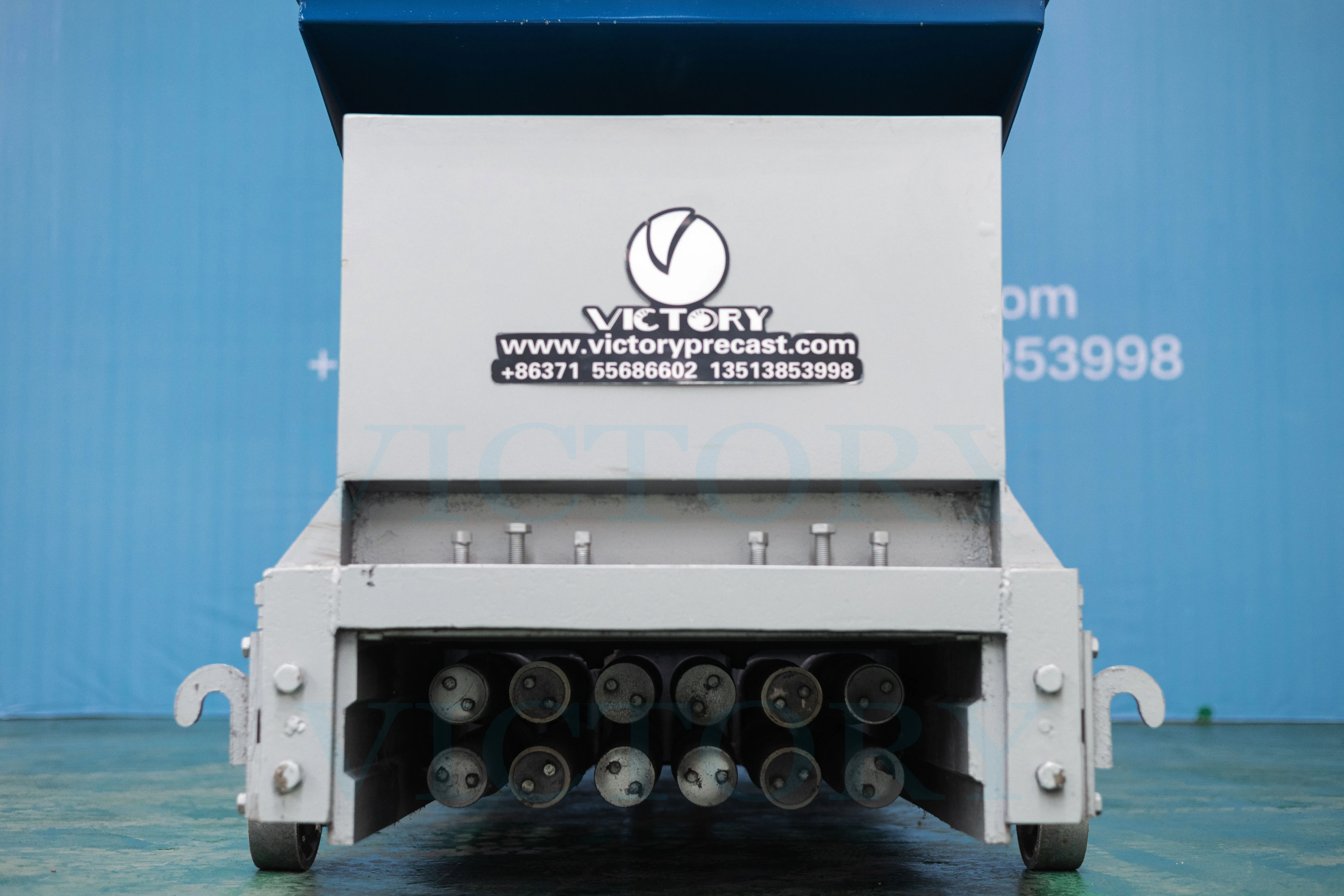

Purpose: The machine is used for the production of concrete lightweight partition wall panel.

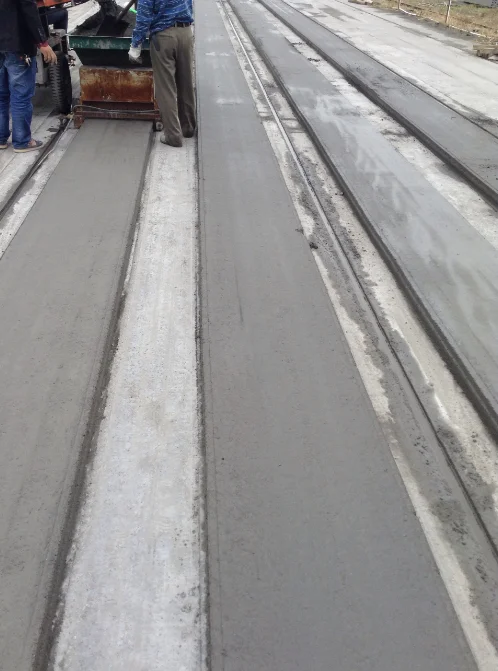

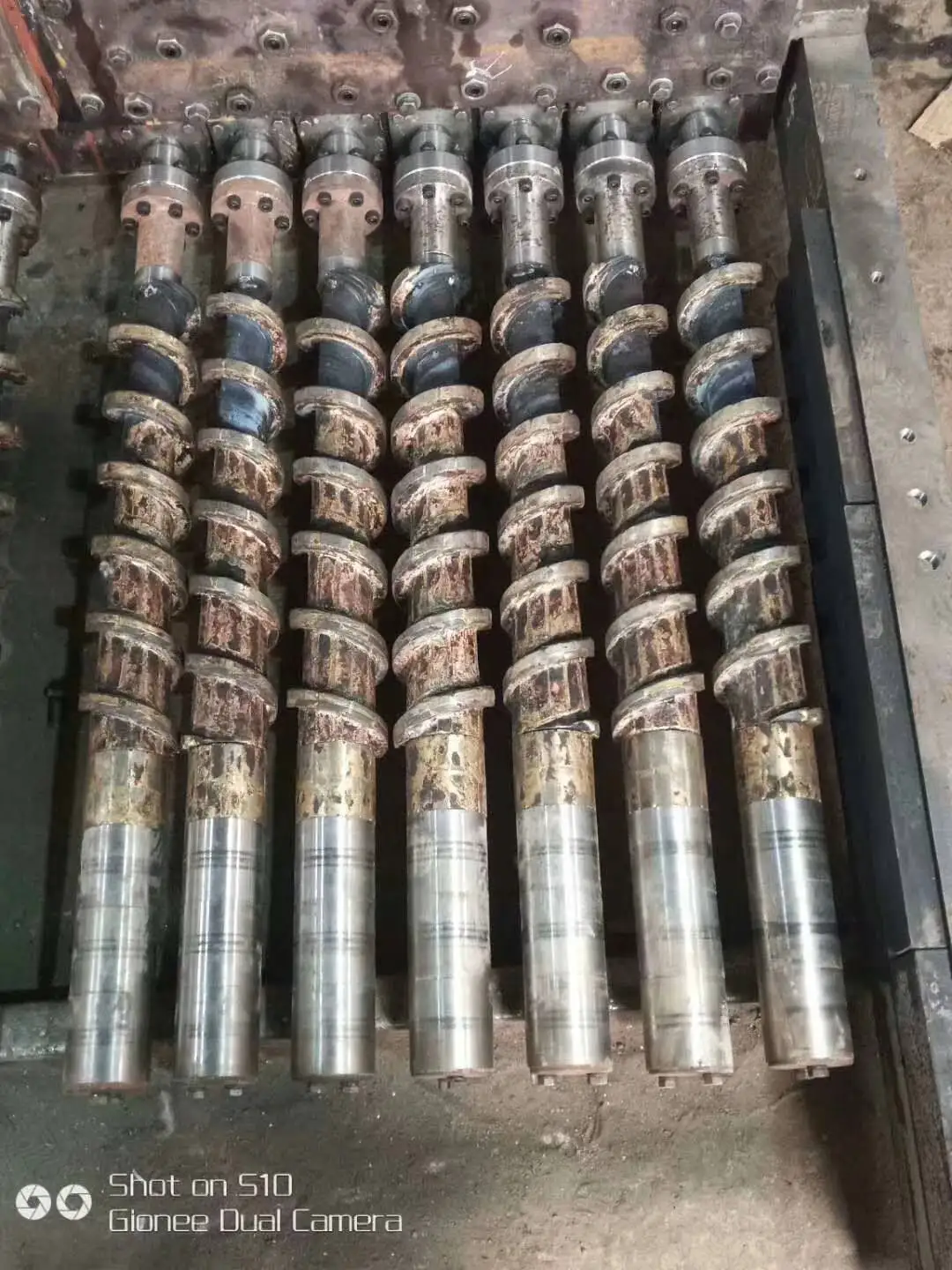

Principle: The machine adopt extrusion technology, movable forming.
Materials:The raw materials are fly ash, slag, creamsite, cinders,cinerite, pumice,vermiculite and so on. You can choose some materials as per your local resources.
Materials:The raw materials are fly ash, slag, creamsite, cinders,cinerite, pumice,vermiculite and so on. You can choose some materials as per your local resources.
Producity: The production speed is 1.3-1.7 m per minute , 500 Sqm per shift .
Sizes: Panel width : 600mm; Panel Thickness : 75,80,90,100,120mm ,etc ;
Reinforcement: Both sides of the wall panels can insert reinforcement wires, diameter of 1.5- 6mm
product specifications
Item | Thickness of plate (mm) | Thickness of plate (mm) | |
90 | 120 | ||
Shock resistance (times) | ≥5 | ≥5 | |
Single point hanging force ( N ) | ≥1000 | ≥1000 | |
Bending failure load ( Plate weight multiple) | ≥1.5 | ≥1.5 | |
Drying shrinkage value ( mm/m) | ≤0.6 | ≤0.6 | |
Fire endurance ( h) | ≥1 | ≥1 | |
Compression strength ( Mpa) | ≥3.5 | ≥3.5 | |
Heat transfer [ W(m2.K)] | – | ≤2.0 | |
Coefficient of softing | ≥0.8 | ≥0.8 | |
Rate of water content ( %) | ≤12/10/8 | ||
As products are upgraded and improved, some technical parameters will change slightly. If you need the latest parameters, please contact our staff.

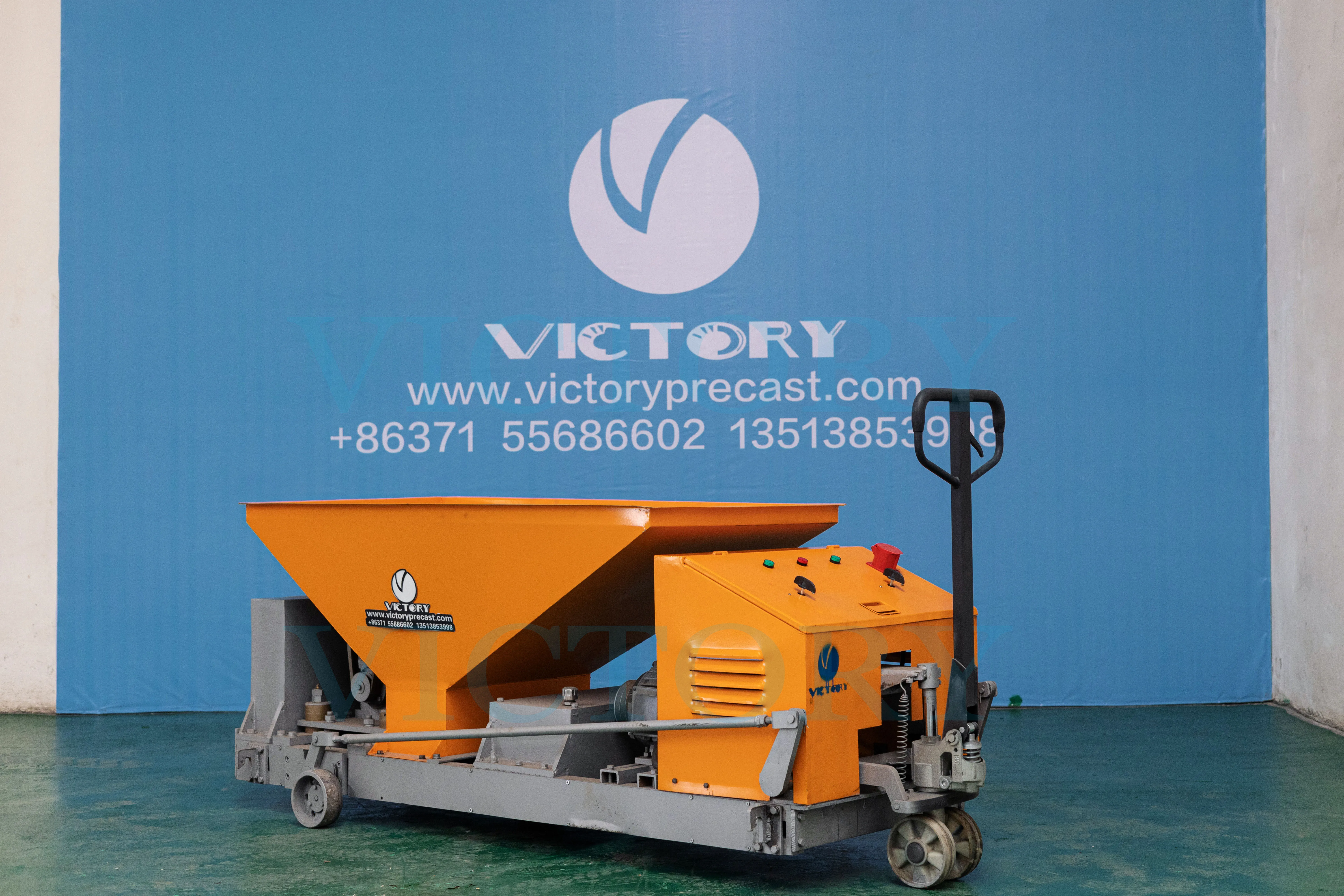

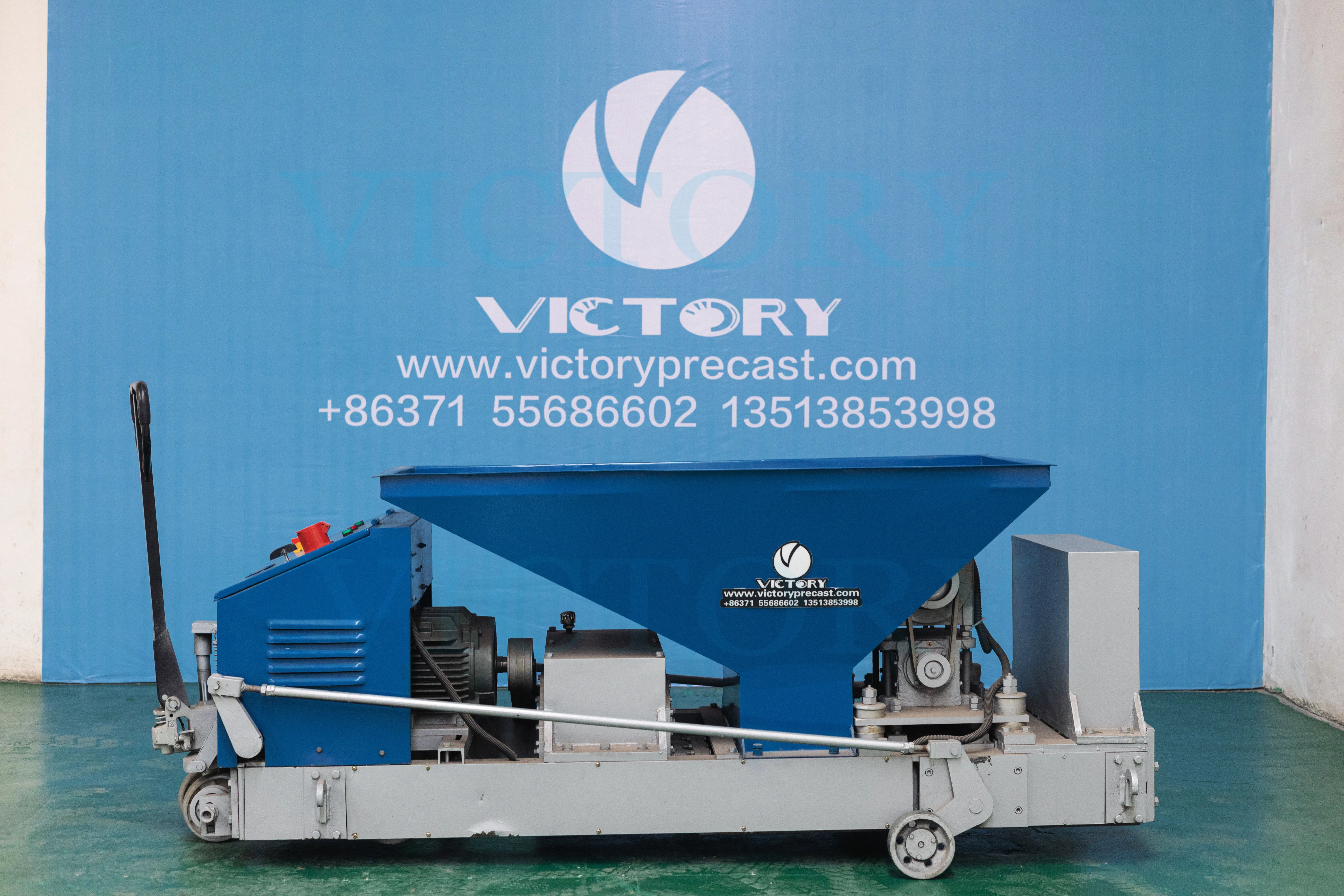

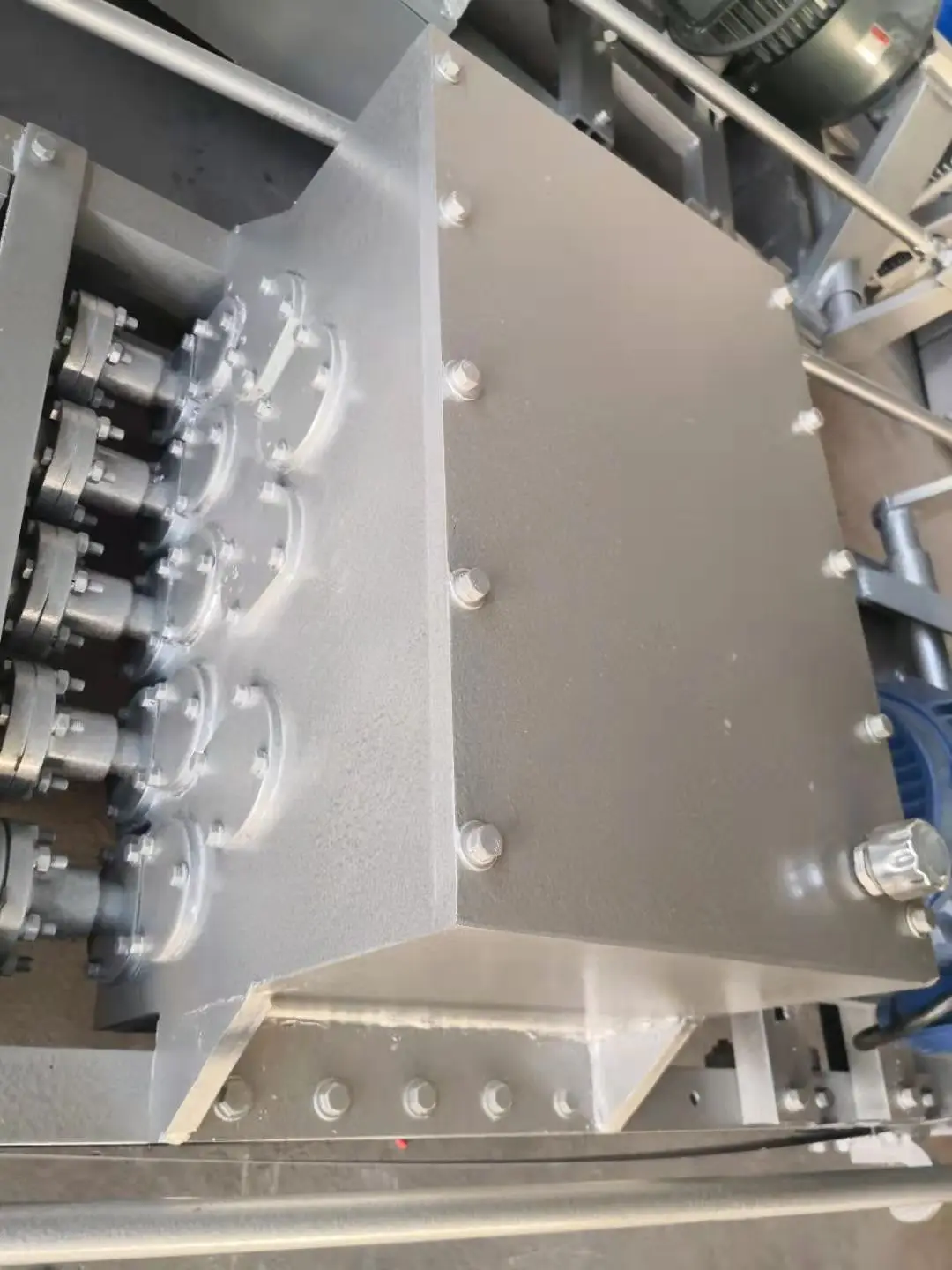

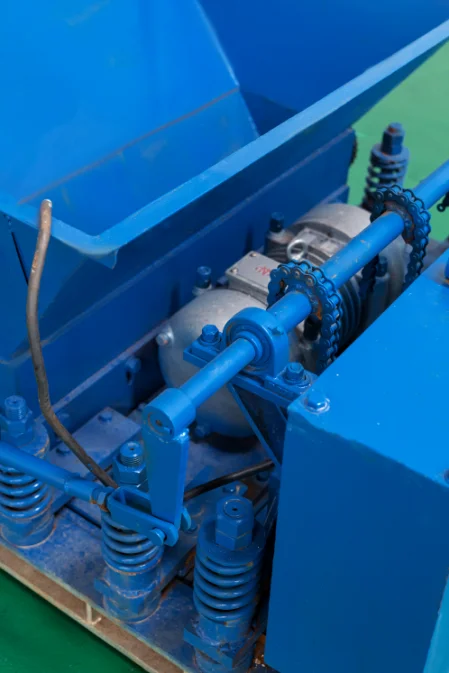

Product Configuration
Exhibition

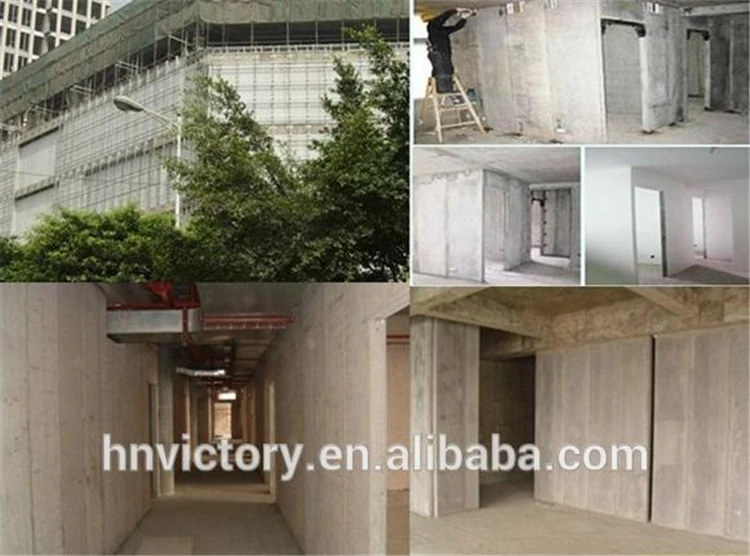

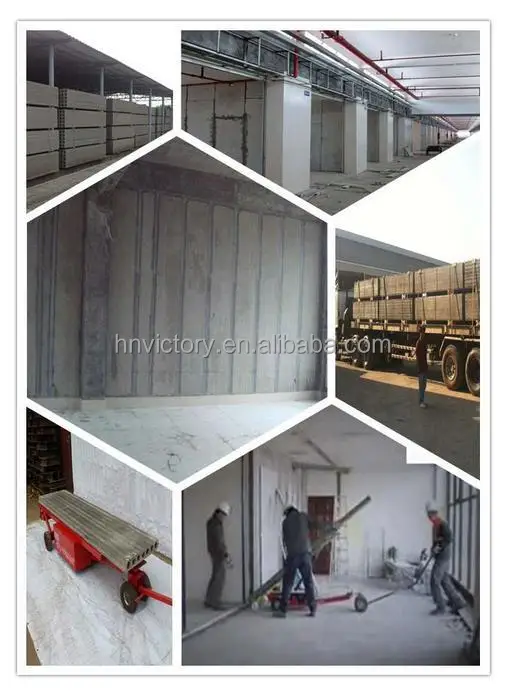

interior wall display
Exterior wall display
wall display
house showing

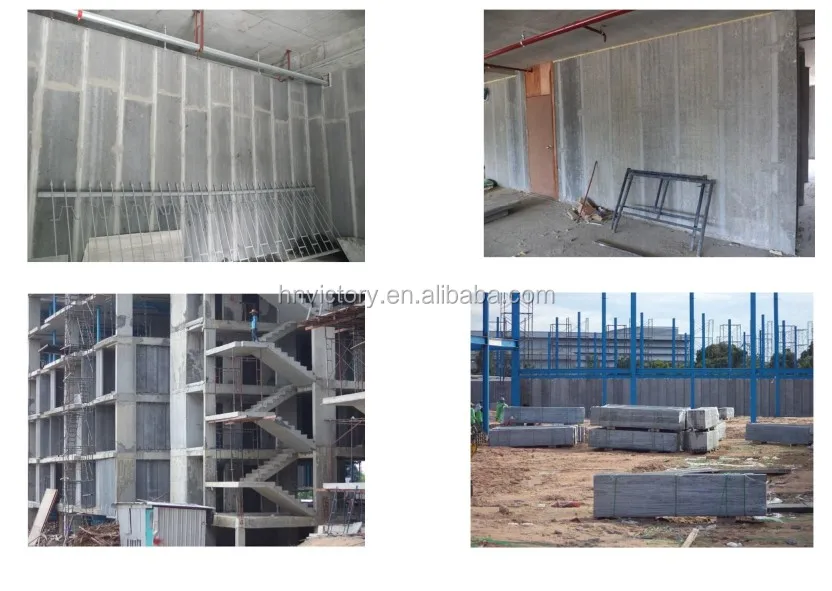

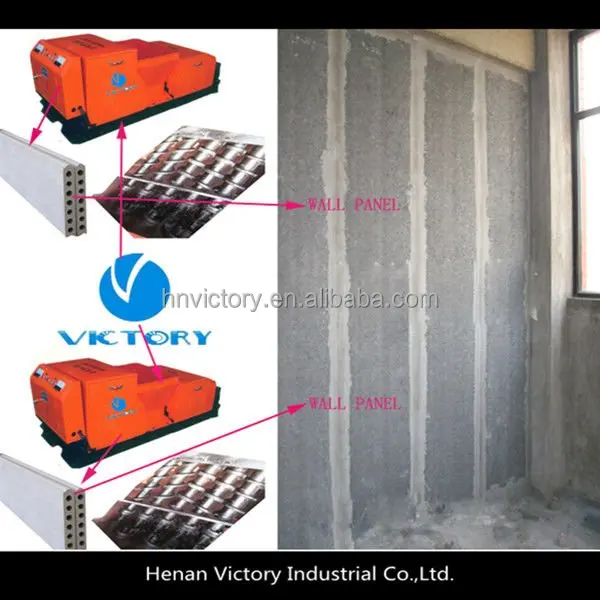

Wall panel machines are widely used
Company Profile
Product Overview
Main Features
The wall which is tongued on side and grooved on the other has hollow cores running longitudinally to reduce the weight and optimize the use of materials. The tongue and groove has been specially designed to minimize the risk of cracking along the joints, which is a perennial problem in precast wall panels.
Product Details
Purpose: The machine is used for the production of concrete lightweight partition wall panel.
Principle: The machine adopt extrusion technology, movable forming.
Materials:The raw materials are fly ash, slag, creamsite, cinders,cinerite, pumice,vermiculite and so on. You can choose some materials as per your local resources.
Materials:The raw materials are fly ash, slag, creamsite, cinders,cinerite, pumice,vermiculite and so on. You can choose some materials as per your local resources.
Producity: The production speed is 1.3-1.7 m per minute , 500 Sqm per shift .
Sizes: Panel width : 600mm; Panel Thickness : 75,80,90,100,120mm ,etc ;
Reinforcement: Both sides of the wall panels can insert reinforcement wires, diameter of 1.5- 6mm
product specifications
Item | Thickness of plate (mm) | Thickness of plate (mm) | |
90 | 120 | ||
Shock resistance (times) | ≥5 | ≥5 | |
Single point hanging force ( N ) | ≥1000 | ≥1000 | |
Bending failure load ( Plate weight multiple) | ≥1.5 | ≥1.5 | |
Drying shrinkage value ( mm/m) | ≤0.6 | ≤0.6 | |
Fire endurance ( h) | ≥1 | ≥1 | |
Compression strength ( Mpa) | ≥3.5 | ≥3.5 | |
Heat transfer [ W(m2.K)] | – | ≤2.0 | |
Coefficient of softing | ≥0.8 | ≥0.8 | |
Rate of water content ( %) | ≤12/10/8 | ||
As products are upgraded and improved, some technical parameters will change slightly. If you need the latest parameters, please contact our staff.
Product Configuration
Exhibition
interior wall display
Exterior wall display
wall display
house showing
Wall panel machines are widely used
Company Profile
