Small size rubber oil seal making machine

Share on (601111530):


Price:

Quantity:


Product Overview

Description

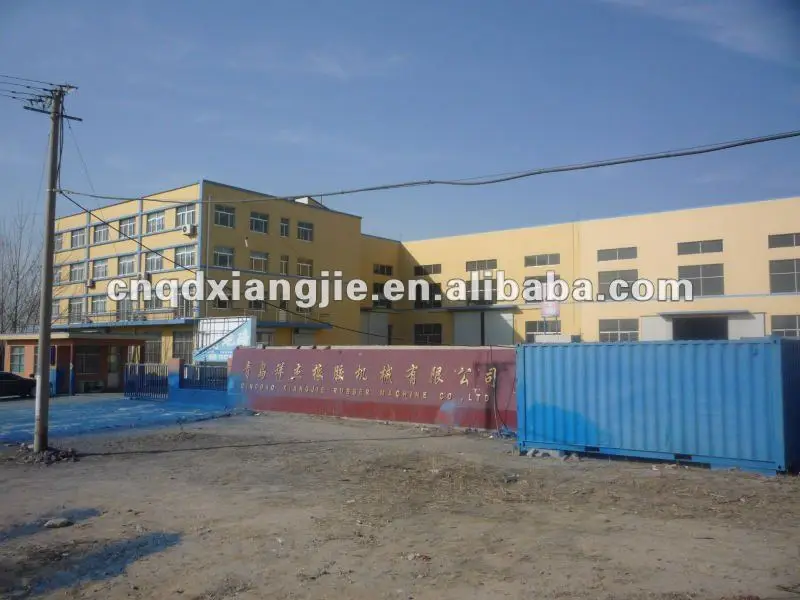

       China qingdao xiangjie rubber machinery co.,ltd      P1060167.JPGP1060169.JPG

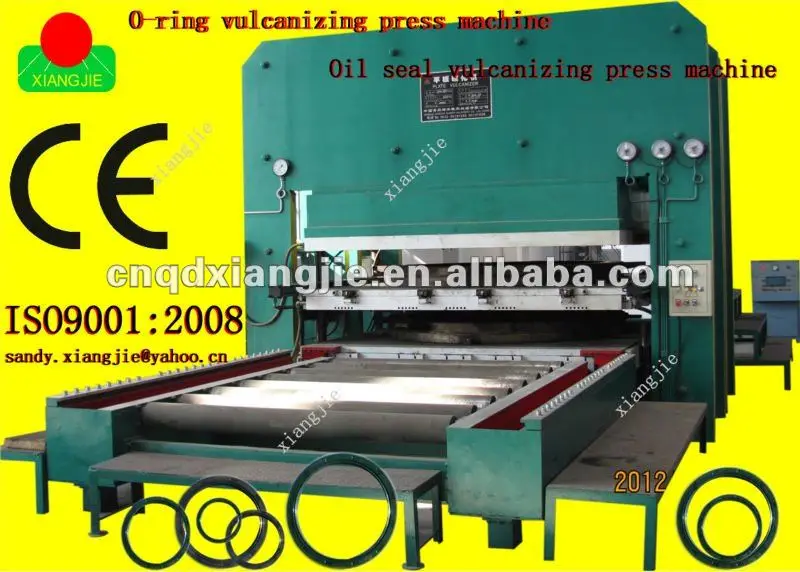

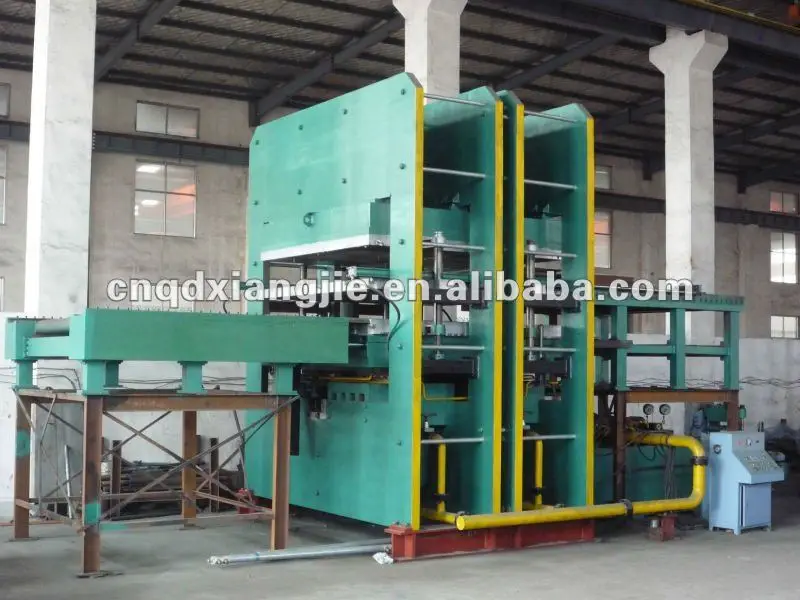

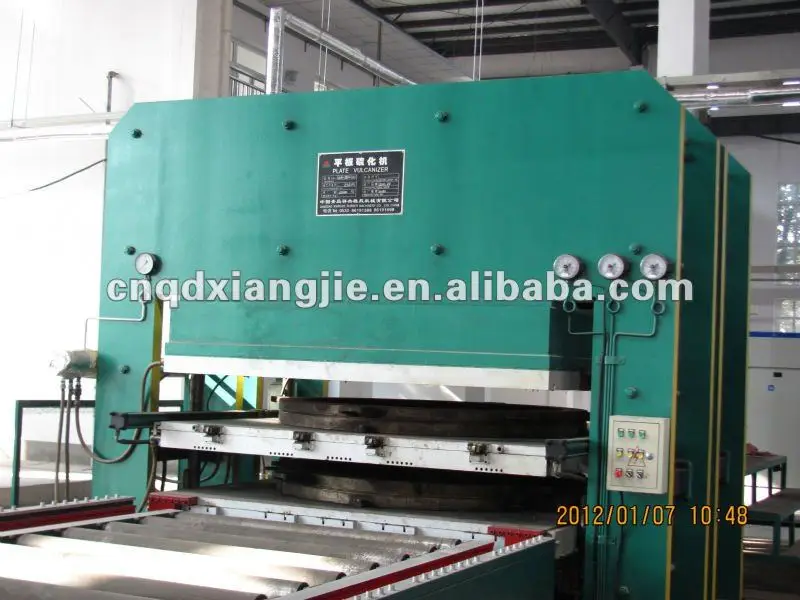

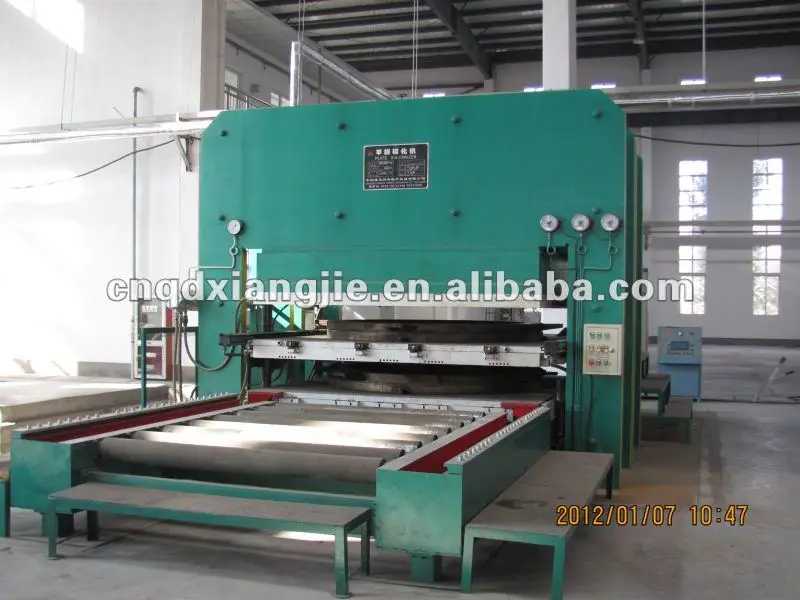

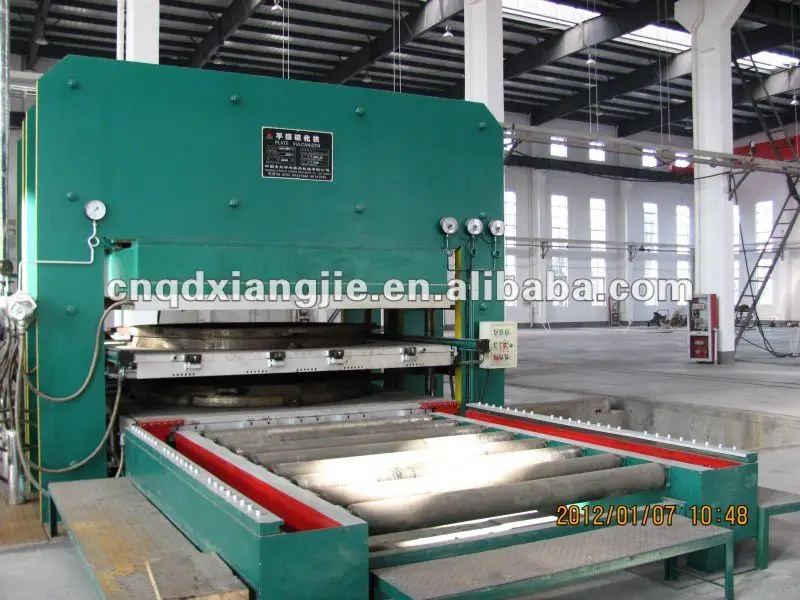

Big size rubber o-ring seal vulcanizing press

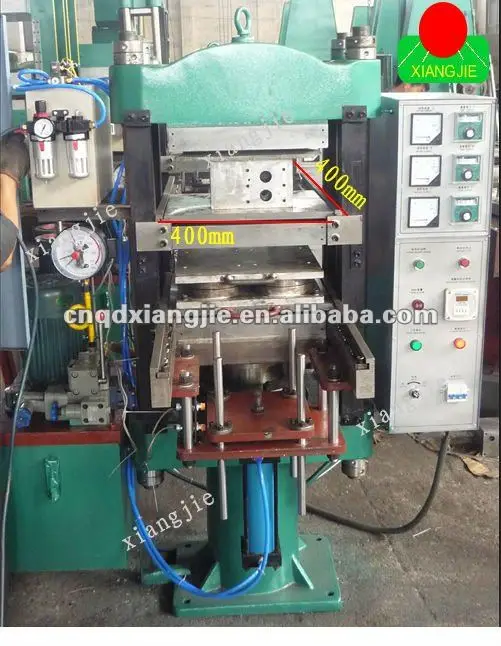

Small size o-ring /seal making press



.jpg

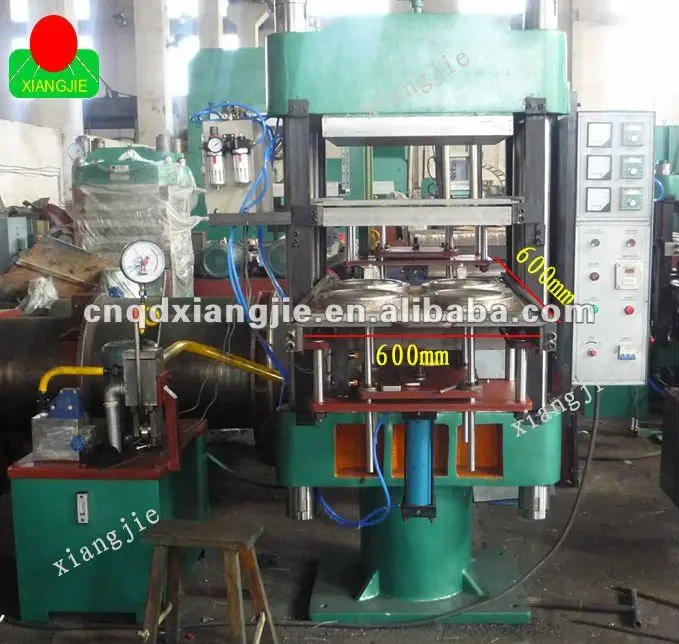

Small size o-ring /seal making press



A. Performance of press(you can chose as your request)

   1.pressure from 25 tons to  10000 tons

   2.single layer or  multi-layers

   3.Manual  or automatic or semi-automatic

   4.mold opening and push-out device

   5.PLC control

   6.electric or steam or oil heated form

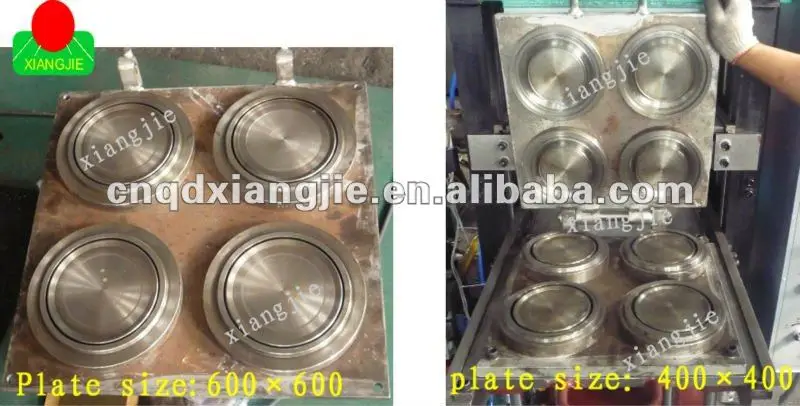

Moulds:one set moulds could make 4 pcs seals/o-rings

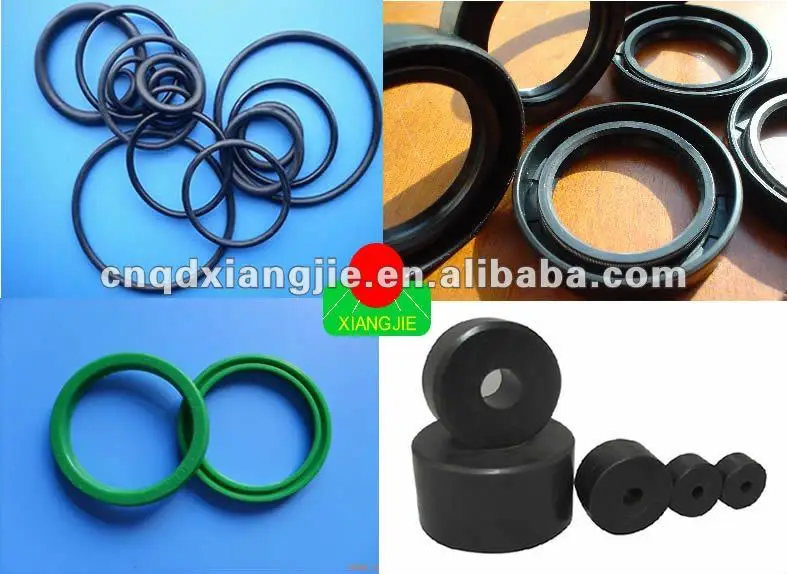

This machine is mainly used for rubber o-ring /seal/oil seal vulcanizing ,it could make all kinds of size rubber o-rings \\rubber seals.




The electric control circuit has the protectors for short circuit, overload, etc.



Two operating sequences such as manual and auto are available. The following functions are also available: automatic exhaust, automatic pressure compensation, vulcanization timing, automatic mold unloading, etc.

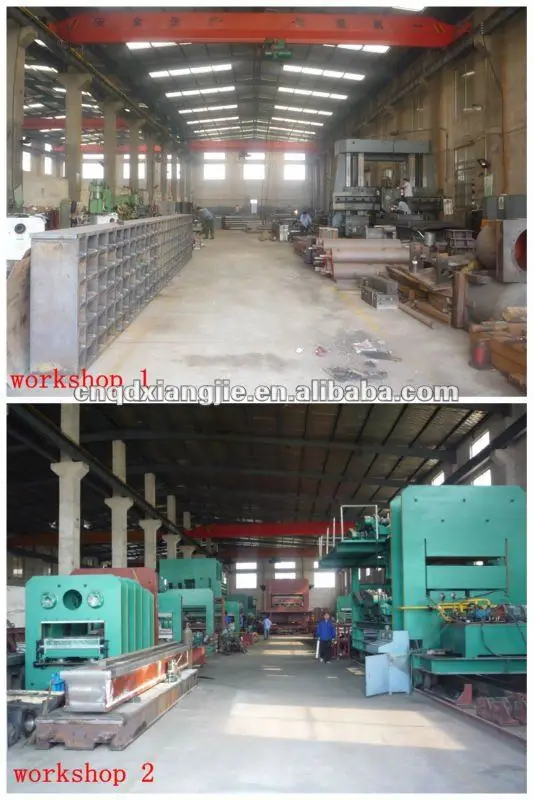

B. Introduction of our company

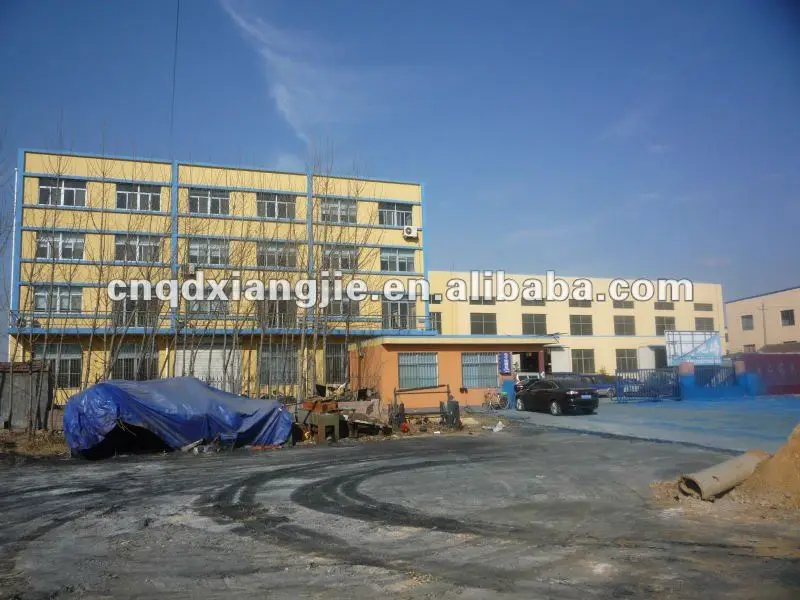

We are Qingdao Xiangjie Rubber Machinery CO.,Ltd in China.



We supply all kinds of :

plate vulcanizing press,

mixing mill,

rubber extruder,

banbury intensive kneader,

bale cutter,

conveyer belt production line,

sidewall conveyor belt production line,

dual mold press.



The sales network has extended toAmerica,Canada,Australia,Poland,Bulgaria,France,Germany,Brazil,Southeast Asia and Middle-east.



C. The main technical parameter





TypeXLB-DQ400x400×2XLB-DQ600x600×2
Total pressure (tons) 50100
Plate size (mm) 400x400x60 600x600x60
Daylight (mm) 200150
Layers 2 2
Piston stroke (mm) 300 300
Close mould speed (mm/s) >=20 >=18
Open mould speed (mm/s) >=20 >=20
Hydraulic system pressure (Mpa) 16.0 14.5
Cylinder diameter (mm) 200 300
Cylinder NO. (piece) 1 1
Motor power (kw)2.2 2.2



 D.Contact

If have any question  welcome contact me at  0086-15054242053 or 0086-532-82197368



Any questions or more information please let us know at the first time,we will choose and design the most suitable machine for you.
