---API B Series Pumping Units is conventional walking beam pumping units, it's a common type of power equipment on the groud used in rod oil extraction.
The products conform to API Spec. 11E"Specification for Pumping Units" and other relatice API standards, acquired the anthorization to use Official API Monogram.
---API C Series Pumping Units is a kind of conventional walking beam pumping units, it's the ground power equipment used in sucker rod oil extraction.
The products conform to API Spec.11E"Specification for Pumping Units", and the relative standards, acquired the anthorization to use Official API Monogram.
---API F Series Pumping Units is a new type of flexlift and non-beam energy-saving units.It is designed for installatioin in fields irrgated by traveling sprinkler system or in urban areas where the low profile feature may be desirable. It's a new type of sucker rod pumping surface unit. Theproducts conform to API Spec 11E and other concerned API standards.Factory has acquired the authorization to use Official API monogram.
---API RM Series Pumping Units is a new type energy- saving beam pumping unit. Similar in apprearance to conventional unit,it offers an improved geometry.It's a new type of sucker rod pumping surface unit. The products conform to API Spec 11E(Seventeeth Edition) and other concerned API standards.Factory has acquired the anthorization to use Official API momogram.
---API B Series
1. Hight reliability,simple operation,easy maintenance,long service life.
2. Gear reducer is involute herring-bone gearing,work smoothy and reliably.
3. The complete machine with light weight, it's convenient for installation and transportation.
---API C Series
1. Strength of critical parts is calculated with the finite element analysis, high reliability,simple operation, easy maintenance,long servicing life.
2. Grear reducer is involute herring-bone fering, working smoothly and reliably.
3.Modularized design,it has high degree of standardization, commonality and seriation with the spare parts.
---API F Series
1. Use roller and belt to form flexible drive,improve impulsive load, prolong service life of gear reducer.
2.Phased design of crank arm make it balanced better.
3.Gear reducer is involute herring-bone gearing,running smoothly and reliably.
4.Low profile,light weight,compact unit and canbe folded totally,It can be shipped from the factory completely assembled.
---API RM Series Pumping Unit
1.High reliability, simple operation,easy maintenance,long service life.
2.Phase angles is designed in crank arm to reduce the peak torque in gear reducer.
3. To improve power performance by increasing the extreme location angle.
4.It can reduce motive power,save energy obviously.
5.Gear reducer is involute herring-bone gearing,running smoothly and reliably.
API B Master Plan
API C Master Plan
Main Technical Parameter:
--API B Series
|No.||Type||Polished Rod Capacity(lb)||Stroke Length(in)||Rated Torque(in.lb)|
|1||B-80D-119-82||11,900||82 , 66||80,000|
|2||B-80D-119-64||11,900||64 , 54||80,000|
|4||B-80D-76-64||7,600||64 , 54||80,000|
|5||B-80D-76-54||7,600||54 , 41||80,000|
|6||B-80D-109-48||10,900||48 , 35||80,000|
|7||B-57D-109-54||10,900||54 , 41||57,000|
|8||B-57D-89-54||8,900||54 , 41||57,000|
|9||B-57D-76-54||7,600||54 , 41||57,000|
|10||B-57D-109-48||10,900||48 , 35||57,000|
|12||B-40D-76-42||7,600||42 , 29||40,000|
|13||B-40D-67-30||6,700||30 , 27||25,000|
|14||B-25D-67-36||6,700||36 , 27||25,000|
|15||B-16D-53-30||5,300||30 , 23||16,000|
|16||LB-40D-67-30||6,700||30 , 24||40,000|
|17||LB-40D-67-24||6,700||24 , 20||40,000|
--API C Series
|No.||Type||Polished Rod Capacity|
| 1||C-1280D-365-240||36,500 ||240,211,181 || 1280,000|
| 2 ||C-1280D-427-192||42,700 ||192,165,138 ||1280,000 |
| 3||C-912D-470-240||47,000 ||240,211,181 ||912,000 |
|4 ||C-912D-427-216||42,700 ||216,185,155 |
|5 ||C-912D-427-192 ||42,700 ||192,165,138 || 912,000|
| 6||C-912D-305-192 ||30,500 || 192,165,138||912,000 |
| 7||C-912D-365-168 ||36,500 || 168,144,121|| 912,000|
| 8||C-912D-305-168 || 30,500|| 168,144,121||912,000 |
---API F Series
--API RM Series

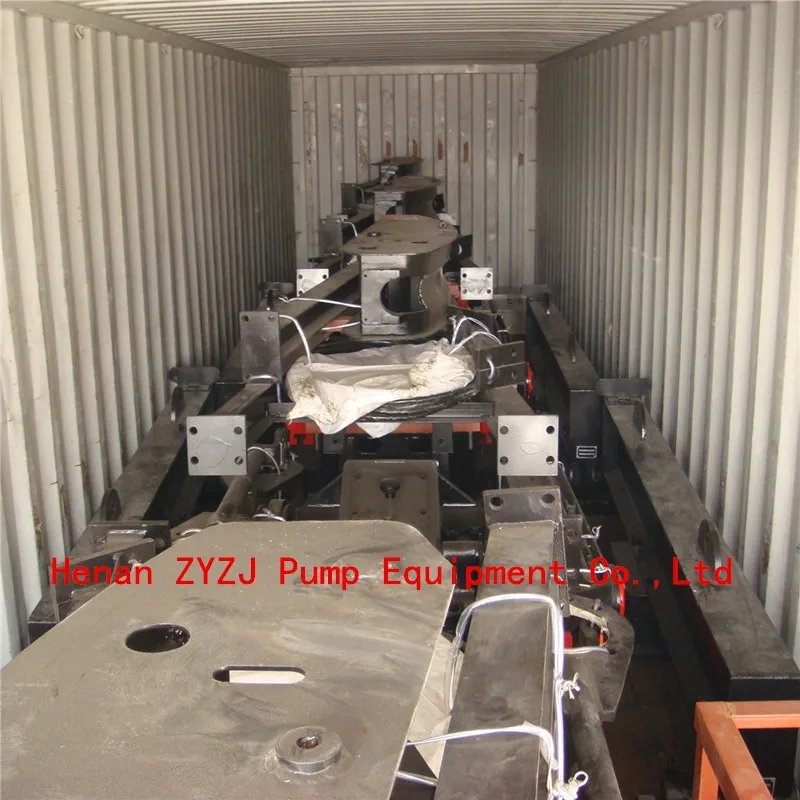

Packaging & Shipping
Packaging and shipping detail:
1.The spare parts in iron box,
2.The big part will naked packing in the container
3.According the order.
1.Owner's Manual 2.Parts Catalog 3.Packing And Dispatching List
We can supply professional to guide for installation and use.
