X 501D mobile phone flex cable stripping machine
- Category: Cable Manufacturing Equipment >>>
- Supplier: Kunshan Xuxin Industrial Equipment Co. Ltd.
Share on (60111626717):
Product Overview
Description
Specification
Normal machine with wire Pedal
Keyboard screen with Protect Cover

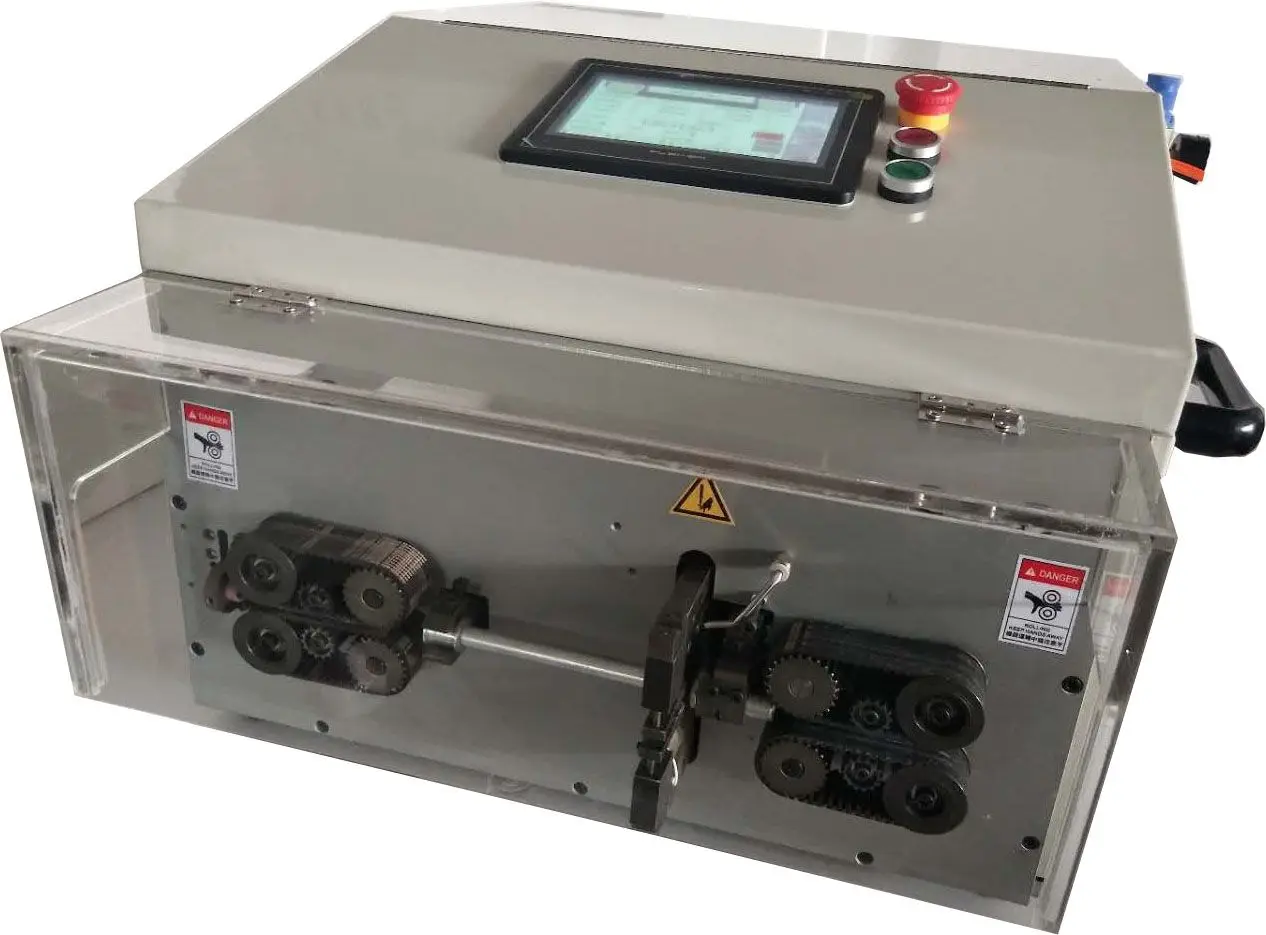

Touch screen with Protect cover

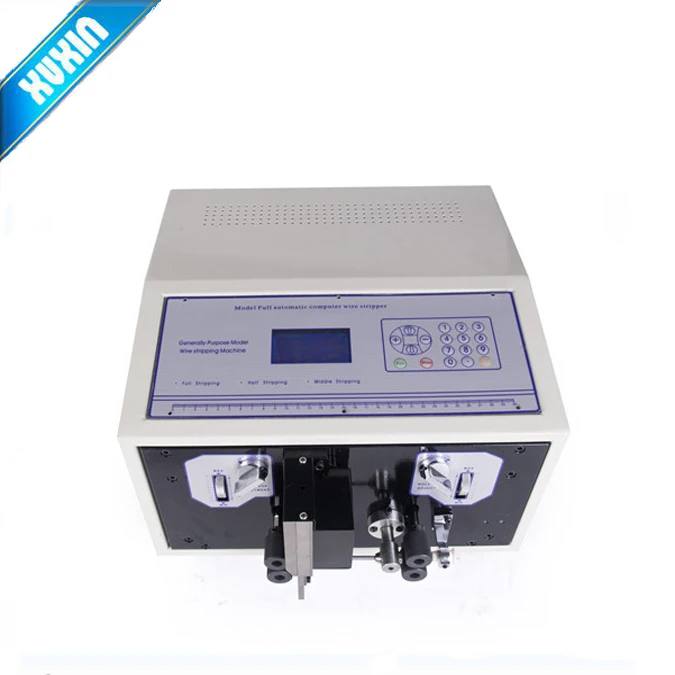

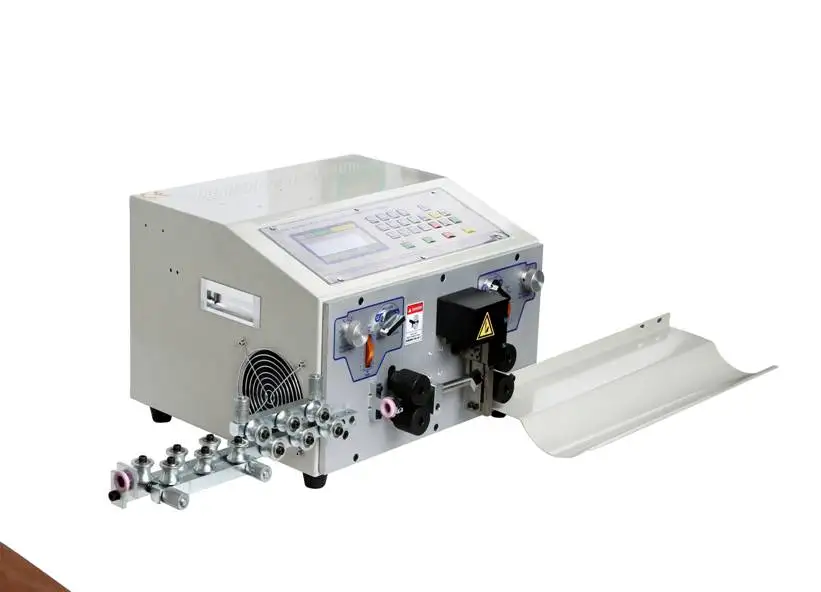

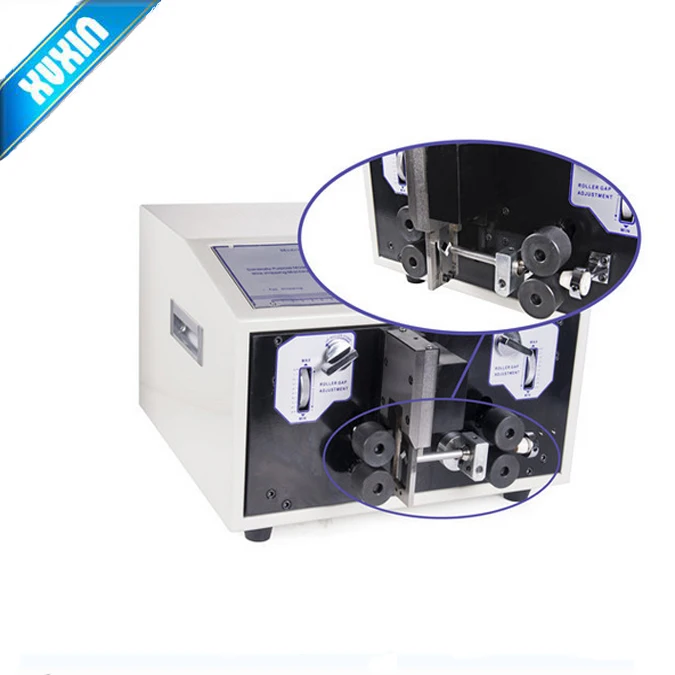

X-501D mobile phone flex cable stripping machine
Product Description
The model is a factory successfully developed its own high-tech products. Main widely used in the electronics industry, electric
power, injection molding equipment, electric tools, automobile and motorbike industry, electrical machinery, electrical
appliances, air conditioners, washing machines, electronic instruments, toys, lamps, transformers, connectors and other types of
products, wiring harness processing. Appropriate wire stripping:PVC/teflon/silica gel line /Glass fiber etc. This product USES the
LCD screen people dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed,
precision higher character. Wire length can set arbitrary, according to the customer request free to change, different degree of
finish off wire, also have on row line, sheath line, power lines and bushing cutting functions.
Product Description
The model is a factory successfully developed its own high-tech products. Main widely used in the electronics industry, electric
power, injection molding equipment, electric tools, automobile and motorbike industry, electrical machinery, electrical
appliances, air conditioners, washing machines, electronic instruments, toys, lamps, transformers, connectors and other types of
products, wiring harness processing. Appropriate wire stripping:PVC/teflon/silica gel line /Glass fiber etc. This product USES the
LCD screen people dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed,
precision higher character. Wire length can set arbitrary, according to the customer request free to change, different degree of
finish off wire, also have on row line, sheath line, power lines and bushing cutting functions.
Machine specification
Model: | X-501D |
Voltage | AC 110V/220V/ 50/60Hz |
Power | Rated 200W |
Display | Full English LCD Display |
Cut Length | 1mm-9999mm |
Strip length | Line head 0-35, line tail 0-15 |
Cutting Tolerance: | (0.2±0.002xL) mm |
Cut the middle of stripping: | 11 |

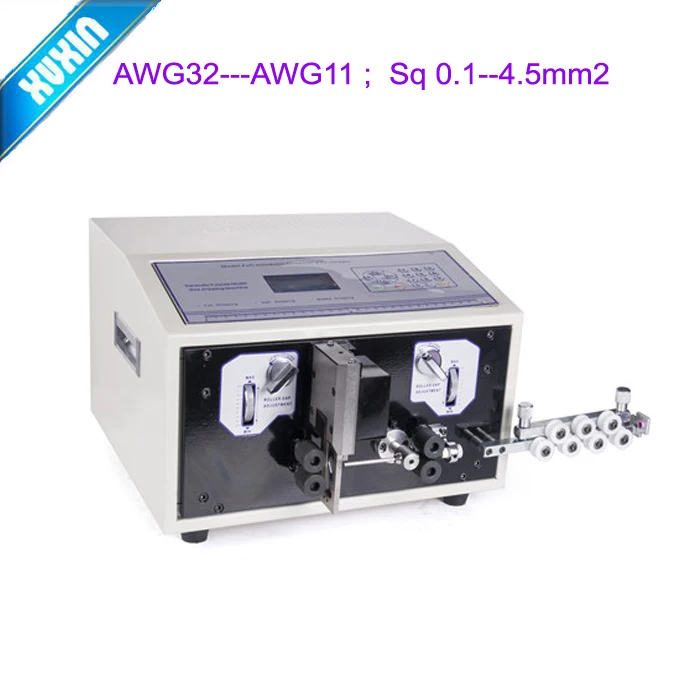

Core cross-section cut-line: | 0.1~4.5mm² ( AWG12#-AWG32#) |
Conduit diameter: | Φ6 |
Appropriate wire stripping: | PVC, Teflon, glass and wire |
Blade Material: | Hard tungsten steel |
Stripper speed (Article / h): | L=100mm, 3000-8000pcs/h |
Drive Mode: | Four-wheel drive |
Weight: | 31kg |
Dimensions: | 390*350*255(mm) |
Features
1.Easy operation.
2.Extremely low maintenance;
3.Product advantage: cut and strip, It not only strip multi-core cable , also can cut strip inter core cable.
4.For the wire and complex forming, provides automated placement and winding.It not only can guarantee the high quality of thewiring harness, but also good value,especially applicable for thick wiring harnesses. Small, quick, reliable, cost-effective and this absolutely economical, the perfect machine for efficient and cost-effective production.
2.Extremely low maintenance;
3.Product advantage: cut and strip, It not only strip multi-core cable , also can cut strip inter core cable.
4.For the wire and complex forming, provides automated placement and winding.It not only can guarantee the high quality of thewiring harness, but also good value,especially applicable for thick wiring harnesses. Small, quick, reliable, cost-effective and this absolutely economical, the perfect machine for efficient and cost-effective production.

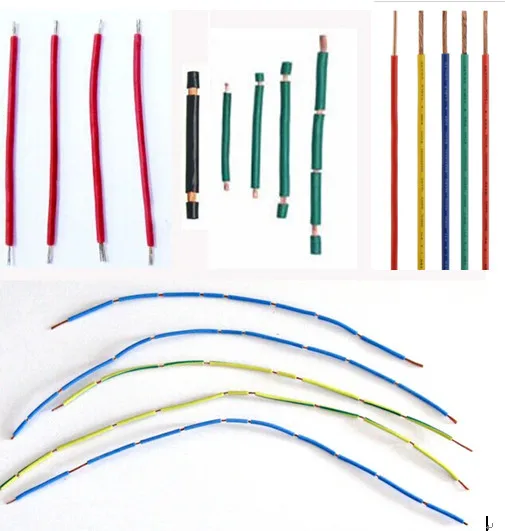

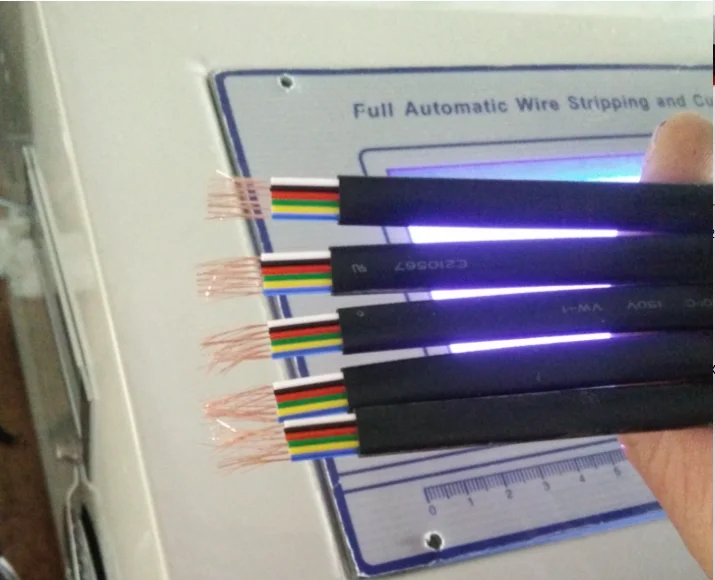

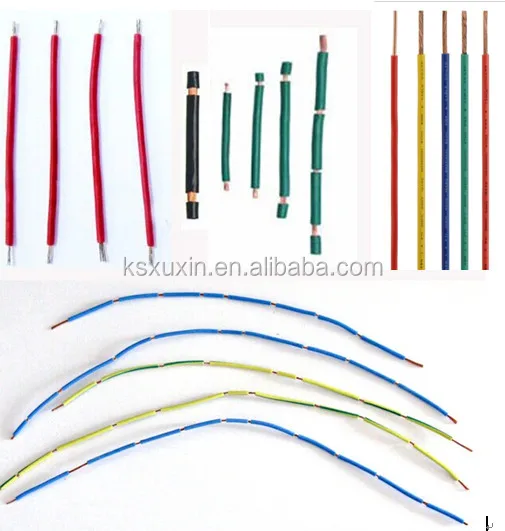

After use machine

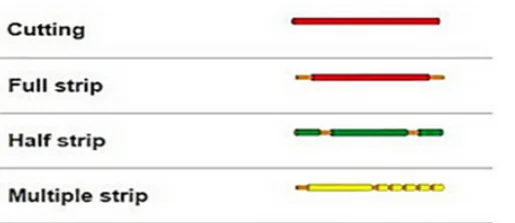

it can only cut ; cut and strip normal wire ; sheathed cable only jacket ; RVV cable and so on
Machine | Computer double Round sheath multi-core stripping machine | ||||||
Model | X-504HT | ||||||
Feature | It can cut & strip multi-core intercore and jacket cable at one time | ||||||
Multi-core Wire size OD | within 6 mm | within 12 mm | within 5 mm | 3mm---10mm | |||
Cut length | 1mm---60000mm | 1mm~60000mm | 1mm~60000mm | 1～40000mm | |||
Strip length | Wire head 0-50, Wire tail 0-50 | Wire head 0-150, Wire tail 0-150 | wire head 0-50, wire tail 0-50 | (outside): 20---150mm inter core : Head 3-10mm Tail : 3—30mm | |||
Cutting Tolerance: | (0.2±0.002xL) mm | ±(0.0001xL)mm | ±(0.0001xL)mm | ± (0.002xL)mm | |||
Stripper speed (Article / h): | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 | |||
Middle strip | 13 | 3 | |||||
Apply cable | It can work for flat cable. and Round Sheathed Cable | Round Sheathed Cable | |||||
Voltage | 200---240V/ 100V ---120V ; 50/60HZ | ||||||
Power | 300W | 450W | 450W | 850W | |||
Blade Material: | Hard tungsten steel | ||||||
Drive rollers | 4 rollers | 4 rollers | 4 rollers | 8 rollers | |||
Weight | 35KG | 38KG | 40KG | 90KG | |||

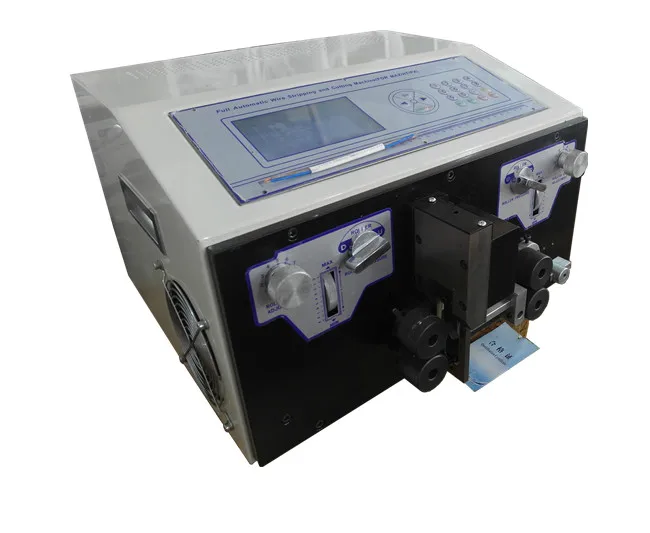

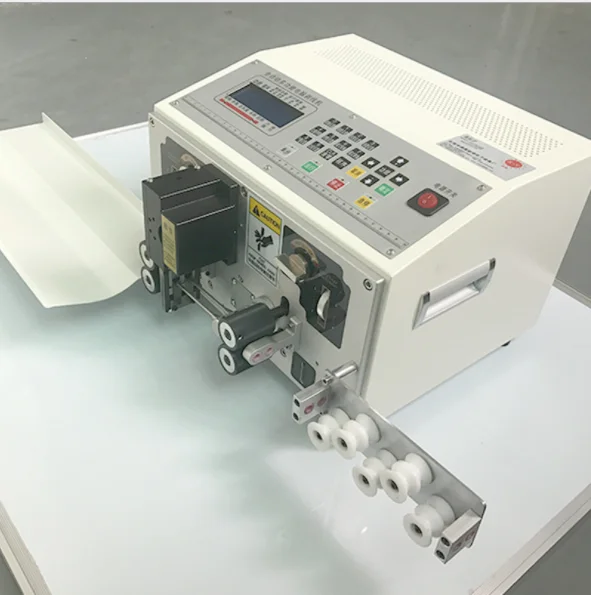

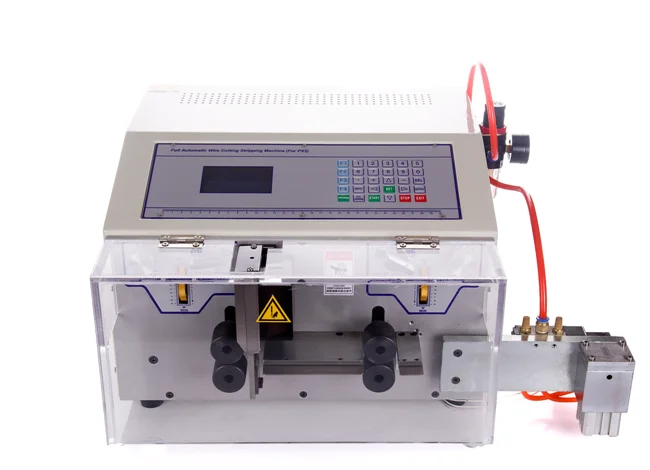

Relate Machine Photo
X-501HT X-502HT X-503HT X-504HT

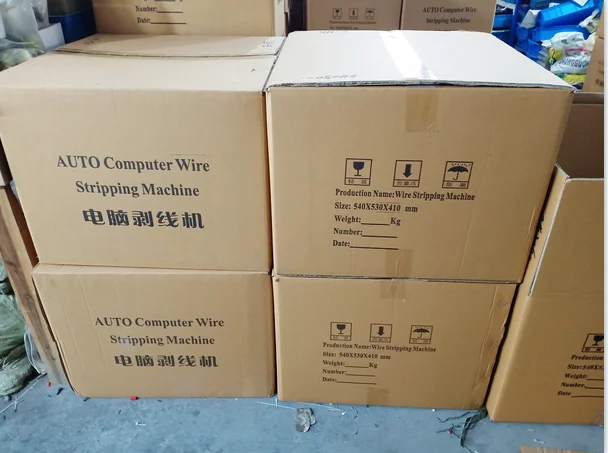

Product packaging
