HSS inlay polar paper cutting machine guillotine knife

Product Overview

Description

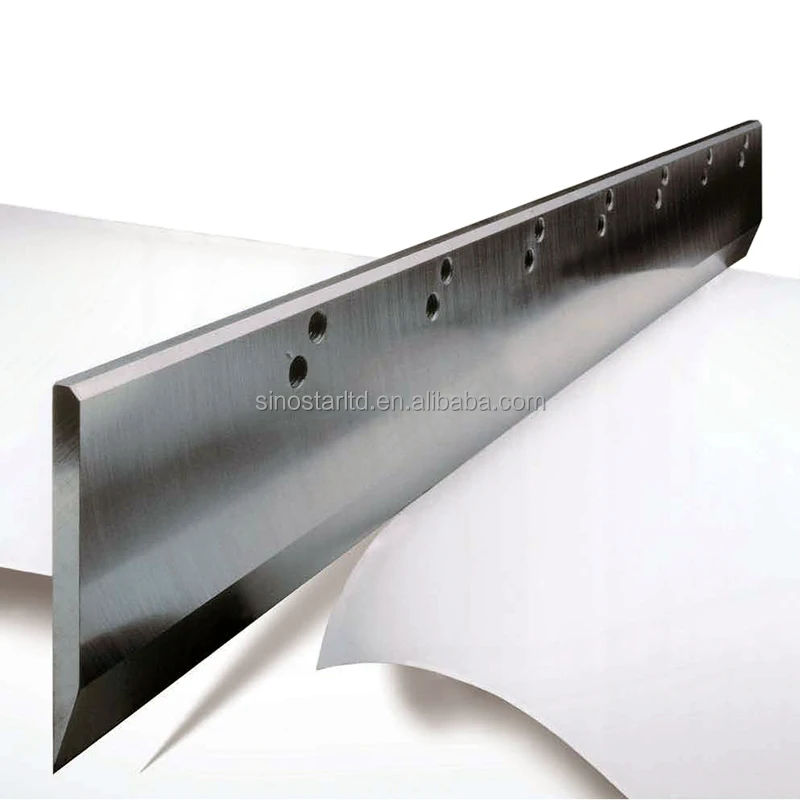

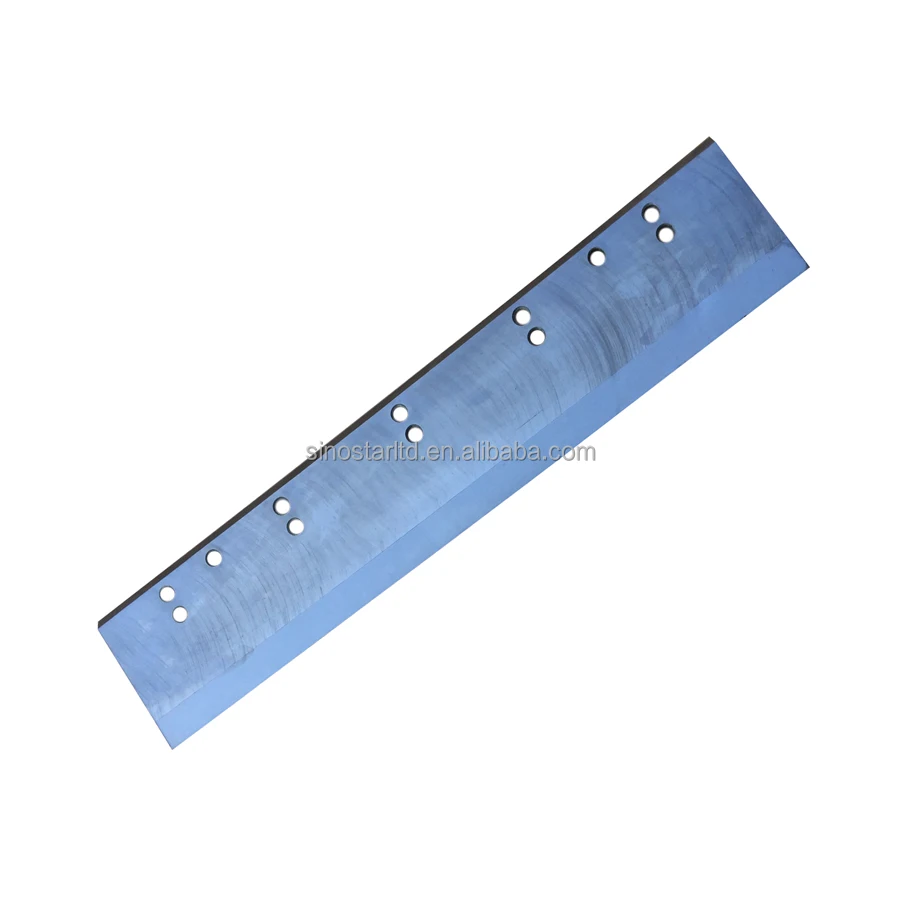

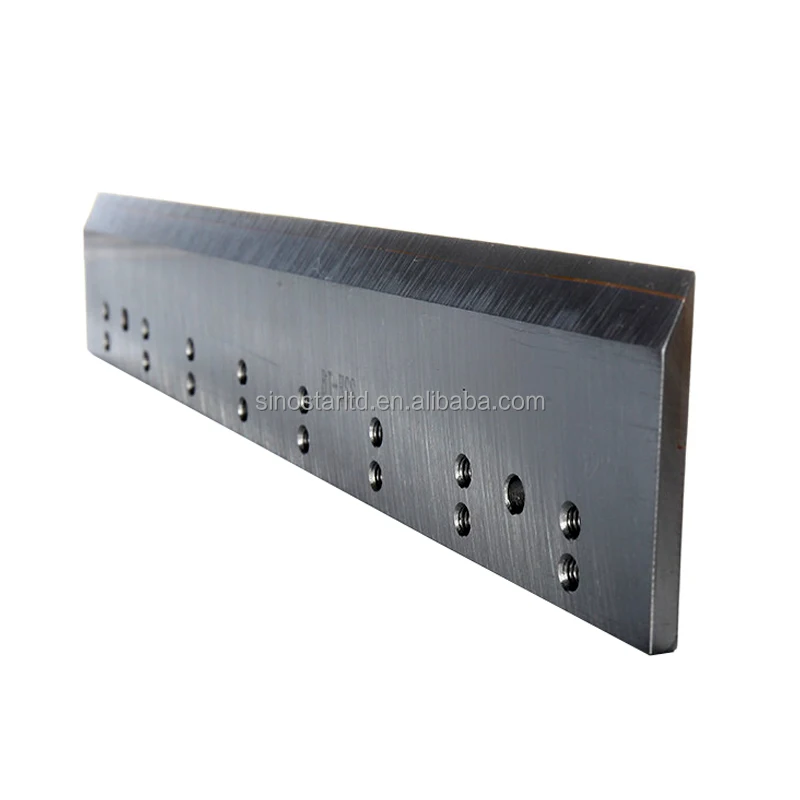

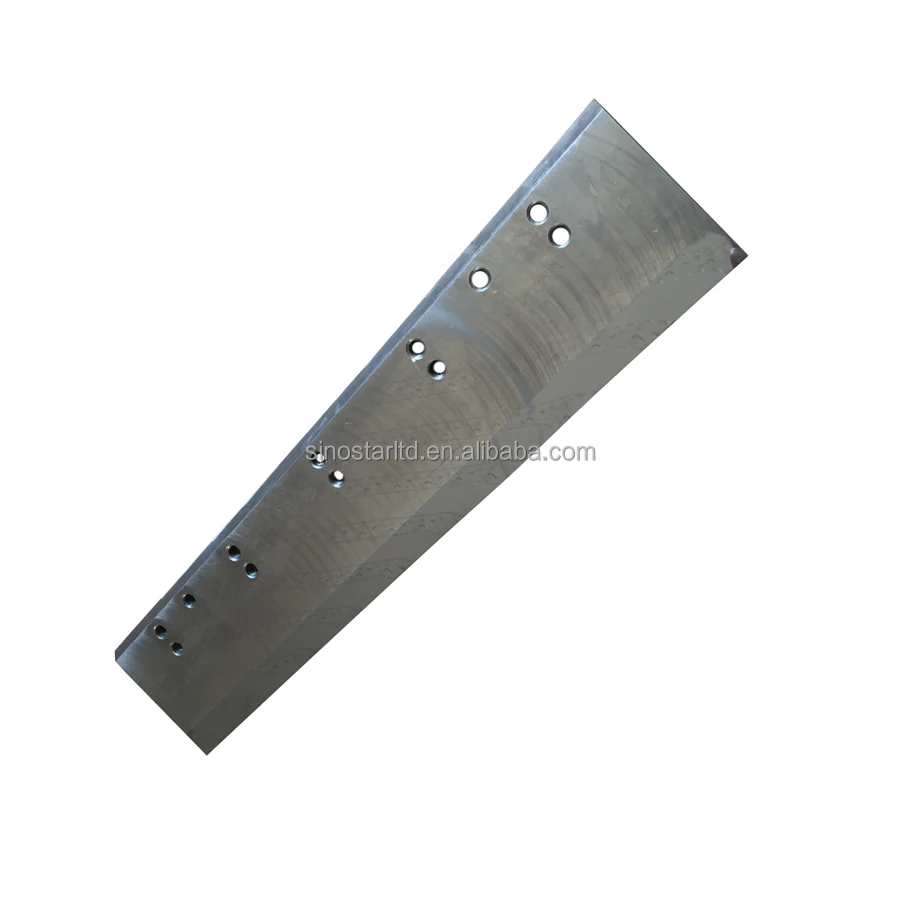

HSS inlay polar paper cutting machine guillotine knife

Dimension sheet

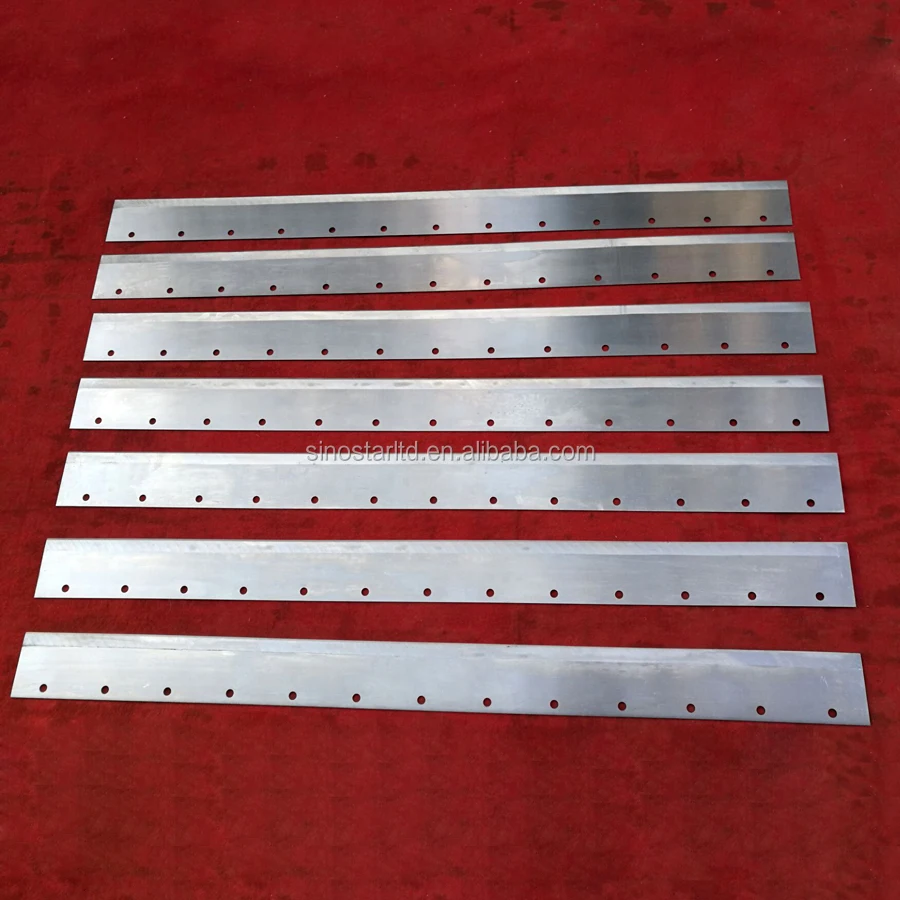

polar paper cutting knife
Machine type	Size of knives	Net weight per piece
polar58	715x95x9.7mm	5.2kgs
polar66	805x95x9.7mm	5.8kgs
polar72	868x104x9.7mm	6.9kgs
polar76	925x110x9.7mm	7.8kgs
polar78	960x110x11.7mm	9.7kgs
polar80	990x107x9.7mm	8.1kgs
polar82	990x107x11.7mm	10kgs
polar90	1080x115x11.7mm	11.4kgs
polar92	1095x115x11.7mm	11.6kgs
polar105	1325x120x11.95mm	15kgs
polar115	1390x160x13.75mm	24kgs
polar137	1605x160x13.75mm	27.8kgs
polar155	1785x160x13.75mm	30.85kgs

According to your application ,we will recommend you the best material and hardness.

Optional Materials :9CrSi , 6CrW2Si , LD , D2 , Cr12MoV , H13 , G1, G2 ,G3 and etc .We developed some high alloy steel ,like G1,G2,G3 etc. They are new materials developed independently by our company and excellent in high intensity, high hardness , high wear resistance , high toughness and so on.They can be used in both cold and hot shearing ,the life is 2-3 times longer than other blades made of normal materials.

Hardness : If hardness is high , when the blades meet higher tensile strength steel ,it is easy to crack.

If the hardness is low , then the wear resistance is not good ,that means work life is shorter .



Features and Benefits

• Trying our best to do anythings just for the first time.
• Excellent cutting quality,stable and reliable cutting performance.
• High precision,high intensity.
• Excellent hardness,small thermal deformation.
• Lower yearly knife consumption costs.
• Excellent service and Technical supports.

Main applications of our blades and knives

• Paper industry.
• Wood industry.
• Metal industry.
• Textile industry.
• Plastic,rubber,film,foil,fiber glass cutting.

Key Performance Indicator

• Suite material selection.
• Good price and offering.
• Advance cutting technology.
• Production cost optimized.
• Stock & Inventory efficiency.

Standard Revolution of Knives

• Life time of knives.
• Property cuttings.
• Product quality.
• Process check and survey reports.
• Maintenance procedure.

Before using knives

• Check the existing package.
• Check the number, specification, operation and trouble-shooting.
• Understanding of our technical & products.

Packing way

A. Inside packing: Applied with anti-rust oil and then packed in plastic bag.

B. Outside packing: Packed in plywood case.

Our Commitments

• Good technical & knowhow support.
• Fast & Flexible responsibility.
• Business partnership together.
• Better engineering get the best proven.
