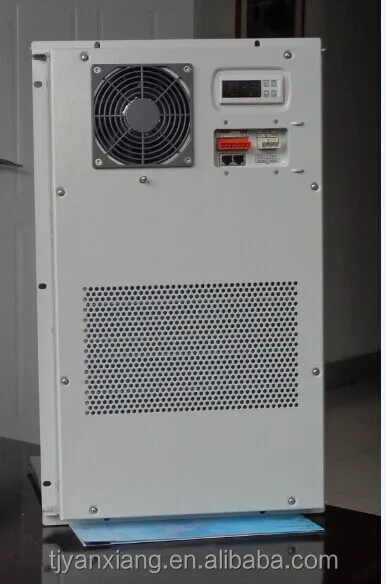

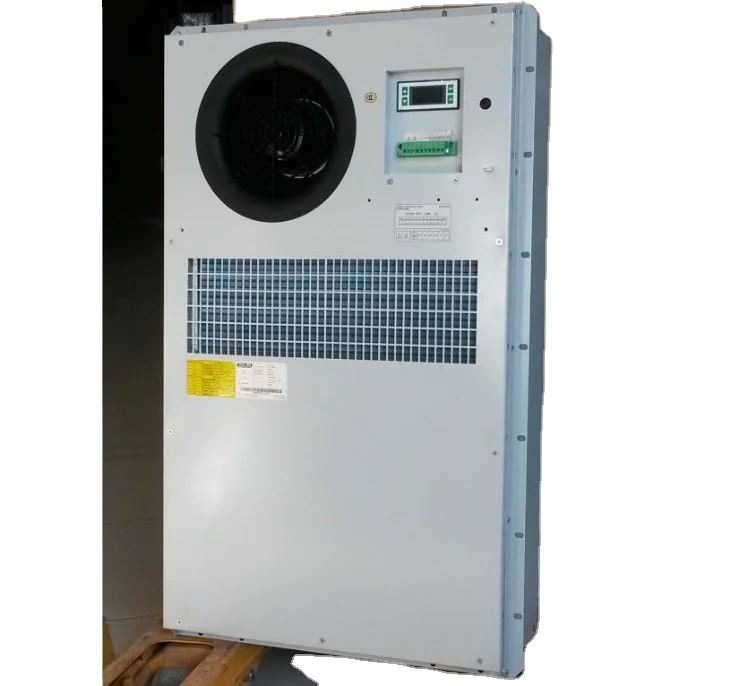

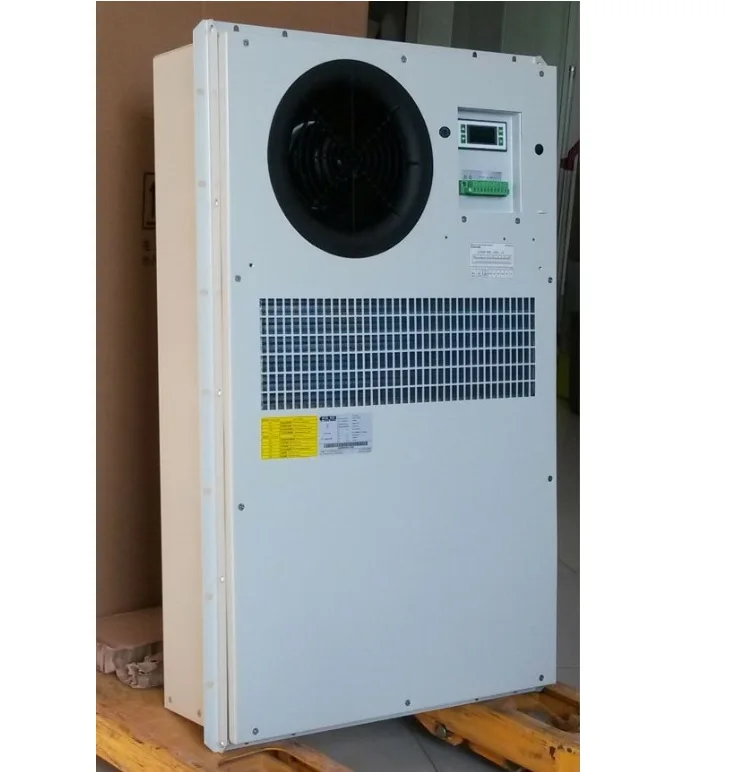

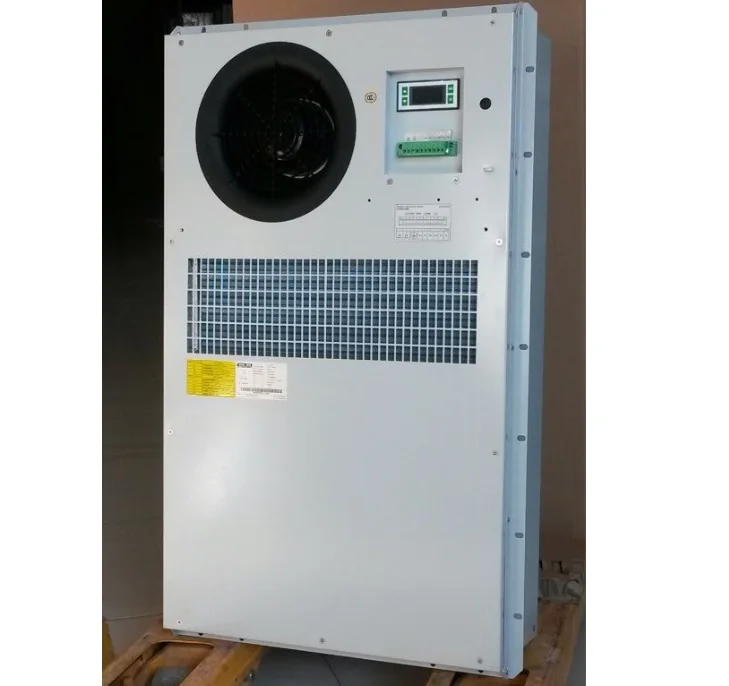

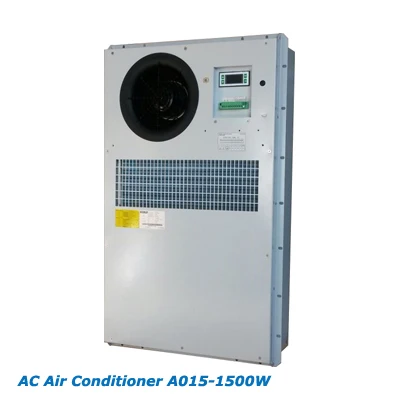

1500W 48VDC Industrial air conditioner cooling system for outdoor telecom cabinet AC D 1500

Product Overview

Description

1500W 48VDC Air conditioner cooling system for outdoor telecom cabinet and battery enclosure AC-D-1500



Product Description

Range of application

Ø This series product can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc;

Product Design Feature

Ø Designed with all DC driven components like fans, compressor;

Ø Precise temperature control through inverter digital regulation of compressor, fans;

Ø Power supply voltage range: DC44~59 V;

Ø A comprehensive sell-protection design to realize partial load starting, partial load operation at severe ambient condition;

Ø Low power consumption design with EER≥3.5, SEER≥ 5.5;

Ø Energy saving reach to 50% comparing with A.C. version product;

Ø IP55 environment protection & fit for T3 high temperature working condition by using of R134a refrigerant gas;

Ø The best cooling solution for solar, wind, disel generator etc,hybrid power system;

Ø Strict process control and international brand parts deployed to ensure high quality and reliable of this product;

Ø Multiple self protection design;

Ø LED Display, all the settings can be changed at the field;

Ø Dry contact alarm output,NO/NC optional;

Ø Equipped with communication interface; RS485



Technical Specification
Name	Outdoor Cabinet Air Conditioner
Model	AC-D-1500
Mounting Method	Semi-embedded mounting
Power Supply	48VDC
Cooling Capacity	1500W@L35/35
Power Consumption	395W@L35/35
Cooling Capacity	940W@L35/55
Power Consumption	490W@L35/55
Internal Airflow	400 m3/h
Working temperature range	-40℃~55℃
Max Noise Level	65dB(A)
IP Grade	IP55
Net Weight	45kg
Refrigerant	R134a
Dimension	1116x416x170mm(HxWxD)
CE and ROHS Compliant	Yes
Surface Treatment	Outdoor type powder coating, standard color: RAL7035










Payment & Packaging





Price Terms : FOB Tianjin, others can discuss

Payment Terms : T/T, at sight LC, others can discuss

Delivery time : 20-30 days

Package: wooden case

Remark: The price will changs with any requirement changes













Company Information

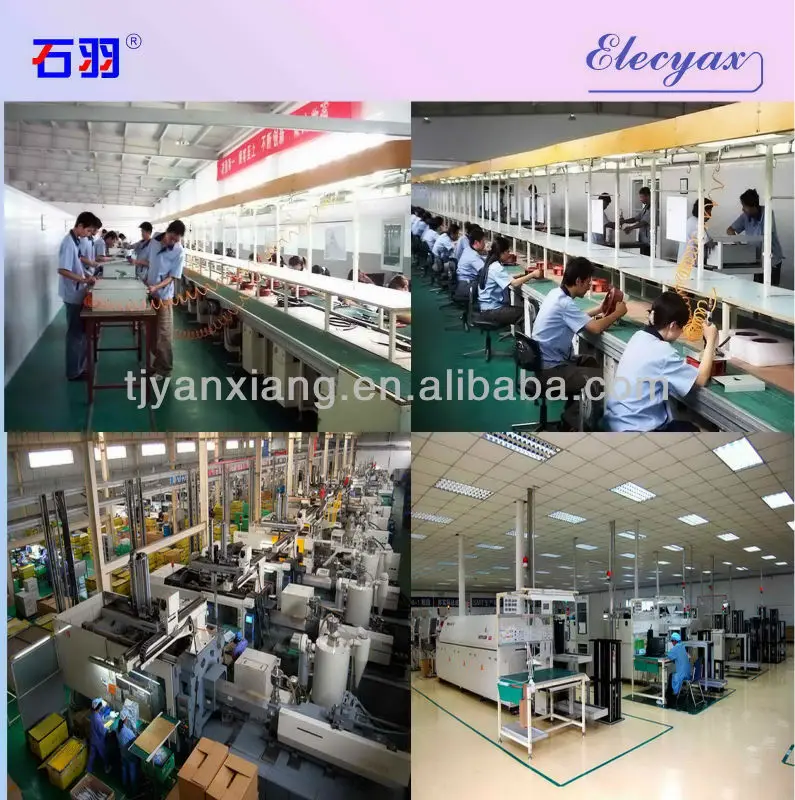

Yanxiang professional in power swichboard ,power battery cabinet, distribution cabinet , telecom network distribution box,high voltage substation cabinet ,telecommunication equipment ,electrical accessories, telecom rack cabinet ,Industrial solar air conditioning, Industrial heat exchanger etc, which can be widely used in the telecommunication, Power, energy ,engineer industries .
