Brake pad production line

Product Overview

Description





our factory is located in Pingyang ,Wenzhou City.established in 2000 ,and upgraded to limited company in 2013. we have powerful research and development ability and a group of skilled workers.so ,  we have many series of  hydraulic press machine :elbow cold forming machine ,tee cold forming machine ,door skin embossing press ,four column universal press machine , metal sheet deep drawing machine ,frame type press machine ,smc hot press machine ,hot forging machine ,hot extrusion machine ,paperboard deep embossing machine ,eva luggage machine,melamine machine  and so on.

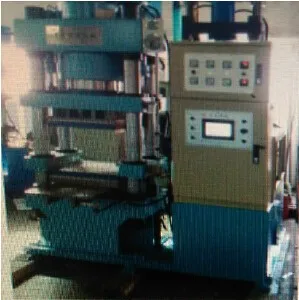

Features:This series of machines are special for brake pad of cars and motorcycle .low energy consumption,low noise,low oil temperature. The main oil cylinder adopts no flange structure to improve the leak resistance performance.the high hardness alloy steel used for main piston rod to increase the wear resistance.the totally enclosed structure for the oil box and electric box are dustproof.

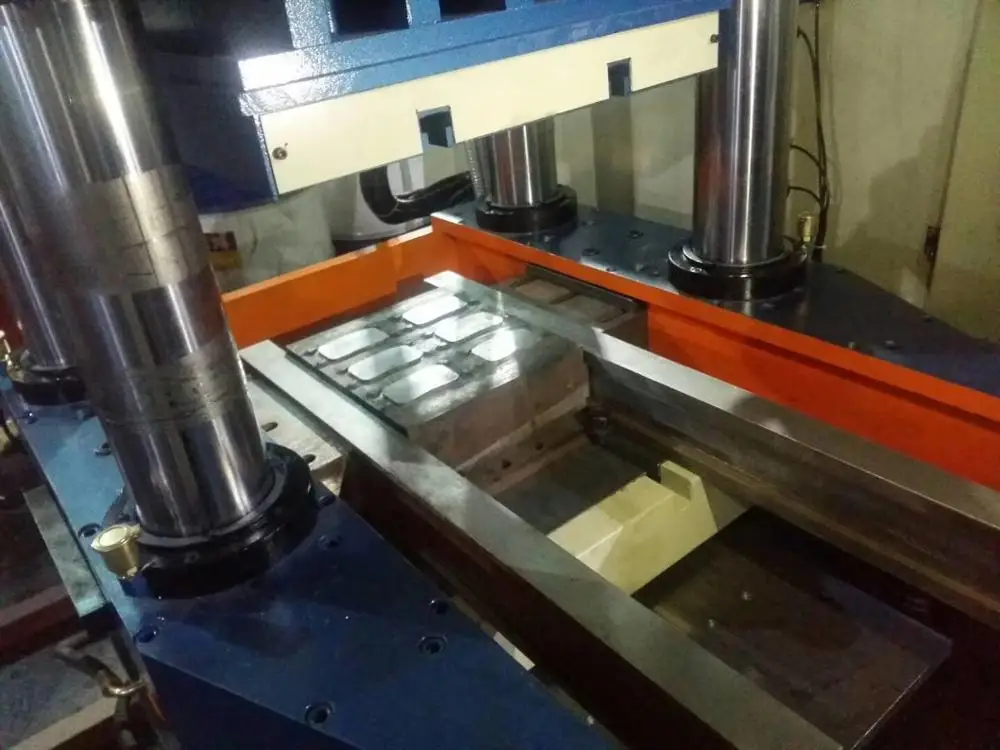

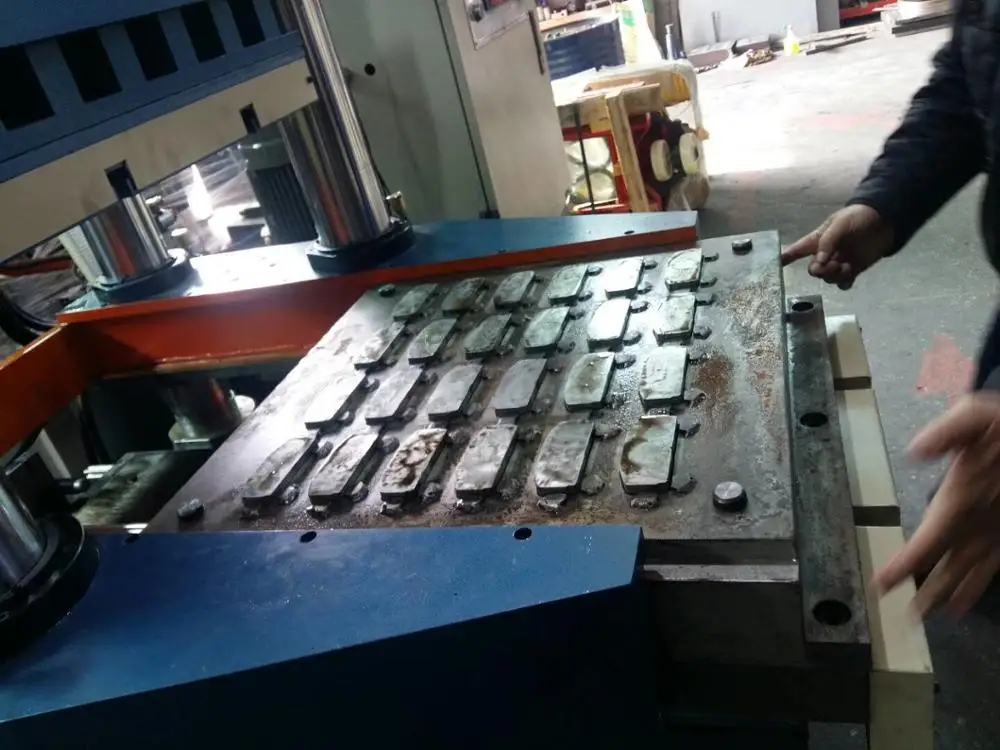

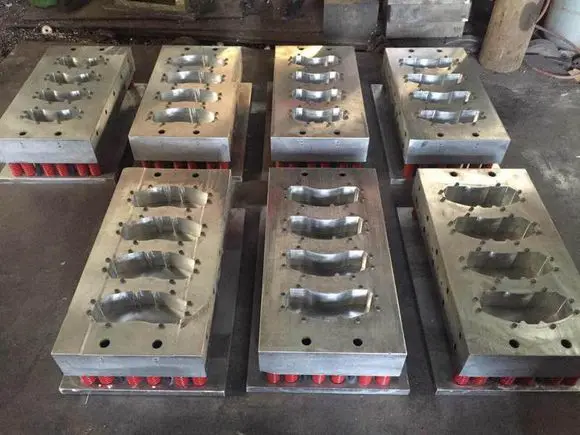

Advanced functions: feeding the steel back and the powder are done out of the machine to ensure the operation safety. During the pressing ,the middle mold will be locked automatically to avoid the leaking of the material. And can demold automatically. The bottom mold ,middle mold and the top mold can move automatically.which will make full use of the mold area ,and improve the production and save labor.

Item		unit
			Y71B-120	Y71B-200	Y71B-300	Y71B-400
Nominal force		KN	1200	2000	3000	4000
max stroke		mm	300	350	350	350
Max daylight		mm	350	420	420	420
Table size	Left-right	mm	450	500	500	600
	Front-back	mm	320	500	500	500
Motor power		KW	4	4	4	4
Heating power		Kw	6.4	9.6	9.6	12
Working table height		mm	750	750	750	750









Dear customers:
hi
First of all, thank you for choosing our products, at the same time of you choosing the products of our company, you will have the right to enjoy the good after-sales service of our company.

A. provide relevant technical advice for your company;

B. provide strong technical support for your company;

C. providerthe change or upgrade of electrical PLC program for free.

D. provide the drawings of some parts , for the user, convenient to replace the easy damaged parts after the warranty.

E. timely inform you of our products information such as the technology upgrade and improvement.

 F.Every product has 3 guarantees of one year.and provide cost  maintenance after one year.

G. if you participate in a major tender or equipment certification and need we send technical personnel to cooperate, we will actively cooperate with your work
