chemical water treatment of UV Sterilizer

Product Overview

Description

chemical water treatment

UV UV Sterilizer can instead chlorine in the water treatment without no secondary pollution and by-product. The unit is easily installed and requires less maintenance. It cost save and environment friendly.

Technical Parameters:

No.	Model	30mj/cm2           Flow rate		Lamp watts	Lamp Qty	Total Power	Lamp lifetime (hours)	Chamber Dimensions L*D*H(mm)		Inlet/Outlet
		GPM	m3/Hr
1	WGUV-5.5T40-2U	24	5.5	40W	2	100W	13000	960*101*233		G 1 1/4"outer thread







Features:
1. 304 stainless steel polished chamber. 316L s.s. is optional.
2. Max working pressure 7bar. Protection grade IP68.
UV monitor and automatic cleaning system is optional.
UV zero-leakage
Visual and audio alarm
No noise, easy installation and less maintenance

Applications:

Drinking water disinfection, tap water, pure water,
Food and beverage water, industrial process water.
3. Swimming pool and spa, scenery water, irrigation water.
4. Waste water disinfection
5. Cooling tower and RO system.



Spare Parts:

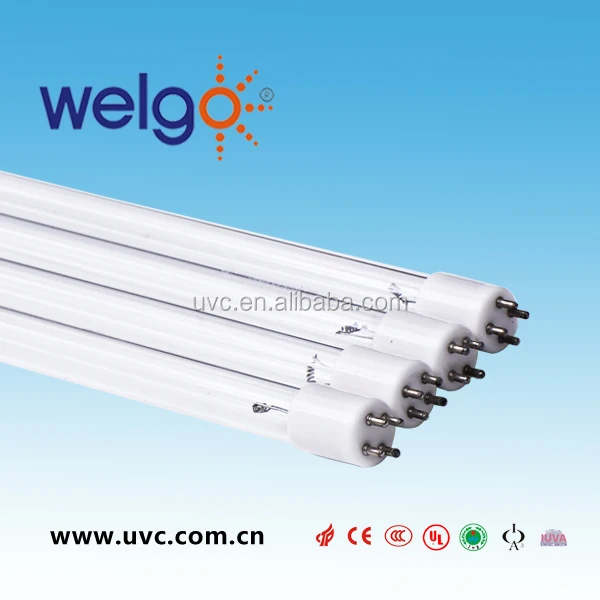

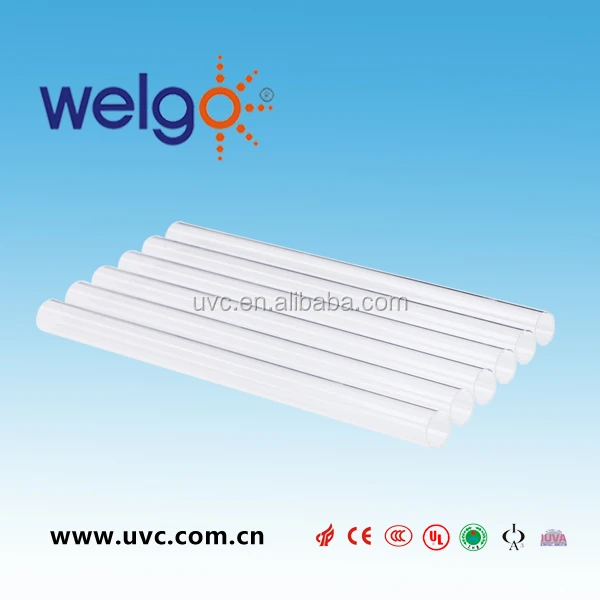

UV Lamps    Quartz sleeves

Ballasts

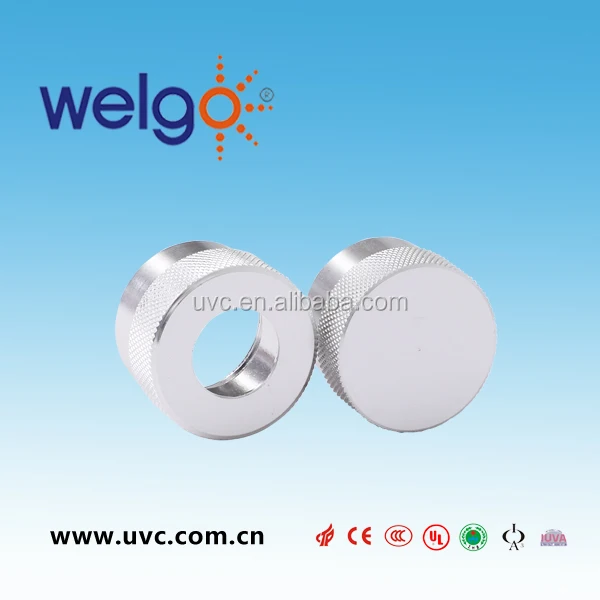

Brackets    Nuts

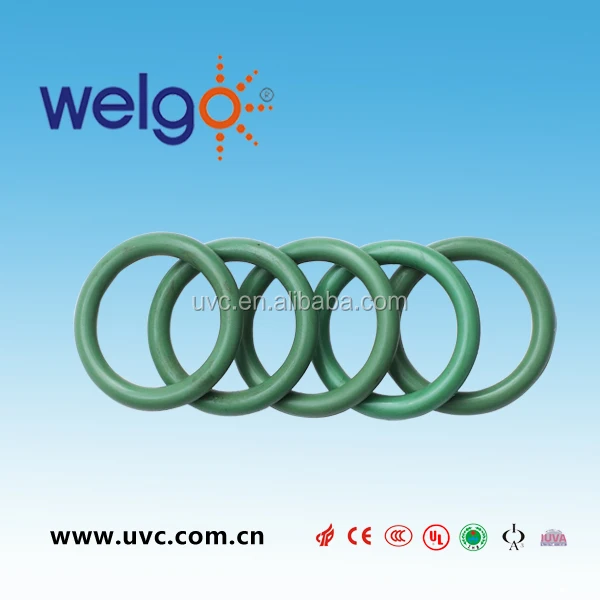

O'rings
