Product Overview
Description
Product Description

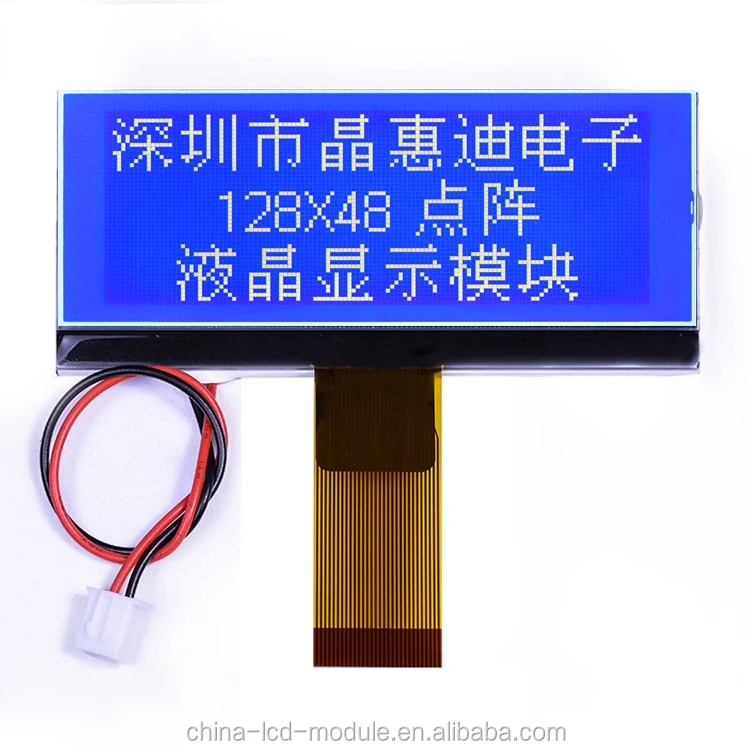

12848 3.3V voltage graphic lcd module JHD12848-G03PFWD-B
| Main Parameters | |
| Item | 12848 3.3V voltage graphic lcd module |
| Model name | JHD12848-G03PFWD-B |
| Color | white character over blue background |
| Pixel | 4096 |
| Resolution | 128*32 |
| Contrast Ratio | 300:1 |
| Brightness | white BL |
| Outline Dimension | 78.50(W)X35.70 (H)X5.20(T)mm |
| Viewing Area | 75.50(W)X 28.20(H)mm |
| Active Area | 66.52(W)X 24.91(H) mm |
| Resolution | 128*48 |
| Dots | 128*48 |
| Pitch | 0.37mm |
| Drive Power Supply Voltage | 3.0V/3.3V |
| Viewing Angle | 6.00 o'clock |
| Operation Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C~ +80°C |
| Display Mode | FSTN, negative, white character over blue background |
| FPC Length | 30mm |
| Response Time | 100ms |
| IC | ST7565R |
| IC Packaging | COG |
According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we can match all accessories which inclusive of driver board,LED backlight & LVDS cables.
| Main Application | |
| Telecommunication Devices | Telephone, Interphone, watch, radio, etc. |
| Home Appliances | Washing Machine, Refrigerator, Home Integrator |
| Industrial Control | Homotaxial Numerically-controlled machine tool |
| Instrument and Apparatus | Tester, Medical instruments |
| Vehical-mounted Digital | MP3, MP4 and vehical-mounted air conditioner |
| Mining | Mine's lamp charger, gas tester |
| Marine | Salinity tester |
ODM is accepted.
Various LCD Display Mode Available
Various Backlight Color Available
Various Temperature Range Available
Lcd display product range
1) TN, STN, FSTN LCD panels / modules
2) Customized LCD panels / modules
3) Small(1.5 inch-7 inch)TFT LCD

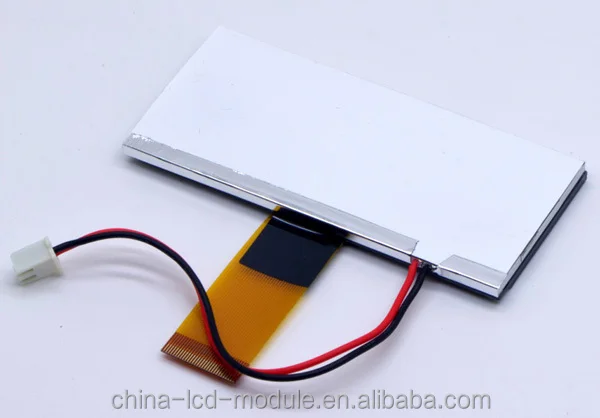

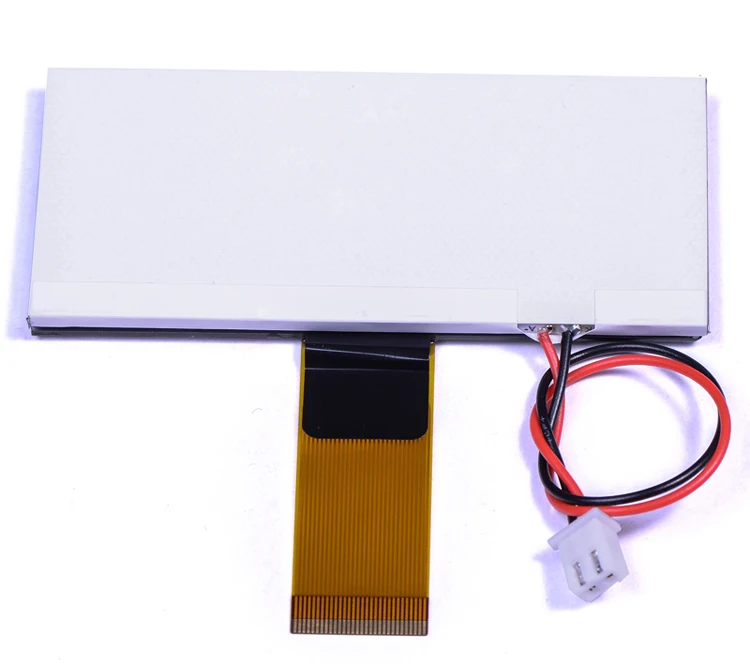

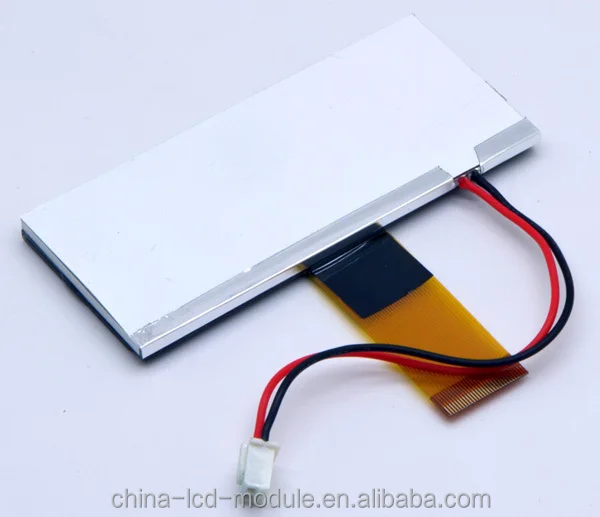

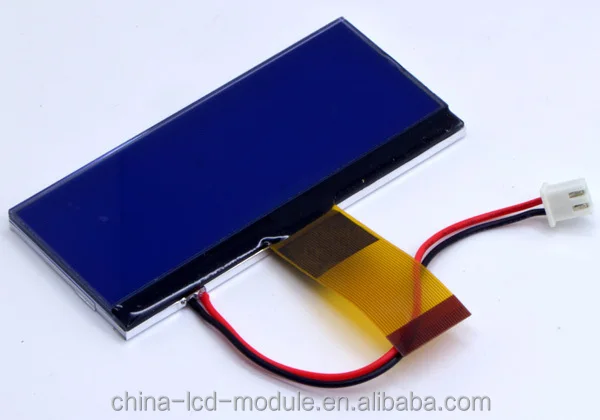

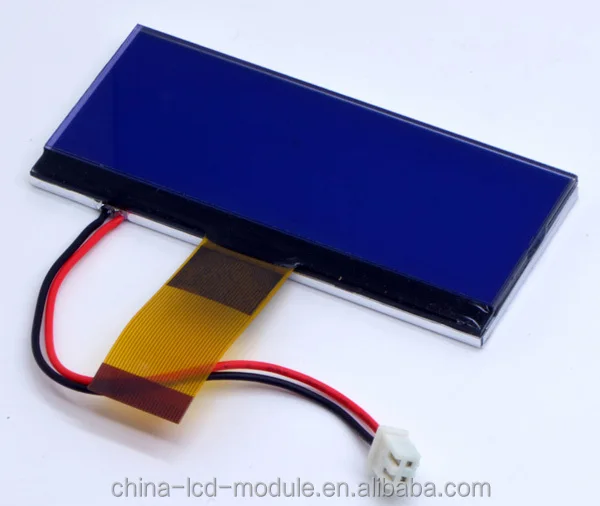

12848 3.3V voltage graphic lcd module product showing:
Packaging & Shipping
Packaging and Delivery:
1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.
2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
12848 3.3V voltage graphic lcd module JHD12864-G03PFWD-B Production Procedures in Our Plant:
Payment Terms: T/T, L/C etc.
Shipping: Any shipping way you can choose, UPS/ FEDEX/ DHL/ EMS.
PS: the shipping fee which you must pay for it. But we will give you the best price of shipping fee, pls do not worry about it.
FSTN LCD Module list:
| Size | FSTN Display Part No. | Back Light | Interface | Resolution | Pixels | Contrast Ratio |
| 1.5" | JHD12864-G152BTB-G | 2 blue leds | SPI 12PIN 0.8mm PIN gap | 128X64 | 8192 | 300:1 |
| 1.5" | JHD12864-G152BTC-G | 2 Orange LEDs | SPI 12PIN 0.8mm PIN gap | 128X64 | 8192 | 300:1 |
| 1.5" | JHD12864-G152BTW-B | 2 White LEDs | SPI 12PIN 0.8mm PIN gap | 128X64 | 8192 | 200:1 |
| 1.5" | JHD12864-G152BTW-BL | 2 White LEDs | SPI 12PIN 0.8mm PIN gap | 128X64 | 8192 | 300:1 |
| 1.5" | JHD12864-G152BTW-Y | 2 White LEDs | SPI 12PIN 0.8mm PIN gap | 128X64 | 8192 | 200:1 |
| 1.5" | JHD12864-G152BTW-BW | 2 White LEDs | SPI 12PIN 0.8mm PIN gap | 128X64 | 8192 | 200:1 |
