Fiber Optic DWDM Transceivers
- Category: >>>
- Supplier: Hangzhou OpticTrans Communication Tech. Co. Ltd.
Share on (60113014704):

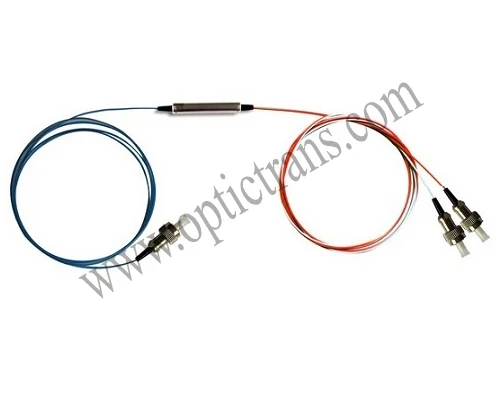

Product Overview
Description
Features
(1)Low insertion loss
(2)Low PDL
(3)High channel isolation
(4)Excellent environmental reliability
Applications
(1)WDM system
(2)CATV
DWDM can realize the multiplexing and de-multiplexing between two communication channel, and available on ITU channel spacing of 100/200GHz.It can expand the capacity of single fiber to achieve bidirectional communication, which can widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
Specifications
Parameters | Unit | OP-DWDM Device | |
Operating Wavelength | ITU channels 186.6 to196.1 THz | ||
Channel Space | Ghz | 100 | 200 |
Channel Center Wavelength | nm | ITU Grid | |
Center Wavelength Accuracy | nm | ±0.05 | ±0.1 |
Channel Pass-band (@-0.5dB) | nm | ≥0.22 | ≥0.5 |
Insertion Loss | dB | Transmission: ≤ 0.9 | |
Reflection: ≤ 0.4 | |||
Adjacent Channel Isolation | dB | ≥ 30 | |
Non-adjacent Channel Isolation | dB | ≥ 45 | |
Reflection Channel Isolation | dB | ≥ 12 | |
PDL | dB | ≤ 0.1 | |
PMD | ps | ≤ 0.1 | |
Return loss | dB | ≥ 45 | |
Directivity | dB | ≥50 | |
Optical Power | mW | ≤ 500 | |
Operating Temperature | ℃ | -10 ~ +70 | |
Storage Temperature | ℃ | -40 ~ +85 | |
Relative Humidity | % | 5 ~ 95 | |
Dimension | mm | Φ5.5×34 | Φ4.2×25 |
Note: 1. Customization is available. 2. Specified without connector, and add an additional 0.2dB loss per connector. | |||
Dimension

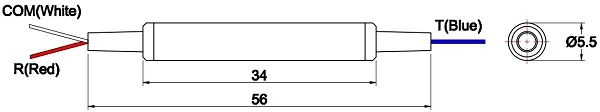

5534: Φ5.5×34 mm

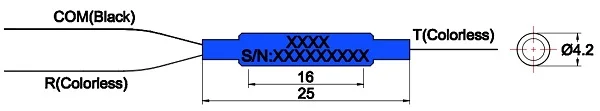

4225: Φ4.2×25 mm
Ordering Information: OP-DWDM-A-B-C-D-E
A | B | C | D | E |
Channel Center Wavelength | Tube Type | Fiber Length (Include connector) | Connector | Dimension |
Txx: Txxxxnm (xx =Channel Number) eg. T57: T1531.9nm | 25:250um 90:900um X: Others | 05: 0.5m±0.05m 10: 1.0m±0.05m 15: 1.5m±0.05m X: Others | OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others | 5534: Φ5.5×34mm 4225: Φ4.2×25mm X: Others |
