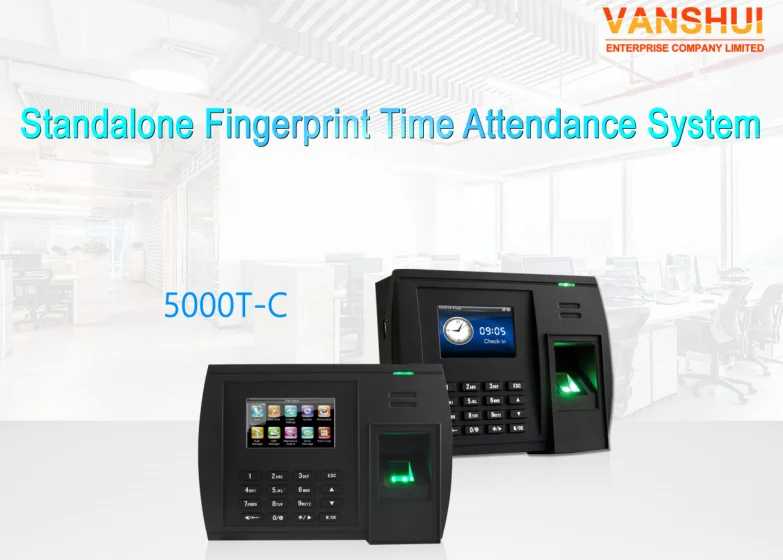

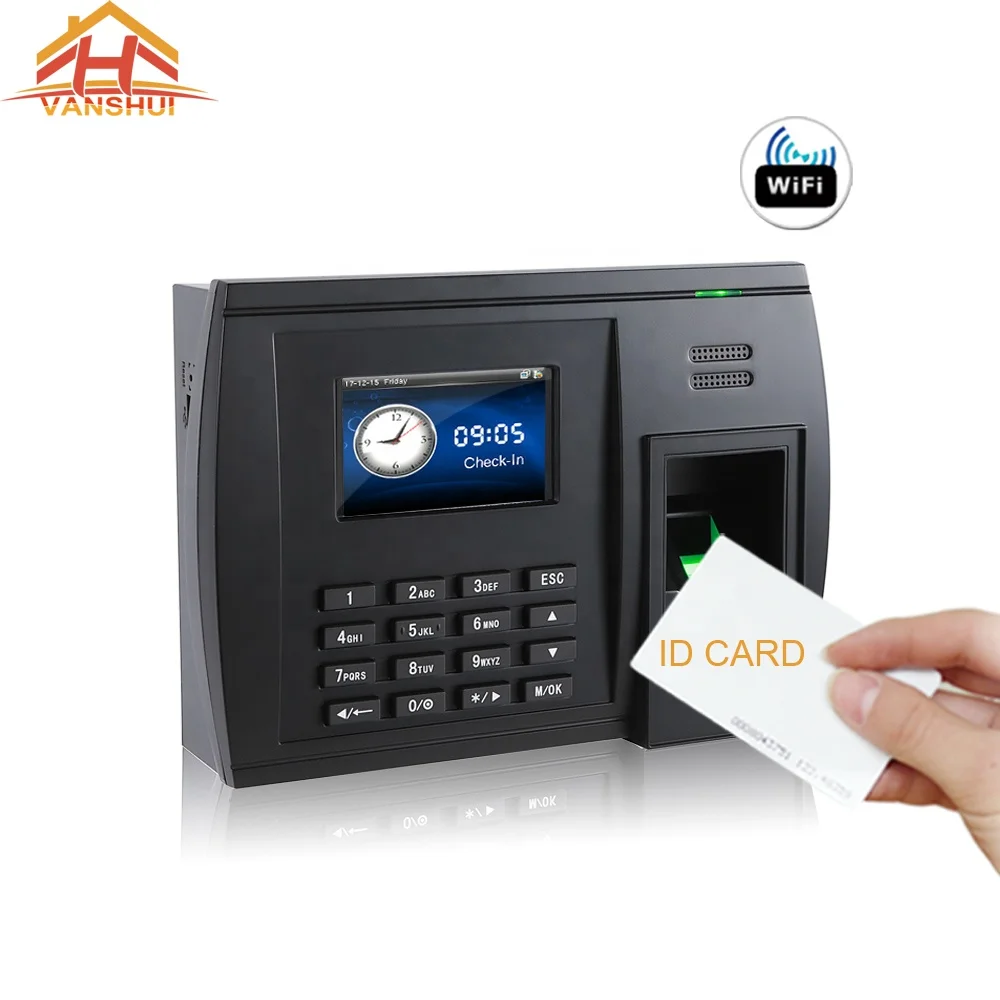

RFID Card and Biometric Fingerprint Time Attendance System with WIFI Function

LCD Display

3’’ TFT high-definition graphical interface

Language

Multi-language, English, French, Spanish, Arabic, etc., for more than 40 language can be selected

Speaker

Voice prompt (language can be selected)

Capacity

Fingerprint: 3,000; Logs: 100,000; ID Card: 10,000 cards

Verification

Verification speed(1:1)≤0.5s

Identification speed(1:N): ≤1s

Identification

FRR≤0.01%,  FAR≤0.0001%

Environment

Operation temperature: 0℃ ~ 45℃, Operation humidity: 20% ~ 80%

Communications

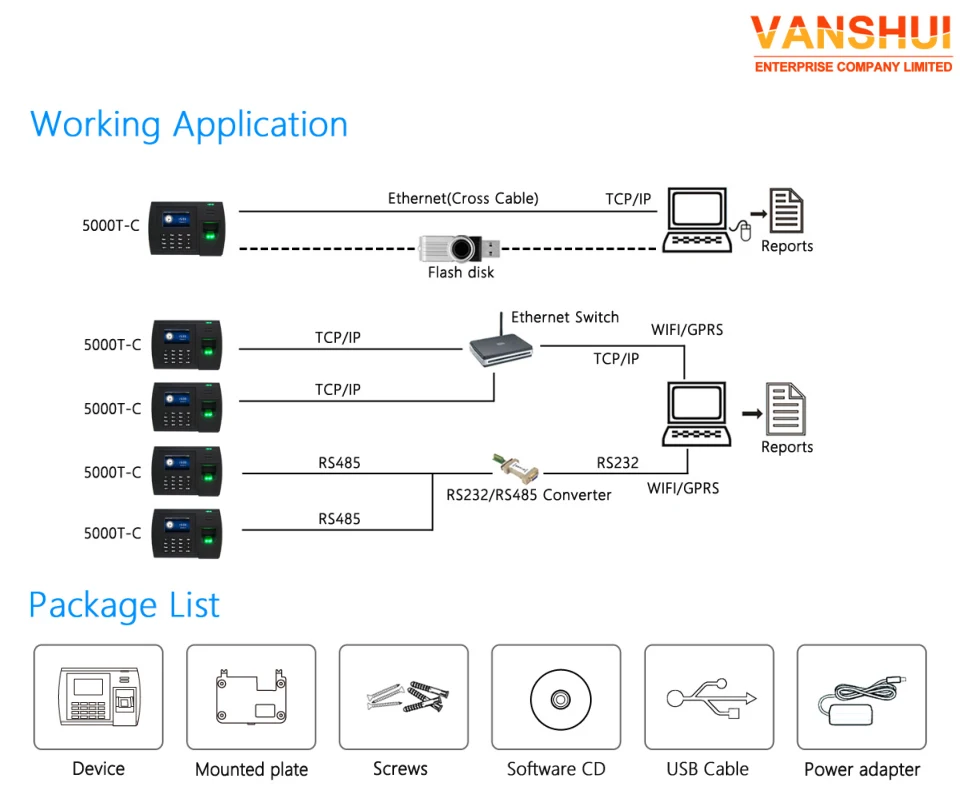

WIFI,TCP/IP, USB-Host/Client,RS232/485

Attendance Status

Check in/out; Break in/out; Overtime in/out

Power Supply

110/220VAC-12VDC/1.5A

Packing Info.

Machine size: 20.5(L)*14.5(W)*5(H)cm

Unit packing:28*23*10cm

Carton packing:50*30*30cm

Real weight:1.2kg

Volume weight:1.5kg

Function Support

Scheduled bell, Work-code, SMS, Auto status, DST, Log query

Distinctive Functions

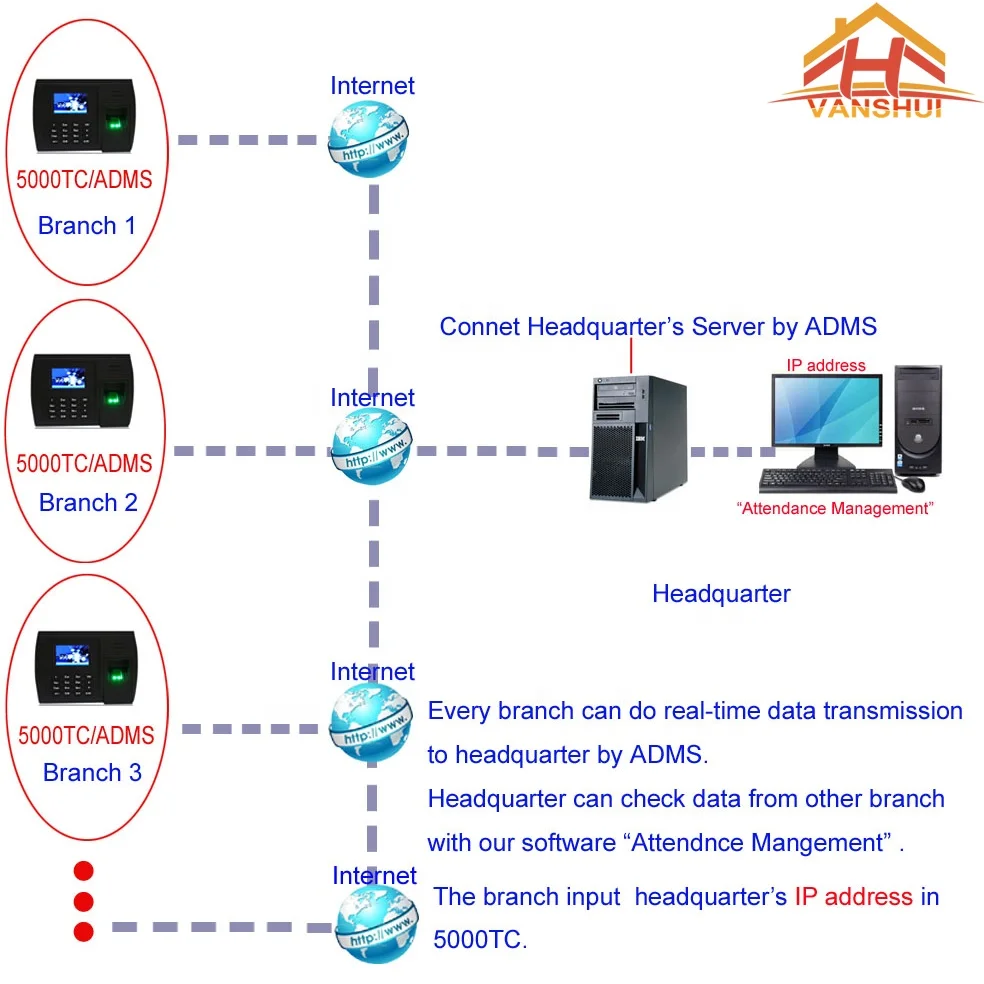

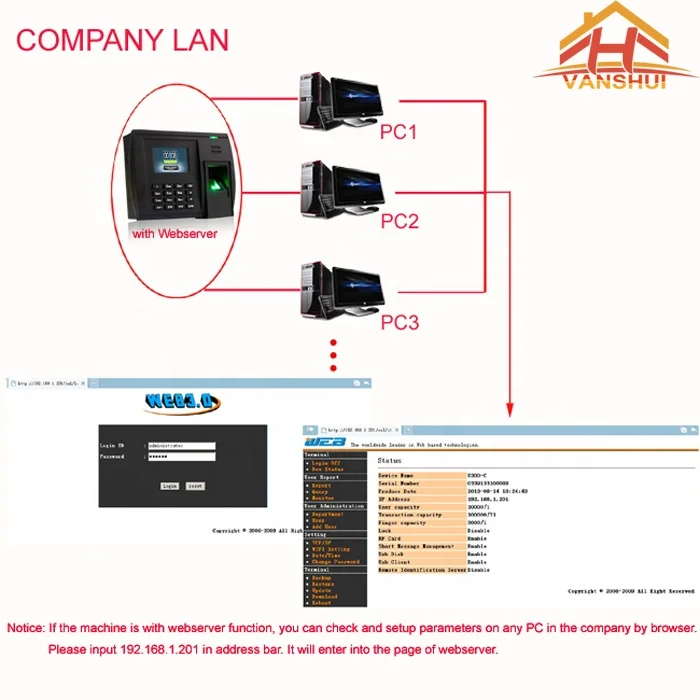

User role management, Fingerprint expired date setting, Shortcut Key setting, Fingerprint image display, Main-screen picture change, External bell, Webserver, ADMS; Photo-ID; T9 Input

Optional Function

MF card reader; GPRS Function; Printer output; 9-PIN user ID

5000T-C ORDER ITEMS

5000T-C

Fingerprint time attendance system

5000T-C+ID

Fingerprint time attendance system built-in ID reader

5000T-C+MF

Fingerprint time attendance system built-in MF reader

5000T-C+Wifi

Fingerprint time attendance system with Wifi function

5000T-C+GPRS

Fingerprint time attendance system with GPRS function

5000T-C+ID+Wifi

Fingerprint time attendance system with ID and Wifi function

5000T-C+MF+Wifi

Fingerprint time attendance system with MF and Wifi function

5000T-C+ID+GPRS

Fingerprint time attendance system with ID and GPRS function

5000T-C+MF+GPRS

Fingerprint time attendance system with MF and GPRS function
