KSD301 G 16A 250V/125V Ceramic Thermostat

Product Overview

Description

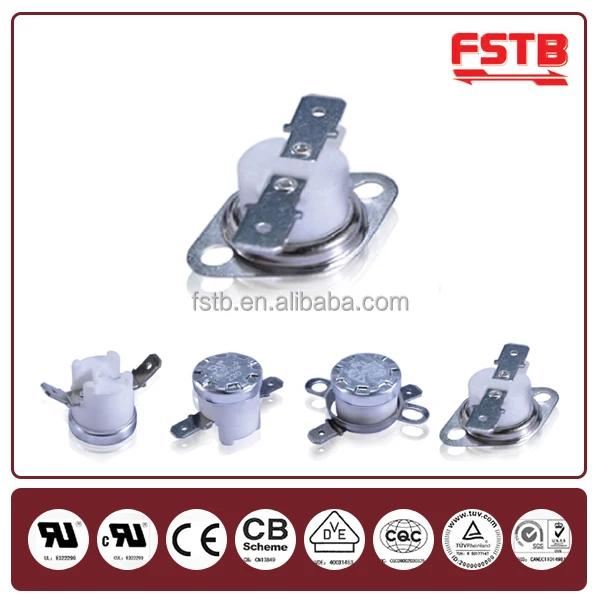

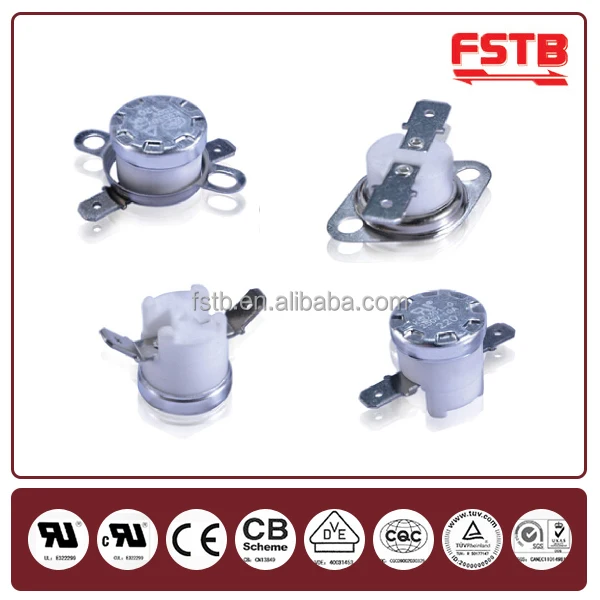

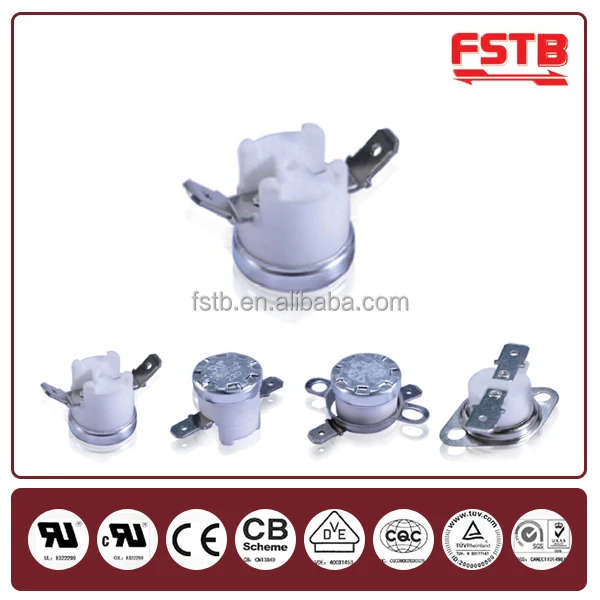

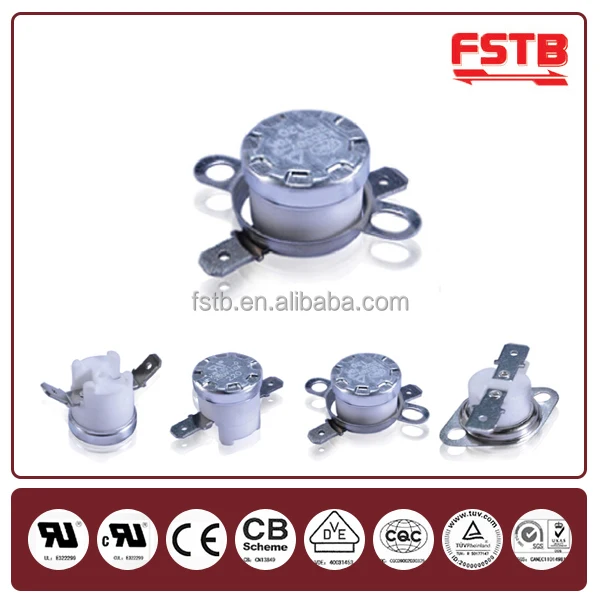

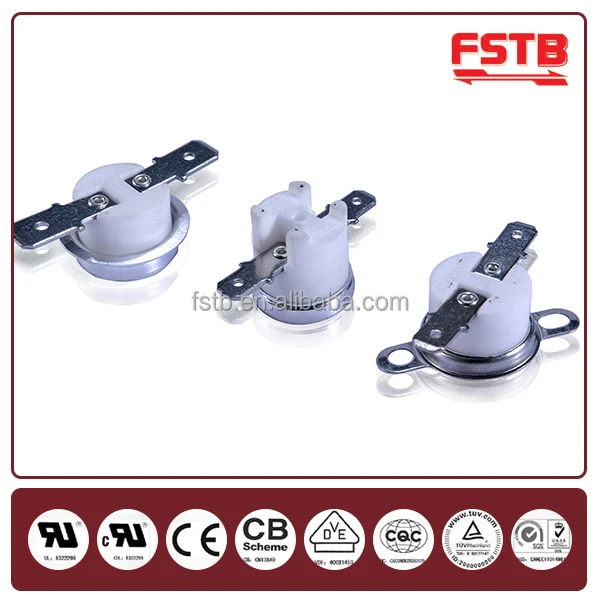

KSD301-G 16A 250V/125V Ceramic Thermostat



Description of KSD301 thermostat:



KSD301-G series 16A 250V/125V ceramic auto thermostat is a kind of miniature hermetically sealed bimetal thermostat(1/2" disc). It is of single-pole single-throw structure and works under resistive load.KSD301-G series 16A 250V/125V ceramic auto thermostat is in wide use in a great variety of small home appliances.









Advantages of KSD301 thermostat:



Easy mounting.



High precision.



High durability.



Rapid heat transmission.



No breakdown, no flashover.



Every product will be tested, extremely high temperature pass rate.



Parameters of KSD301 thermostat:

Use	Temperature control/Overheat protection
Appliance	Coffee maker/ Drinking machine/toaster/Microwave oven/ Heating/ Portable Refrigerator/etc
Reset type	Automatic
Base material	ceramic base
Amperage	5A/10A/16A
Max. Operating Temperature	220°C
Differential	Refer to the regulation
Tolerance	Refer to the regulation
Protection class	IP00
Contact material	Silver/Gold
Dielectric Strength	Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.
Insulation Resistance	With a DC 500V megger, borne DC 500V, the tested value is over 10MW.
Resistance Between Terminals	Below 50mW
Temperature characteristics	Normal type: OFF temperature higher than ON temperature.(Normal close) K type: ON temperature higher than OFF temperature.(Normal open)
Maximum ambient temperature	280°C(Long period) 310°C (Less than 15 min)
Diameter of bimetal disc	Φ 12.8mm(1/2″)
Approvals	UL/CQC/TUV
Terminal type	Customized (Refer to our specification)
Cover/Bracket	Customized (Refer to our specification)





Dimension of KSD301 thermostat:







Safety certificate of KSD301 thermostat:



Max. OT	Life	250V 5A	250V 10A	125V 16A	250V 16A
150°C	100,000	UL, sec. 2	UL, sec. 4	UL, sec. 4
160°C	100,000		CQC,TÜV
190°C	30,000	CQC
	60,000		CQC		TÜV
220°C	30,000		CQC,TÜV
	100,000		UL, sec. 2	UL, sec. 2





Thermostats recommendation:

















Our Company:



FSTB began to manufacture thermostats in 1982, with many years of development, FSTB became the leading thermostat manufacturer in market and scale of industry worldwide, it has 10 sub-companies with professional bimetal raw material development and production base in upstream of industrial chain,as well as various kinds od thermostats and protectors production base in the downstream of industrial chain.





NOTE: TERMINALS AND COVERS OF THE SNAP-ACTION 16A 250V/125V CERAMIC MANUAL THERMOSTAT CAN BE CUSTOMIZED UNDER YOUR REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT FSTB THERMOSTATS.
