OP DWDM TAWG Thermal AWG DWDM Module

Name: OP DWDM TAWG Thermal AWG DWDM Module
SKU: 60114326801
Availability: InStock

Price:

Quantity:

The specifications serve for C-band 80 channels Flat-top MUX/DEMUX Athermal AWG module in DWDM system.

Optical Specifications

Parameters	Specifications		Units	Notes
Parameters	Min	Max	Units	Notes
Channels	80		Ch
Channel Spacing	50		GHz
Reference Pass- band	± 0.05		nm	Relative to ITU Grid
ITU Frequency	196.05	192.1	THz	On ITU grid in C-band
ITU Wavelength	1529.163	1560.606	nm	On ITU grid in C-band
Center Frequency Accuracy	-0.024	0.024	nm	Maximum of the absolute deviation of the 3 dB center wavelength from ITU grid over all channels
Insertion Loss		7	dB	Maximum of the insertion loss across the ITU pass-band over all channels
Insertion Loss Uniformity		1.5	dB	Maximum insertion loss variance across all channels
Ripple		0.7	dB	Maximum of the loss variance across the ITU pass-band over all channels
1dB Bandwidth	0.18		nm	1dB from min Insertion Loss, full width, average polarization
3dB Bandwidth	0.28		nm	3 dB from min Insertion Loss, full width, average polarization
20 dB bandwidth		0.7	nm	20 dB from min Insertion Loss, full width, average polarization
Adjacent Channel Isolation	25		dB	Ratio of peak transmission to the maximum transmission over both adjacent pass-bands
Non-Adjacent Channel Isolation	30		dB	Ratio of peak transmission in channel pass- bands to maximum transmission over all non-adjacent pass-bands
Total Crosstalk	20		dB	Ratio of power in channel to power in all other pass-bands
Polarization Dependent Loss		0.5	dB	Maximum ratio of transmissions over all polarization states, over the ITU pass-band
Return Loss	40		dB
Polarization Mode Delay (PMD)		1	ps	In Reference Pass band over all channels
Chromatic Dispersion	-35	35	ps/nm	In Reference Pass band over all channels

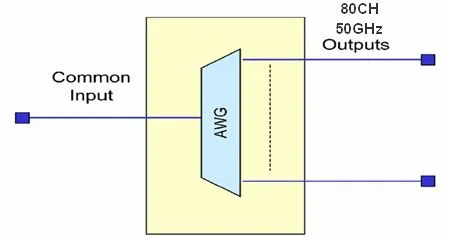

Optical signal transmission diagram

Fiber Type: SMF-28 900um compliant

Environmental Conditions

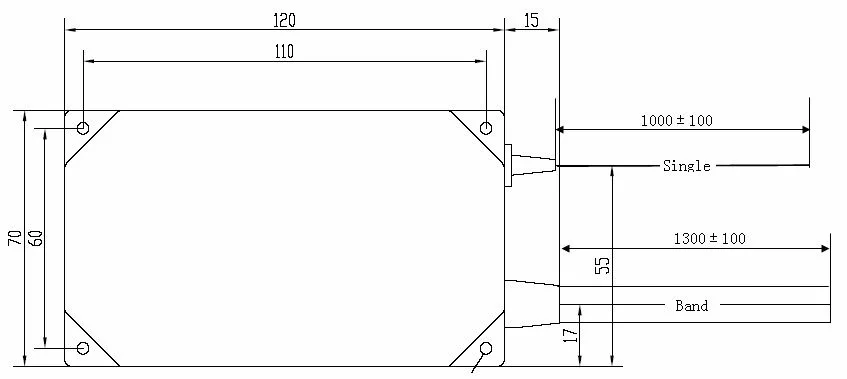

Mechanical Dimensions

120 mm x 70 mm x 10 mm

The screw space is 110*60 mm
